product name

LG MA795B.CBKEGSE

Model: MA795B.CBKEGSE

Save Part Not Listed?
product name

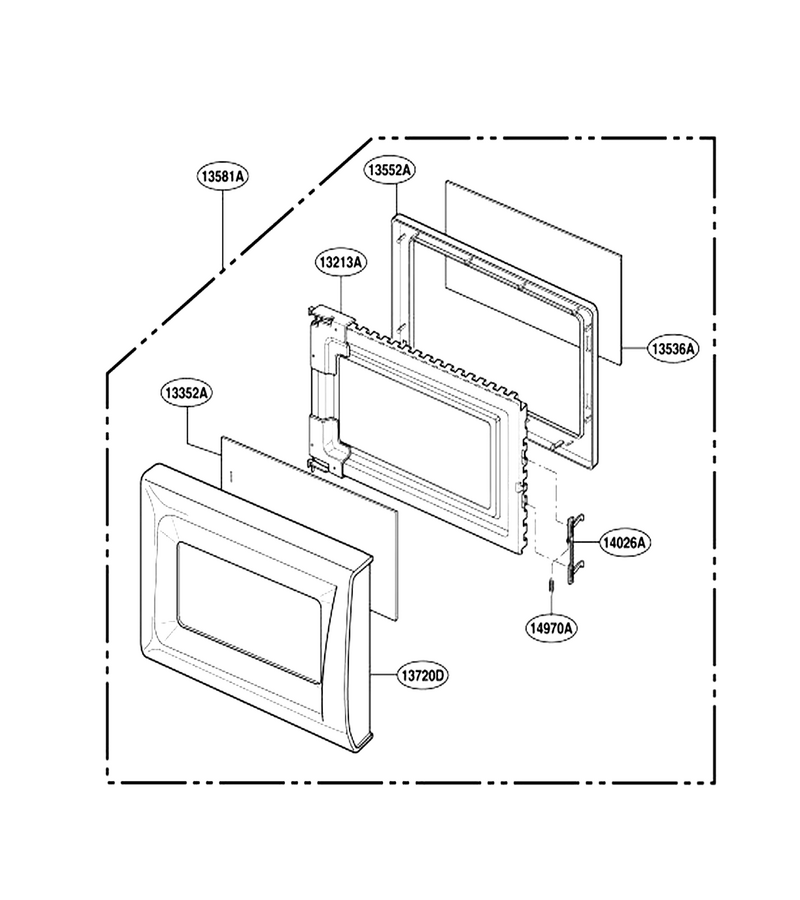

Door Parts

...
...
13213A
Frame Assembly,door L-G-3213W1A045C
...
13352A
Window,screen L-G-3352W1A133C
...
13536A
Tape,sealing L-G-3536W3A011Z
...
13552A
Cover,choke L-G-3552W1A058A
...
13581A
Door Assembly L-G-3581W1A313B
...
13720D
Panel,door L-G-3720W0D212B
...
14026A
Locker L-G-4026W2A024A
...
14970A
Spring L-G-4970WRA001B

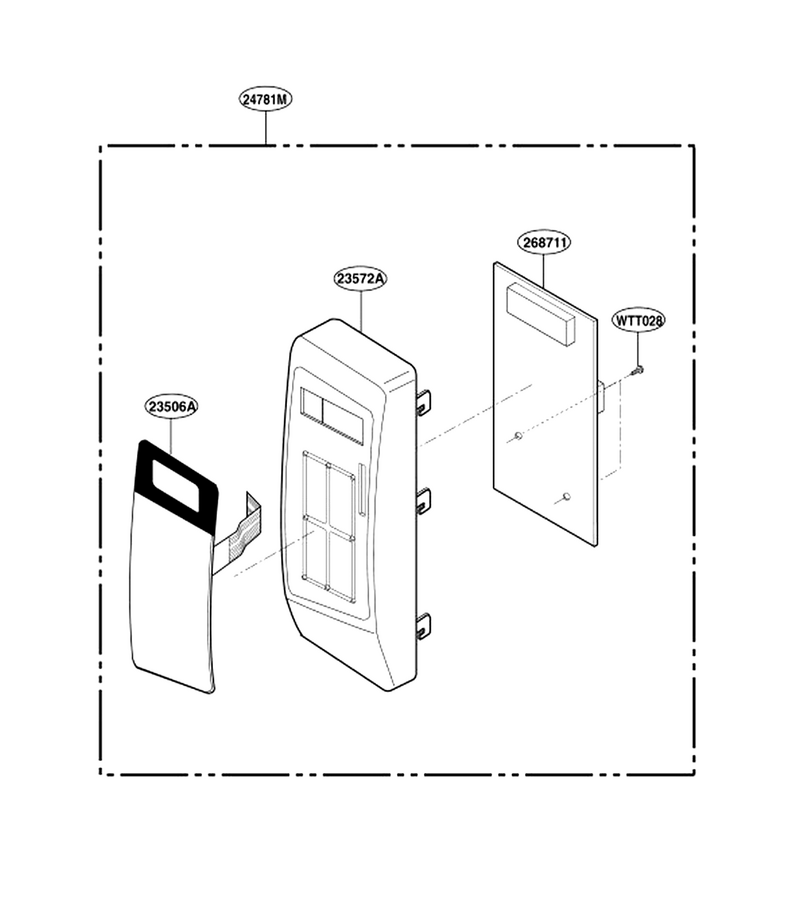

Control Panel Parts

...
...
WTT028
Microwave Screw L-G-1TTL0402818
...
23506A
Membrane L-G-3506W1A164B
...
23572A
Panel,control L-G-3572W0A271B
...
24781M
Controller Assembly,keypad L-G-4781W1M279B
...
268711
Pcb Assembly,sub L-G-6871W1S103G

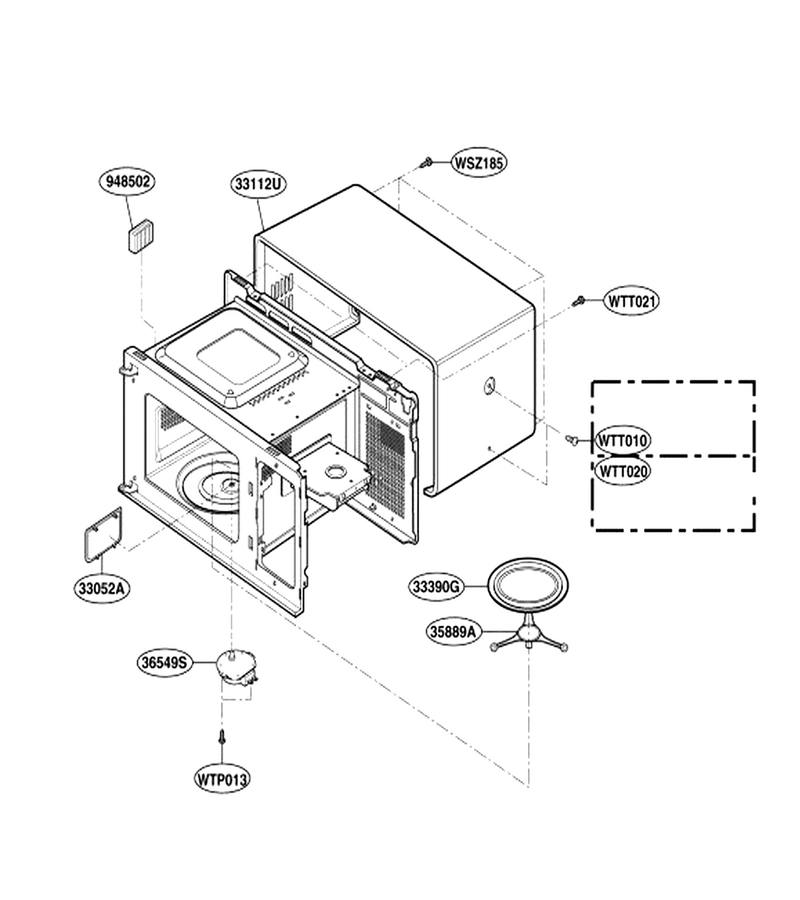

Oven Cavity Parts

...
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT020
Screw L-G-1TTL0402416
...
WSZ185
Screw L-G-1SZZW2A002A
...
WTP013
Microwave Screw L-G-1TPL0402418
...
33052A
Canopy Resistor L-G-3052W1A002A
...
33112U
Case,u Bending L-G-3112W0U045M
...
33390G
Tray,glass L-G-3390W1G005D
...
35889A
Turntable Assembly L-G-5889W2A013E
...
36549S
Microwave Turntable Motor L-G-6549W1S011B
...
948502
Cushion L-G-4850W1A001K

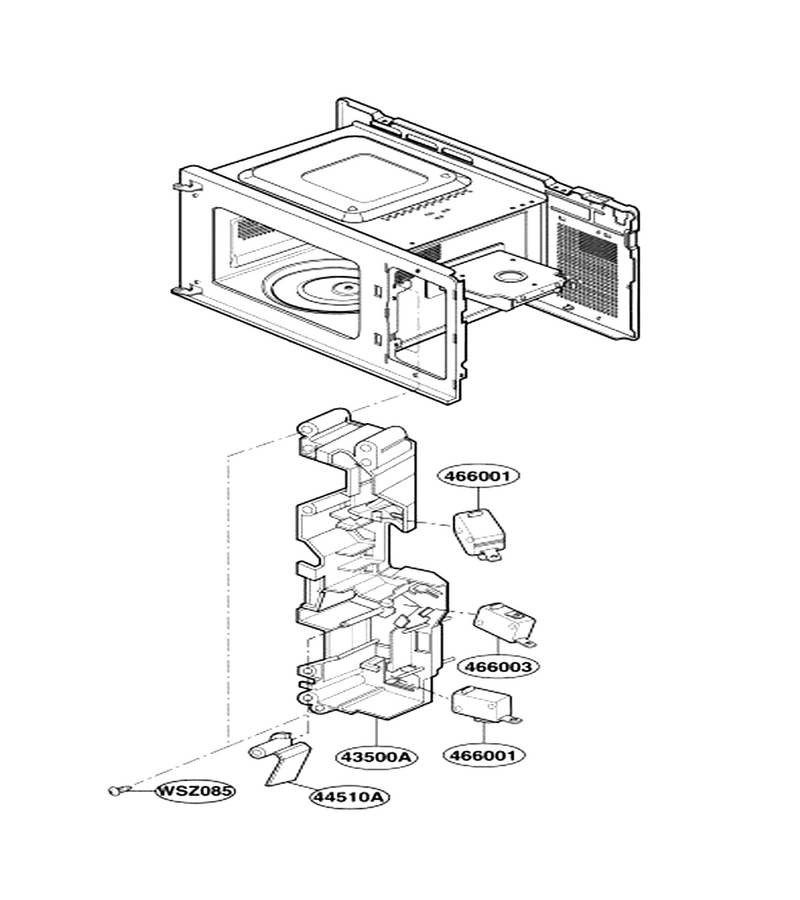

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Holder,locker L-G-3500W1A011A
...
44510A
Lever L-G-4510W3A012A
...
466001
Switch,micro L-G-6600W1K003D
...
466003
Switch,micro L-G-6600W1K003C

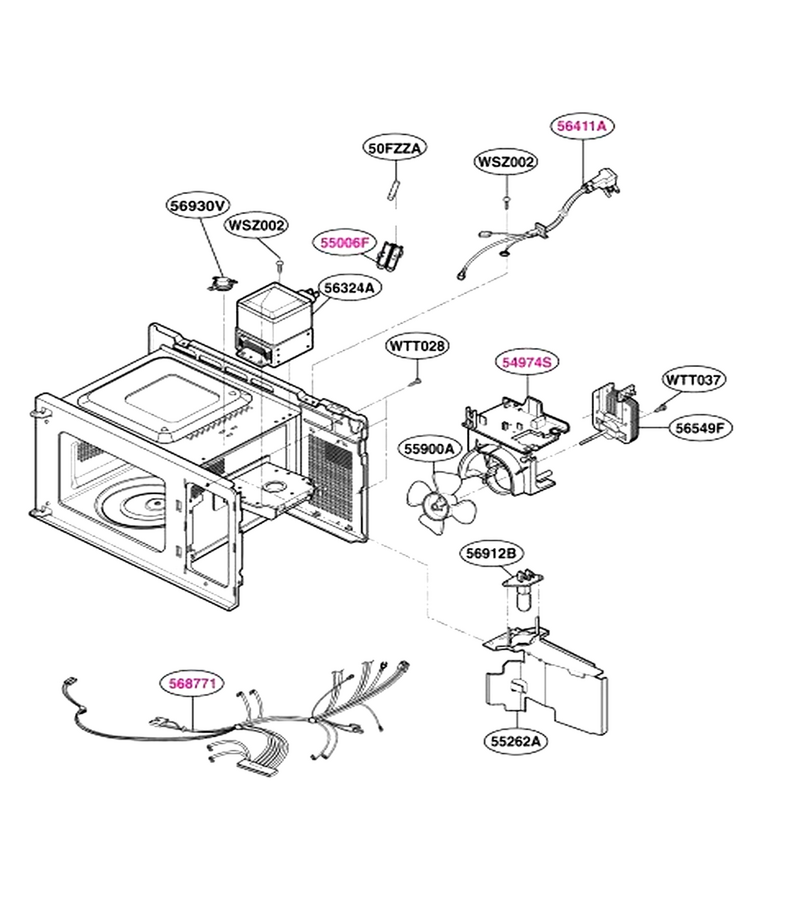

Interior Parts I

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
50FZZA
Fuse,time Delay L-G-3B74133P
...
54974S
Guide,suction L-G-4974W1A009A
...
55006F
Cap Fuse L-G-5006WRA002D
...
55262A
Duct L-G-5208W1A013A
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A004A
...
56324A
Magnetron L-G-6324W1A004B
...
56411A
Power Cord Assembly L-G-6411W1A036H
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005B
...
56912B
Lamp,incandescent L-G-6912W3B002K
...
56930V
Microwave Thermostat L-G-6930W1A003A
...
568771
Harness,single L-G-6877W1A227F

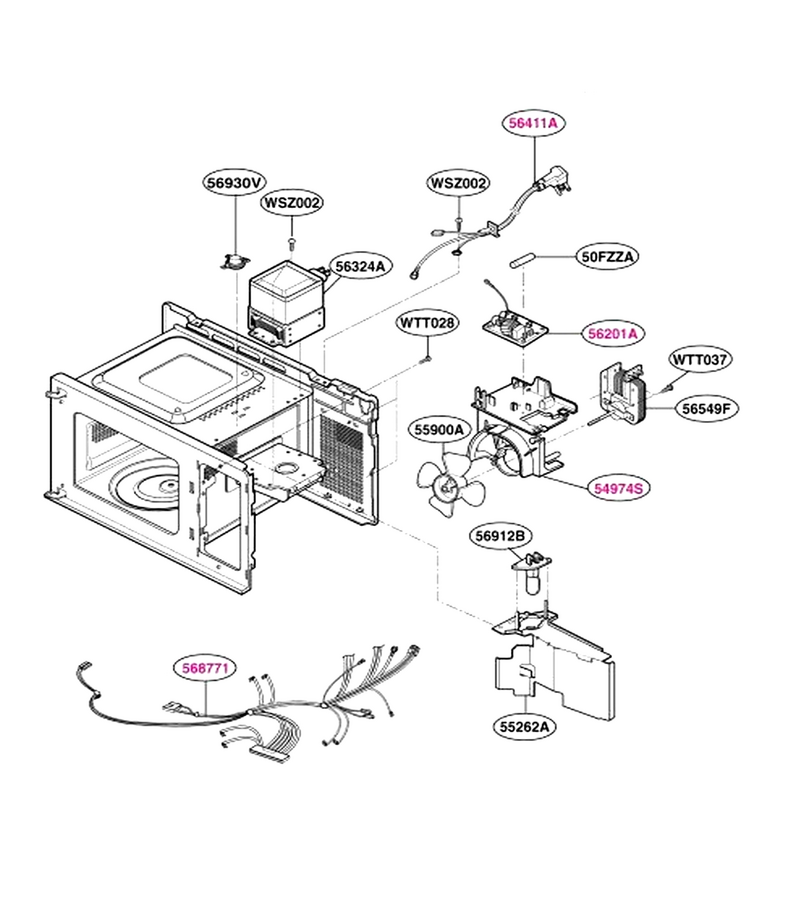

Interior Parts Ii

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
50FZZA
Fuse,time Delay L-G-3B74133P
...
54974S
Guide,suction L-G-4974W1A009A
...
55262A
Duct L-G-5208W1A013A
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A004A
...
56201A
Filter Assembly L-G-6201W1A014C
...
56324A
Magnetron L-G-6324W1A004B
...
56411A
Power Cord Assembly L-G-6411W1A036H
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005P
...
56912B
Lamp,incandescent L-G-6912W3B002K
...
56930V
Microwave Thermostat L-G-6930W1A003A
...
568771
Harness,single L-G-6877W1A227F

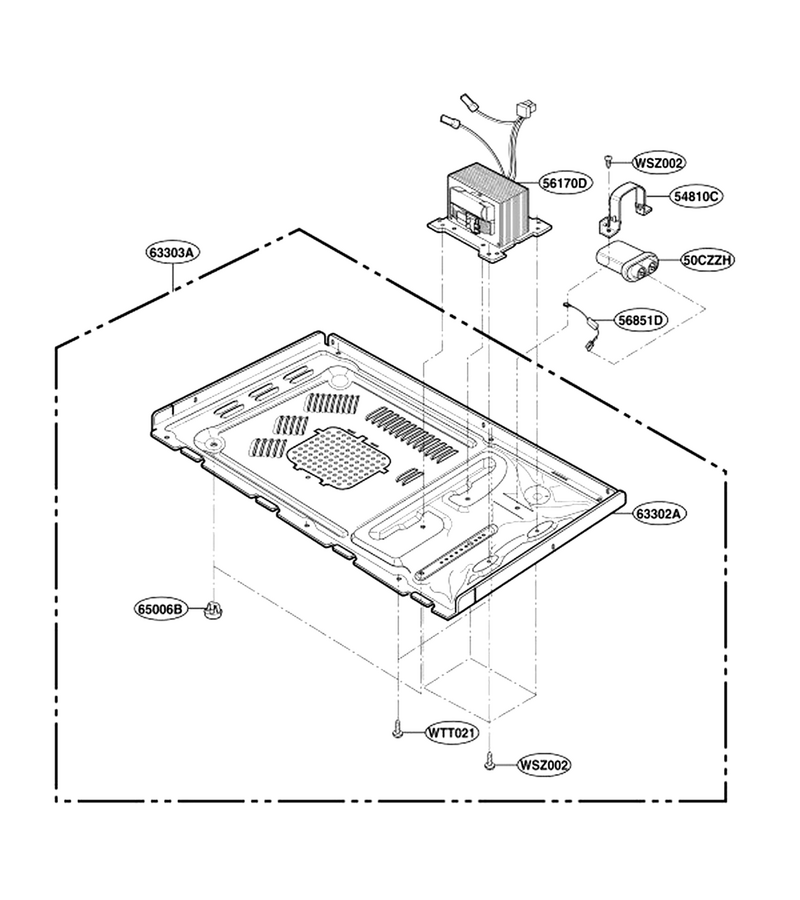

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
50CZZH
Capacitor,high Voltage L-G-0CZZW1H004N
...
54810C
Bracket,capacitor L-G-4810W3C003A
...
56170D
Transformer,high Voltage L-G-6170W1D067A
...
56851D
Microwave High-Voltage Diode L-G-6851W1A002B
...
63302A
Plate,base L-G-3302W1A054G
...
63303A
Plate Assembly,base L-G-3303W1A052G
...
65006B
Microwave Foot (white) L-G-5006W3A019A
