product name

LG MA2120B.ABKEGSE

Model: MA2120B.ABKEGSE

Save Part Not Listed?
product name

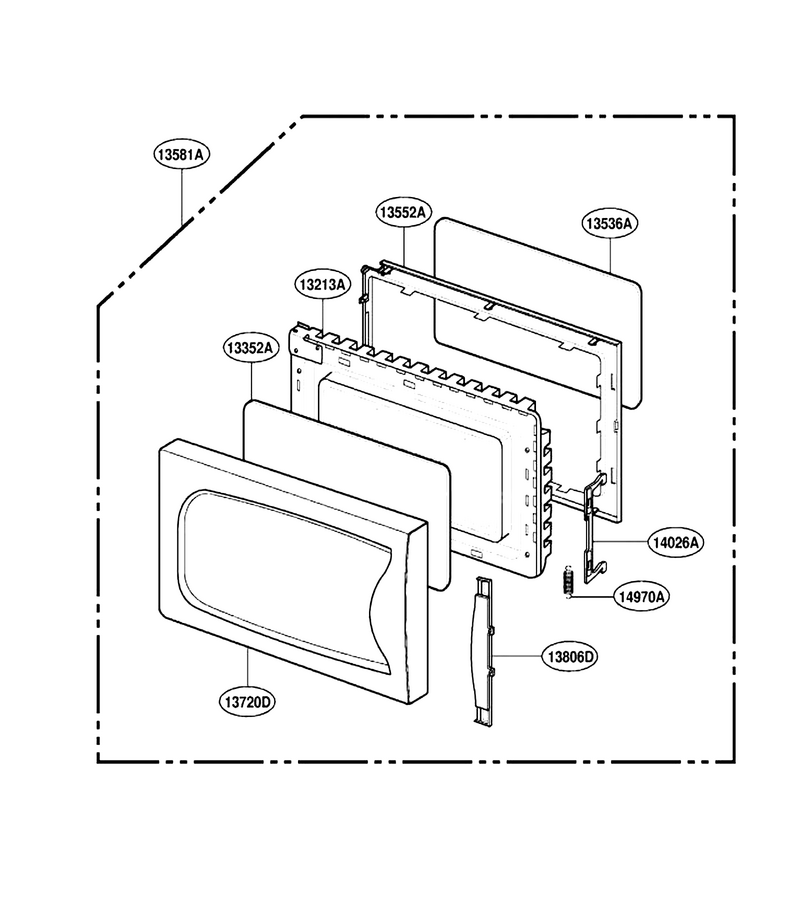

Door Parts

...
...
13581A
Door Assembly L-G-3581W1A214M
...
13720D
Panel,door L-G-3720W0D151K

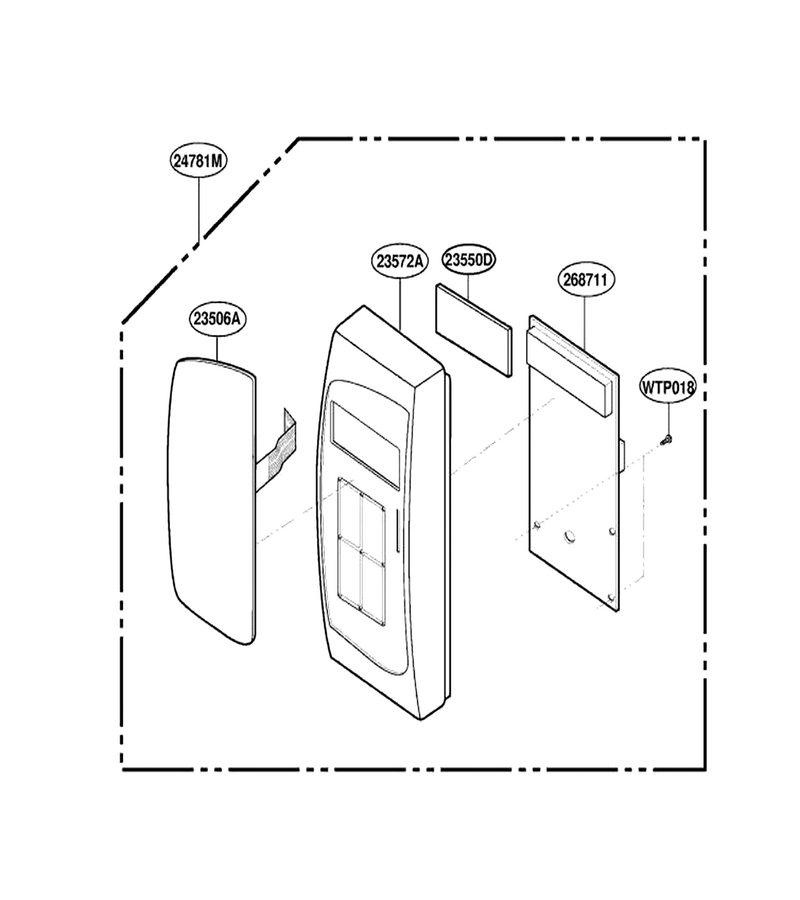

Controller Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
23506A
Membrane L-G-3506W1A159B
...
23550D
Microwave Cover L-G-3550W4A029B
...
23572A
Panel,control L-G-3572W0A176B
...
24781M
Controller Assembly,keypad L-G-4781W1M219M
...
268711
Pcb Assembly,sub L-G-6871W1S082A

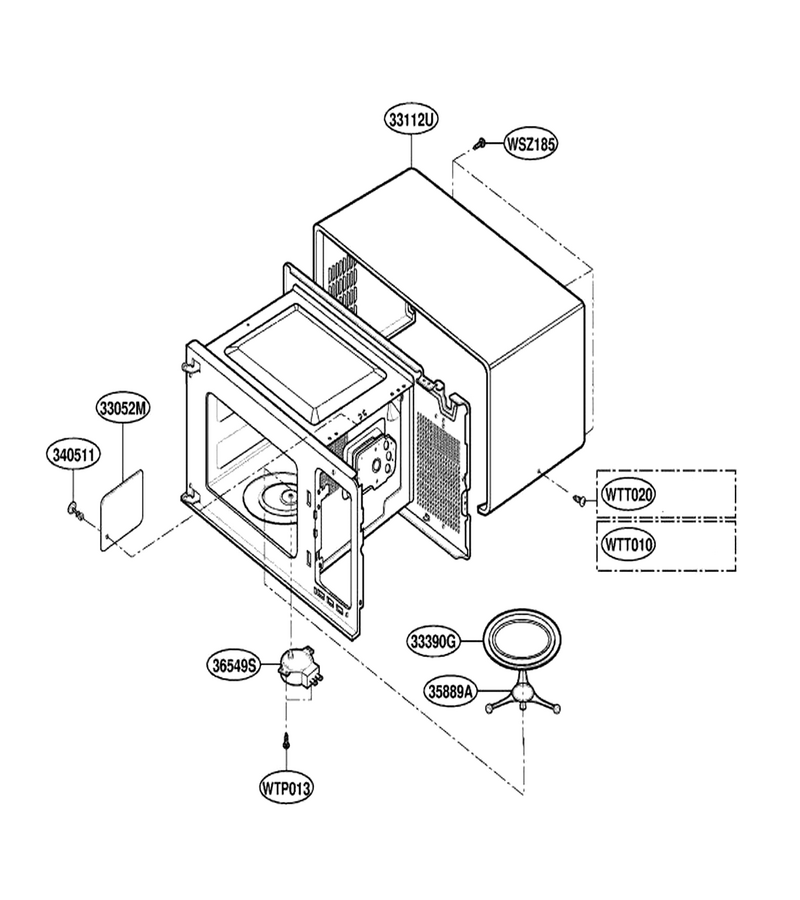

Oven Cavity Parts

...
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT020
Screw L-G-1TTL0402416
...
33052M
Canopy L-G-3052W3M011F
...
33112U
Case,flat L-G-3112W1F020A
...
33390G
Microwave Glass Turntable Tray L-G-3390W1G009C
...
35889A
Microwave Turntable Tray Support L-G-5889W2A011B
...
36549S
Microwave Turntable Motor L-G-6549W1S011A
...
340511
Microwave Waveguide Cover Rivet L-G-4051W3A001A

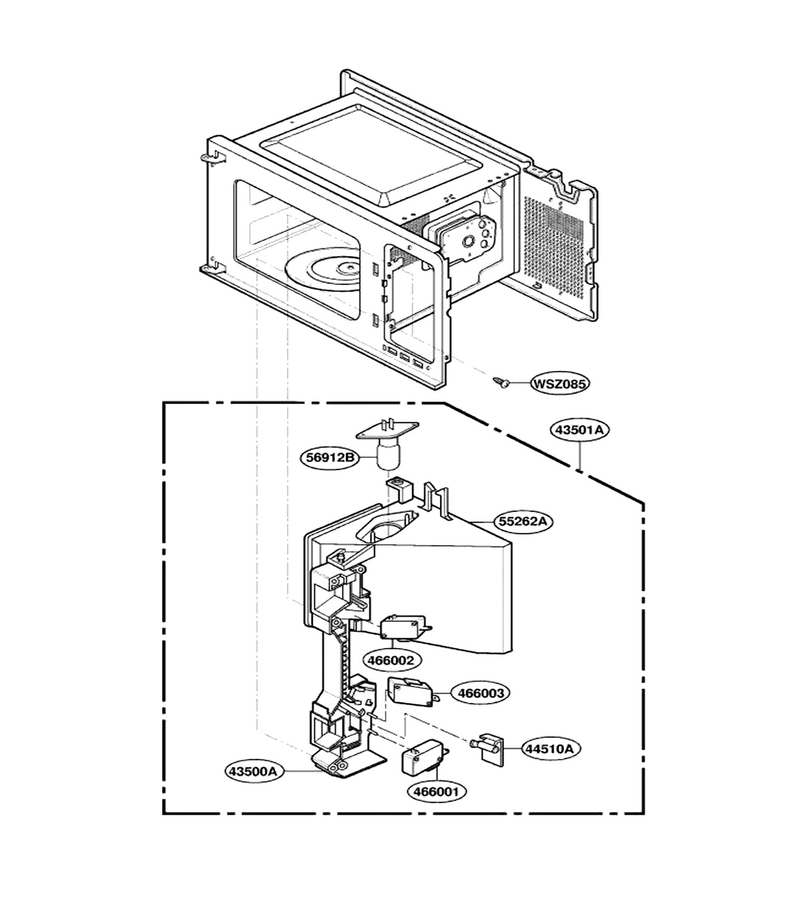

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Microwave Door Latch Holder L-G-3500W1A013A
...
43501A
Latch Assembly L-G-3501W1A016M
...
44510A
Lever L-G-4510W4A005A
...
56912B
Microwave Light Bulb L-G-6912W3B002G
...
466001
Microwave Micro Switch L-G-6600W1K004C
...
466003
Microwave Door Interlock Switch L-G-6600W1K004B

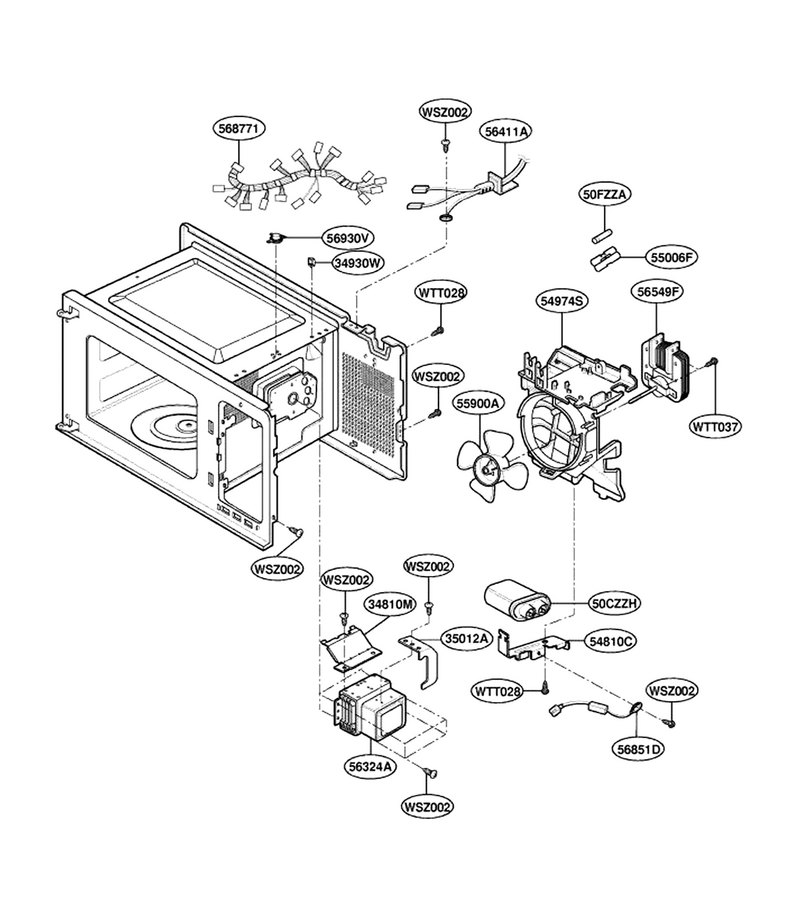

Interior Parts

...
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H002J
...
50FZZA
Fuse[all] L-G-3B74133K
...
34930W
Holder L-G-4930W3B029A
...
35012A
Insulator L-G-5012W3A020A
...
54810C
Bracket L-G-4810W4C003A
...
54974S
Guide L-G-4974W1S010A
...
55006F
Fuse Cap L-G-5006WRA002A
...
55900A
Microwave Cooling Fan Blade L-G-2B72125A
...
56324A
Microwave Magnetron L-G-6324W1A001E
...
56411A
Power Cord L-G-2B72325H
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005B
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001M
...
56930V
Thermostat L-G-6930WRT001C
...
568771
Harness,single L-G-6877W1A187F

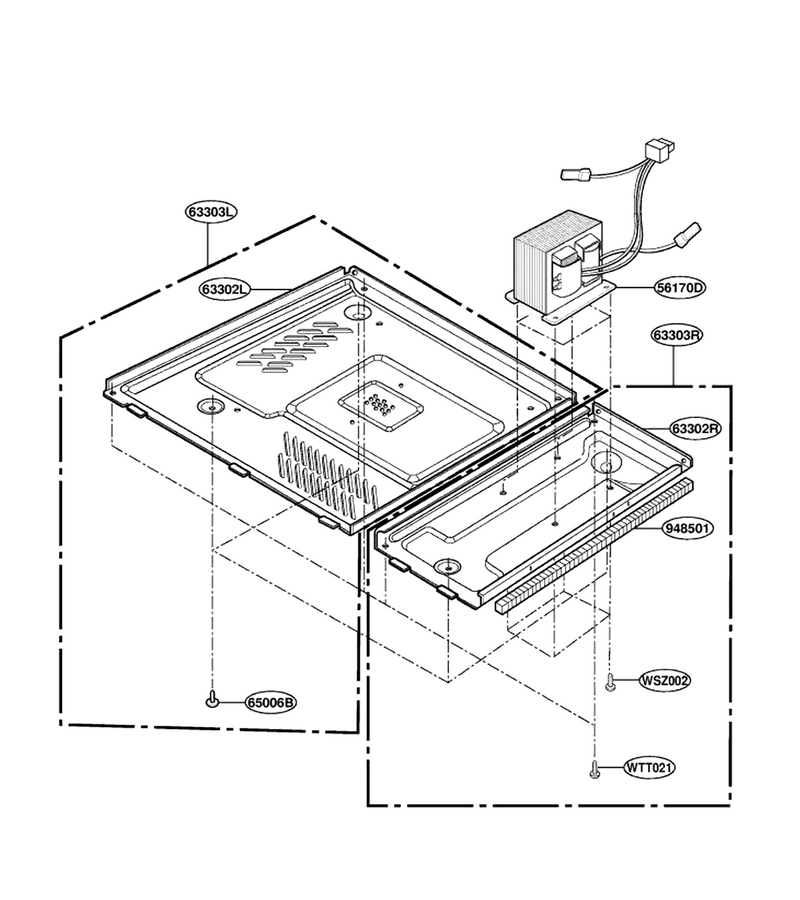

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
56170D
Transformer,high Voltage L-G-6170W1D023P
...
63302L
Plate L-G-3302W0A014A
...
63302R
Base Plate L-G-3302W1A046B
...
63303L
Plate Assembly L-G-3303W0A010A
...
63303R
Base Plate L-G-3303W1A040B
...
65006B
Cap L-G-5006W3A016B
...
948501
Damper L-G-4850W4C001H
