LG MA1720W.AWHEGSE

Model: MA1720W.AWHEGSE

Save Part Not Listed?
product name

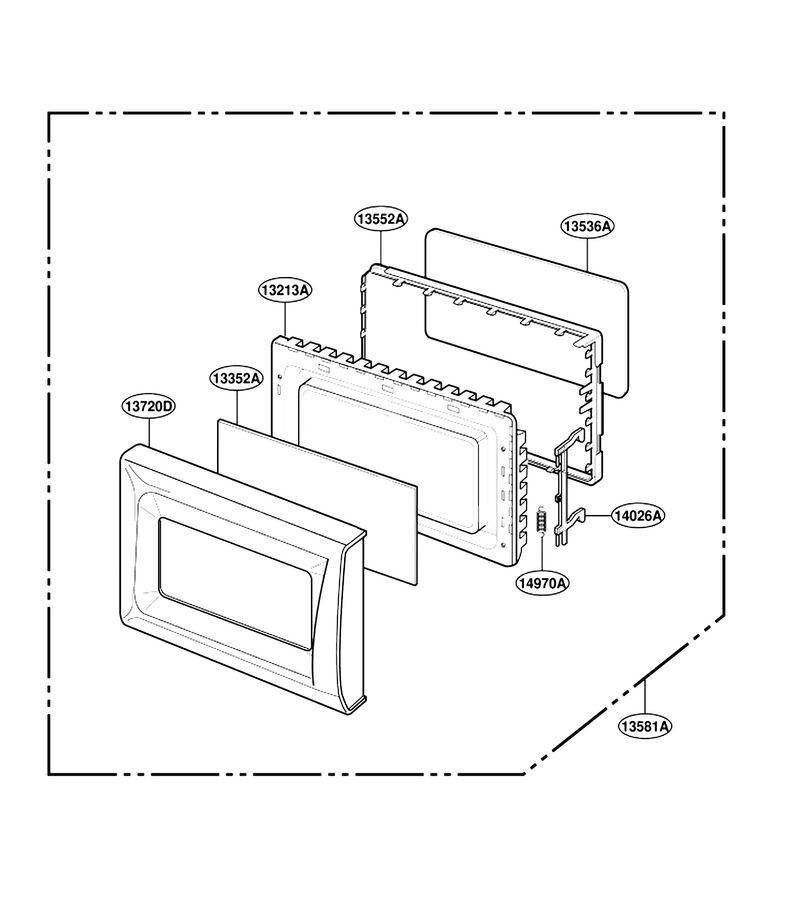

Door Parts

...
...
13213A
Frame Assembly,door L-G-3213W0A006B
...
13352A
Window,screen L-G-3352W1A134A
...
13536A
Tape,sealing L-G-3536W3A011Y
...
13552A
Cover,choke L-G-3552W0A006A
...
13581A
Door Assembly L-G-3581W0A029A
...
13720D
Panel,door L-G-3720W0D221A
...
14026A
Microwave Door Latch Lever L-G-4026W1A025A
...
14970A
Spring L-G-4970WRA001C

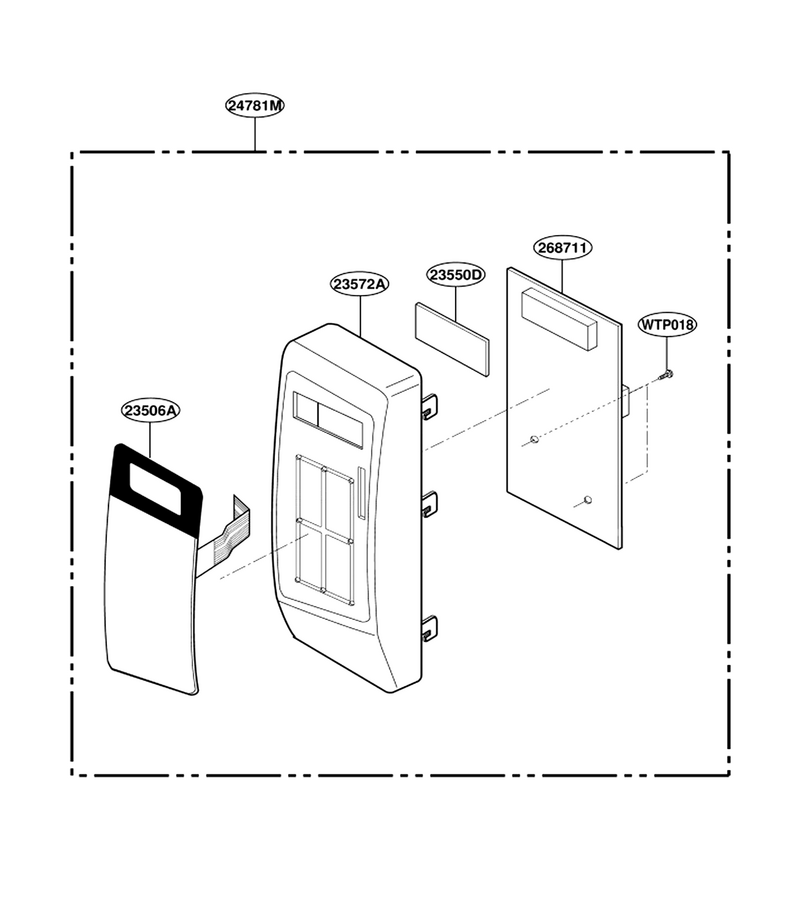

Controller Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
23506A
Membrane L-G-3506W1A211A
...
23550D
Microwave Cover L-G-3550W4A029B
...
23572A
Panel,control L-G-3720W0C005A
...
24781M
Controller Assembly,micom L-G-4781W0M023A
...
268711
Pcb Assembly,sub L-G-6871W1S082B

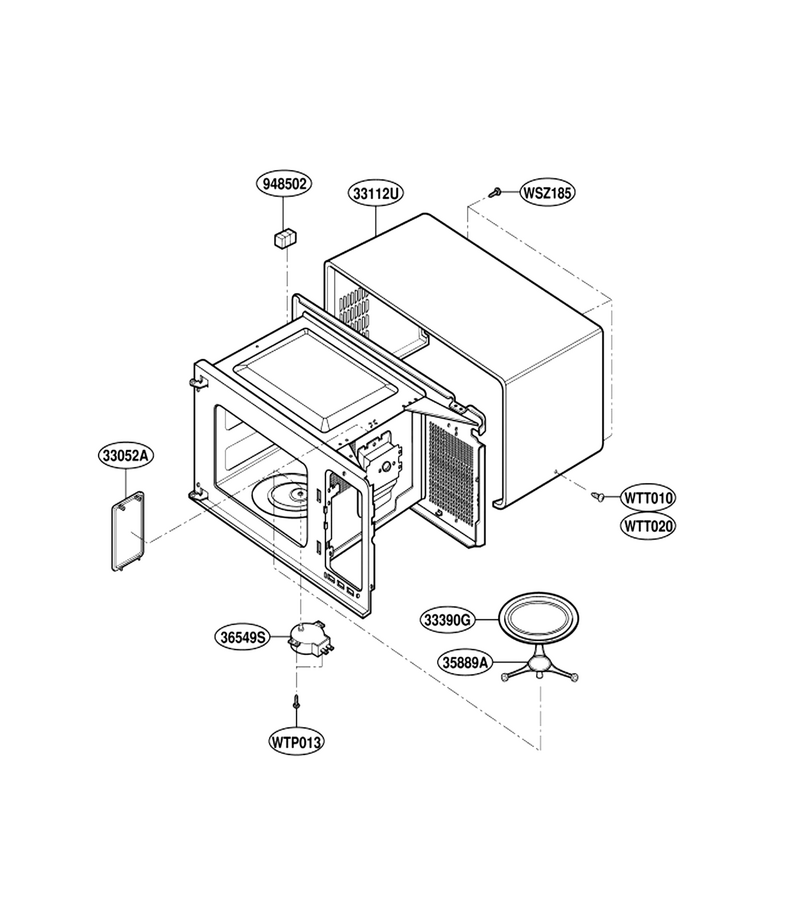

Oven Cavity Parts

...
...
WTT010
Microwave Screw L-G-1TTG0402422
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WSZ185
Screw L-G-1SZZW2A002A
...
33052A
Canopy L-G-3052W3A015A
...
33112U
Case,u Bending L-G-3112W0U046B
...
33390G
Tray,glass L-G-3390W1A012A
...
35889A
Microwave Turntable Tray Support L-G-5889W1A003A
...
36549S
Microwave Turntable Motor L-G-6549W1S011A
...
948502
Cushion L-G-3B72244C

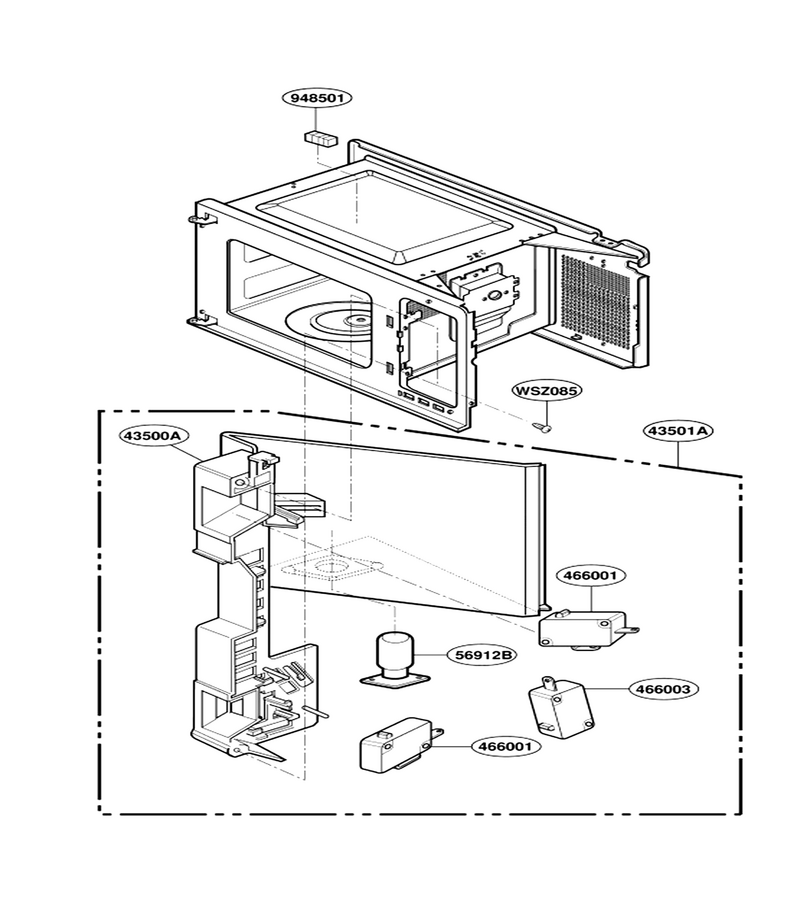

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Holder,locker L-G-3500W0A001A
...
43501A
Holder Assembly,locker L-G-3501W1A027A
...
56912B
Microwave Light Bulb L-G-6912W3B002G
...
466001
Microwave Micro Switch L-G-6600W1K004C
...
466003
Microwave Door Interlock Switch L-G-6600W1K004B
...
948501
Damper L-G-4850W1A005B

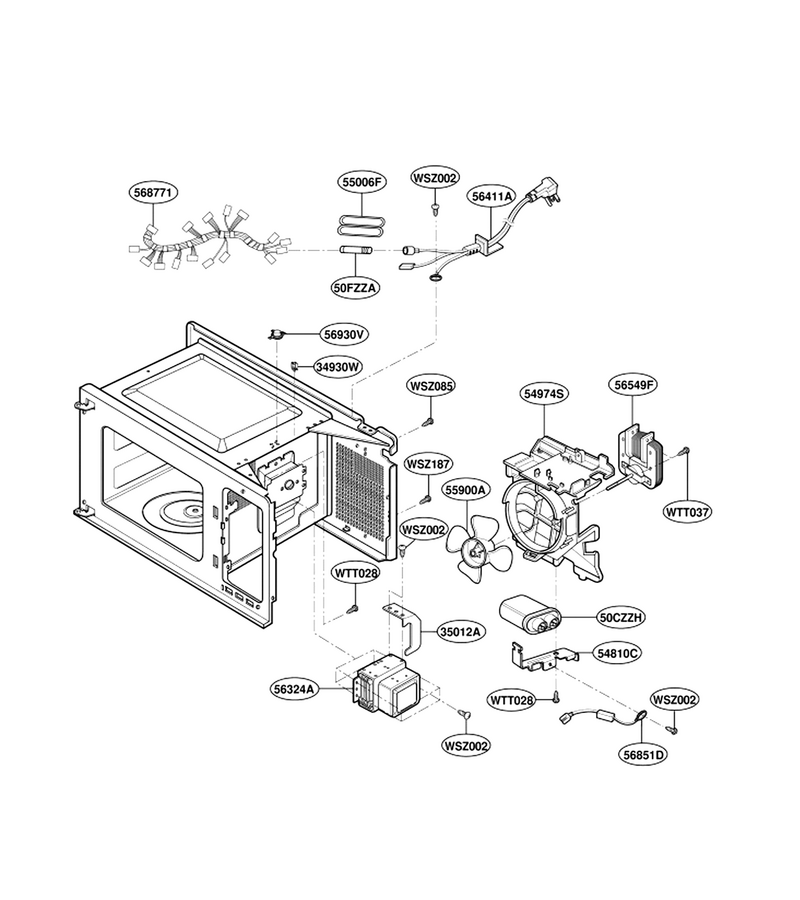

Interior Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
WSZ187
Screw,customized L-G-1SZZW2A002B
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H004C
...
50FZZA
Fuse[all] L-G-3B74133K
...
34930W
Holder L-G-4930W3B029A
...
35012A
Insulator L-G-5012W3A020A
...
54810C
Bracket L-G-4810W4C003A
...
54974S
Guide,suction L-G-4974W0A003A
...
55006F
Fuse Cap L-G-5006WRA002A
...
55900A
Fan L-G-5900W1A007A
...
56324A
Microwave Magnetron L-G-6324W1A001E
...
56411A
Ac Power Cord Assembly L-G-6411W1A002L
...
56549F
Motor,ac Fan L-G-6549W1F009A
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001M
...
56930V
Microwave Thermostat L-G-6930W1A003A
...
568771
Harness L-G-6877W1A187J

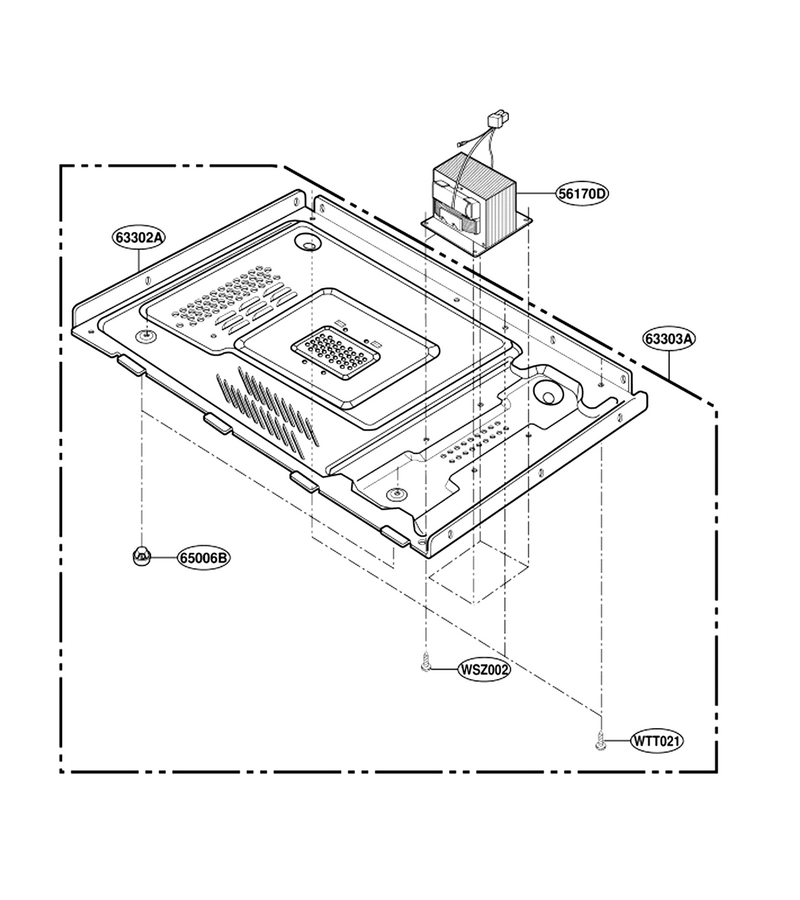

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
56170D
Transformer,high Voltage L-G-6170W1D065A
...
63302A
Plate,base L-G-3302W0A035A
...
63303A
Plate Assembly,base L-G-3303W0A017A
...
65006B
Cap L-G-5006W3A016B
