product name

LG MA-1420W.CWHEGSE

Model: MA-1420W.CWHEGSE

Save Part Not Listed?
product name

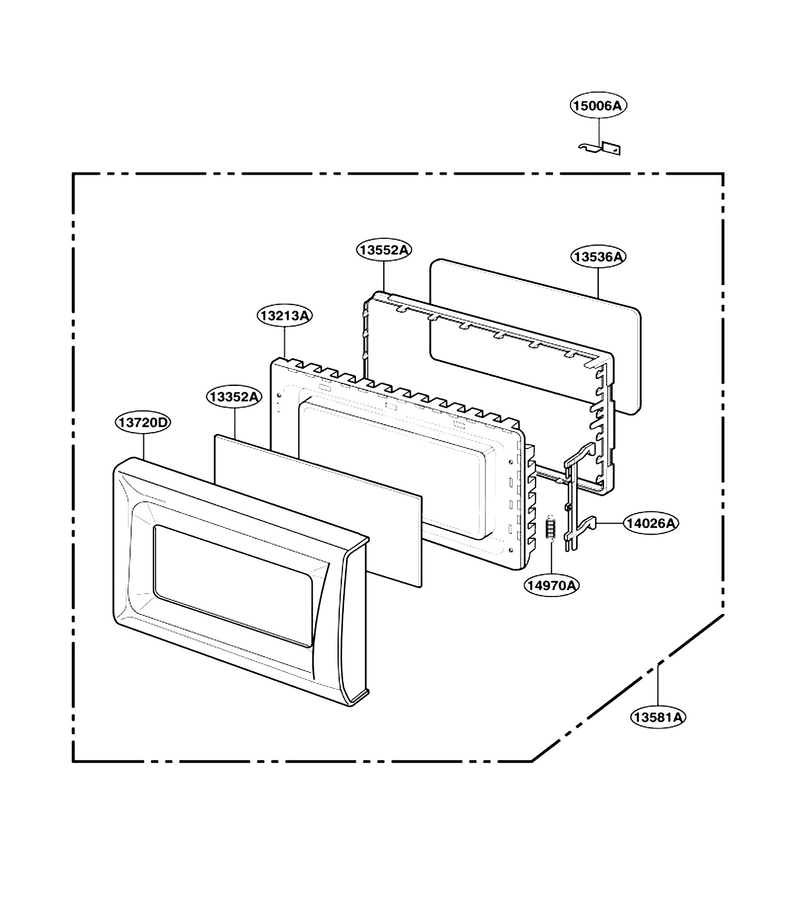

Door Parts

...
...
13213A
Microwave Door Frame L-G-3213W1A031Q
...
13352A
Window,screen L-G-3352W1A142A
...
13536A
Seal Tape L-G-3536W1A004A
...
13552A
Microwave Cover L-G-3552W0A012A
...
13581A
Door Assembly L-G-3581W1A122U
...
13720D
Panel,door L-G-3720W1D108A
...
14026A
Microwave Door Latch L-G-4026W2A019A
...
14970A
Spring L-G-4970WRA001B
...
15006A
Transformer L-G-5006W3A012A

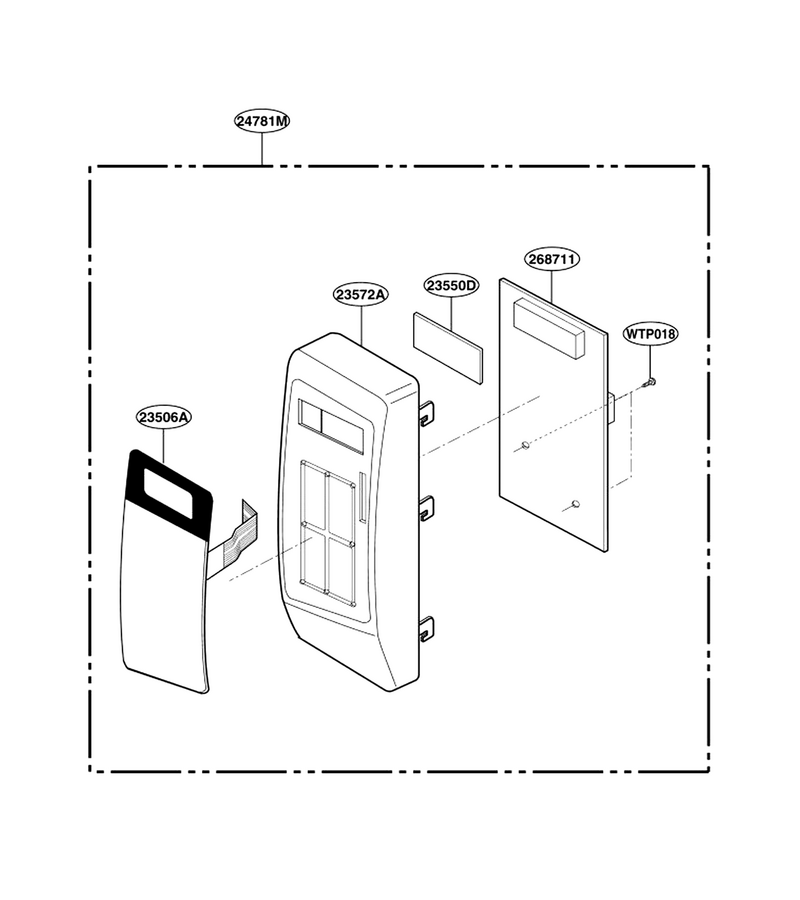

Controller Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
23506A
Membrane L-G-3506W1A230A
...
23550D
Cover L-G-3550W4A029L
...
23572A
Panel,control L-G-3720W1C012A
...
24781M
Controller Assembly,keypad L-G-4781W1M323A
...
268711
Pcb Assembly,sub L-G-6871W1S082M

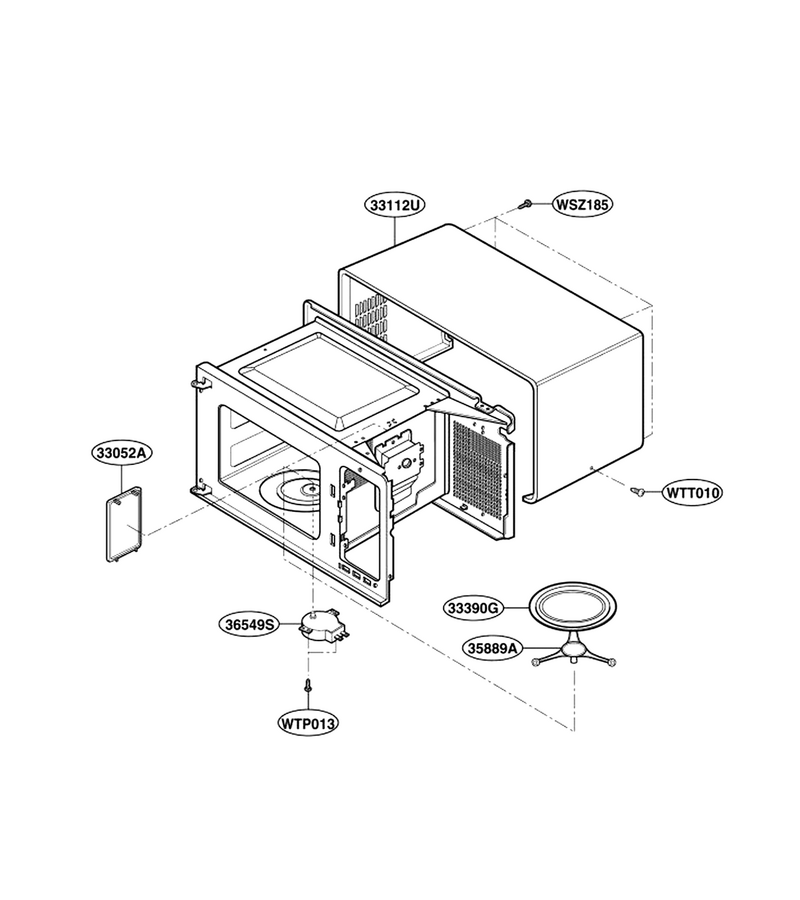

Oven Cavity Parts

...
...
WSZ185
Screw L-G-1SZZW2A002A
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT010
Microwave Screw L-G-1TTG0402422
...
33052A
Canopy L-G-3052W2A021A
...
33112U
Cabinet L-G-3112W1U037B
...
33390G
Microwave Glass Turntable Tray L-G-3390W1G004E
...
35889A
Microwave Turntable Tray Support L-G-5889W1A005B
...
36549S
Microwave Turntable Motor L-G-6549W1S011B

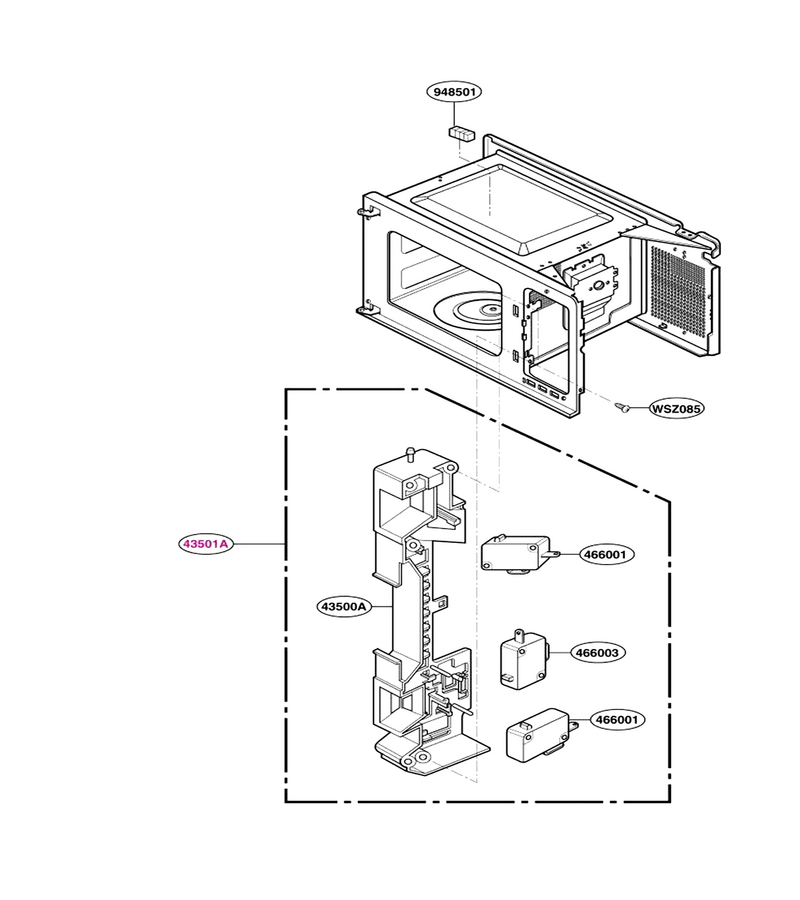

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Latch Board L-G-3500W1A010A
...
43501A
Microwave Door Latch Housing And Interlock Swit... L-G-3501W1A003U
...
466001
Switch,micro L-G-6600W1K003D
...
466003
Switch,micro L-G-6600W1K003C
...
948501
Cushion L-G-3B72244T

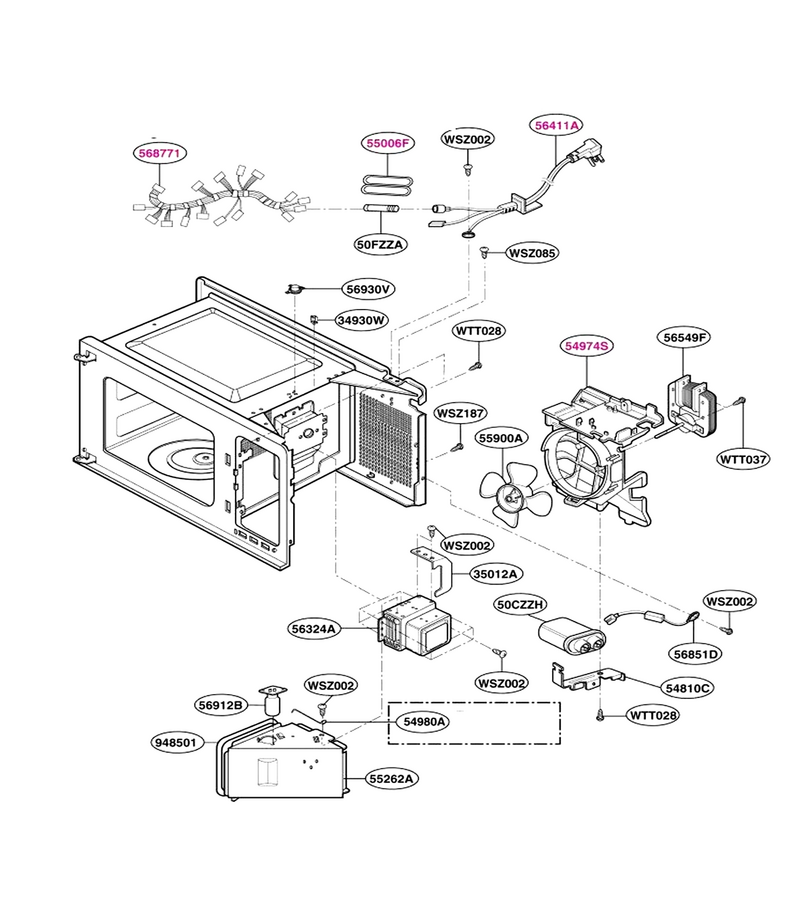

Interior Parts (i)

...
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H005A
...
50FZZA
Fuse,drawing L-G-3B74133Q
...
34930W
Holder L-G-4930W3B029A
...
35012A
Insulator L-G-5012W3A020C
...
54810C
Bracket L-G-4810W4C003B
...
54974S
Guide L-G-4974W0A003B
...
54980A
Supporter L-G-4980W3A038A
...
55006F
Cap Fuse L-G-5006WRA002D
...
55262A
Duct L-G-5208W1A017A
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A007B
...
56324A
Magnetron L-G-6324W1A001L
...
56411A
Ac Power Cord Assembly L-G-6411W1A031G
...
56549F
Motor,ac Fan L-G-6549W1F009C
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001R
...
56912B
Microwave Light Bulb L-G-6912W3B002L
...
56930V
Microwave Thermostat L-G-6930W1A003A
...
568771
Harness,single L-G-6877W1A187U
...
948501
Cushion L-G-3B72244T

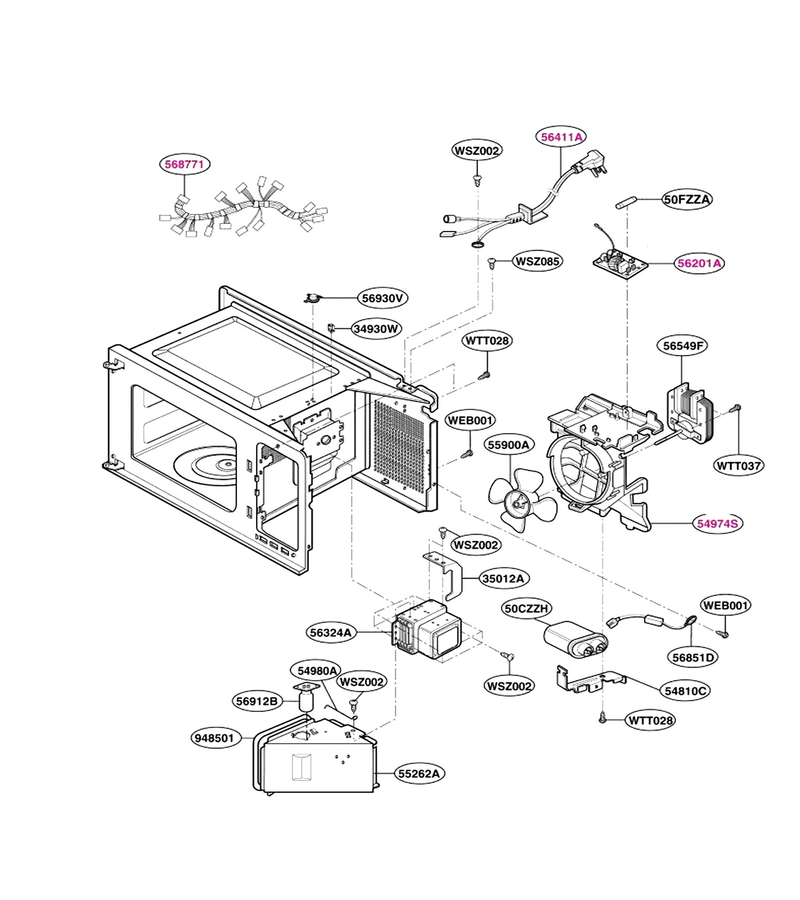

Interior Parts (ii)

...
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WEB001
Screw L-G-1EBF0402494
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H005A
...
50FZZA
Fuse,drawing L-G-3B74133Q
...
34930W
Holder L-G-4930W3B029A
...
35012A
Insulator L-G-5012W3A020C
...
54810C
Bracket L-G-4810W4C003B
...
54974S
Guide L-G-4974W0A003B
...
54980A
Supporter L-G-4980W3A038A
...
55262A
Duct L-G-5208W1A017A
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A007B
...
56324A
Magnetron L-G-6324W1A001L
...
56411A
Ac Power Cord Assembly L-G-6411W1A031G
...
56549F
Motor,ac Fan L-G-6549W1F009C
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001R
...
56912B
Microwave Light Bulb L-G-6912W3B002L
...
56930V
Microwave Thermostat L-G-6930W1A003A
...
568771
Harness,single L-G-6877W1A187U
...
948501
Cushion L-G-3B72244T

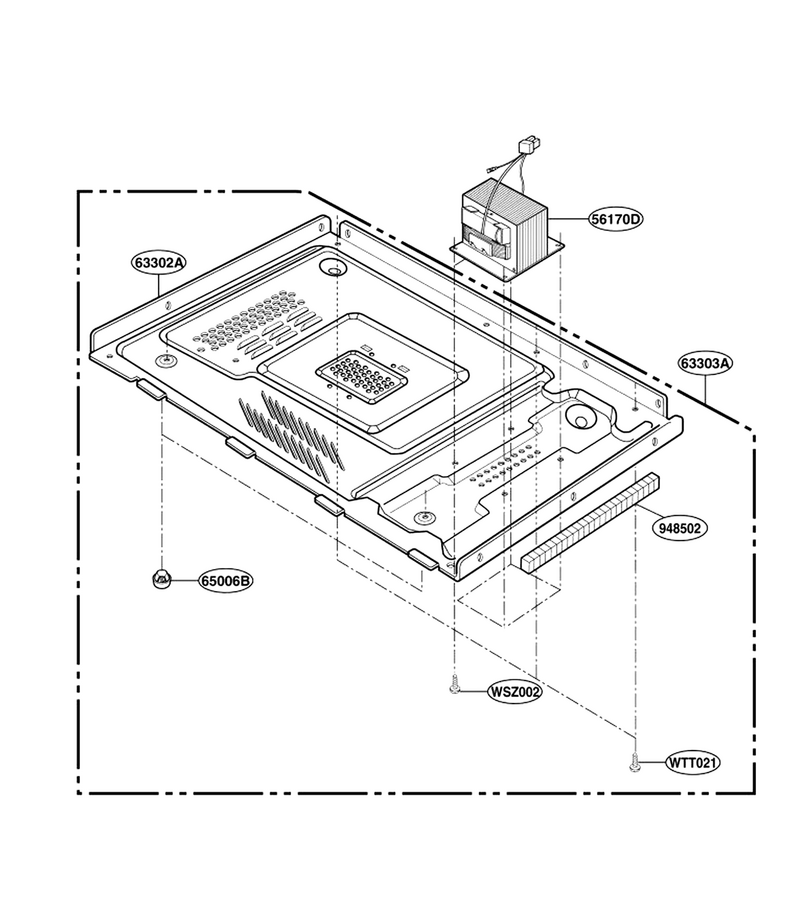

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
56170D
Transformer L-G-6170W1D023L
...
63302A
Microwave Base Plate Assembly L-G-3302W0A036B
...
63303A
Microwave Base Plate Assembly L-G-3303W0A019B
...
65006B
Microwave Foot (white) L-G-5006W3A019A
...
948502
Cushion L-G-4850W1A001F
