LG MA-1305W.MWEGSE

Model: MA-1305W.MWEGSE

Save Part Not Listed?
product name

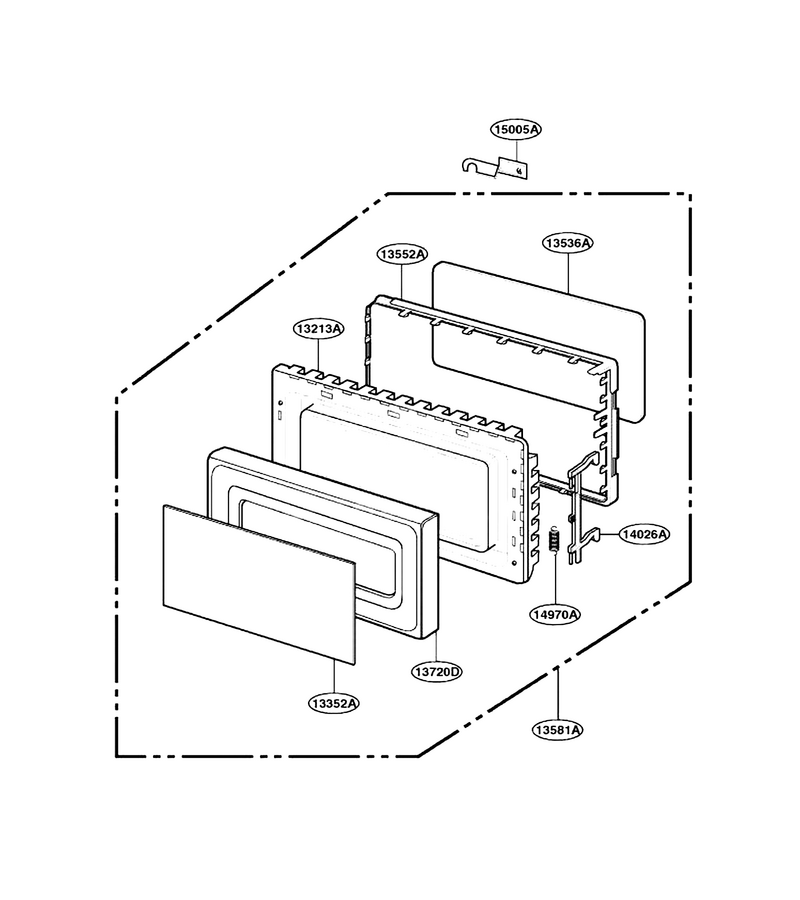

Door Parts

...
...
13213A
Door Frame Assy L-G-3213W1A032K
...
13352A
Window,screen L-G-3352W2A046A
...
13536A
Seal Tape L-G-3536WRA001N
...
13552A
Cover L-G-3552W1A042A
...
13581A
Door Assembly L-G-3581W1A227A
...
13720D
(13720d) Panel,door L-G-3720W0D162A
...
14026A
Microwave Door Latch Hook L-G-4026W2A015A
...
14970A
Spring L-G-4970WRA001B

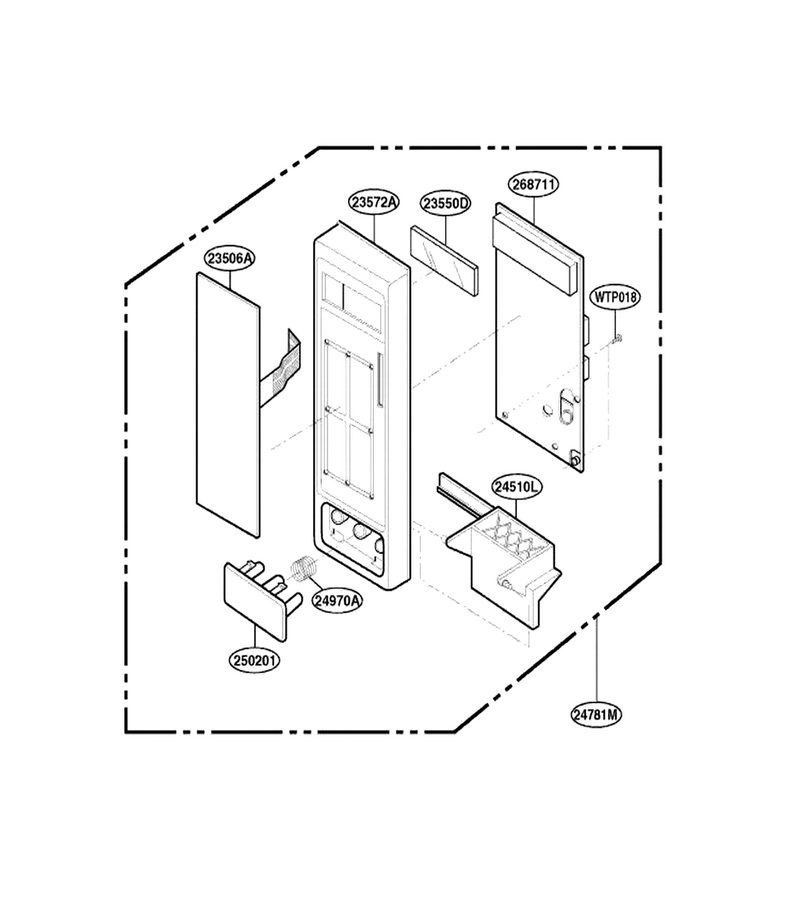

Controller Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
23550D
Microwave Cover L-G-3550W4A029B
...
23572A
(23572a) Panel,control L-G-3572W0A201A
...
24781M
Controller Assembly,keypad L-G-4781W1M227C
...
268711
Pcb Assembly,sub L-G-6871W2S162F

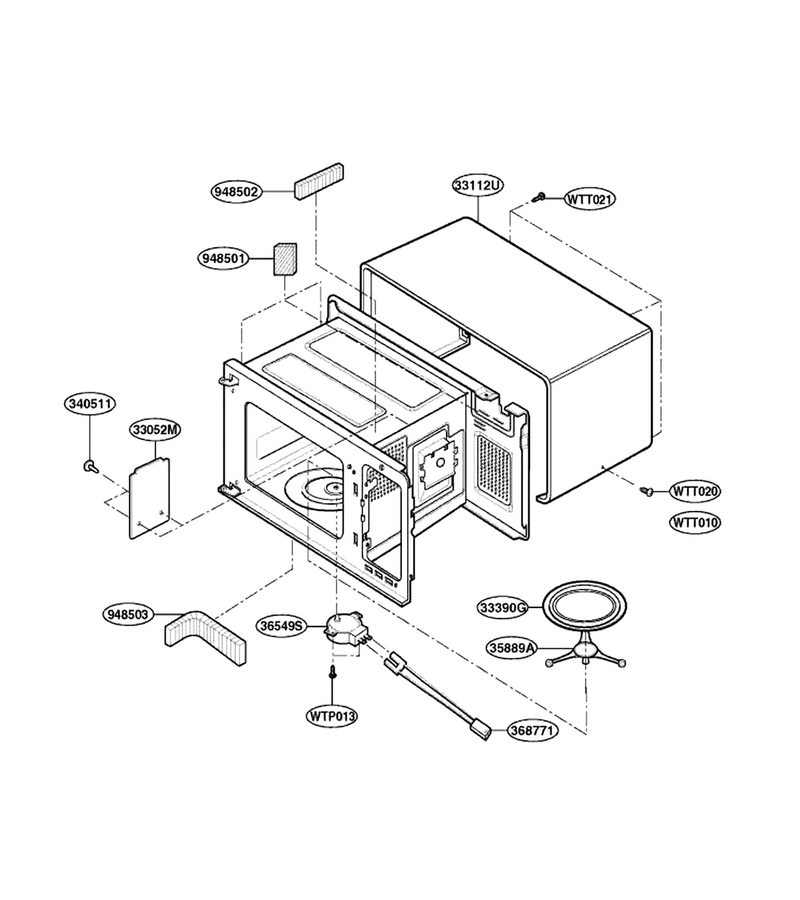

Oven Cavity Parts

...
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT010
Microwave Screw L-G-1TTG0402422
...
WTT021
Microwave Screw L-G-1TTL0402418
...
33112U
Case,u Bending L-G-3112W0U026A
...
33390G
Tray,glass L-G-3390W1G003A
...
35889A
Microwave Turntable Tray Support L-G-5889W2A011A
...
36549S
Microwave Turntable Motor L-G-6549W1S011A
...
948501
Cushion L-G-3B72244C
...
948502
Cushion L-G-3B72244G
...
948503
Cushion L-G-3B72244T

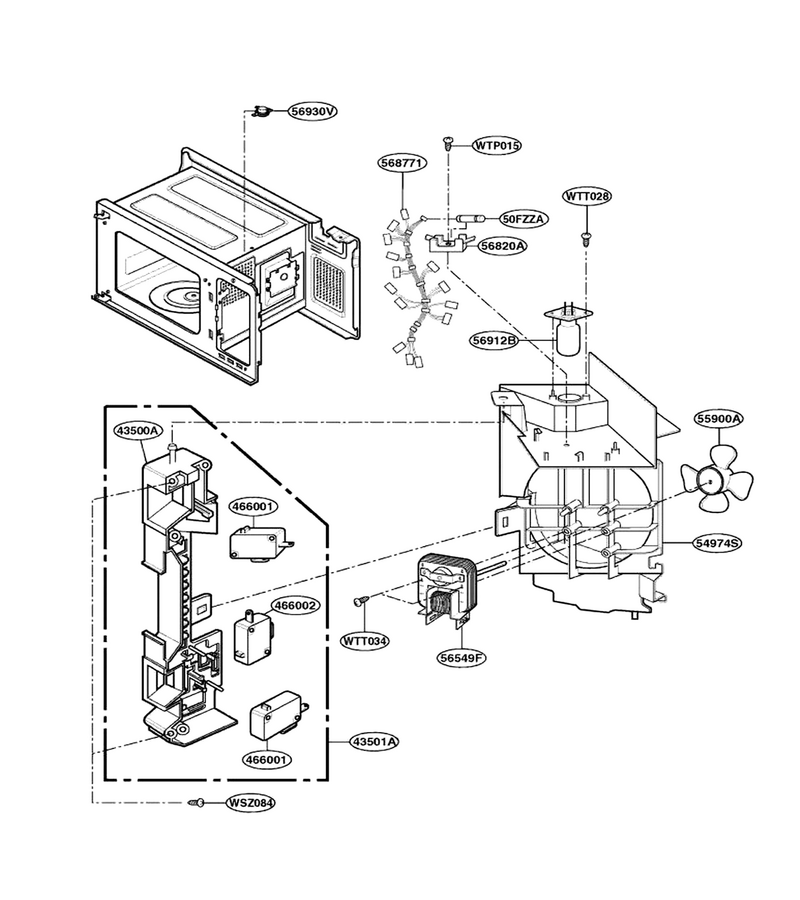

Suction Guide Parts

...
...
WTT028
Microwave Screw L-G-1TTL0402818
...
50FZZA
Fuse[all] L-G-3B74133K
...
43501A
Latch Board L-G-3501W1A016F
...
54974S
Guide L-G-4974W1S010A
...
55900A
Microwave Cooling Fan Blade L-G-2B72125A
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005B
...
56930V
Microwave Thermostat L-G-6930W1A001J
...
466001
Microwave Micro Switch L-G-3B73362F
...
568771
Connector Assembly L-G-6877W1A260A

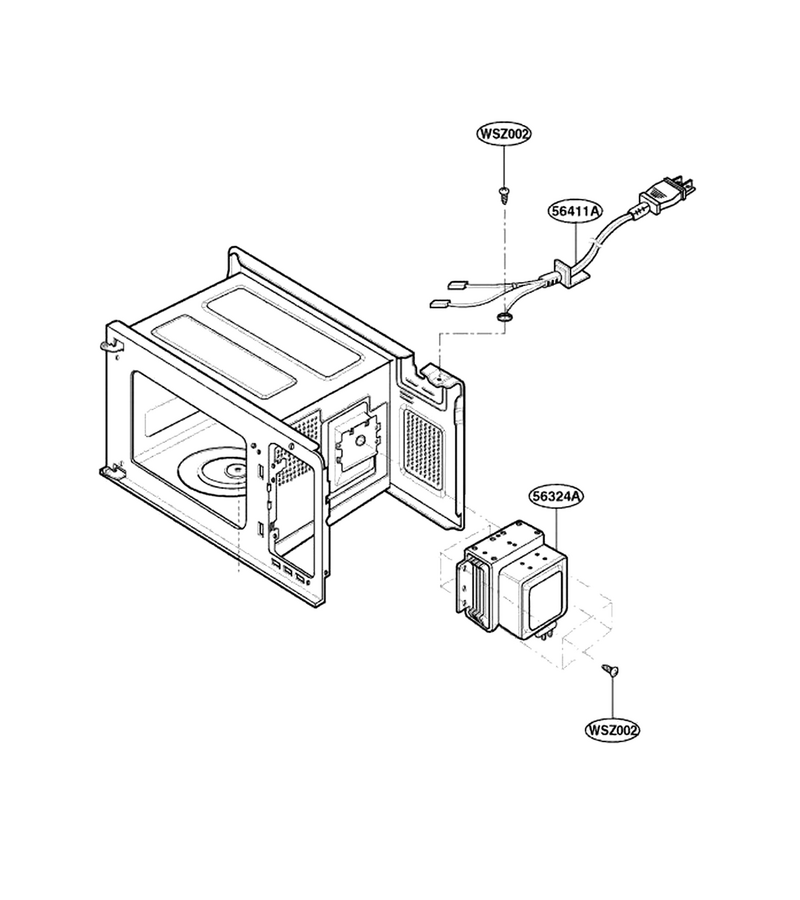

Interior Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
56324A
Microwave Magnetron L-G-6324W1A001B
...
56411A
Power Cord L-G-2B72325H

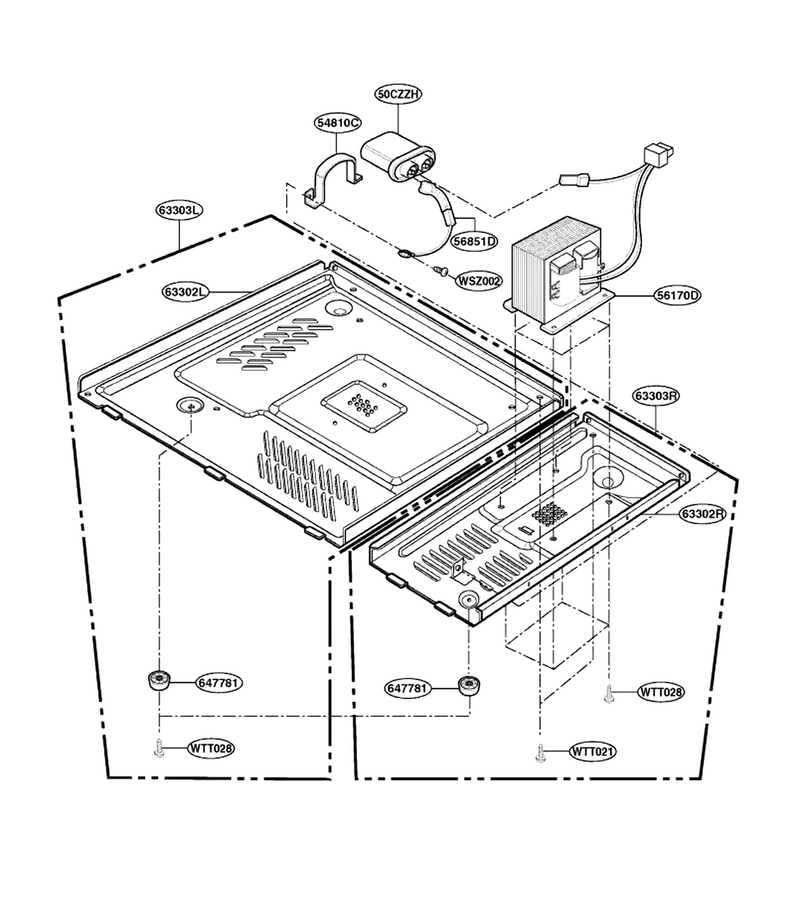

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H003H
...
54810C
Bracket L-G-4810W4C003A
...
56170D
Transformer,high Voltage L-G-6170W1D012L
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001M
...
647781
Foot L-G-4B73900A
