LG MA-1305B.SGEGSE

Model: MA-1305B.SGEGSE

Save Part Not Listed?
product name

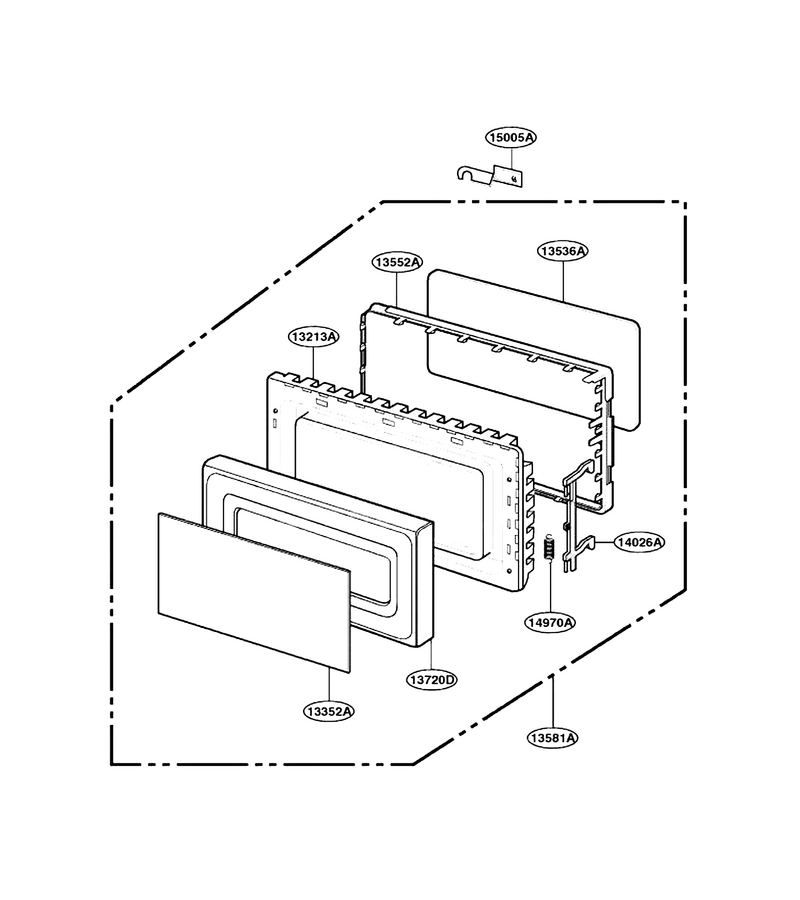

Door Parts

...
...
13213A
Door Frame L-G-3213W1A031B
...
13352A
Window,screen L-G-3352W1A080A
...
13536A
Seal Tape L-G-3536WRA001M
...
13552A
Cover L-G-3552W1A028A
...
13581A
Door Assembly L-G-3581W1A122U
...
13720D
Panel,door L-G-3720W0D085B
...
14026A
Latch L-G-4026W2A012A
...
14970A
Spring L-G-4970WRA001C
...
15005A
Cap L-G-5006W3A010A

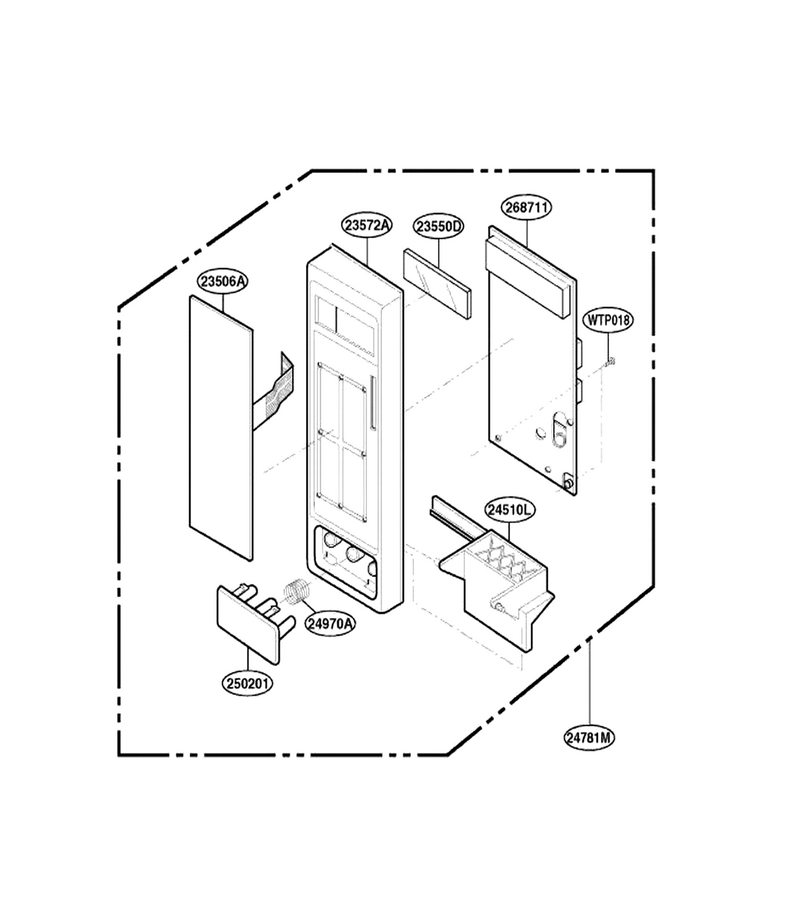

Controller Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
23506A
Key Membrane L-G-6638W2A098B
...
23550D
Microwave Cover L-G-3550W4A029B
...
23572A
Panel,control L-G-3572W1A125B
...
24510L
Lever L-G-4510W3L002A
...
24781M
Controller Assembly,micom L-G-4781W1M147E
...
24970A
Microwave Door Release Button Spring L-G-4B72023A
...
250201
Button L-G-5020W3G104B
...
268711
Pwb(pcb) Assembly,sub L-G-6871W2J009C

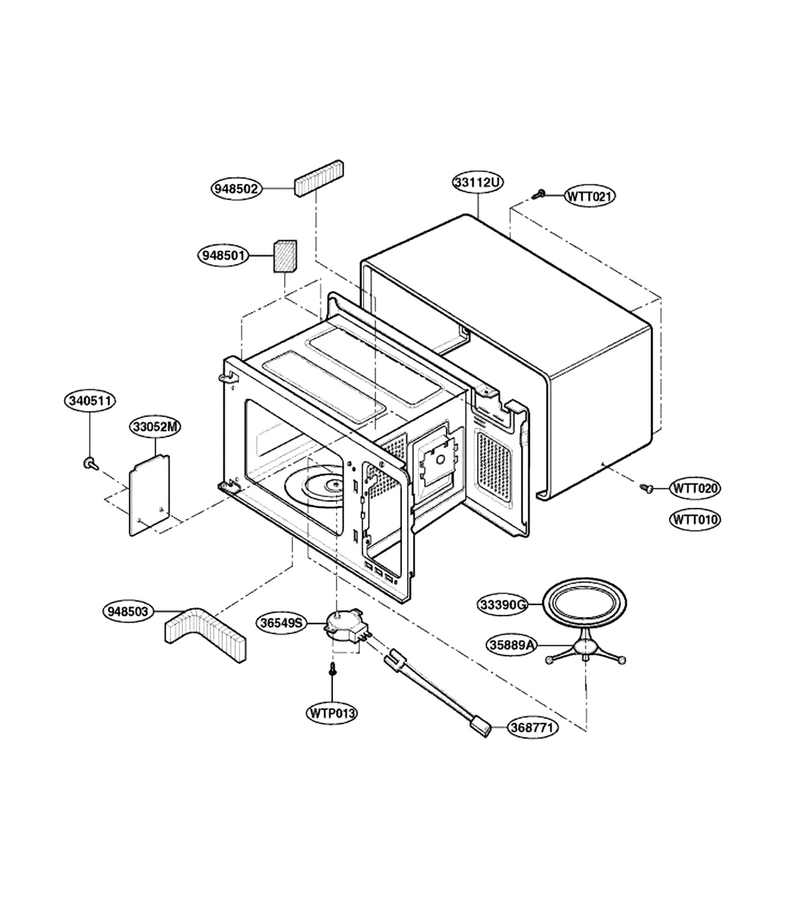

Oven Cavity Parts

...
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT020
Screw L-G-1TTL0402416
...
WTT021
Microwave Screw L-G-1TTL0402418
...
33052M
Microwave/hood Cover L-G-3052W3M008B
...
33112U
Out Case,? L-G-3112W0U039D
...
33390G
Microwave Glass Turntable Tray L-G-3390W1G004A
...
35889A
Microwave Turntable Tray Support L-G-5889W2A011A
...
36549S
Microwave Turntable Motor L-G-2B72754K
...
340511
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
368771
Harness,single L-G-6877WRT007D
...
948501
Cushion L-G-3B72244C
...
948502
Damper L-G-3B72246Y
...
948503
Damper L-G-3B72246J

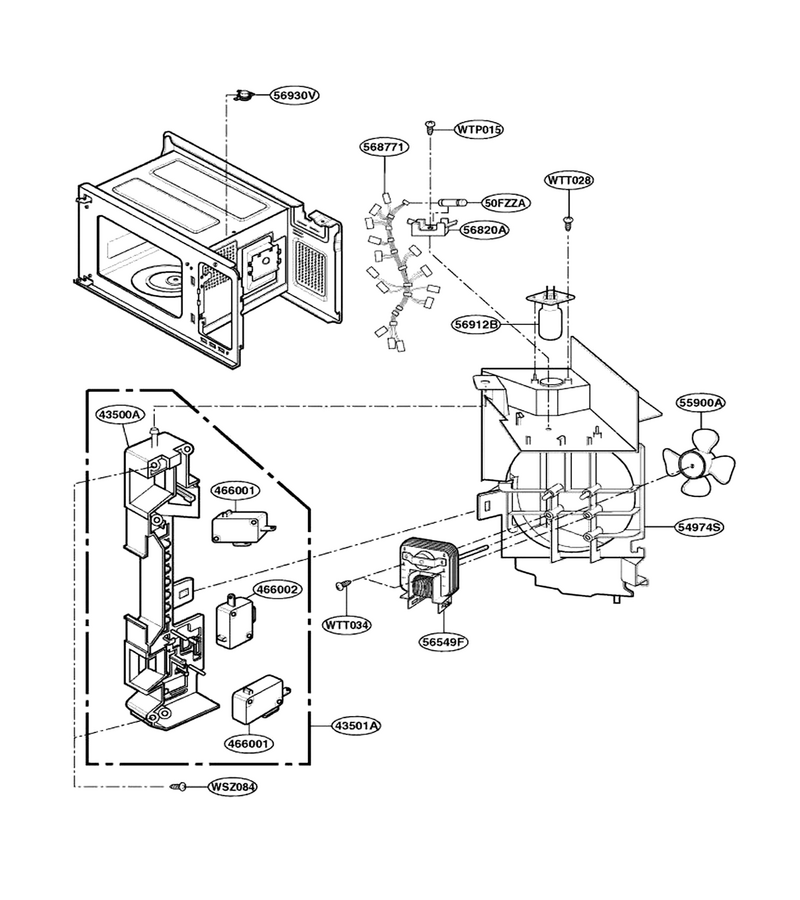

Suction Guide Parts

...
...
WSZ084
Screw L-G-4B70188B
...
WTT034
Screw L-G-1TTL0403418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTP015
Microwave Screw L-G-1TPL0402618
...
50FZZA
Fuse[all] L-G-3B74133K
...
43500A
Latch Board L-G-3500W1A008A
...
43501A
Microwave Door Latch Housing And Interlock Swit... L-G-3501W1A003U
...
54974S
Guide,suction L-G-4974W0S010A
...
55900A
Blower Fan L-G-2B72279B
...
56549F
Motor,ac Fan L-G-6549W2F017B
...
56820A
Fuse Holder L-G-4930W3B025A
...
56912B
Microwave Light Bulb L-G-6912W3B002G
...
56930V
Microwave Thermostat L-G-6930W1A003A
...
466001
Microwave Micro Switch L-G-3B73362F
...
568771
Single Harness L-G-6877W1T254C

Interior Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
56324A
Microwave Magnetron L-G-6324W1A001B
...
56411A
Power Cord Assembly L-G-2B72325L

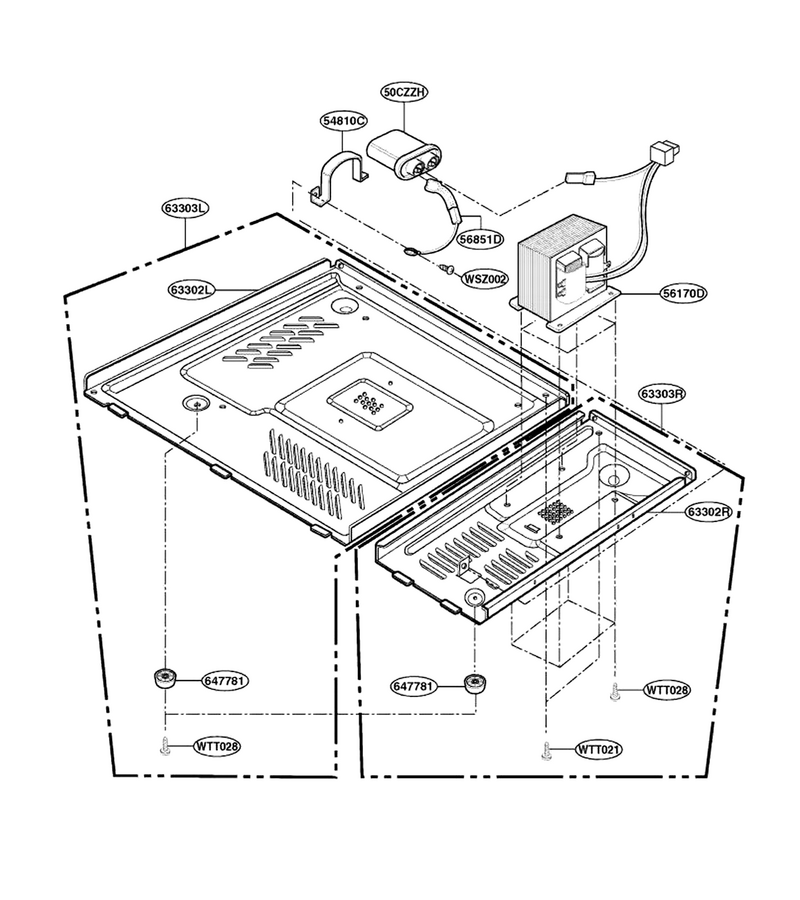

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
50CZZH
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
54810C
Bracket,capacitor L-G-4810W3C001A
...
56170D
Transformer,high Voltage L-G-6170W1D007A
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001A
...
63302L
Base Plate L-G-3302W1A034A
...
63302R
Plate,base L-G-3302W1A033A
...
63303L
Base Plate L-G-3303W1A026A
...
63303R
Plate Assembly,base L-G-3303W2A003A
...
647781
Foot L-G-4B73900A
