product name

LG MA-1301RV.SGEGSE

Model: MA-1301RV.SGEGSE

Save Part Not Listed?
product name

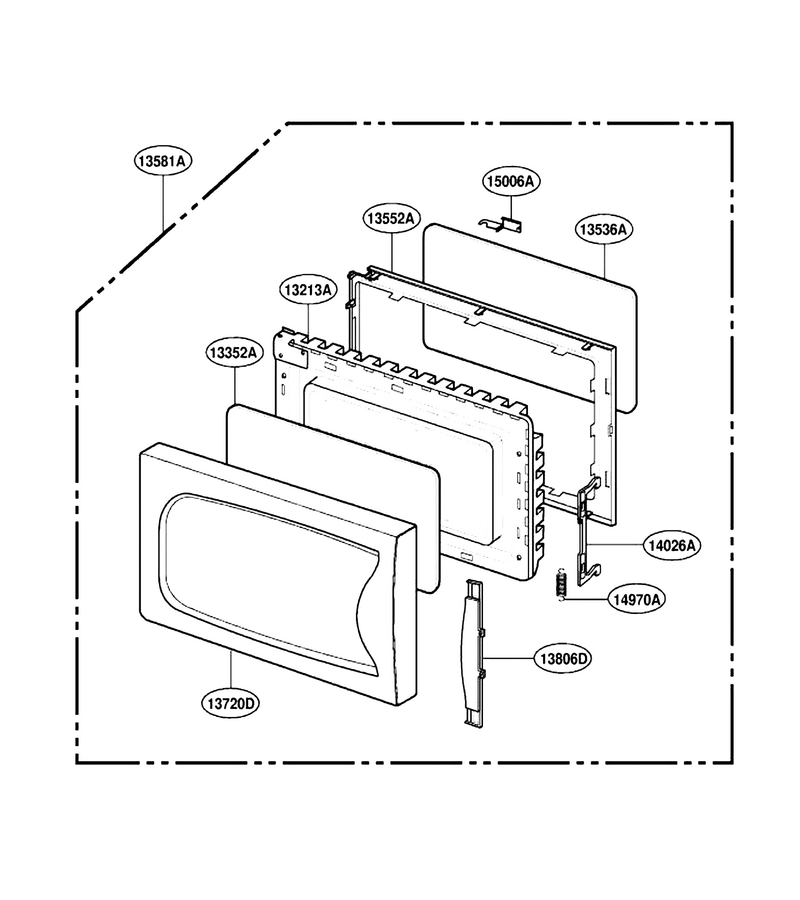

Door Parts

...
...
13213A
Door Frame L-G-3213W1A031B
...
13352A
Window,screen L-G-3352W1A080A
...
13536A
Seal Tape L-G-3536WRA001M
...
13552A
Cover L-G-3552W1A028A
...
13581A
Door Assy L-G-3581W1A162J
...
13720D
Panel,door L-G-3720W0D085B
...
14026A
Latch L-G-4026W2A012A
...
14970A
Spring L-G-4970WRA001C
...
15006A
Cap L-G-5006W3A010A

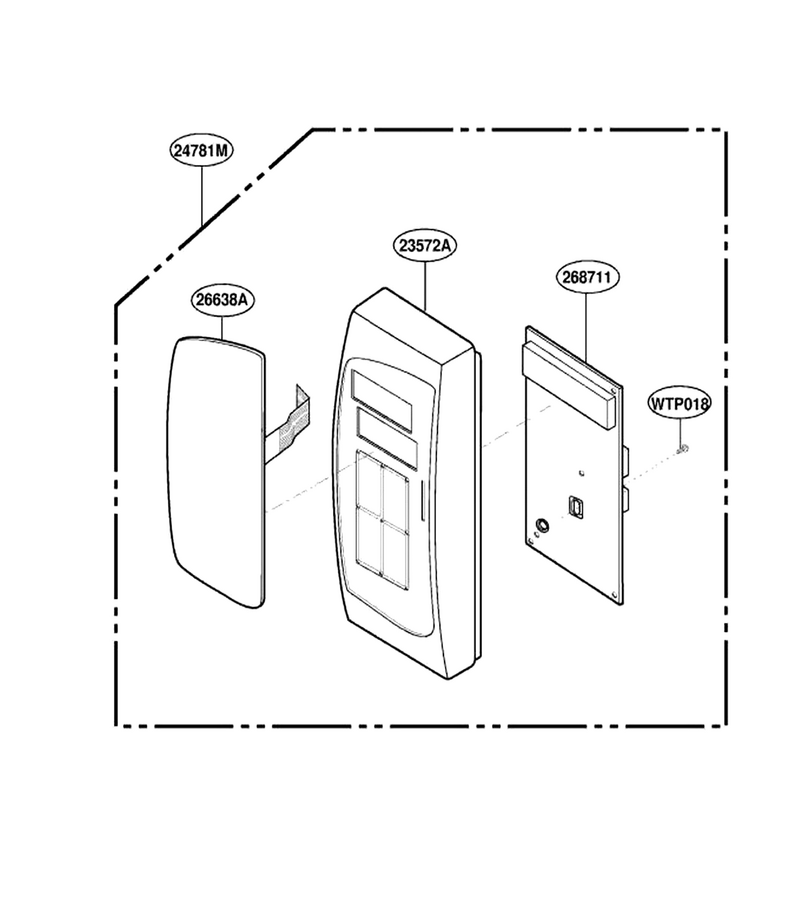

Controller Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
23572A
Panel,control L-G-3572W1A125B
...
24781M
Microwave/hood Cover L-G-3052W3M008B
...
26638A
Membrane L-G-6638W2A067C
...
268711
Pcb Assembly,sub L-G-6871W2S004E

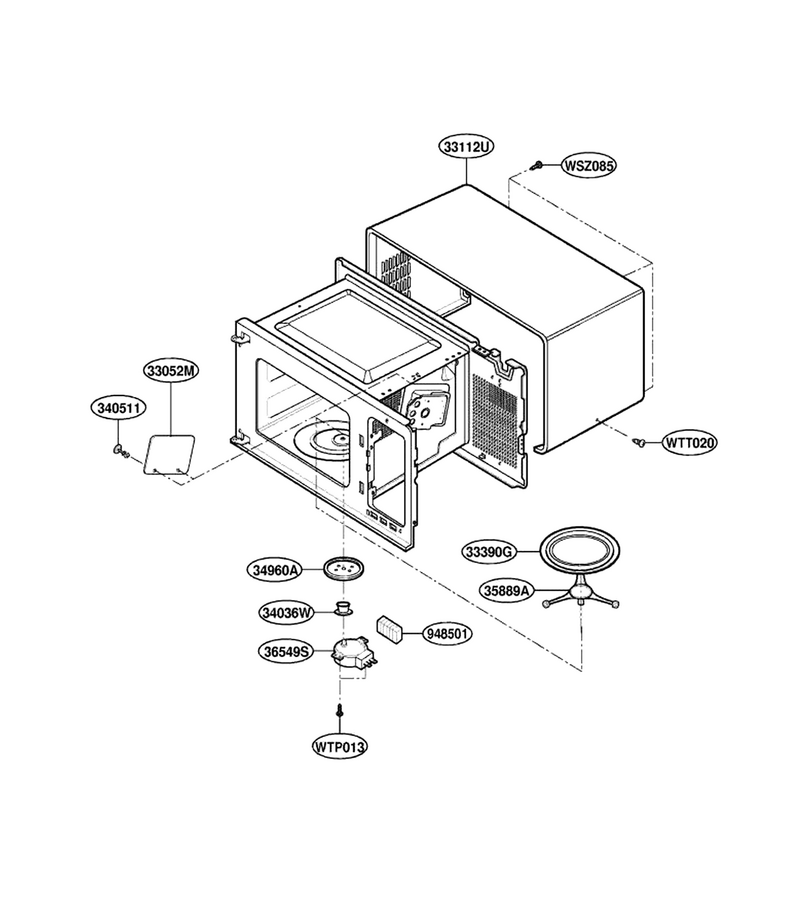

Oven Cavity Parts

...
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT020
Screw L-G-1TTL0402416
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
33052M
Microwave/hood Cover L-G-3052W3M008B
...
33112U
Out Case,[u-Bending] L-G-3112W0U039F
...
33390G
Microwave Glass Turntable Tray L-G-3390W1G004A
...
34036W
Water Seal L-G-4036W3W001A
...
35889A
Microwave Turntable Tray Support L-G-5889W2A011A
...
36549S
Microwave Turntable Motor L-G-2B72754K
...
340511
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
948501
Cushion L-G-3B72244G

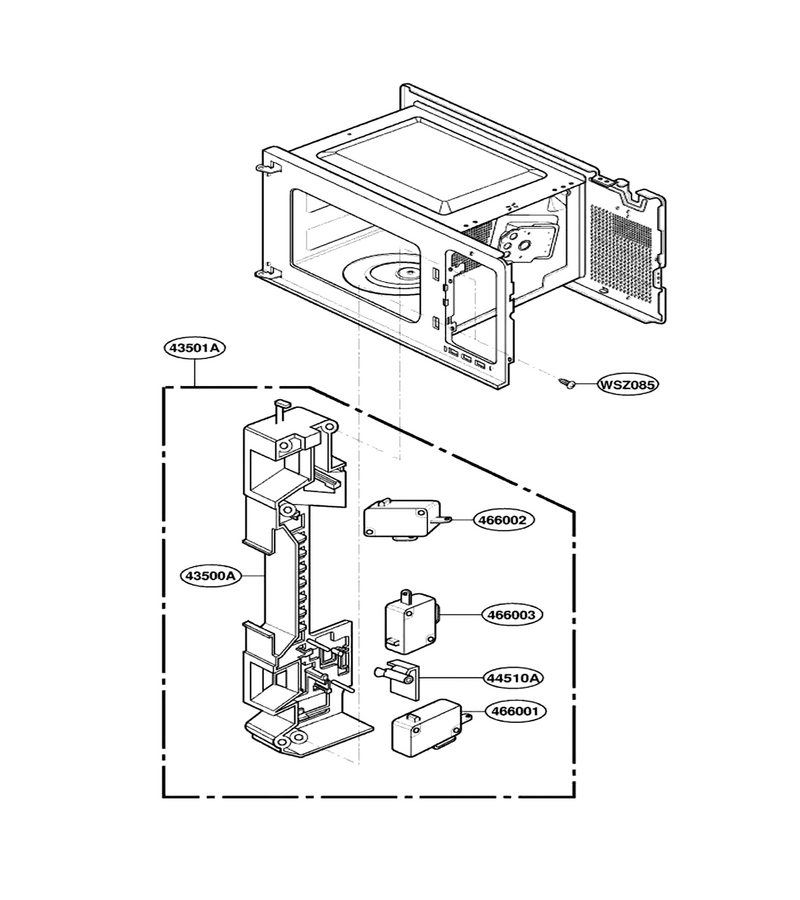

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Holder,locker L-G-3500W1A004A
...
43501A
Holder Assembly,locker L-G-3501W1A003H
...
466001
Microwave Micro Switch L-G-3B73362F
...
466003
Switch Micro L-G-3B73361E

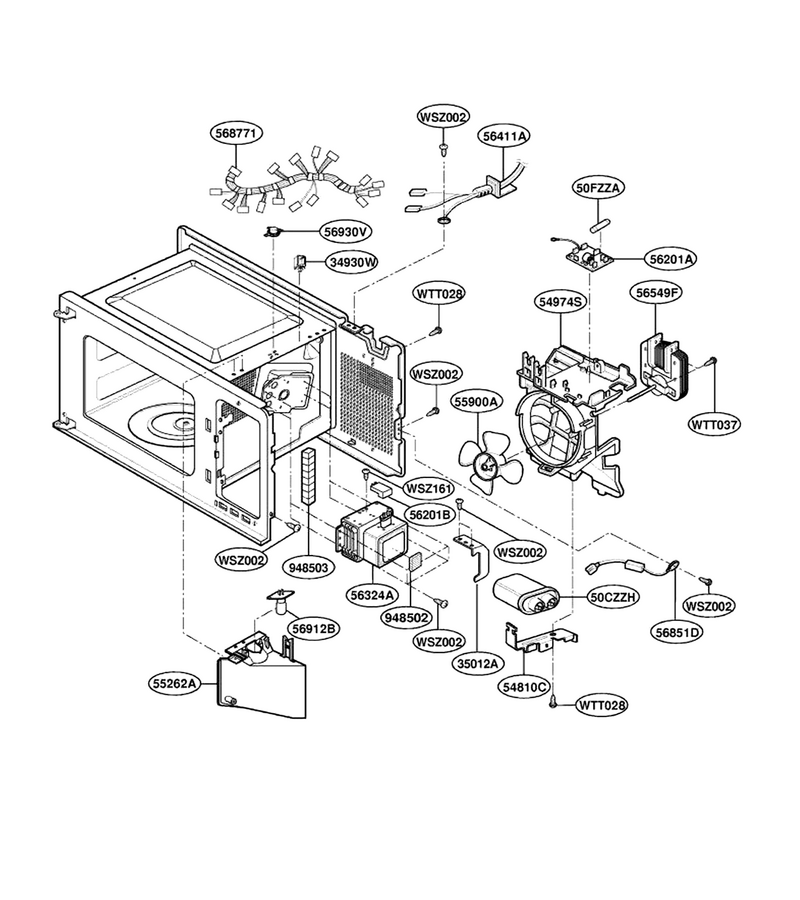

Interior Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
WTT028
Microwave Screw L-G-1TTL0402818
...
50CZZH
Microwave High-Voltage Capacitor L-G-6120W3H003G
...
50FZZA
Fuse[all] L-G-3B74133K
...
34930W
Holder L-G-4930W3B029A
...
54810C
Bracket L-G-4810W4C003A
...
54974S
Microwave Noise Filter L-G-2B72130F
...
55262A
Guide L-G-4974W1S010A
...
55900A
Duct L-G-5262W2A018A
...
56201A
Microwave Noise Filter L-G-2B72130F
...
56201B
Microwave Cooling Fan Blade L-G-2B72125A
...
56324A
Microwave Magnetron L-G-2B71732B
...
56411A
Power Cord Assembly L-G-6411W2A002B
...
56549F
Motor,ac Fan L-G-2B73670B
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001A
...
56912B
Microwave Light Bulb L-G-6912W3B002G
...
56930V
Microwave Thermostat L-G-6930W1A001J
...
568771
Connector Assembly L-G-6877W1A131A
...
948502
Cushion L-G-3B72244T
...
948503
Damper L-G-3B72246J

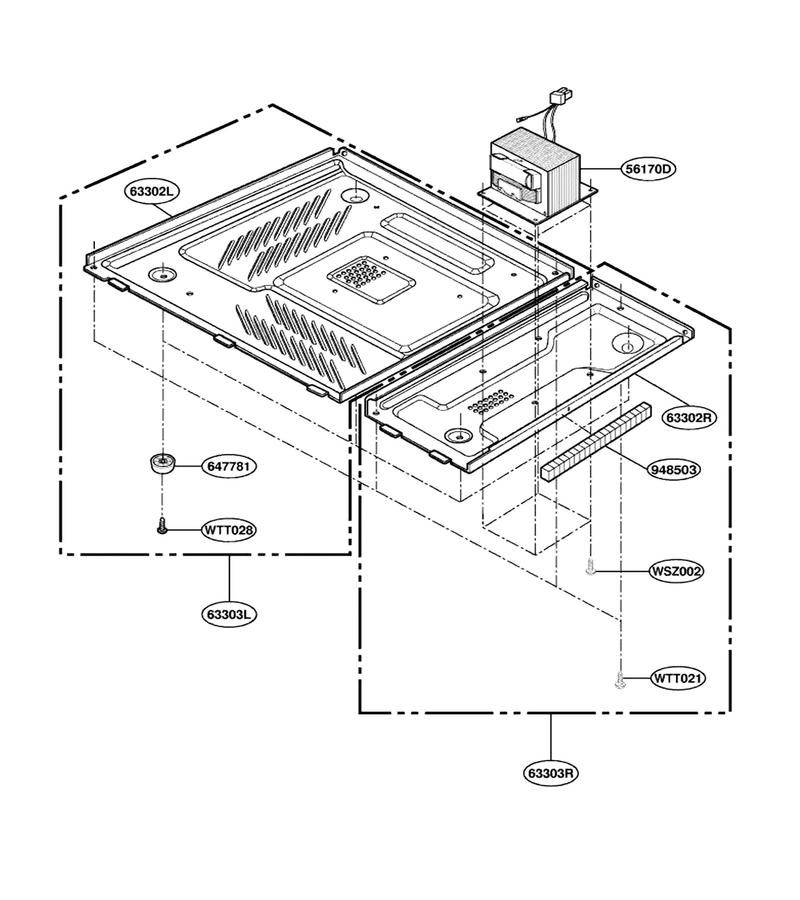

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
56170D
Transformer,high Voltage L-G-6010W2H107A
...
63302L
Base Plate L-G-3302W1A034F
...
63303L
Base Plate Assy L-G-3303W1A026G
...
63303R
(63303l) Plate Assembly,base L-G-3303W2A003G
...
647781
Foot L-G-4B73900A
...
948503
Damper L-G-3B72246J
