LG MA-1117W.M1EGSE

Model: MA-1117W.M1EGSE

Save Part Not Listed?
product name

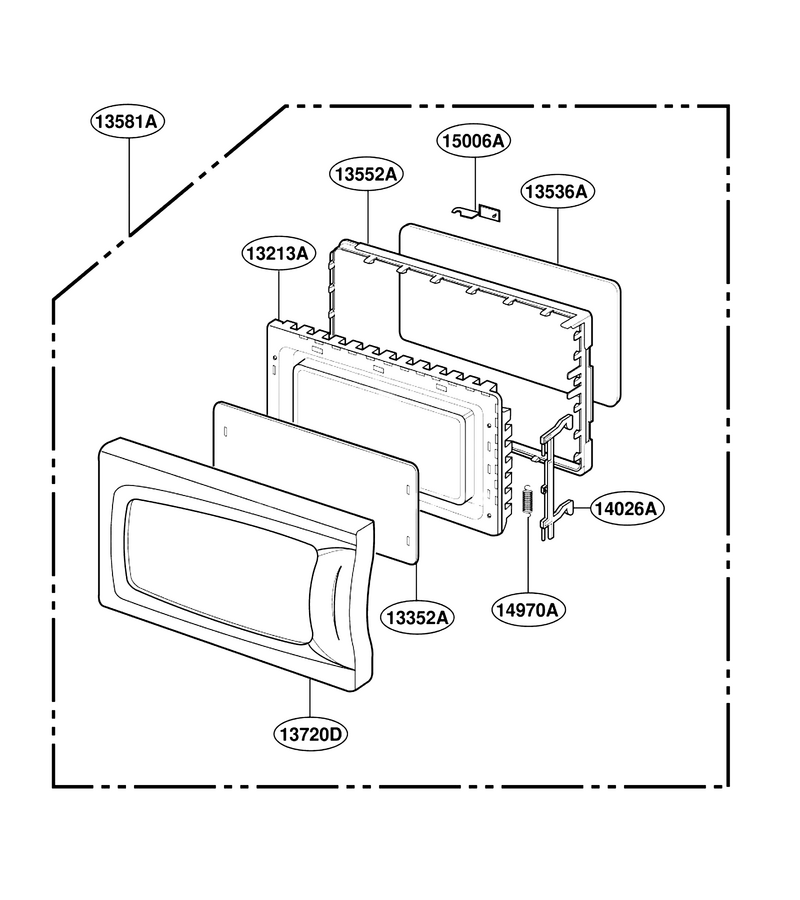

Door Parts

...
...
13213A
Frame Assembly,door L-G-3213W1A028H
...
13352A
Window,screen L-G-3352W2A049A
...
13536A
Tape,sealing L-G-3536WRA001L
...
13552A
Cover,choke L-G-3552W1A037A
...
13581A
Door Assy L-G-3581W1A192F
...
13720D
Panel,[door] L-G-3720W0D131F
...
14026A
Microwave Door Latch Hook L-G-4026W2A015A
...
14970A
Spring L-G-4970WRA001B
...
15006A
Transformer L-G-5006W3A017A

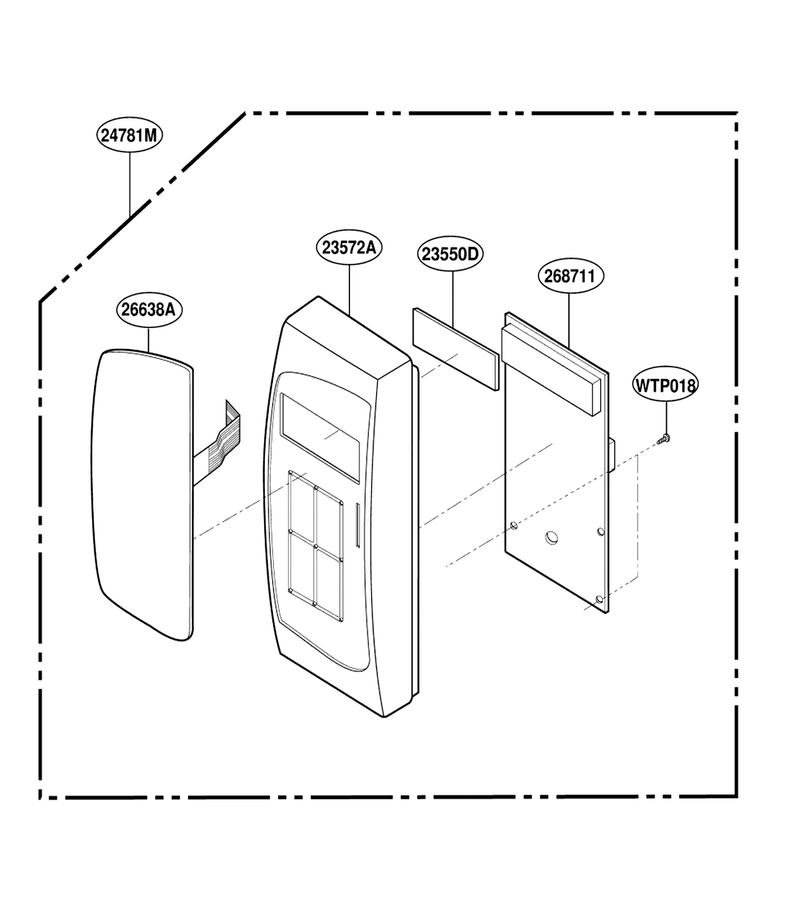

Controller Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
23550D
Microwave Cover L-G-3550W4A029B
...
23572A
Panel,control L-G-3572W0A150A
...
24781M
Controller Assy,[micom] L-G-4781W1M198F
...
26638A
Key Membrane L-G-6638W2A328A
...
268711
Pcb Assembly,sub L-G-6871W2S162C

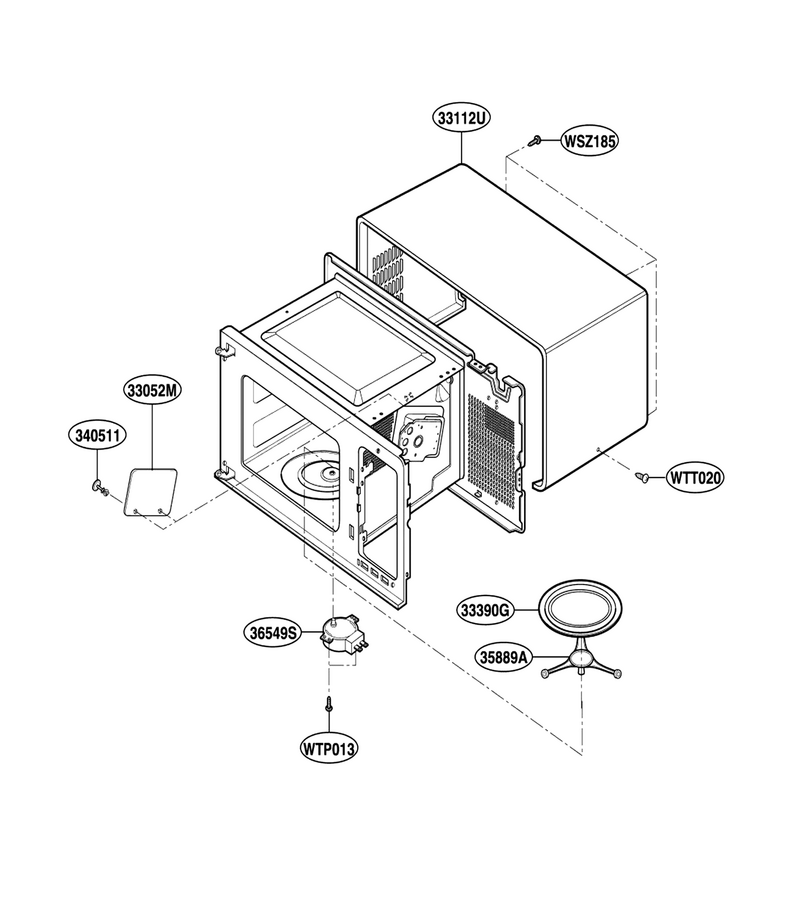

Oven Cavity Parts

...
...
WSZ185
Screw L-G-1SZZW2A002A
...
WTP013
Microwave Screw L-G-1TPL0402418
...
33052M
Cover,insulator L-G-3052W3M011C
...
33112U
Case,u Bending L-G-3112W1U019N
...
33390G
Tray,glass L-G-3390W1G003A
...
35889A
Microwave Turntable Tray Support L-G-5889W2A011A
...
36549S
Motor, Ac Synchronous L-G-6549W1S011C
...
340511
Microwave Waveguide Cover Rivet L-G-4051W3A001A

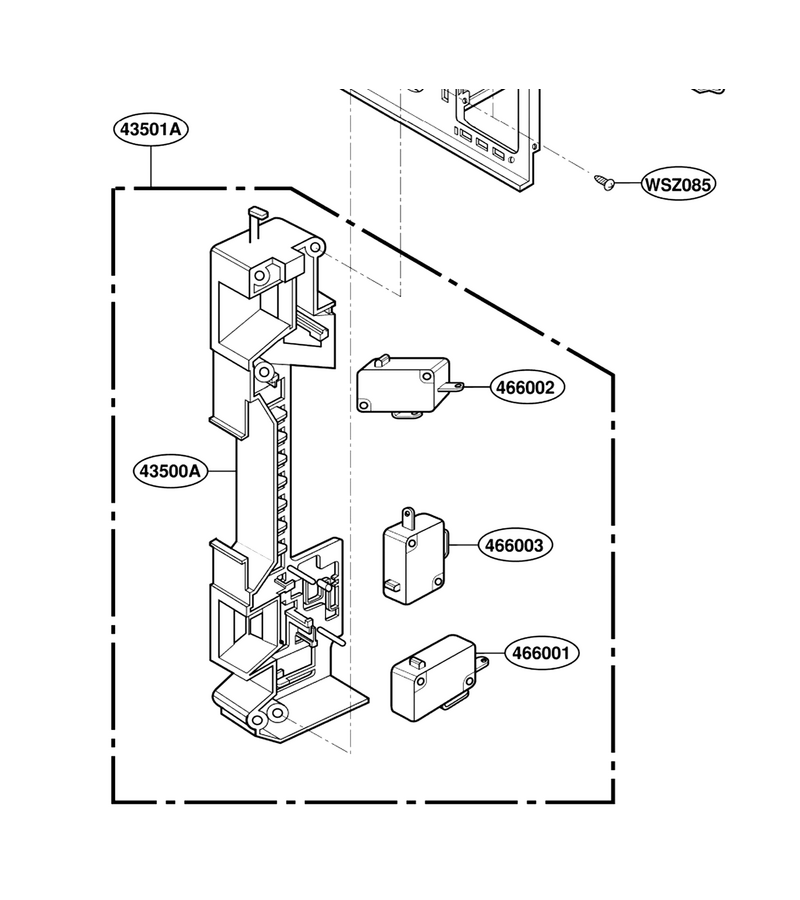

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Microwave Latch Board L-G-3500W1A034B
...
43501A
Latch Board L-G-3501W1A016F
...
466001
Microwave Micro-Switch L-G-6600W1K004F
...
466003
Microwave Door Interlock Switch L-G-6600W1K004E

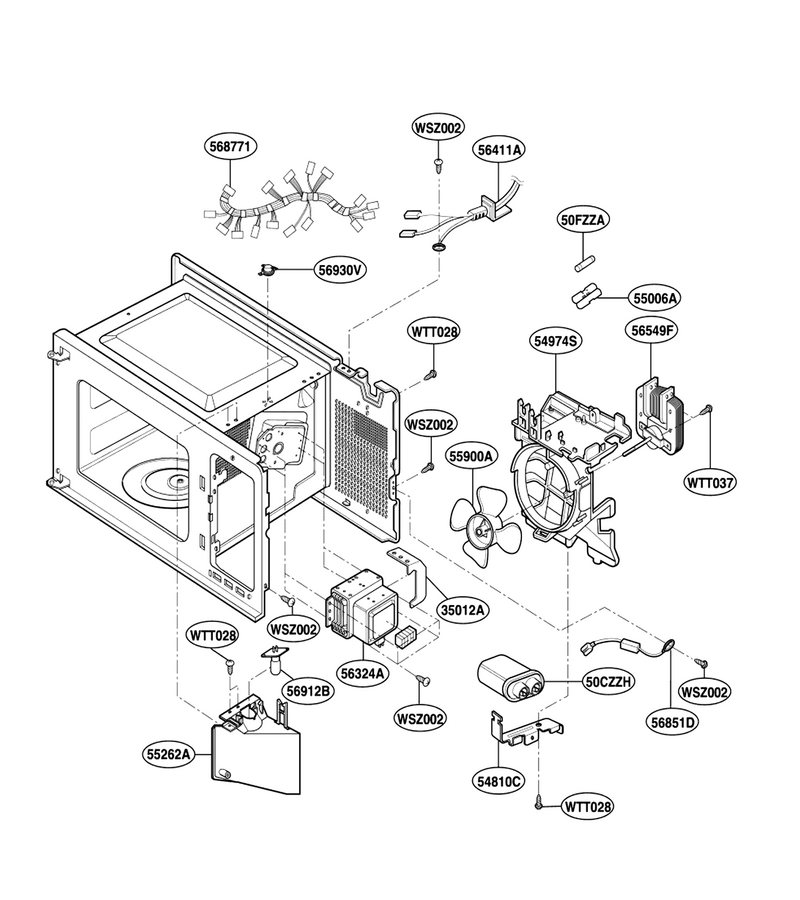

Interior Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
50CZZH
Capacitor,high Voltage L-G-6120W3H003J
...
50FZZA
Fuse[all] L-G-3B74133K
...
35012A
Insulator L-G-5012W3A012A
...
54810C
Bracket L-G-4810W4C003A
...
54974S
Guide L-G-4974W1S010A
...
55262A
Duct L-G-5262W2A041C
...
55900A
Microwave Cooling Fan Blade L-G-2B72125A
...
56324A
Microwave Magnetron L-G-6324W1A001B
...
56411A
Power Cord L-G-2B72325H
...
56549F
Motor L-G-6549W1F001E
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001M
...
56912B
Microwave Light Bulb L-G-6912W3B002L
...
56930V
Microwave Thermostat L-G-6930W1A004L
...
568771
Harness,single L-G-6877W1A359C

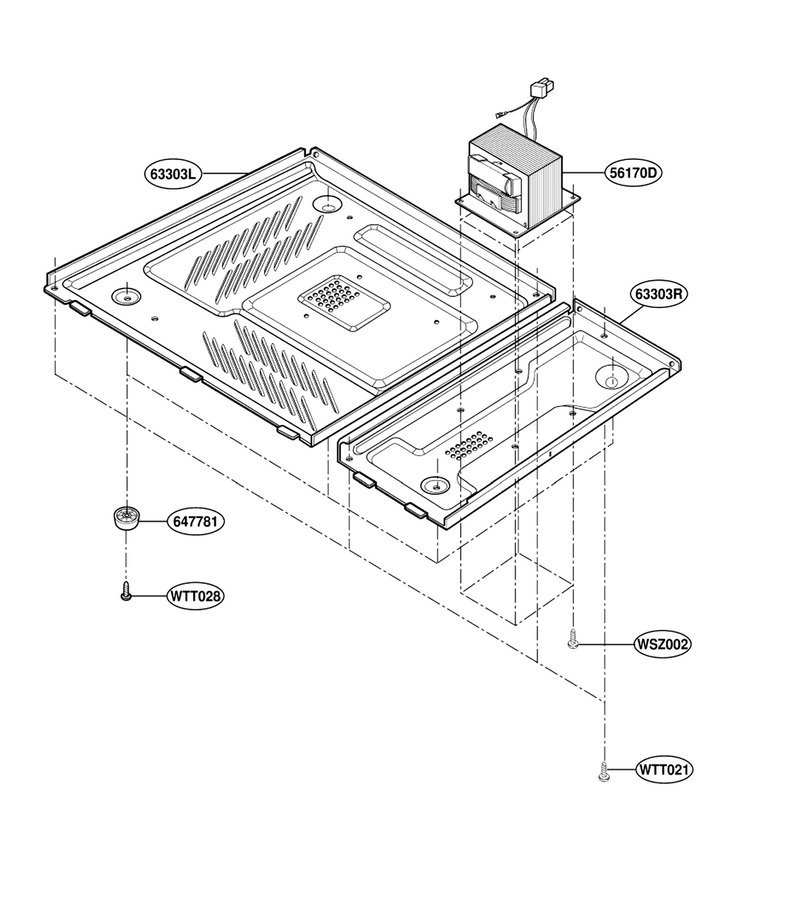

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
56170D
Microwave High-Voltage Transformer L-G-6170W1D023B
...
63303L
Plate Assembly,base L-G-3303W1A028A
...
63303R
Plate Assembly,base L-G-3303W2A004E
...
647781
Foot L-G-4B73900A
