LG MA-1101WRV.MWEGSE

Model: MA-1101WRV.MWEGSE

Save Part Not Listed?
product name

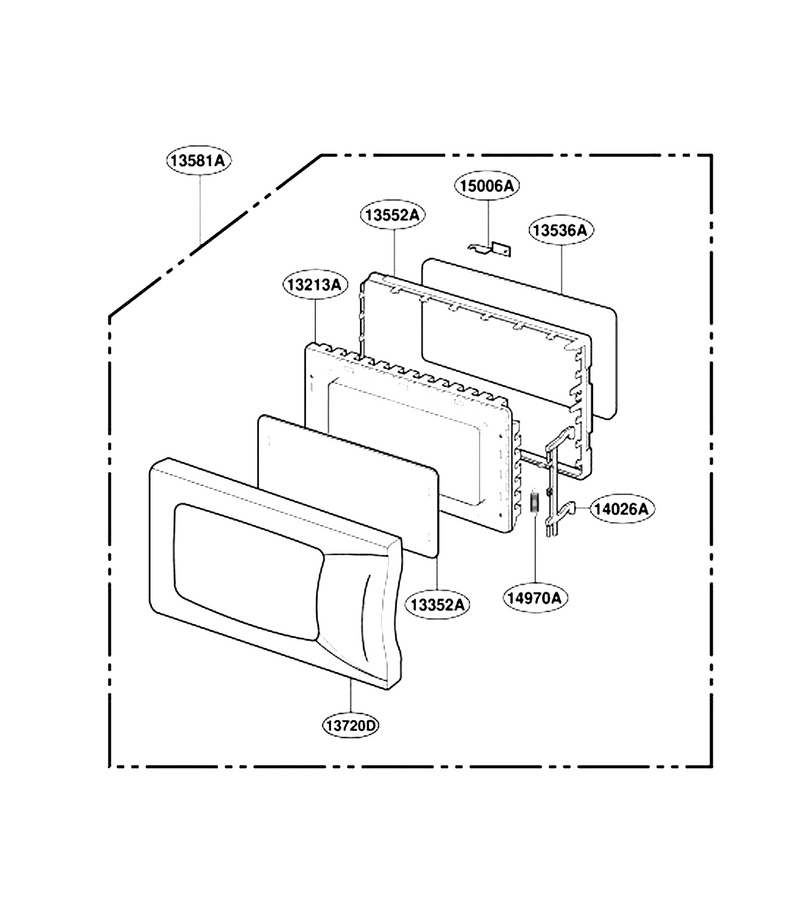

Door Parts

...
...
13213A
Frame Assembly,door L-G-3213W1A034C
...
13352A
Window,screen L-G-3352W2A046A
...
13536A
Seal Tape L-G-3536WRA001N
...
13552A
Cover,choke L-G-3552W1A030A
...
13581A
Door Assy L-G-3581W1A155R
...
13720D
Panel,[door] L-G-3720W0D109L
...
14026A
Latch L-G-4026W2A016A
...
14970A
Spring L-G-4970WRA001D
...
15006A
Transformer L-G-5006W3A012A

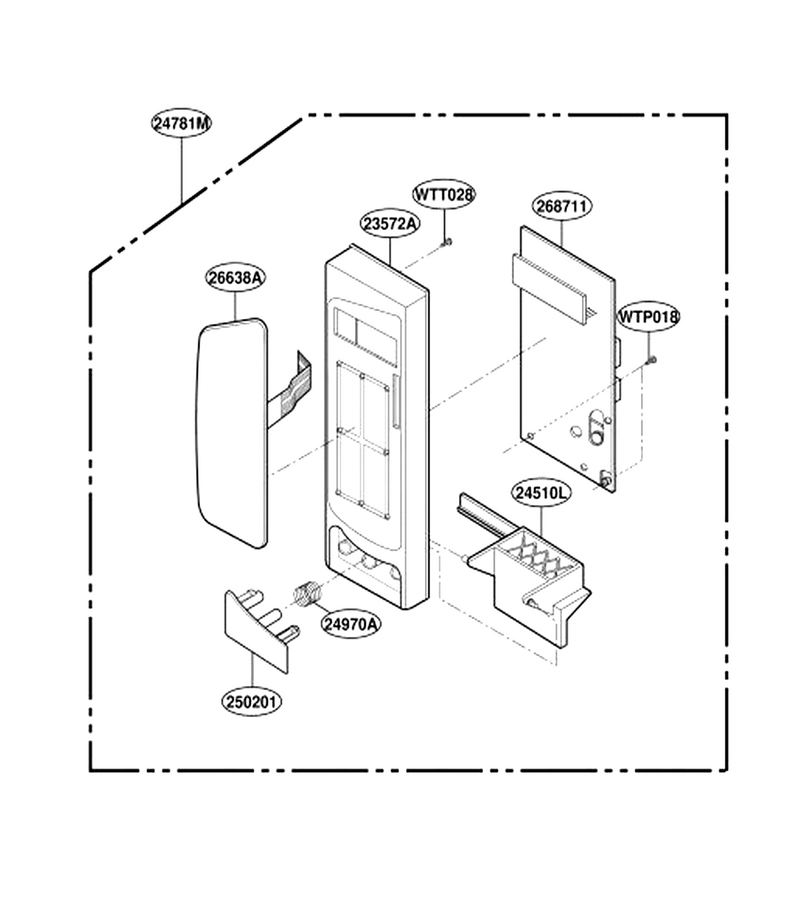

Controller Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
WTT028
Microwave Screw L-G-1TTL0402818
...
23572A
Panel,control L-G-3572W1A144C
...
24510L
Lever L-G-4510W3L003A
...
24781M
Controller Assy,[micom] L-G-4781W1M116P
...
24970A
Microwave Door Release Button Spring L-G-4B72023B
...
26638A
Membrane L-G-6638W2A383A
...
250201
Button L-G-5020W2A086C
...
268711
Pwb(pcb) Assy,[main] L-G-6871W2S110H

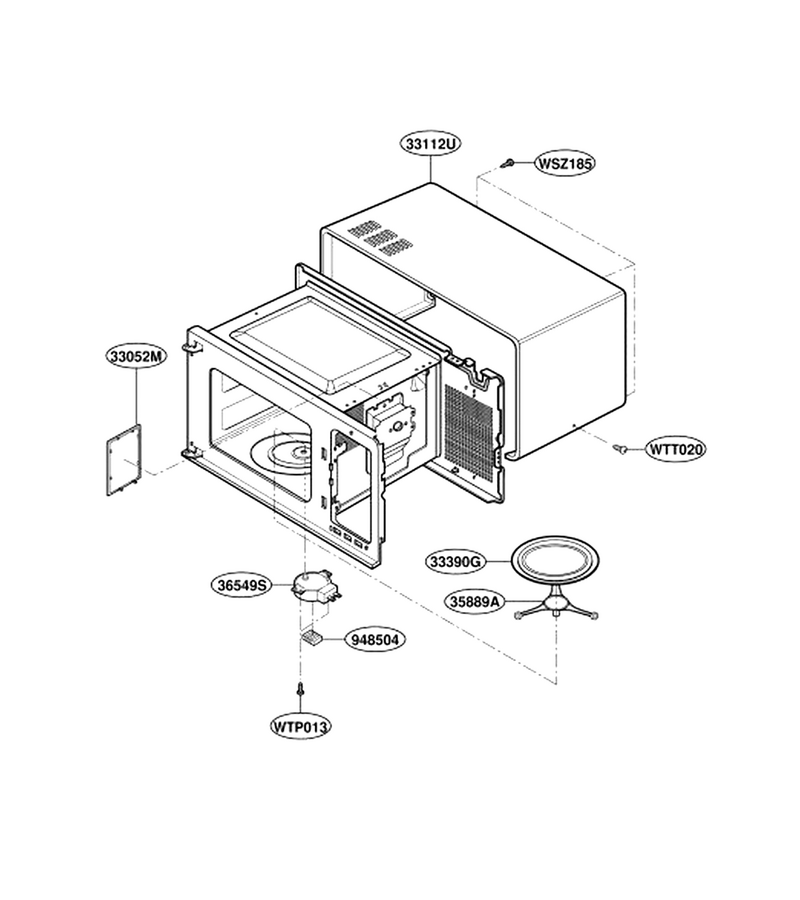

Oven Cavity Parts

...
...
WSZ185
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT020
Screw L-G-1TTL0402416
...
33112U
Case,u Bending L-G-3112W0U024V
...
33390G
Tray,glass L-G-3390W1G003A
...
35889A
Turntable Assembly L-G-5889W2A014A
...
36549S
Motor,ac L-G-6549W1S007F
...
948504
Damper L-G-3B72244A

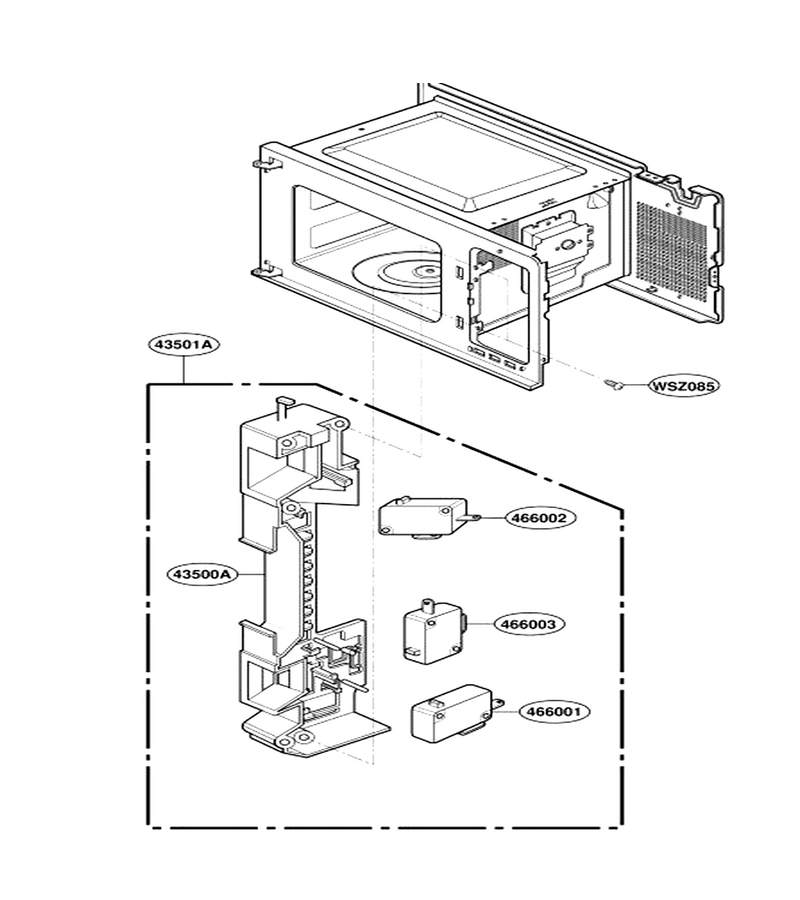

Latch Board Parts

...
...
43500A
Latch Board L-G-3500W1A004B
...
466001
Switch,micro L-G-6600W1K003D
...
466003
Switch,micro L-G-6600W1K003C

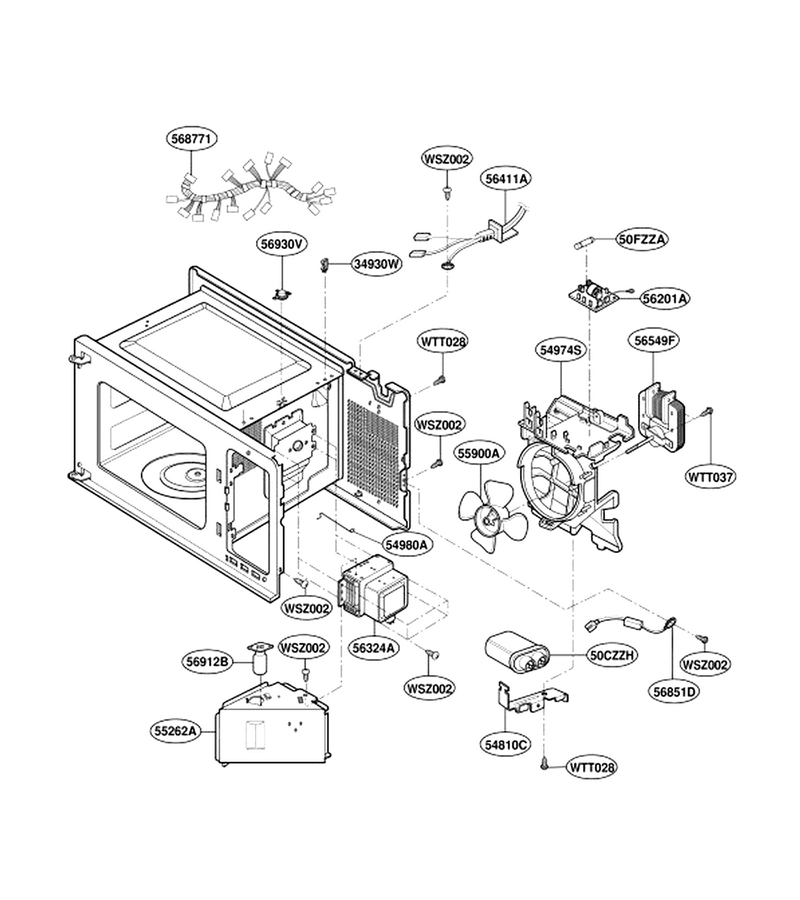

Interior Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
50CZZH
Capacitor,high Voltage L-G-0CZZW1H001P
...
50FZZA
Fuse[all] L-G-3B74133K
...
34930W
Holder,display L-G-4930W3B028A
...
54810C
Bracket L-G-4810W4C003B
...
54974S
Stirrer Cover L-G-4974W1S048B
...
54980A
Supporter L-G-4980W3A038A
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A004A
...
56201A
Filter Assembly L-G-2B72130H
...
56324A
Microwave Magnetron L-G-2B71732B
...
56411A
Power Cord Assembly L-G-6411W1A012K
...
56851D
Cable,assembly L-G-6021W3B001N
...
56912B
Microwave Light Bulb L-G-6912W3B002L
...
568771
Harness,single L-G-6877W1A290B

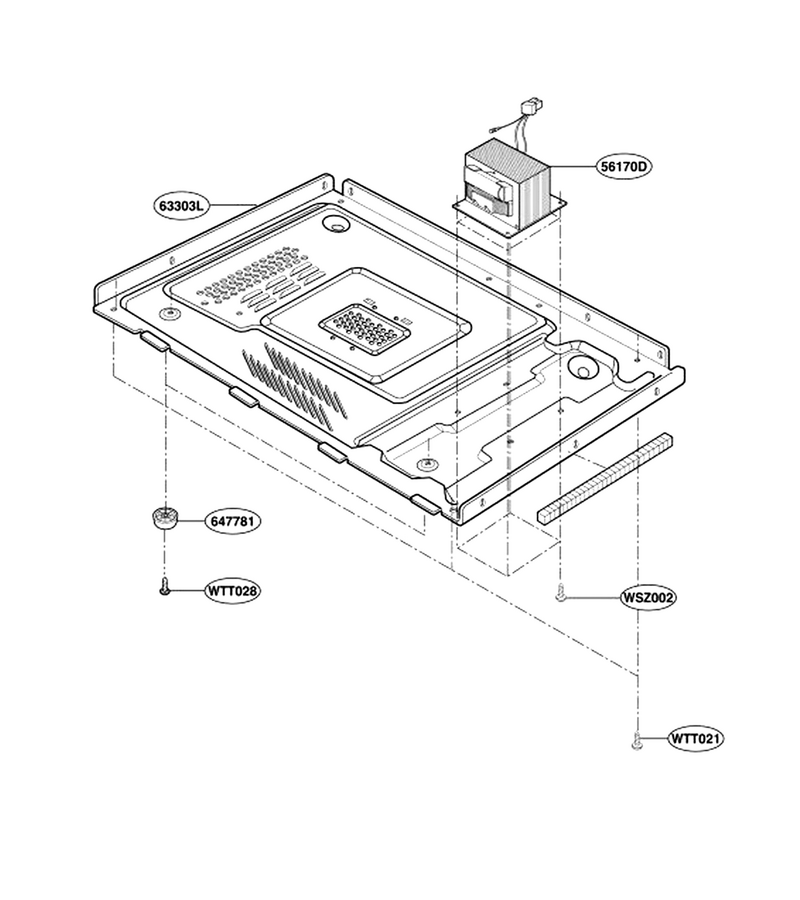

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
56170D
Transformer,high Voltage L-G-6170W1D027B
...
647781
Leg L-G-4778W3A002A
