LG MA-1012W.CMWEGSE

Model: MA-1012W.CMWEGSE

Save Part Not Listed?
product name

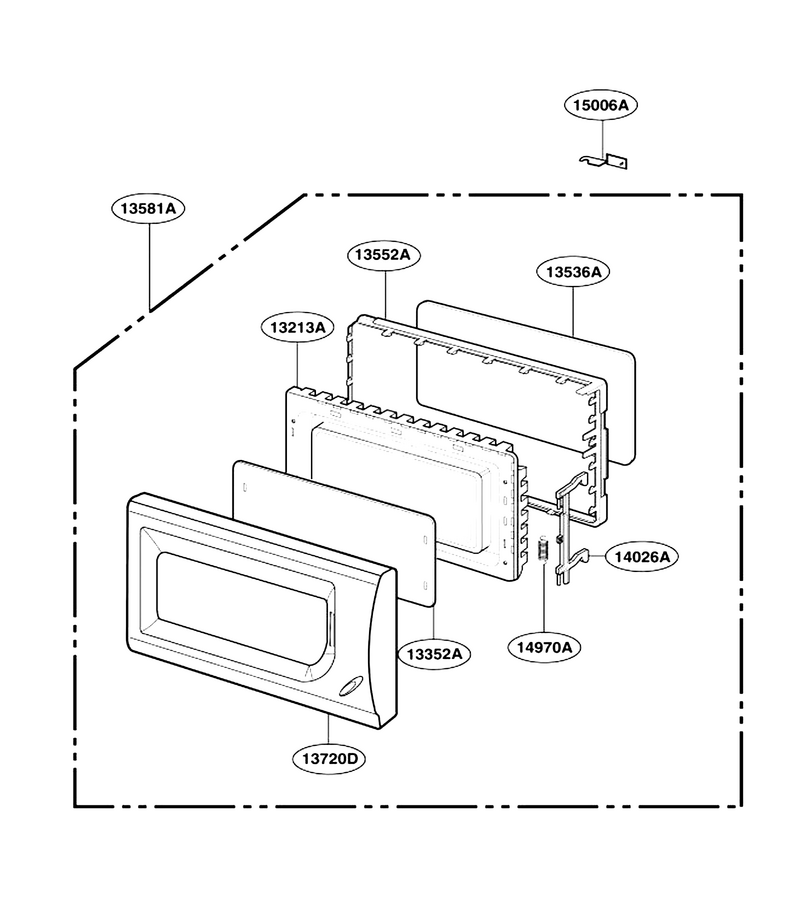

Door Parts

...
...
13213A
Door Frame L-G-3213W1A034J
...
13352A
Screen L-G-3352W2A046J
...
13536A
Seal Tape L-G-3536WRA001W
...
13552A
Chok Cover L-G-3552W1A038A
...
13581A
(13581a) Door Assembly L-G-3581W1A227C
...
13720D
(13720d) Panel,door L-G-3720W0D162A
...
14026A
Microwave Door Latch L-G-4026W2A019A
...
14970A
Spring L-G-4970WRA001B
...
15006A
Transformer L-G-5006W3A012A

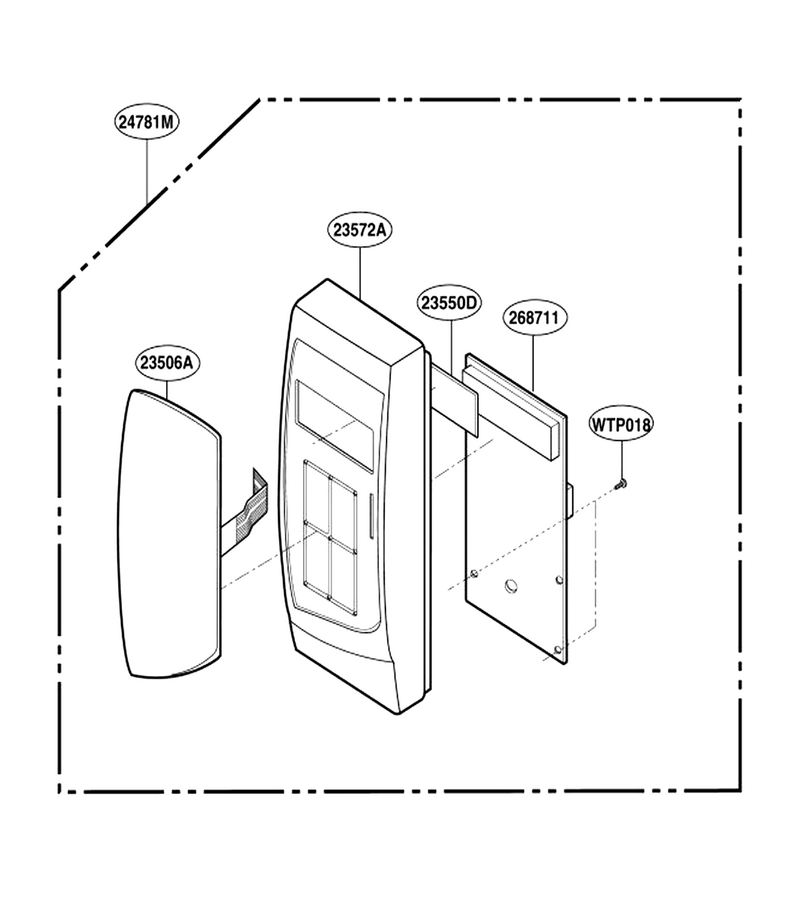

Control Panel Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
23506A
Membrane L-G-3506W1A135A
...
23550D
Cover L-G-3550W4A029L
...
23572A
(23572a) Panel,control L-G-3572W0A201A
...
24781M
Controller Assembly,keypad L-G-4781W1M227T

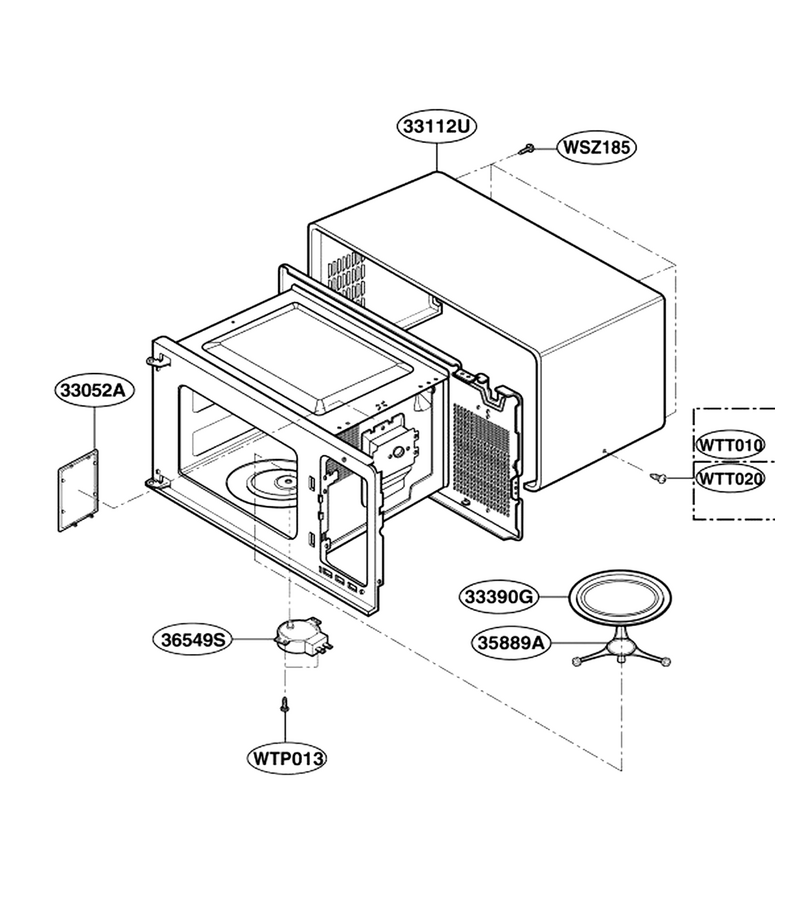

Oven Cavity Parts

...
...
WSZ185
Screw L-G-1SZZW2A002A
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT010
Microwave Screw L-G-1TTG0402422
...
33052A
Canopy L-G-3052W2A021A
...
33112U
Out Case L-G-3112W0U024R
...
33390G
Microwave Glass Turntable Tray L-G-3390W1G003G
...
35889A
Microwave Turntable Tray Support L-G-5889W2A014C
...
36549S
Circulating Motor L-G-6549W1S011J

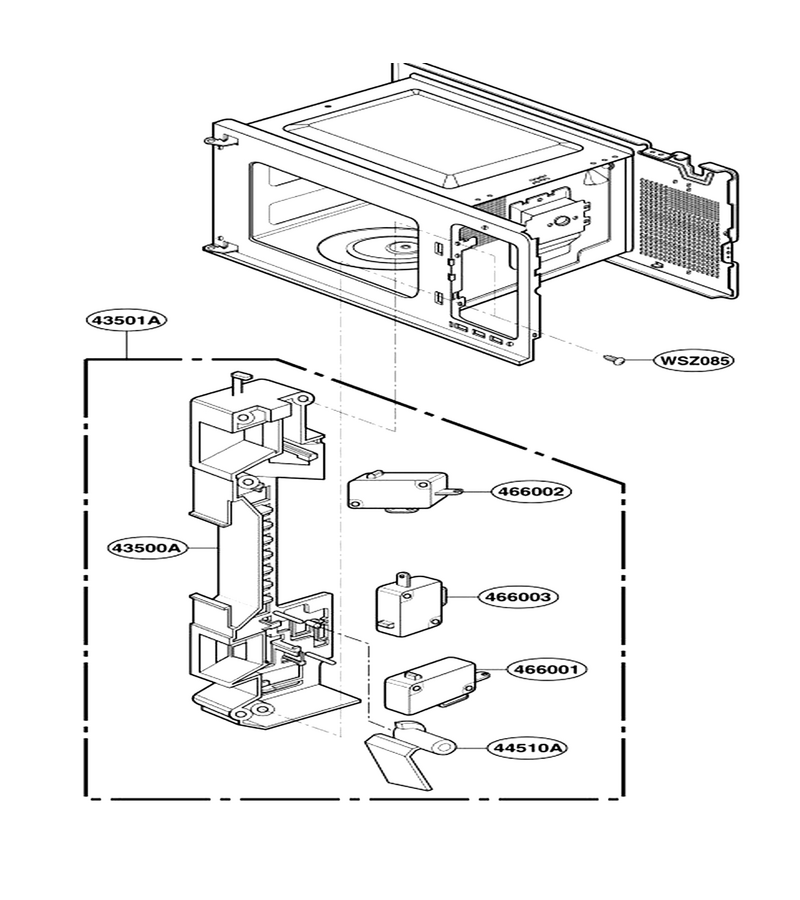

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Latch Board L-G-3500W1A010A
...
44510A
Lever L-G-4510W3A012B
...
466001
Switch,micro L-G-6600W1K003D
...
466003
Switch,micro L-G-6600W1K003C

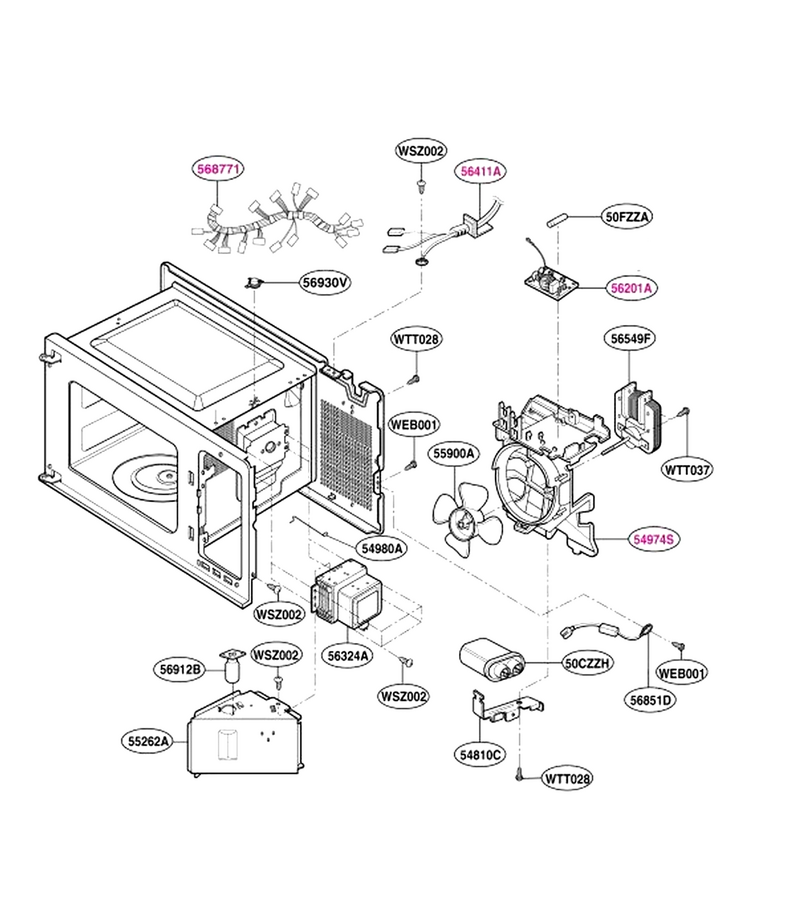

Interior Parts (i)

...
...
WEB001
Screw L-G-1EBF0402494
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H004K
...
50FZZA
Fuse,drawing L-G-3B74133Q
...
54810C
Bracket L-G-4810W4C003B
...
54974S
Stirrer Cover L-G-4974W1S048B
...
54980A
Supporter L-G-4980W3A038A
...
55006F
Cap Fuse L-G-5006WRA002D
...
55262A
Fan Bracket L-G-5262W2A037C
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A004A
...
56324A
Magnetron L-G-6324W1A001L
...
56411A
Ac Power Cord Assembly L-G-6411W1A031A
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001R
...
56912B
Microwave Light Bulb L-G-6912W3B002L
...
56930V
Microwave Thermostat L-G-6930WRT002F
...
568771
Harness L-G-6877W1A359B

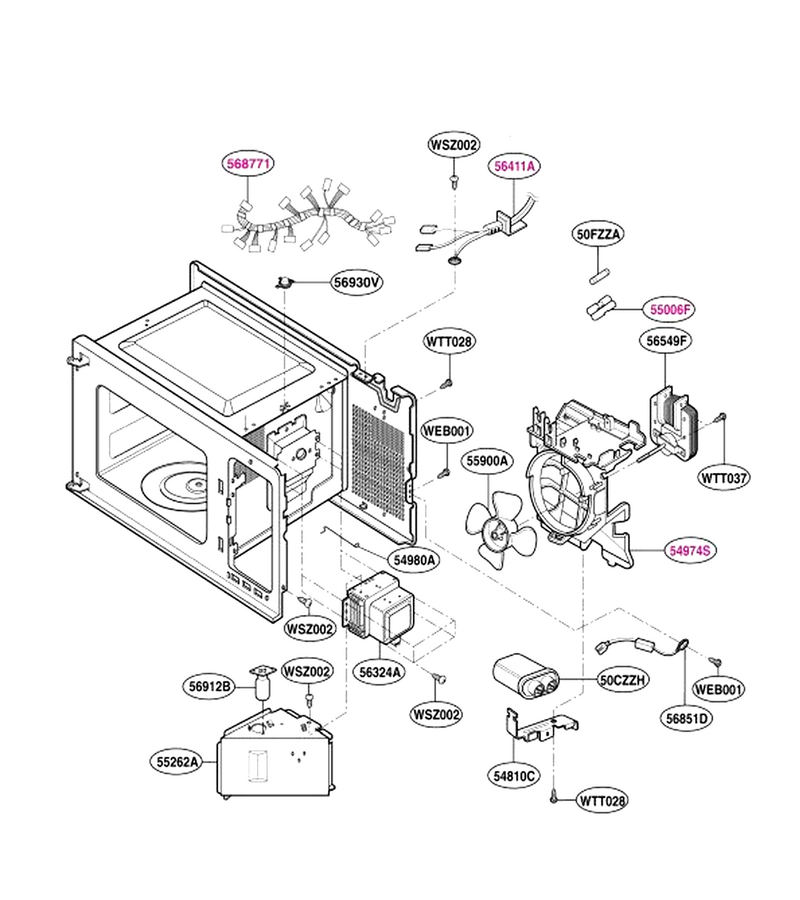

Interior Parts (ii)

...
...
WEB001
Screw L-G-1EBF0402494
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H004K
...
50FZZA
Fuse,drawing L-G-3B74133Q
...
54810C
Bracket L-G-4810W4C003B
...
54974S
Stirrer Cover L-G-4974W1S048B
...
54980A
Supporter L-G-4980W3A038A
...
55262A
Fan Bracket L-G-5262W2A037C
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A004A
...
56324A
Magnetron L-G-6324W1A001L
...
56411A
Ac Power Cord Assembly L-G-6411W1A031A
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005P
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001R
...
56912B
Microwave Light Bulb L-G-6912W3B002L
...
56930V
Microwave Thermostat L-G-6930WRT002F
...
568771
Harness L-G-6877W1A359B

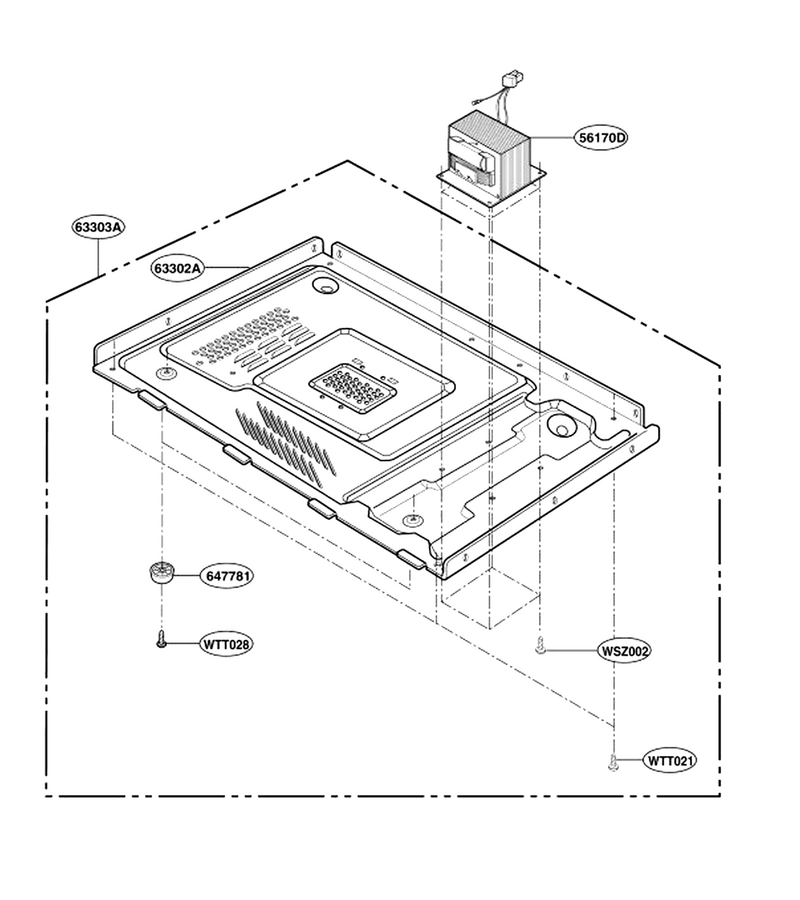

Base Plate Parts

...
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
56170D
(56170d) Transformer,high Voltage L-G-6170W1D054D
...
63302A
Single Lge L-G-3302W0A025A
...
63303A
Base Plate L-G-3303W0A013B
...
647781
Leg L-G-4778W3A002A
