LG M8004R.AWYAUSG

Model: M8004R.AWYAUSG

Save Part Not Listed?
product name

Main

...
...
W1WZZ-1
Washe L-G-4H01029E
...
W4810-1
Room Air Conditioner Window Lock Bracket L-G-4810A30113A
...
W4810-2
Bracket L-G-4810A30152A
...
W4810-3
Bracket L-G-4810AR4155B
...
W1NFZ
Hex Nut L-G-1NHA0801206
...
W1TT
Screw,tapping L-G-1TTG0402618
...
W48602
Room Air Conditioner Fan Blade Clamp L-G-3H02932B
...
35211A
Tube L-G-5211A22017A
...
130410
A/c Base L-G-3041A10041H
...
130910
Cabinet L-G-3091A10056A
...
132111-1
Room Air Conditioner Accordion Fillter Assembly.. L-G-3211AR3239B
...
132111-2
Room Air Conditioner Accordion Fillter Assembly.. L-G-3211AR3239A
...
135312
Grille Assembly,front L-G-3531A24020A
...
135313
Grille,inlet L-G-3530A10236A
...
135500
Cover L-G-3550A30226A
...
147581
Louver,horizontal L-G-4758A20069A
...
147582
Louver L-G-4758A20040D
...
148000
Brace L-G-4800A30002C
...
149980
Shroud L-G-4998A10036A
...
150400
Rubber L-G-4H02023A
...
152312
Room Air Conditioner Thermistor L-G-5231A20023A
...
237200
Room Air Conditioner Control Panel L-G-3720A10111C
...
238310
Escutcheon L-G-3831A10046A
...
249950
Control Box Assembly,single L-G-4995A10113J
...
263230
Room Air Conditioner Thermistor L-G-6323A20004P
...
264110
Ac Cord L-G-6411A20037C
...
267110
Remote Controller Assembly L-G-6711A20034C
...
268712
Display Pcb L-G-6871A20418A
...
268714
Room Air Conditioner Electronic Control Board L-G-6871A20417C
...
346811
Motor L-G-4681A20140A
...
349001-1
Damper L-G-4900A20020A
...
349001-2
Vent Damper L-G-4900A20020B
...
349480
Orifice L-G-4948A20030A
...
352113
Tube L-G-5211A21237A
...
352115
Tube L-G-5211A25020A
...
352380-2
Air Guide L-G-5238A10023A
...
352380
Air Guide L-G-5238A10015A
...
352390
Air Guide L-G-5239A20019A
...
354210
Evaporator L-G-5421A10043A
...
359012
Turbo Fan L-G-5900A20020A
...
422100
Room Air Conditioner Drain Pipe L-G-3H02773A
...
535500
Terminal Cover L-G-3550UTL006A
...
550140
Room Air Conditioner Compressor Grommet L-G-5040AR4195A
...
552113
Tube L-G-5211A22016A
...
554030
Condenser L-G-5403A20180A
...
554160
Compressor L-G-2520UCBA002
...
559010
Room Air Conditioner Condenser Fan Blade L-G-5900A20015A
...
567502
Room Air Conditioner Compressor Overload Protector L-G-6750U-L048A
...
731373
Room Air Conditioner Accordion Filler Kit L-G-3127A20074B
...
749740
Guide L-G-4974A30067B

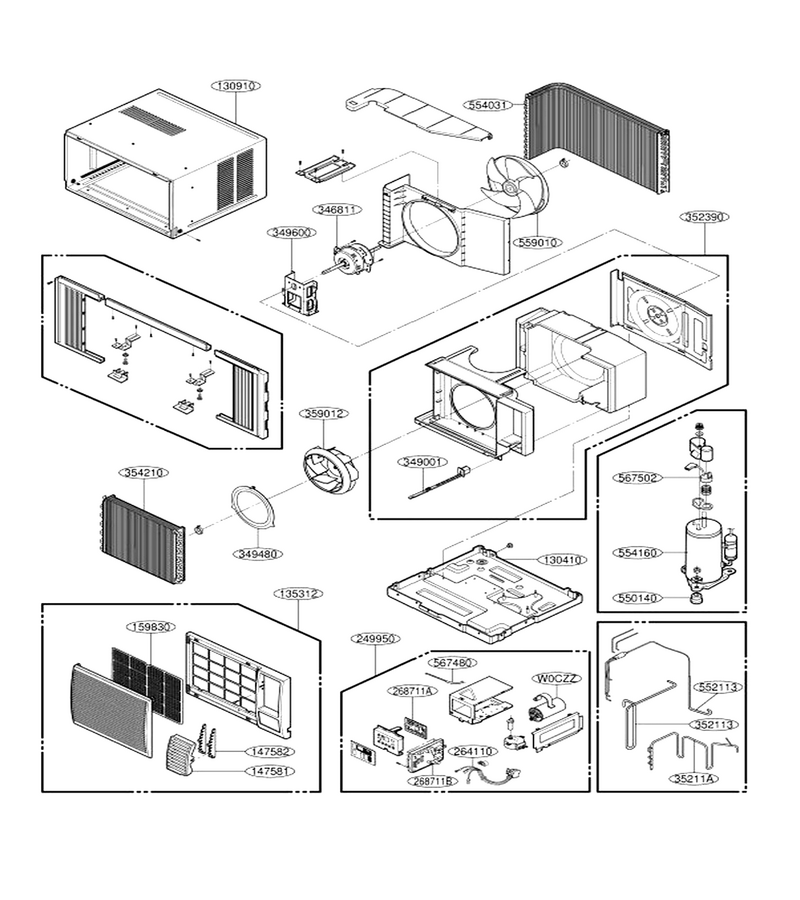

Schematic Image Zoomed
