LG M150TC.HMWQCUR

Model: M150TC.HMWQCUR

Save Part Not Listed?
product name

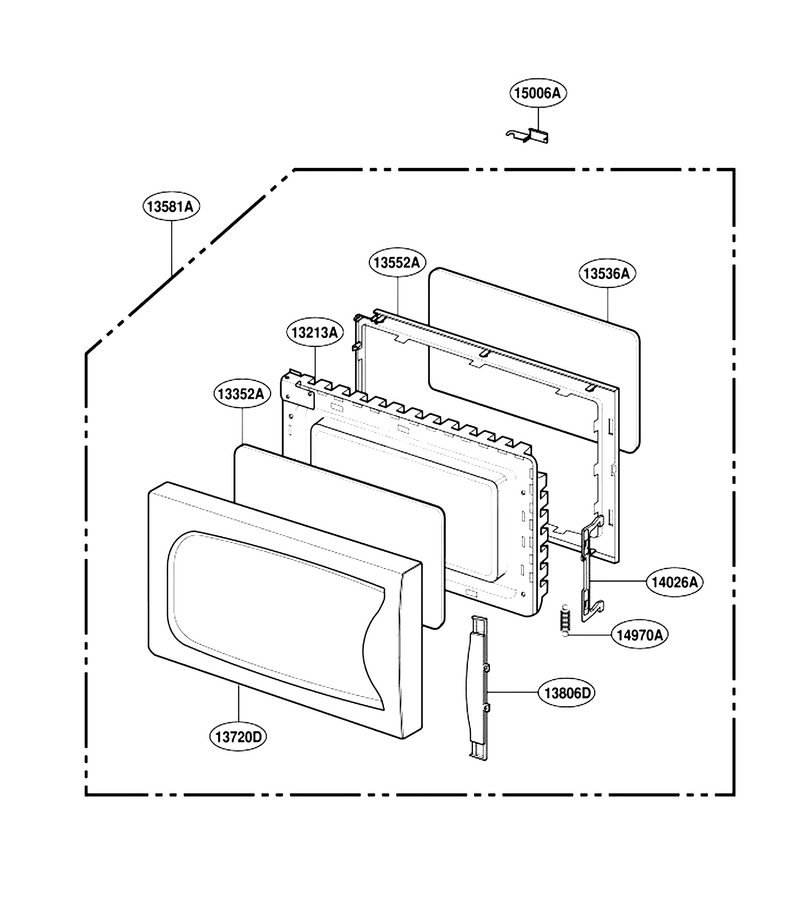

Door Parts

...
...
13213A
Frame Assembly,door L-G-3213W1A028B
...
13352A
Window,screen L-G-3352W2A049A
...
13536A
Tape,sealing L-G-3536WRA001L
...
13552A
Cover,choke L-G-3552W1A037A
...
13581A
Door Assy L-G-3581W1A192N
...
13720D
Panel,[door] L-G-3720W0D131M
...
13806D
Decor,door L-G-3806W2A007A
...
14026A
Microwave Door Latch Hook L-G-4026W2A015A
...
14970A
Spring L-G-4970WRA001B
...
15006A
Transformer L-G-5006W3A017A

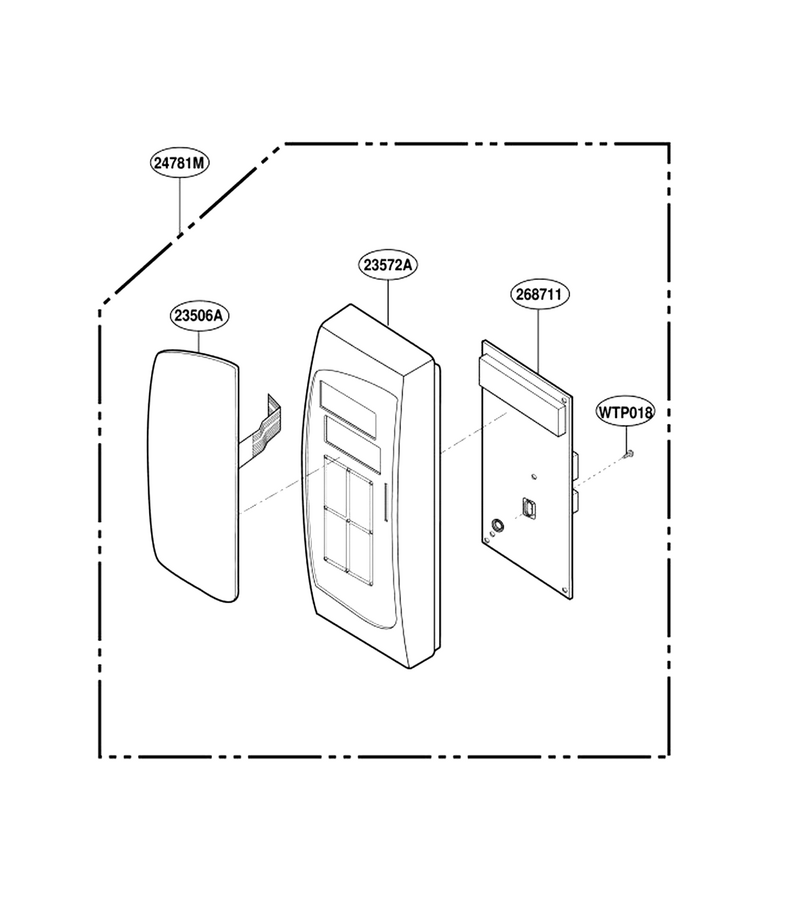

Control Panel Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
23572A
Panel,control L-G-3572W0A150C
...
24781M
Controller Assy,[micom] L-G-4781W1M198N
...
268711
Pcb Assembly,sub L-G-6871W1S091C

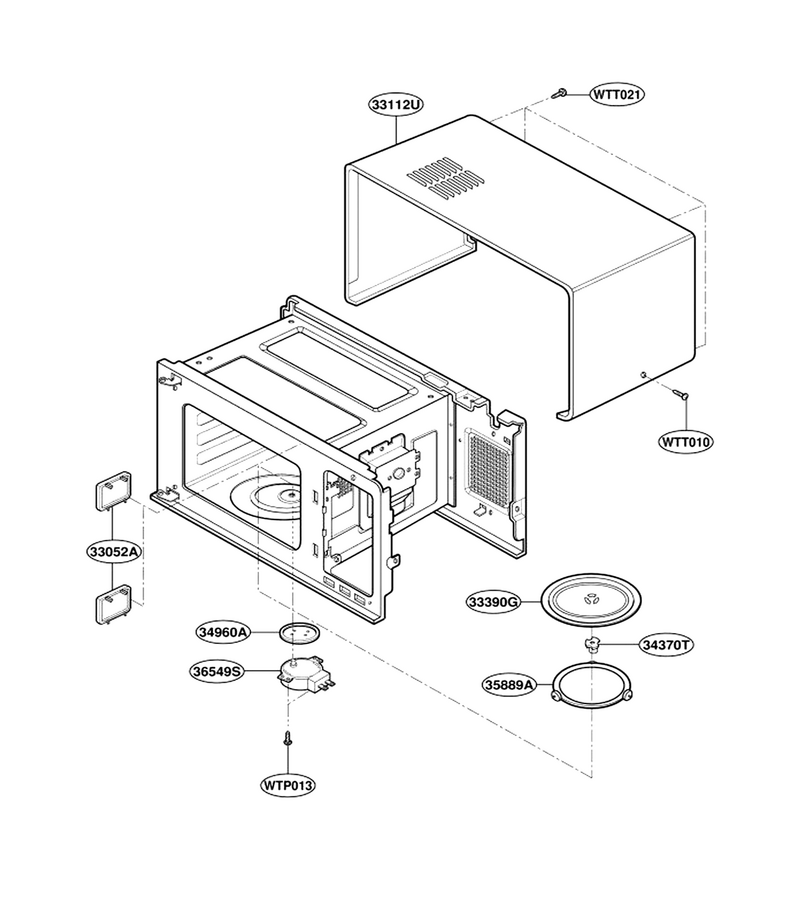

Oven Cavity Parts

...
...
WTT010
Microwave Screw L-G-1TTG0402422
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTP013
Microwave Screw L-G-1TPL0402418
...
33052A
Canopy L-G-3052W3A016A
...
33112U
Case,u Bending L-G-3112W1U012E
...
33390G
Tray,glass L-G-3390W1G002A
...
34370T
Shaft,turntable L-G-4370W3T007A
...
34960A
Plate L-G-4960W3G005A
...
35889A
Microwave Turntable Tray Support L-G-5889W2A005J
...
36549S
Motor, Ac Synchronous L-G-6549W1S002A

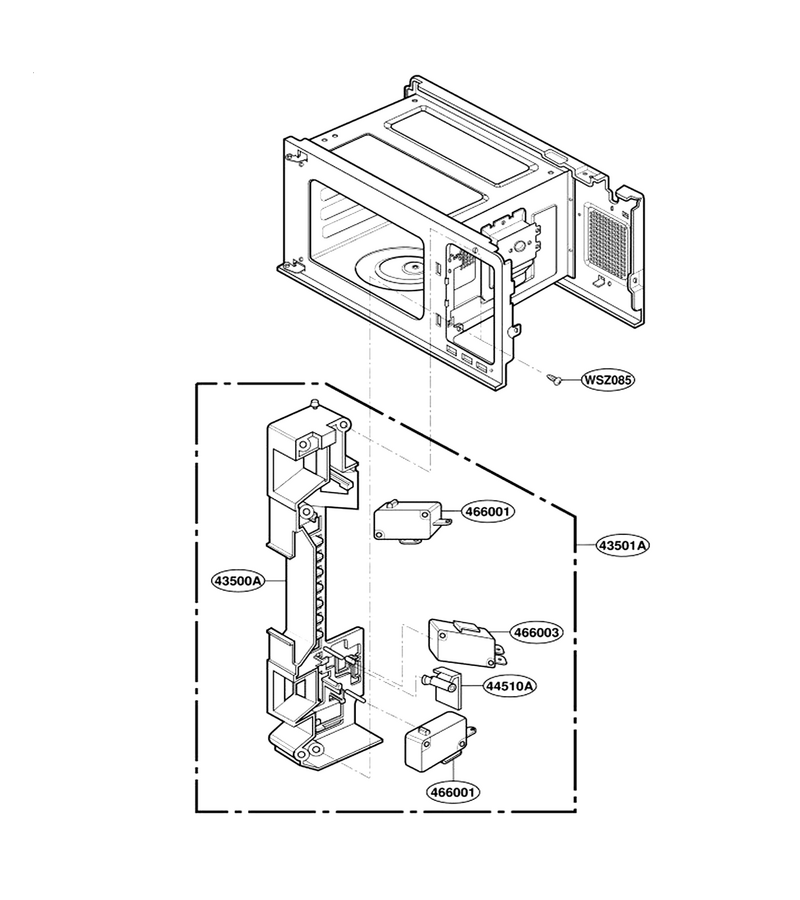

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Microwave Door Latch Holder L-G-3500W1A013A
...
43501A
Latch Assembly L-G-3501W1A016M
...
466001
Microwave Micro Switch L-G-6600W1K004C
...
466003
Microwave Door Interlock Switch L-G-6600W1K004B

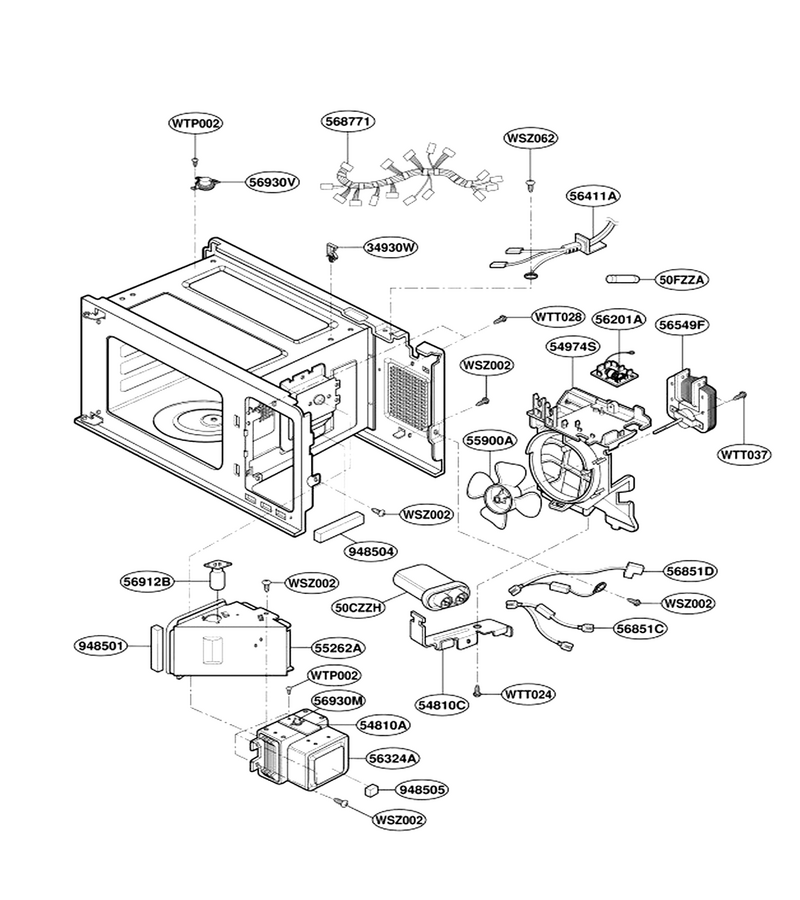

Interior Parts

...
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT024
Microwave Screw L-G-1TTL0402618
...
WSZ062
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
WTP002
Screw L-G-1TPL0302018
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H002J
...
50FZZA
Fuse,time Delay L-G-3B70856K
...
34930W
Lug (circ) L-G-4B72510F
...
54810C
Bracket L-G-4810W4C003A
...
54974S
Guide L-G-4974W1S010A
...
55262A
Duct L-G-5262W2A018B
...
55900A
Microwave Cooling Fan Blade L-G-2B72125A
...
56201A
Filter,ac Line L-G-6201W2A018B
...
56324A
Microwave Magnetron L-G-2B71732F
...
56411A
Power Cord Assembly L-G-6411W2E001F
...
56549F
Motor,ac Fan L-G-6549W1F005A
...
56851C
Cable,assembly L-G-3B74428D
...
56851D
Cable,assembly L-G-3B73348B
...
56912B
Cable,assembly L-G-6912W3B002D
...
568771
Connector Assembly L-G-6877W1A050D
...
948501
Cushion L-G-3B72244T
...
948504
Damper L-G-3B72246B
...
948505
Damper L-G-4B73438L

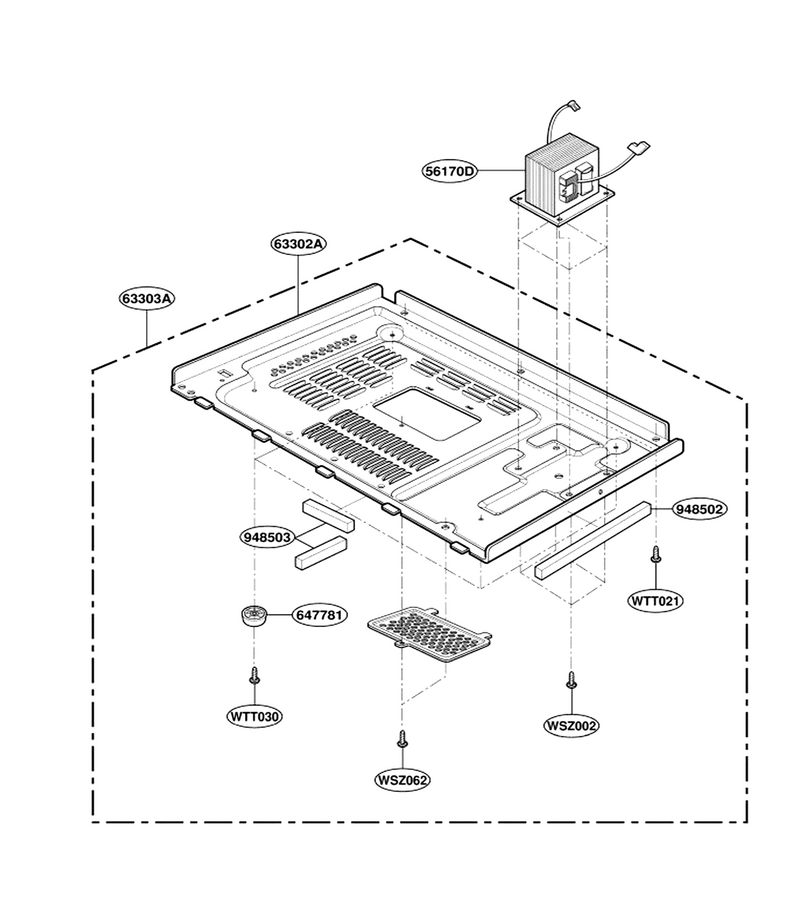

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WSZ062
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT030
4.0x16mm Tap L-G-1TTL0403118
...
56170D
Transformer,high Voltage L-G-6010W2H098A
...
63302A
Plate,base L-G-3302W1A029A
...
63303A
Plate Assembly,base L-G-3303W1A014A
...
647781
Foot L-G-4B75290A
...
948502
Damper L-G-3B72245C
...
948503
Cushion L-G-3B72244C
