LG M1003R.AWYCUSA

Model: M1003R.AWYCUSA

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-0CZZA20001N
...
35211A
Tube Assembly L-G-5211A20228B
...
130410
Base Assembly L-G-3041A30005P
...
130910
Cabinet L-G-3091A30005D
...
135312
Grille Assembly L-G-3531A20034A
...
135313
Inlet Grille L-G-3530A10027A
...
135500
Cover L-G-3550A30036B
...
137215
Panel L-G-3720A20053A
...
147581
Louver L-G-4758A20002A
...
147582
Vane L-G-4758A30008A
...
148000
Brace L-G-4800A30001A
...
149980
Shroud L-G-4998A10010A
...
152302
Room Air Conditioner Air Filter L-G-5231A20004A
...
238310
Escutcheon L-G-3831A20015R
...
249950
Control Board L-G-4995A20106X
...
263230
Thermistor L-G-6323A20003D
...
264110
Ac Power Cord Assembly L-G-2H00677R
...
267110
Remote Control L-G-6711A20034A
...
268712
Room Ac Pcb L-G-6871A20189B
...
268714
Room Ac Pcb L-G-6871A20188F
...
346811
Room Air Conditioner Fan Motor L-G-4681A20027J
...
349001
Damper L-G-4901A30001A
...
349480
Orifice L-G-4948A30007A
...
349600
Motor Mount L-G-4960A20014A
...
352111
Tube L-G-5211AR3399A
...
352113
Tube Assembly L-G-5211AR2930K
...
352115
Tube Assembly L-G-5211A20131E
...
352390
Air Guide L-G-5239A30002D
...
354210
Evaporator L-G-5421A20061A
...
359012
Turbo Fan L-G-5900A20016A
...
550140
Bushing L-G-4830AR4335A
...
552102
Tube Assembly L-G-5211A30260F
...
554031
Condenser L-G-5403A20043B
...
554160
Compressor L-G-2520UKEC2CB
...
559010
Room Air Conditioner Condenser Fan Blade L-G-5900A20015A
...
567502
Overload L-G-6750U-L049A

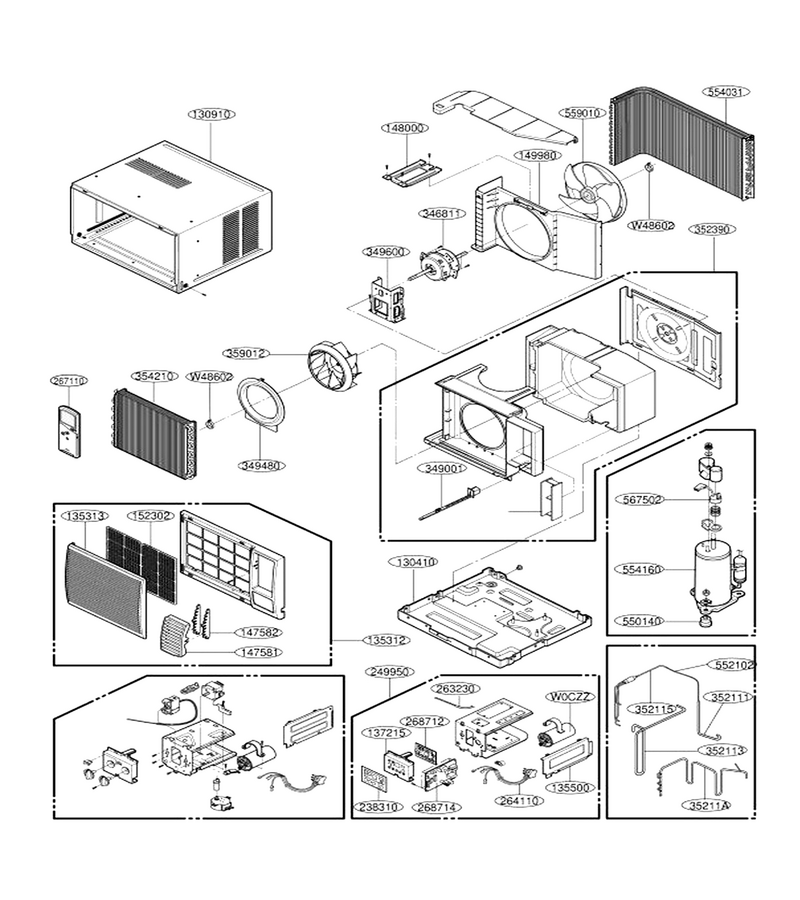

Schematic Image Zoomed
