product name

LG LZ-H100GXN0.ENWALEU

Model: LZ-H100GXN0.ENWALEU

Save Part Not Listed?
product name

Main

...
...
W6640A
Connector, Terminal Block L-G-6640000036A
...
W6640B
Connector,terminal Block L-G-6640A90001U
...
135510
Cover Assembly,control L-G-ACQ74765001
...
137210A
Panel Assembly,front L-G-AGL72954802
...
137210B
Panel Assembly,front L-G-AGL73075901
...
137210C
Panel Assembly,front L-G-3721A20196A
...
137213D
Panel Assembly,side L-G-AGL72946002
...
137213E
Panel Assembly,side L-G-AGL72946301
...
137213C
Panel Assembly,side L-G-AGL73076001
...
137213B
Panel Assembly,side L-G-AGL72946401
...
137213A
Panel Assembly,side L-G-AGL73055501
...
137214A
Panel Assembly,upper L-G-AGL73075801
...
137214B
Panel Assembly,upper L-G-AGL73015801
...
159830
Filter Assembly,air Cleaner L-G-5231A30003B
...
249950
Case Assembly,control L-G-ABQ72952001
...
263230E
Thermistor Assembly,ntc L-G-EBG61106816
...
263230D
Thermistor Assembly,ntc L-G-EBG61106537
...
263230C
Thermistor Assembly,ntc L-G-EBG61287712
...
263230A
Thermistor Assembly,ntc L-G-EBG61106811
...
263230B
Thermistor Assembly,ntc L-G-EBG61106812
...
268711B
Pcb Assembly,main L-G-EBR39319518
...
268711C
Pcb Assembly,sub L-G-6871A20912E
...
268711D
Pcb Assembly,sub L-G-EBR61664002
...
268711E
Pcb Assembly,option L-G-EBR62316104
...
330871
Pan Assembly,drain L-G-AGK72950601
...
336600
Housing,wrapper L-G-3660A20042A
...
340090
Exchanger Assembly L-G-ADM34380902
...
346810
Motor Assembly,dc,indoor L-G-4681A20169C
...
349011
Damper Assembly L-G-4901A20002A
...
349490
Orifice Assembly L-G-4949A20006D
...
352111
Tube Assembly,connector L-G-AJR73065601
...
352114
Tube Assembly,distributor L-G-AJR73065501
...
354210
Evaporator Assembly,first L-G-5421A20114F
...
359012
Fan Assembly,blower L-G-5901A30005B
...
437214A
Panel Assembly,base L-G-AGL73076101
...
437214B
Panel Assembly,base L-G-AGL73055601

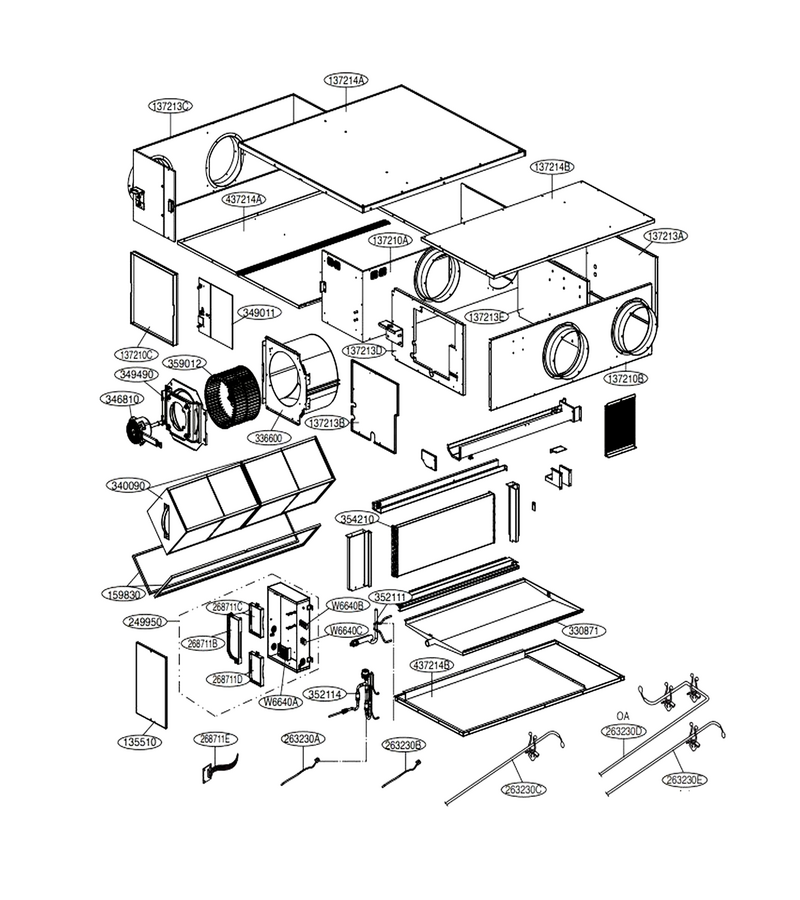

Schematic Image Zoomed
