LG LXA1230ACL.AWY6USG

Model: LXA1230ACL.AWY6USG

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Dual-Motor Run Capacitor L-G-6120AR2194D
...
35211A
Tube Assembly L-G-5211A10073A
...
130410
Base Assembly,single L-G-3041A10014B
...
131400
Cabinet L-G-3090A20003B
...
135303
Air Conditioner Grille Front L-G-3530A20020A
...
135312
Grille Assembly,front L-G-3531A20055B
...
137215
Panel Assembly L-G-3721A20049A
...
147581
Louver,hor L-G-4758A20008B
...
147582A
Vane L-G-4758A20009A
...
147582B
Vane L-G-4758A20009B
...
147900
Barrier,single L-G-4790A20024A
...
148000
Brace L-G-4800A30002A
...
149410
Room Air Conditioner Control Knob L-G-4941A30005B
...
149980
Shroud L-G-4998A10007A
...
152302
Room Air Conditioner Air Filter L-G-5230A20007A
...
249950
Control Board L-G-4995A20131B
...
264110
Power Cord L-G-2H00677G
...
266003
Rotary Switch L-G-2H00598E
...
269300
Room Air Conditioner Thermostat L-G-2H01109M
...
330720
Housing L-G-3072A20003A
...
346811
Motor L-G-4681A20041A
...
349001
Ven Damper L-G-4900A20001A
...
349480
Orifice L-G-4948A10006A
...
349600
Motor Mount L-G-4960A20008A
...
352113
Tube Assembly L-G-5211A10074A
...
352115
Tube Assembly L-G-5211A20215A
...
352390
Air Guide L-G-5239A10002B
...
354210
Evaporator Assembly, First L-G-5421A90038A
...
359012
Turbo Fan L-G-5900A20009B
...
435300
Rear Grille L-G-3530A30002A
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
552111
Tube Assembly L-G-5211A20214A
...
554031
Condenser L-G-5403A20040B
...
554160
Power Cordcompressor L-G-5416A20021A
...
559011
Room Air Conditioner Condenser Fan Blade L-G-5900AR1173A
...
567502
O.l.p L-G-6750A30001H
...
749180
Room Air Conditioner Front Trim Kit L-G-4918A20001A

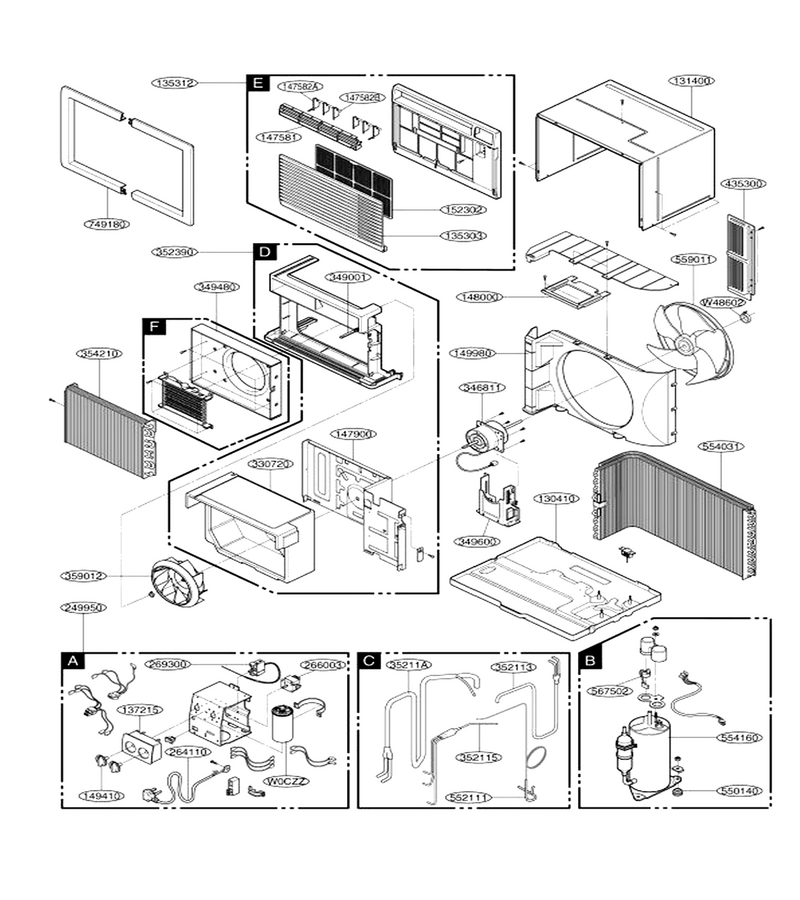

Schematic Image Zoomed
