LG LWHD1000CR.AWYAUSH

Model: LWHD1000CR.AWYAUSH

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-0CZZA20005Y
...
35211A
Tube Assembly L-G-5211A22029D
...
130410
A/c Base L-G-3041A10041K
...
130910
Cabinet L-G-3091A10056G
...
132111-1
Room Air Conditioner Accordion Fillter Assembly.. L-G-3211AR3239A
...
132111-2
Room Air Conditioner Accordion Fillter Assembly.. L-G-3211AR3239B
...
135312
Grille Assembly L-G-3531A24017D
...
147581
Vane L-G-4758A20064A
...
147582-1
Louver L-G-4758A20040C
...
147582-2
Louver L-G-4758A20040D
...
148000
Brace L-G-4800A30002C
...
149980
Shroud L-G-4998A10036A
...
159830
Room Air Conditioner Thermistor L-G-5231A20023A
...
237200
Room Air Conditioner Control Panel L-G-3720A10111C
...
238310
Escutcheon L-G-3831A10021L
...
249950
Case Assy,cn L-G-ABQ72913401
...
264110
Room Air Conditioner Power Cord L-G-6411A20056E
...
267110
Room Air Conditioner Remote Control L-G-6711A20034G
...
268711-2
Room Air Conditioner Electronic Control Board A... L-G-EBR39283902
...
268711-1
Display Pcb L-G-6871A20418A
...
346811
Motor L-G-4681A20140D
...
349001-1
Damper L-G-4900A20020A
...
349001-2
Vent Damper L-G-4900A20020B
...
349480
Orifice L-G-MFX58305901
...
352113
Discharge Tube L-G-5211A21268A
...
352115
Tube Evaporator Assembly L-G-5211A25022C
...
352380
Air Guide L-G-5238A10015A
...
354210
Evap Assy,fi L-G-5421A10047D
...
359011
Room Air Conditioner Condenser Fan Blade L-G-5900A20015A
...
359012
Turbo Fan L-G-MDG58298301
...
550140
Bushing L-G-4830AR4335A
...
552111
Tube Assembly L-G-AJR32805505
...
554030
Condenser L-G-5403A20180A
...
554160
Compressor L-G-TBZ34628901
...
567480
Room Air Conditioner Thermistor L-G-6323A20004P
...
567502
Room Air Conditioner Compressor Overload Protector L-G-6750U-L031A
...
731273
Room Air Conditioner Accordion Filler Kit L-G-3127A20074B
...
749740
Guide L-G-4974A30067D

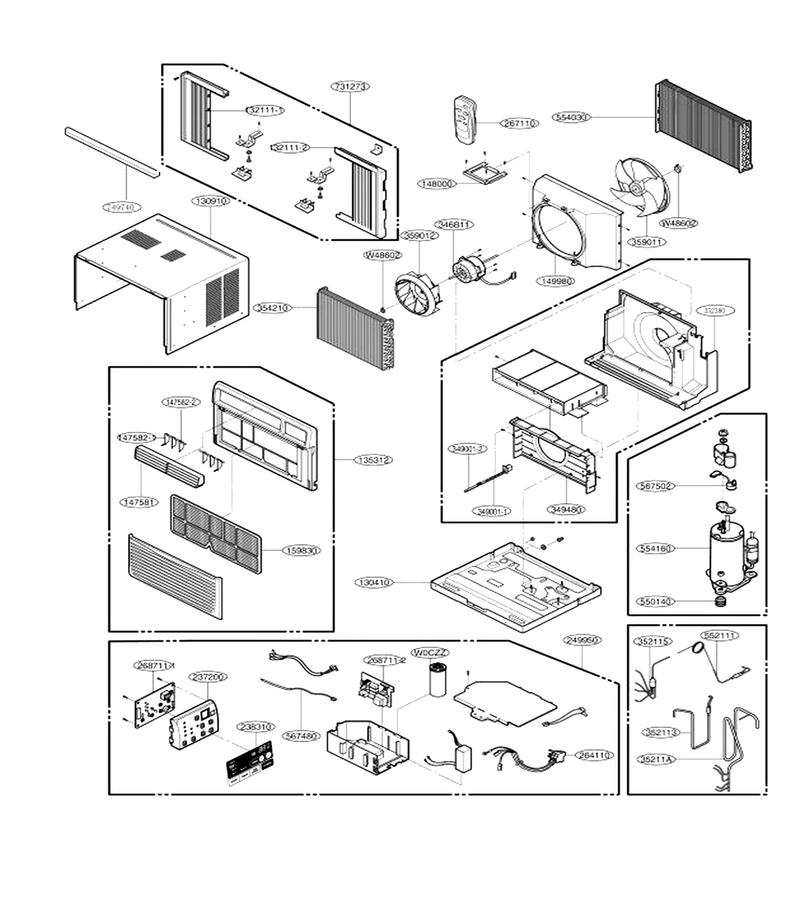

Schematic Image Zoomed
