product name

LG LWHD1000CR.AWYAHDP

Model: LWHD1000CR.AWYAHDP

Save Part Not Listed?
product name

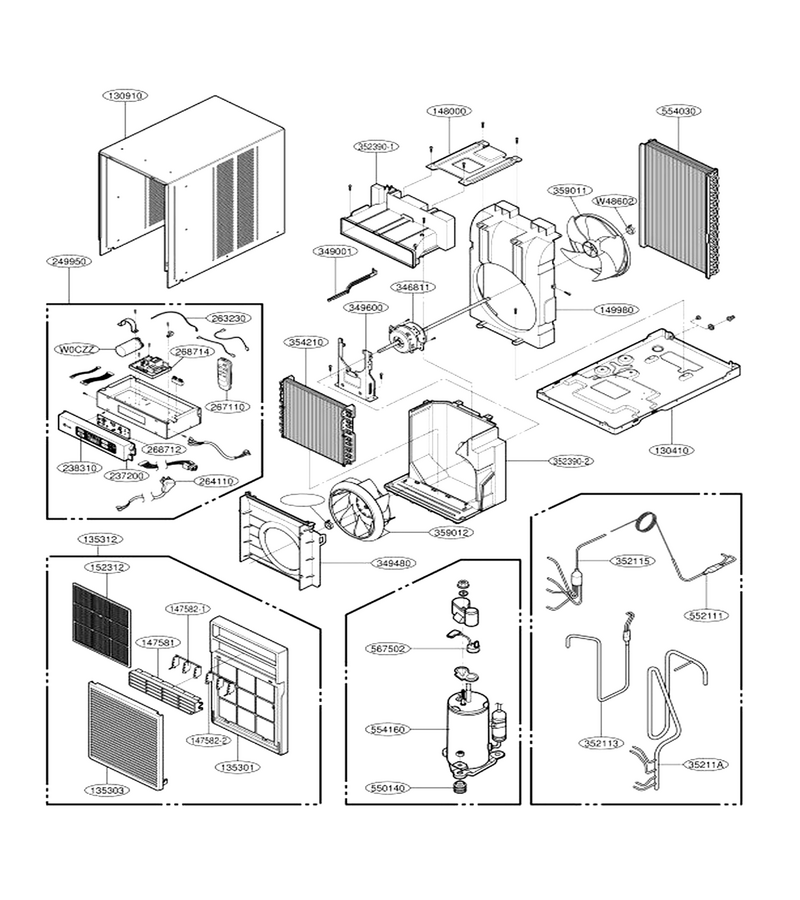

Main

...
...
W0CZZ
Capacitor L-G-6120AR2194P
...
35211A
Tube Assembly, Suction Single L-G-5211A20579B
...
130410
Pan Base L-G-3041A20033N
...
130910
Cabinet L-G-3091A20014A
...
135301
Air Conditioner Grille Front L-G-3530A20055A
...
135303
Inlet Grille L-G-3530A20056A
...
135312
Grille Assembly L-G-3531A20123A
...
147581
Louver L-G-4758A20032A
...
147582-1
Louvr Vert L-G-4758A20017A
...
147582-2
Louvr Vert L-G-4758A20017B
...
148000
Brace L-G-4800A20001A
...
149980
Shroud L-G-4998A10017A
...
152312
Room Air Conditioner Air Filter L-G-5231A20012A
...
237200
Control Panel L-G-3720A20259A
...
238310
Escuthceon L-G-3831A20083B
...
249950
Case Assembly,control L-G-4995A20370M
...
263230
Thermistor L-G-6323A20004S
...
264110
Room Air Conditioner Power Cord L-G-6411A20048W
...
267110
Room Air Conditioner Remote Control L-G-6711A20034G
...
268712
Retforrepr L-G-6871A01001C
...
268714
Pcb L-G-6871A20442A
...
346811
Room Air Conditioner Fan Motor L-G-4681A20069C
...
349001
Damper L-G-4900A20006A
...
349480
Orifice L-G-4948A20012A
...
349600
Motor Mount L-G-4960A20034A
...
352113
Tube L-G-5211A20558F
...
352115
Tube Assembly, Evaporator In L-G-5211A20575B
...
352390-2
Air Guide L-G-5238A20015A
...
352390-1
Air Guide L-G-5239A20007A
...
354210
Evaporator L-G-5421A20115A
...
359011
Axial Fan L-G-5900A20026A
...
359012
Turbo Fan L-G-5900A20019A
...
550140
Bushing L-G-4830AR4335A
...
552111
Capillary Tube Assembly L-G-5211A20557H
...
554030
Condenser L-G-5403A20082B
...
554160
Compressor L-G-2520UCDK029
...
567502
Room Air Conditioner Compressor Overload Protector L-G-6750U-L031A
