product name

LG LWD3081ST.ASTLLCA

Model: LWD3081ST.ASTLLCA

Save Part Not Listed?
product name

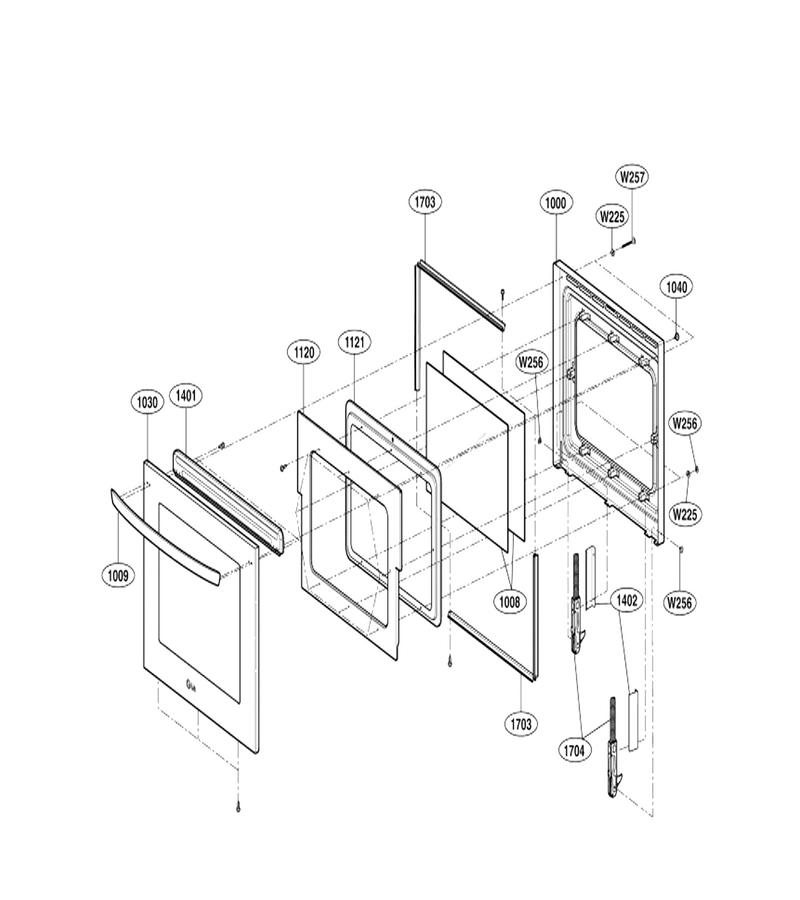

Upper Door Parts

...
...
W225
Washer L-G-1WZZW3Z003B
...
W256
Screw L-G-1SZZW5N001F
...
W257
Screw L-G-1SZZW5N001D
...
1000
Frame Assembly,door L-G-ADV34868803
...
1008
Range Oven Door Inner Glass L-G-4890W1N005A
...
1009
Range Oven Door Handle L-G-MEB42058901
...
1030
Wall Oven Door Outer Panel L-G-ACQ56085401
...
1040
Oven Protector Cap L-G-5006841001A
...
1120
Inner Cover L-G-MCK40417601
...
1121
Inner Cover L-G-MCK47161201
...
1401
Supporter L-G-MJH40418701
...
1402
Supporter L-G-MJH55321601
...
1703
Wall Oven Door Glass Frame L-G-MAZ55266201
...
1704
Cover Assembly,front L-G-ACQ56085402

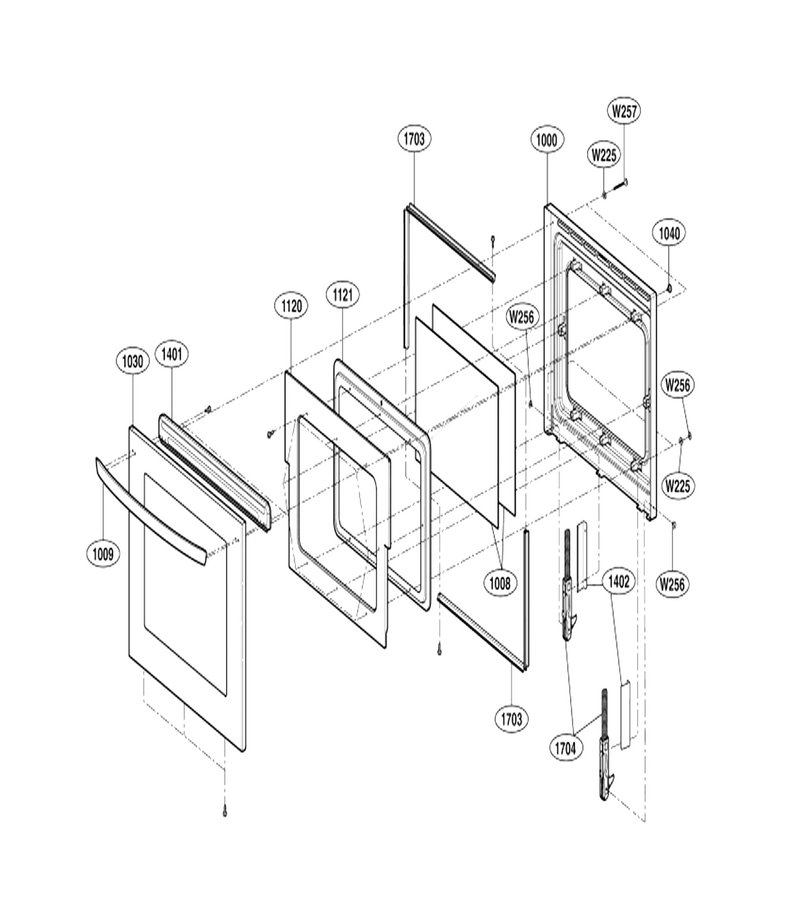

Lower Door Parts

...
...
W225
Washer L-G-1WZZW3Z003B
...
W256
Screw L-G-1SZZW5N001F
...
W257
Screw L-G-1SZZW5N001D
...
1000
Frame Assembly,door L-G-ADV34868803
...
1008
Range Oven Door Inner Glass L-G-4890W1N005A
...
1009
Range Oven Door Handle L-G-MEB42058901
...
1030
Wall Oven Door Outer Panel L-G-ACQ56085401
...
1040
Oven Protector Cap L-G-5006841001A
...
1120
Inner Cover L-G-MCK40417601
...
1121
Inner Cover L-G-MCK47161201
...
1401
Supporter L-G-MJH40418701
...
1402
Supporter L-G-MJH55321601
...
1703
Wall Oven Door Glass Frame L-G-MAZ55266201
...
1704
Cover Assembly,front L-G-ACQ56085402

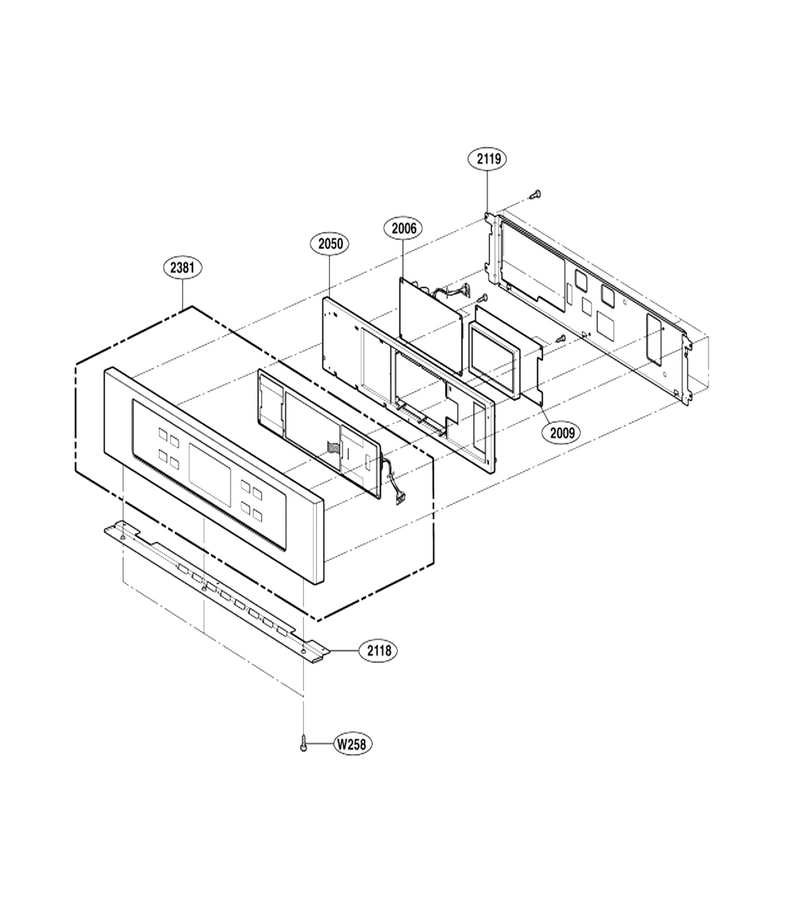

Controller Parts

...
...
W258
Tap Screw L-G-FAB30103101
...
2006
Pcb Assembly,main L-G-EBR43296801
...
2009
Pcb Assembly,display L-G-EBR43296901
...
2050
Pcb Support L-G-MJH41753201
...
2118
Control Bracket L-G-MAZ47206702
...
2119
Control Bracket L-G-MAZ41753501
...
2381
Parts Assembly L-G-AGM67921301

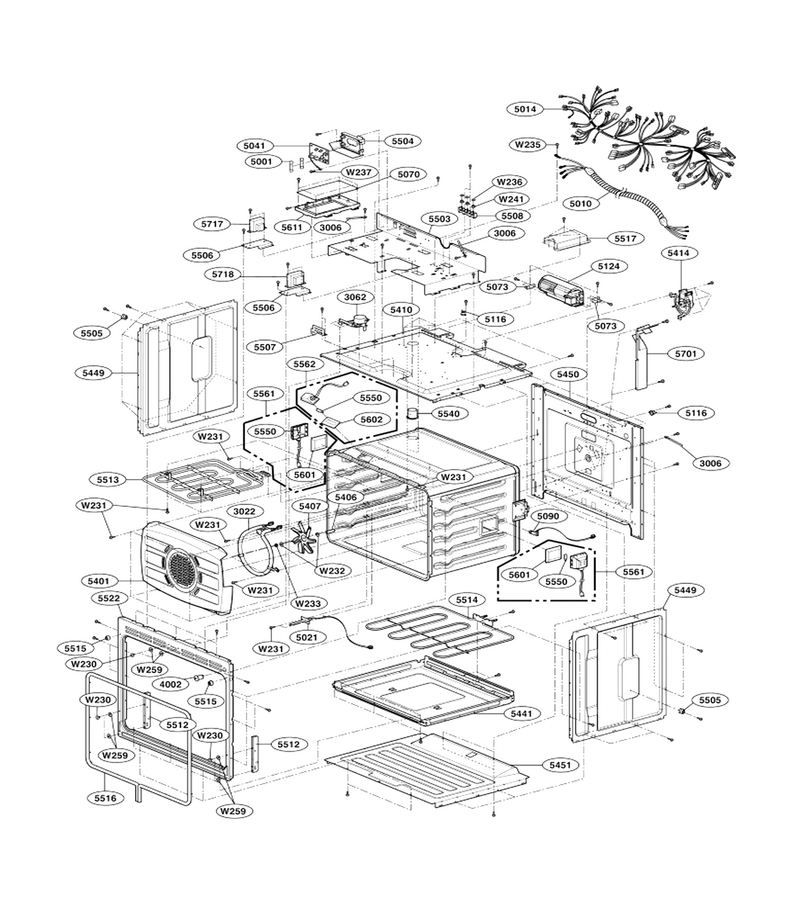

Upper Cavity Parts

...
...
W230
Drawing Screw L-G-1SZZW5N001A
...
W231
Screw L-G-1SZZW1N006D
...
W232
Washer L-G-1WZZ81N001A
...
W233
Hexagon Nut L-G-1NHB0500032
...
W235
Screw L-G-1ATF0502610
...
W236
Washer,common L-G-4H00056C
...
W241
Nut,customized L-G-1NZZW1N002B
...
3006
Lug (circ) L-G-4B72510F
...
3022
Wall Oven Convection Element L-G-AEG59306301
...
4002
Tactile Switch L-G-6600R000082
...
5001
Fuse[all] L-G-3B74133K
...
5010
Power Cord L-G-EAD42825101
...
5014
Harness,single L-G-EAD51438704
...
5021
Range Oven Temperature Sensor L-G-6322B62214A
...
5041
Oven Filter L-G-EAM60740401
...
5070
Pcb Assembly,sub L-G-EBR43297001
...
5073
Motor Bracket L-G-MAZ40417401
...
5090
Jack, Power L-G-EAG43128001
...
5116
Thermostat L-G-EBG51439303
...
5124
Fan Assembly L-G-5901W1E002G
...
5406
Chamber L-G-MBR40414103
...
5407
Ring L-G-4B73725E
...
5410
Insulator L-G-MEV40416103
...
5414
Motor Housing L-G-4681W1N002B
...
5441
Chamber L-G-MBR40415301
...
5449
Insulator L-G-MEV42726401
...
5450
Insulator L-G-MEV40415801
...
5451
Insulator L-G-MEV40415801
...
5503
Insulator L-G-MEV40415401
...
5504
Supporter L-G-MJH41754201
...
5505
Supporter L-G-4980W1A111B
...
5506
Idler Bracket L-G-MAZ47171401
...
5507
Idler Bracket L-G-MAZ47170702
...
5508
Terminal L-G-6640000045A
...
5512
Hinge Bracket L-G-MAZ48427301
...
5513
Wall Oven Broil Element L-G-MEE41716801
...
5514
Heater Sheath L-G-MEE41716501
...
5515
Packing Gasket L-G-MFZ54382601
...
5516
Packing Gasket L-G-MFZ40418402
...
5517
Vent Assembly L-G-AJV56083902
...
5522
Plate,front L-G-MGJ40415001
...
5540
Duct Assembly L-G-ADJ52698704
...
5550
Wall Oven Halogen Light Bulb L-G-6912W3H001F
...
5561
Lamp,halogen L-G-EAQ43128702
...
5562
Lamp,halogen L-G-EAQ43129202
...
5601
Window,glass L-G-MKC51214902
...
5602
Window,glass L-G-MKC51214802
...
5611
Pcb Support L-G-MJH41754001
...
5701
Barrier L-G-MAL48432601
...
5717
Power Transformer L-G-6170W1G037P
...
5718
Power Transformer L-G-EBJ42409101

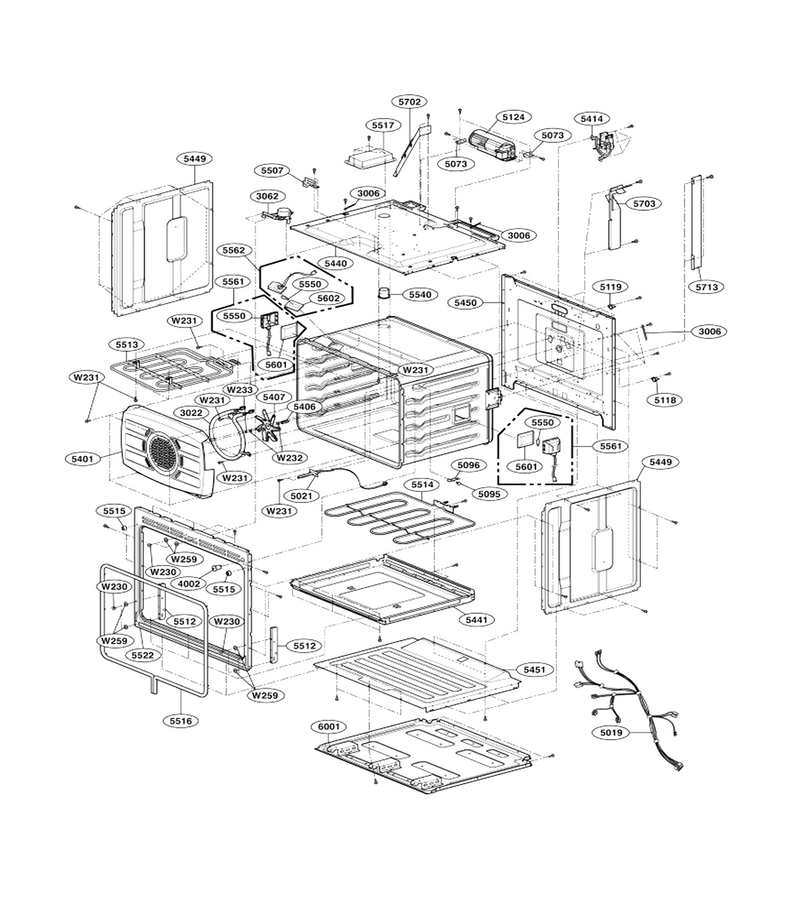

Lower Cavity Parts

...
...
W230
Drawing Screw L-G-1SZZW5N001A
...
W231
Screw L-G-1SZZW1N006D
...
W232
Washer L-G-1WZZ81N001A
...
W233
Hexagon Nut L-G-1NHB0500032
...
3006
Lug (circ) L-G-4B72510F
...
3022
Wall Oven Convection Element L-G-AEG59306301
...
3062
Motor L-G-EAU43957801
...
4002
Tactile Switch L-G-6600R000082
...
5019
Wall Oven Wire Harness L-G-EAD51439001
...
5021
Range Oven Temperature Sensor L-G-6322B62214A
...
5073
Motor Bracket L-G-MAZ40417401
...
5095
Cover,hole L-G-MCK54158201
...
5096
Pin L-G-4W50028F
...
5118
Microwave Thermostat L-G-6930W1A003D
...
5119
Thermostat L-G-EBG51439304
...
5124
Fan Assembly L-G-5901W1E002G
...
5401
Chamber L-G-MBR40414103
...
5406
Ring L-G-4B73725E
...
5407
Fan L-G-5900W1N004B
...
5414
Motor Housing L-G-4681W1N002B
...
5440
Insulator L-G-MEV40416104
...
5441
Chamber L-G-MBR40415301
...
5449
Insulator L-G-MEV42726401
...
5450
Insulator L-G-MEV40415801
...
5451
Insulator L-G-MEV40415401
...
5507
Idler Bracket L-G-MAZ47170702
...
5512
Hinge Bracket L-G-MAZ48427301
...
5513
Wall Oven Broil Element L-G-MEE41716801
...
5514
Heater Sheath L-G-MEE41716501
...
5515
Packing Gasket L-G-MFZ54382601
...
5516
Packing Gasket L-G-MFZ40418402
...
5517
Vent Assembly L-G-AJV56083902
...
5522
Plate,front L-G-MGJ40415001
...
5540
Duct Assembly L-G-ADJ52698704
...
5550
Wall Oven Halogen Light Bulb L-G-6912W3H001F
...
5561
Lamp,halogen L-G-EAQ43128702
...
5562
Lamp,halogen L-G-EAQ43129202
...
5601
Window,glass L-G-MKC51214902
...
5602
Window,glass L-G-MKC51214802
...
5703
Barrier L-G-MAL47168001
...
5713
Barrier L-G-MAL48432602
...
6001
Barrier L-G-MAL41753602

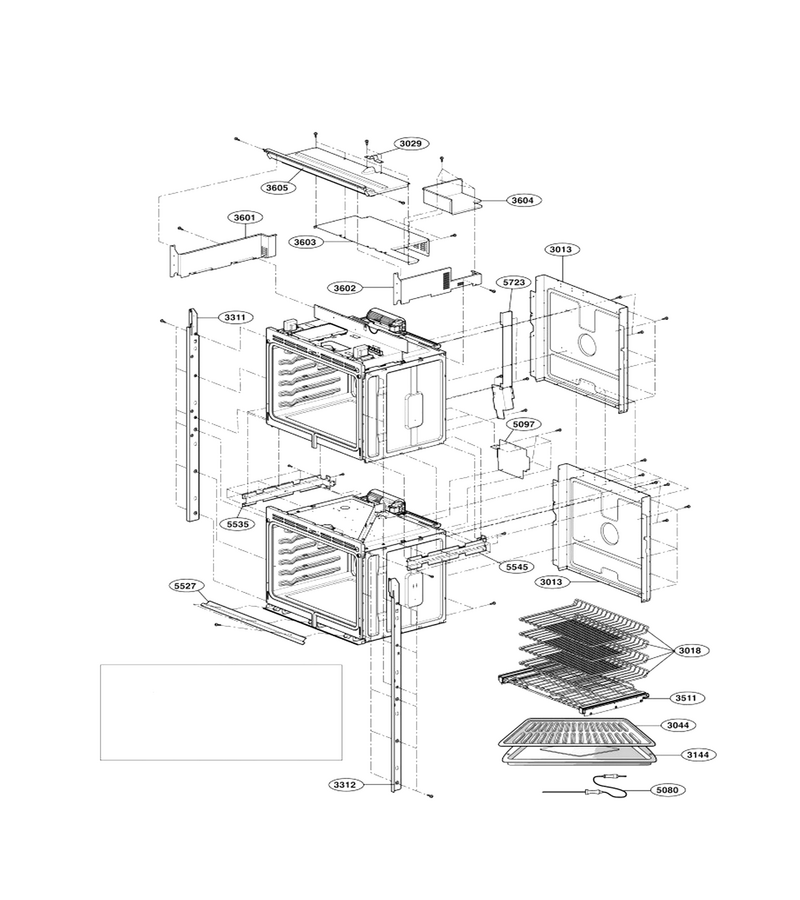

Assembly

...
...
3013
Rear Cover L-G-MCK40420101
...
3018
Wall Oven Rack L-G-MHL49207701
...
3029
Mounting Bracket L-G-MAZ47162501
...
3044
Tray,metal L-G-MJS61849903
...
3311
Grille L-G-MDX40418802
...
3312
Grille L-G-MDX40418602
...
3511
Assembly Accessory L-G-AHT54382601
...
3601
Cover L-G-MCK40423001
...
3602
Oven Cover L-G-MCK41754101
...
3604
Cover L-G-MCK41754301
...
3605
Oven Cover L-G-MCK40423201
...
5080
Range Oven Meat Probe Sensor L-G-EBD51431001
...
5097
Vent Cover L-G-MCK40416601
...
5527
Oven Vent L-G-MJZ41753801
...
5535
Supporter L-G-MJH40420202
...
5545
Supporter L-G-MJH40420201
...
5723
Barrier L-G-MAL41753601
