LG LWD3063BD.AB2LLGA

Model: LWD3063BD.AB2LLGA

Save Part Not Listed?
product name

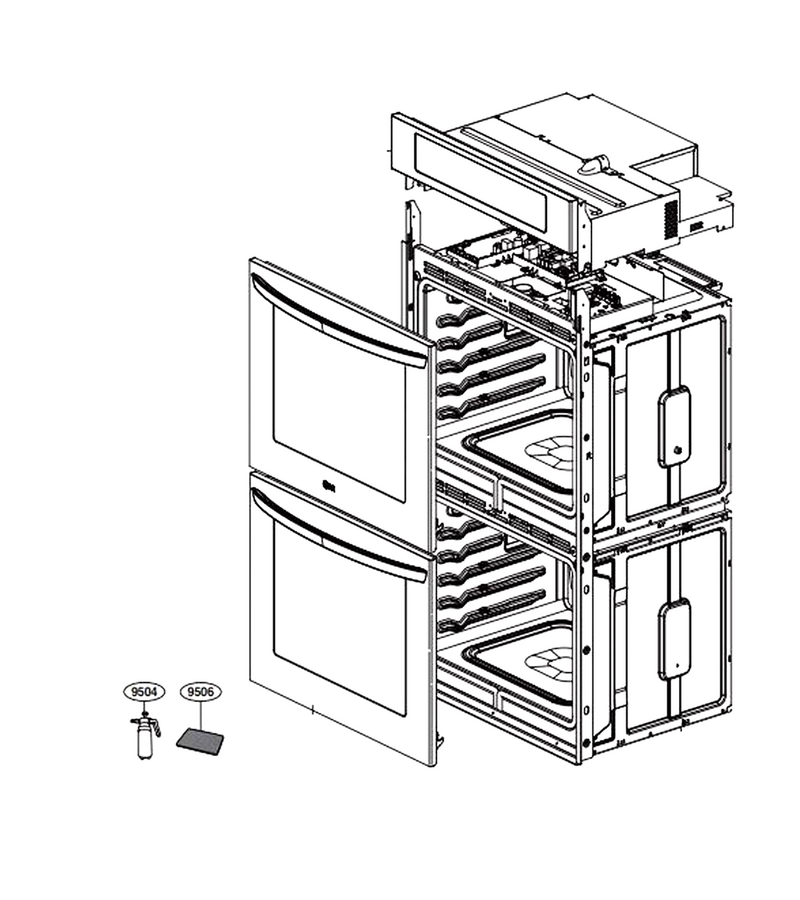

Main

...
...
9504
Accessory Assembly L-G-AAA77169702
...
9506
Accessory Assembly L-G-AAA74970602

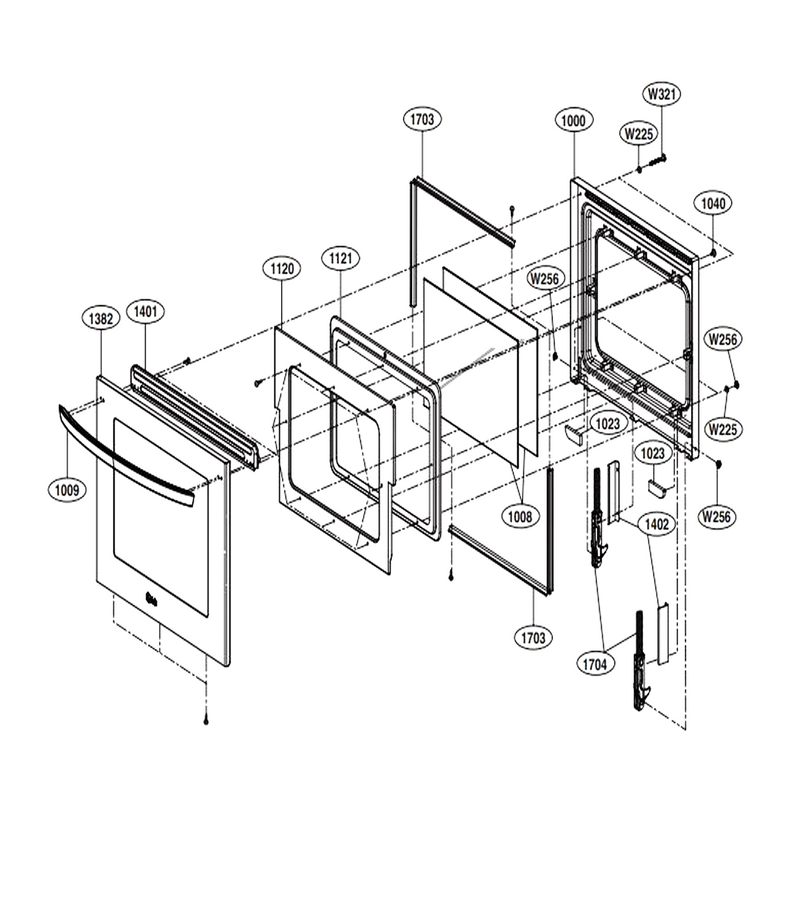

Upper Door Parts

...
...
W225
Washer L-G-1WZZW3Z003B
...
W256
Screw L-G-1SZZW5N001F
...
1000
Frame Assembly,door L-G-ADV34868803
...
1008
Range Oven Door Inner Glass L-G-4890W1N005A
...
1009
Door Handle L-G-MEB63574005
...
1023
Insulator L-G-MEV63330702
...
1040
Oven Protector Cap L-G-5006841001A
...
1120
Inner Cover L-G-MCK40417601
...
1121
Inner Cover L-G-MCK47161201
...
1382
Parts Assembly L-G-AGM75509904
...
1401
Supporter,handle L-G-MJH65513101
...
1402
Supporter L-G-MJH55321601
...
1703
Wall Oven Door Glass Frame L-G-MAZ55266201
...
1704
Hinge Assembly L-G-AEH75637201

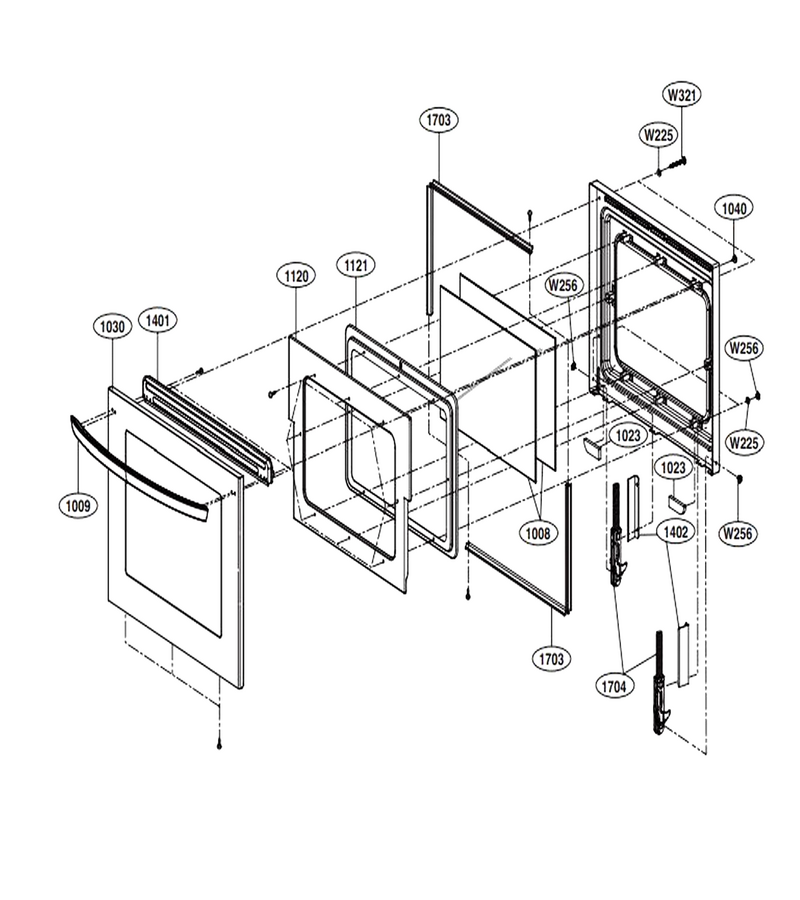

Lower Door Parts

...
...
W225
Washer L-G-1WZZW3Z003B
...
W256
Screw L-G-1SZZW5N001F
...
1008
Range Oven Door Inner Glass L-G-4890W1N005A
...
1009
Door Handle L-G-MEB63574005
...
1023
Insulator L-G-MEV63330702
...
1030
Cover Assembly,front L-G-ACQ56085411
...
1040
Oven Protector Cap L-G-5006841001A
...
1120
Inner Cover L-G-MCK40417601
...
1121
Inner Cover L-G-MCK47161201
...
1401
Supporter,handle L-G-MJH65513101
...
1402
Supporter L-G-MJH55321601
...
1703
Wall Oven Door Glass Frame L-G-MAZ55266201
...
1704
Hinge Assembly L-G-AEH75637211

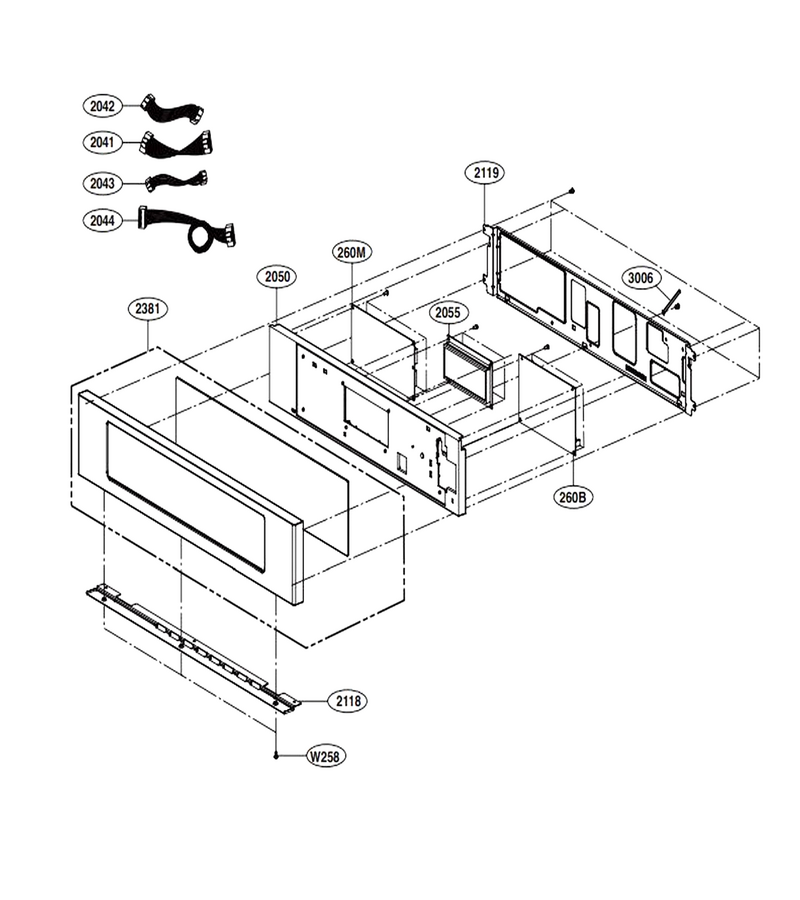

Controller Parts

...
...
W258
Tap Screw L-G-FAB30103101
...
260B
Sub,pcb Assm L-G-EBR76332902
...
260M
Sub Pcb Assembly L-G-EBR78789101
...
2041
Harness,single L-G-EAD34822958
...
2042
Range Wire Harness L-G-EAD34822923
...
2043
Harness,single L-G-EAD34822959
...
2044
Harness,single L-G-EAD62349814
...
2050
Supporter Piece L-G-MJH62133901
...
2055
Vfd L-G-EAJ62608104
...
2118
Control Bracket L-G-MAZ47206702
...
2119
Bracket L-G-MAZ41753502
...
2381
Parts Assembly L-G-AGM75009007
...
3006
Lug (circ) L-G-4B72510F

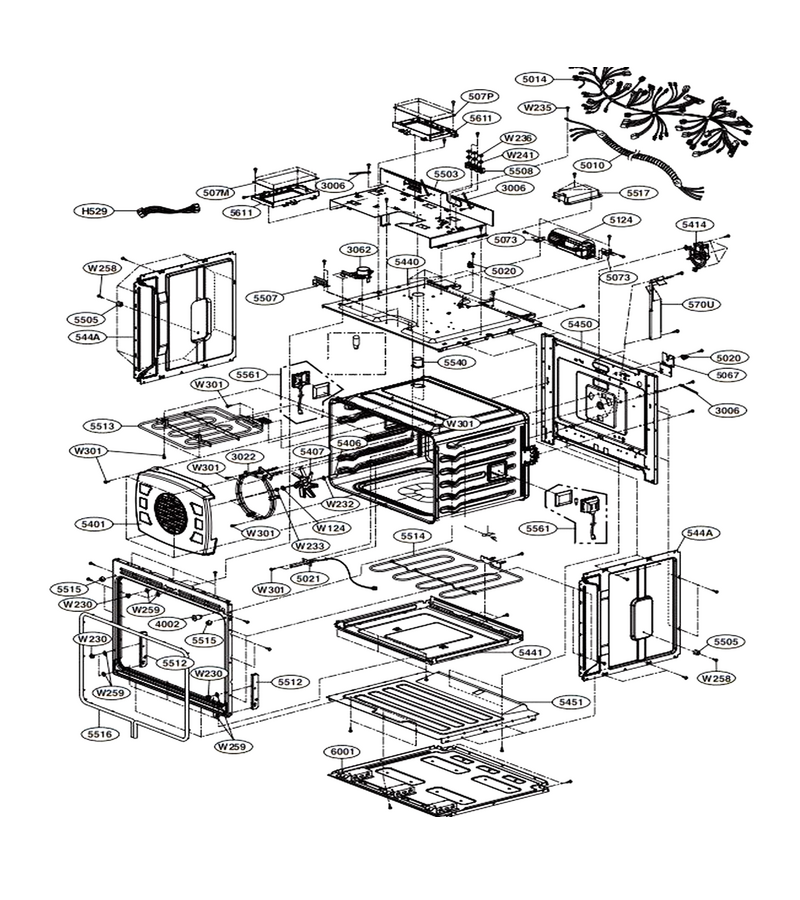

Upper Cavity Parts

...
...
H529
Harness,single L-G-EAD60833512
...
W230
Drawing Screw L-G-1SZZW5N001A
...
W232
Washer L-G-1WZZ81N001A
...
W233
Hexagon Nut L-G-1NHB0500032
...
W235
Screw L-G-1ATF0502610
...
W236
Washer,common L-G-4H00056C
...
W241
Nut,customized L-G-1NZZW1N002B
...
W258
Tap Screw L-G-FAB30103101
...
W259
Washer L-G-1WZZW3Z003C
...
W301
Screw L-G-1SZZW1N006D
...
507M
Pcb Assembly,main L-G-EBR80108105
...
507P
Wall Oven Power Supply Board L-G-EBR64624603
...
544A
Insulator L-G-MEV42726401
...
570U
Barrier L-G-MAL48432602
...
3006
Lug (circ) L-G-4B72510F
...
3022
Heater,sheath L-G-MEE61925405
...
3062
Motor L-G-EAU43957801
...
4002
Switch L-G-EBF60663403
...
5010
Power Cord L-G-EAD42825101
...
5014
Harness,single L-G-EAD51438707
...
5020
Thermostat L-G-EBG51439303
...
5021
Range Oven Temperature Sensor L-G-EBG61305805
...
5067
Bracket,?m L-G-4810W3G135A
...
5073
Motor Bracket L-G-MAZ40417401
...
5124
Fan Assembly L-G-5901W1E002G
...
5401
Cover,heater L-G-MCK68473102
...
5406
Ring L-G-MGZ63607001
...
5407
Convection Fan L-G-MDG62882901
...
5414
Motor Housing L-G-4681W1N002B
...
5440
Insulator L-G-MEV40416101
...
5441
Chamber L-G-MBR40415301
...
5450
Insulator L-G-MEV40415801
...
5451
Insulator L-G-MEV40415401
...
5503
Supporter L-G-MJH41754202
...
5505
Supporter L-G-4980W1N013A
...
5507
Idler Bracket L-G-MAZ47170702
...
5512
Hinge Bracket L-G-MAZ48427301
...
5513
Heater,sheath L-G-MEE41716802
...
5514
Heater,sheath L-G-MEE41716502
...
5515
Packing Gasket L-G-MFZ54382601
...
5516
Packing,gasket L-G-MFZ40418403
...
5517
Vent Assembly L-G-AJV56083902
...
5540
Duct Assembly L-G-ADJ52698705
...
5561
Lamp,halogen L-G-EAQ43128703
...
5611
Pcb Support L-G-MJH41754001
...
6001
Base Plate L-G-AGU56000301

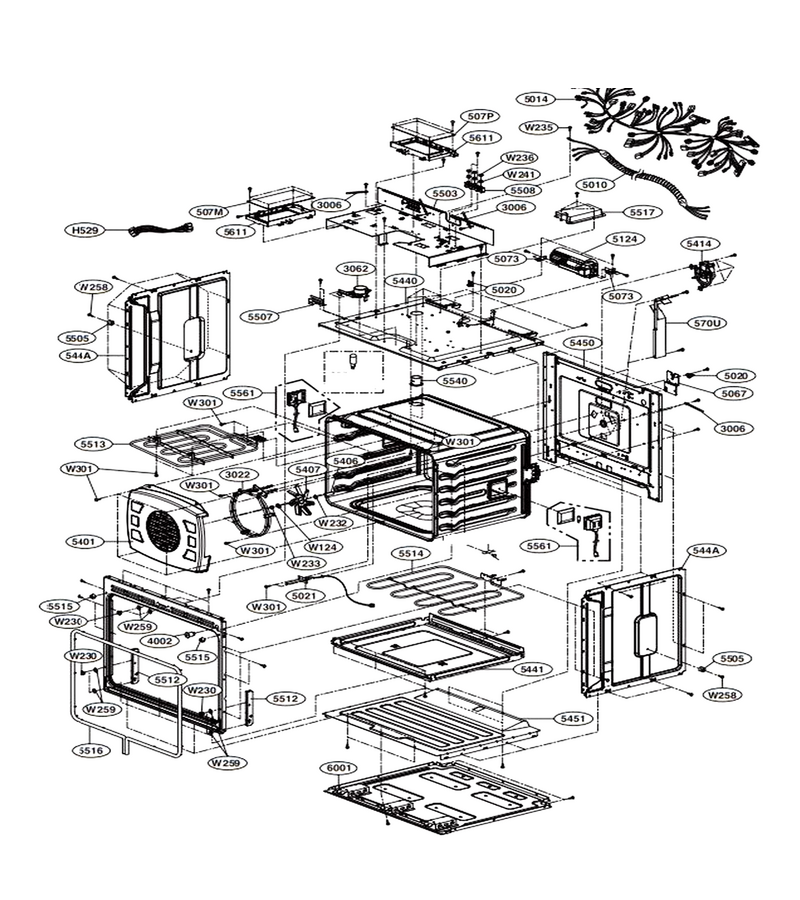

Upper Cavity Parts Ii

...
...
H529
Harness,single L-G-EAD60833512
...
W124
Washer,common L-G-1WSD0500075
...
W230
Drawing Screw L-G-1SZZW5N001A
...
W232
Washer L-G-1WZZ81N001A
...
W233
Hexagon Nut L-G-1NHB0500032
...
W235
Screw L-G-1ATF0502610
...
W236
Washer,common L-G-4H00056C
...
W241
Nut,customized L-G-1NZZW1N002B
...
W258
Tap Screw L-G-FAB30103101
...
W259
Washer L-G-1WZZW3Z003C
...
W301
Screw L-G-1SZZW1N006D
...
507M
Pcb Assembly,main L-G-EBR80108105
...
507P
Wall Oven Power Supply Board L-G-EBR64624603
...
544A
Insulator L-G-MEV42726401
...
570U
Barrier L-G-MAL48432602
...
3006
Lug (circ) L-G-4B72510F
...
3022
Heater,sheath L-G-MEE61925405
...
3062
Motor L-G-EAU43957801
...
5010
Power Cord L-G-EAD42825101
...
5014
Harness,single L-G-EAD51438707
...
5020
Thermostat L-G-EBG51439303
...
5021
Range Oven Temperature Sensor L-G-EBG61305805
...
5067
Bracket,?m L-G-4810W3G135A
...
5073
Motor Bracket L-G-MAZ40417401
...
5124
Fan Assembly L-G-5901W1E002G
...
5401
Cover,heater L-G-MCK68473102
...
5406
Ring L-G-MGZ63607001
...
5407
Convection Fan L-G-MDG62882901
...
5414
Motor Housing L-G-4681W1N002B
...
5440
Insulator L-G-MEV40416101
...
5441
Chamber L-G-MBR40415301
...
5450
Insulator L-G-MEV40415801
...
5451
Insulator L-G-MEV40415401
...
5503
Supporter L-G-MJH41754202
...
5505
Supporter L-G-4980W1N013A
...
5507
Idler Bracket L-G-MAZ47170702
...
5508
Terminal L-G-6640000045A
...
5512
Hinge Bracket L-G-MAZ48427301
...
5513
Heater,sheath L-G-MEE41716802
...
5514
Heater,sheath L-G-MEE41716502
...
5515
Packing Gasket L-G-MFZ54382601
...
5516
Packing,gasket L-G-MFZ40418403
...
5517
Vent Assembly L-G-AJV56083902
...
5540
Duct Assembly L-G-ADJ52698705
...
5561
Lamp,halogen L-G-EAQ43128703
...
5611
Pcb Support L-G-MJH41754001
...
6001
Base Plate L-G-AGU56000301

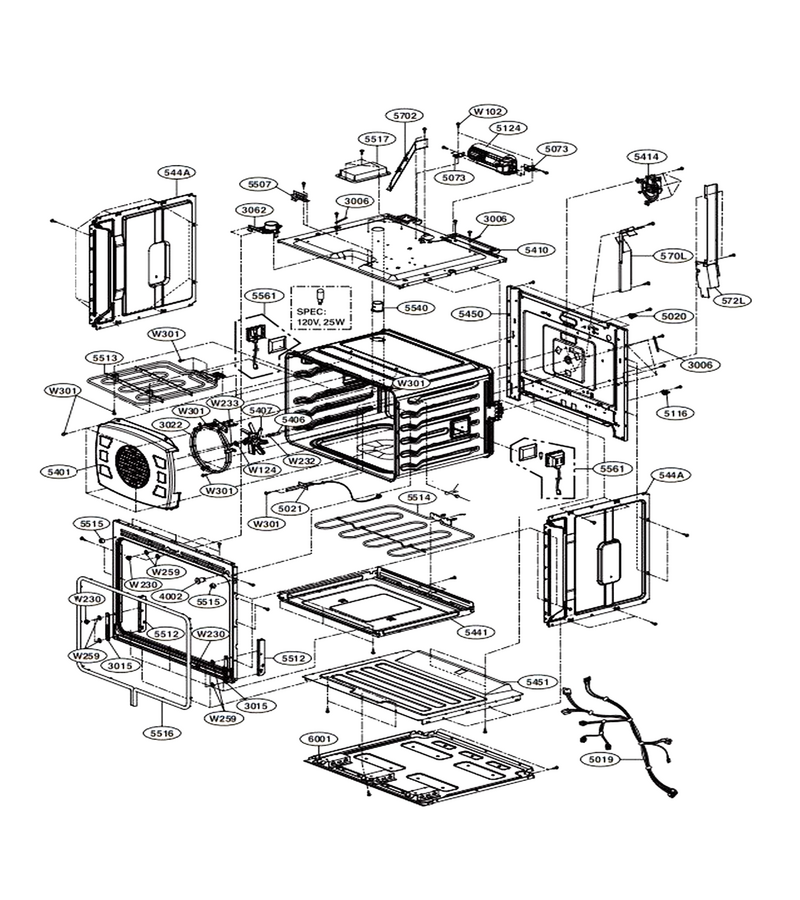

Lower Cavity Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
W124
Washer,common L-G-1WSD0500075
...
W230
Drawing Screw L-G-1SZZW5N001A
...
W232
Washer L-G-1WZZ81N001A
...
W233
Hexagon Nut L-G-1NHB0500032
...
W259
Washer L-G-1WZZW3Z003C
...
W301
Screw L-G-1SZZW1N006D
...
544A
Insulator L-G-MEV42726401
...
570L
Barrier L-G-MAL48432601
...
572L
Barrier L-G-MAL41753602
...
3006
Lug (circ) L-G-4B72510F
...
3015
Bracket,hinge L-G-MAZ64603204
...
3022
Heater,sheath L-G-MEE61925405
...
3062
Motor L-G-EAU43957801
...
5019
Harness,single L-G-EAD51439002
...
5020
Thermostat L-G-EBG51439303
...
5073
Motor Bracket L-G-MAZ40417401
...
5116
Microwave Thermostat L-G-6930W1A003D
...
5124
Fan Assembly L-G-5901W1E002G
...
5406
Ring L-G-MGZ63607001
...
5407
Fan L-G-5900W1N004B
...
5414
Motor Housing L-G-4681W1N002B
...
5441
Chamber L-G-MBR40415301
...
5450
Insulator L-G-MEV40415801
...
5451
Insulator L-G-MEV40415401
...
5507
Idler Bracket L-G-MAZ47170702
...
5512
Hinge Bracket L-G-MAZ48427301
...
5513
Heater,sheath L-G-MEE41716802
...
5515
Packing Gasket L-G-MFZ54382601
...
5516
Packing,gasket L-G-MFZ40418403
...
5517
Vent Assembly L-G-AJV56083902
...
5540
Duct Assembly L-G-ADJ52698705
...
5561
Lamp,halogen L-G-EAQ43128703
...
5702
Barrier L-G-MAL47168001
...
6001
Base Plate L-G-AGU56000301

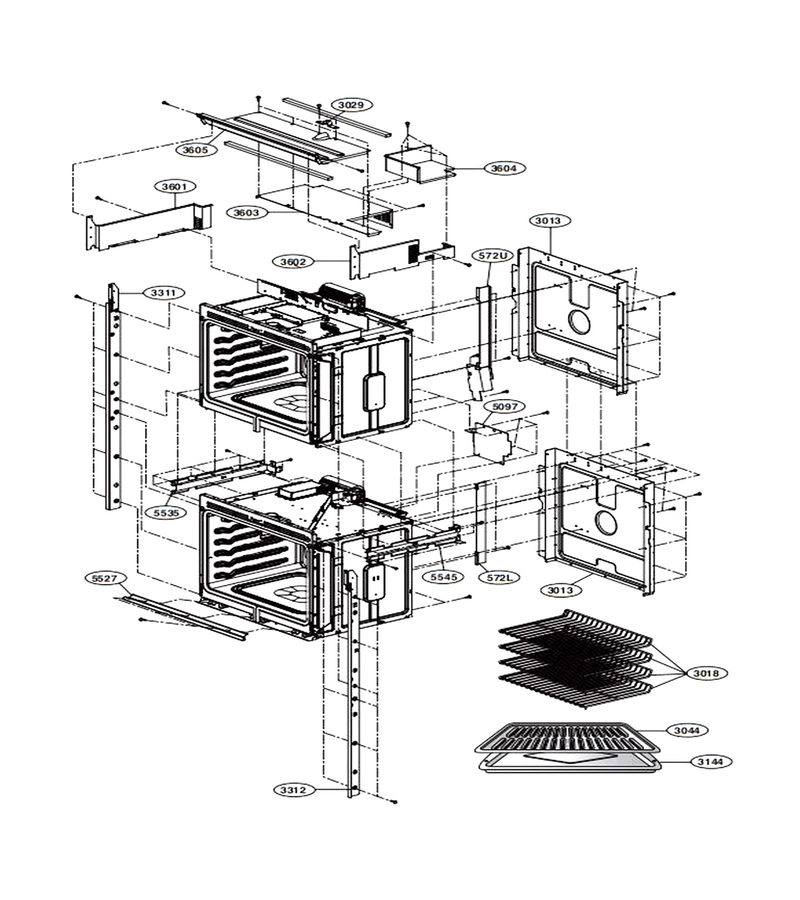

Assembly

...
...
572L
Barrier L-G-MAL41753602
...
572U
Barrier L-G-MAL41753601
...
3013
Cover,rear L-G-MCK40420102
...
3018
Shelf L-G-MHL49207702
...
3029
Mounting Bracket L-G-MAZ47162501
...
3044
Tray,metal L-G-MJS61849903
...
3144
Tray,metal L-G-MJS61850003
...
3312
Grille L-G-MDX40418602
...
3601
Cover L-G-MCK40423001
...
3602
Oven Cover L-G-MCK41754101
...
3603
Cover L-G-MCK41753701
...
3604
Cover L-G-MCK41754301
...
3605
Oven Cover L-G-MCK40423201
...
5097
Vent Cover L-G-MCK40416601
...
5527
Vent L-G-MJZ41753802
...
5535
Supporter L-G-MJH40420202
...
5545
Supporter L-G-MJH40420201
