product name

LG LWC061JGMK1.AWYAWMT

Model: LWC061JGMK1.AWYAWMT

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Capacitor, Unclassified L-G-0CZZA20003A
...
35211A
Suction L-G-5211A10062D
...
130410
Base Assembly L-G-3041A10011E
...
130910
Cabinet L-G-3091A10020D
...
132111A
Room Air Conditioner Accordion Fillter Assembly.. L-G-3211AR3239A
...
132111B
Room Air Conditioner Accordion Fillter Assembly.. L-G-3211AR3239B
...
135303
Grille,inlet L-G-3530A10039A
...
135312
Grille Assembly L-G-3531AR1644H
...
152302
Room Air Conditioner Air Filter L-G-5231AR2148G
...
237200
Control Panel L-G-3720A20017A
...
249950
Control Board L-G-4995A20127H
...
263230
Thermistor L-G-6323A20003D
...
264110
Power Cord L-G-2H00677P
...
267110
Remote L-G-6711A90019A
...
268711A
Control Board L-G-6871A20193B
...
268711B
Control Board L-G-6871A20188L
...
346811
Motor Assembly L-G-4681A10012G
...
349480
Orifice L-G-4948A10007A
...
352113
Tube L-G-5210A20252A
...
352115
Evaporator L-G-5211A10063E
...
352390A
Guide L-G-5239A30003A
...
352390B
Air Guide L-G-5239A10005B
...
354210
Evaporator Assembly,first L-G-5421A90032A
...
359012
Turbo Fan L-G-5900A10005A
...
550140
Room Air Conditioner Compressor Grommet L-G-5040AR4195A
...
552102
Capillary L-G-5210A30018B
...
552111
Tube Assembly L-G-5211AR3332X
...
554030
Condenser L-G-5403A20038D
...
554160
Compressor Set,china L-G-2520UCDA019
...
559011
Fan L-G-5900A20006A
...
567502
Overload L-G-6750U-L060A

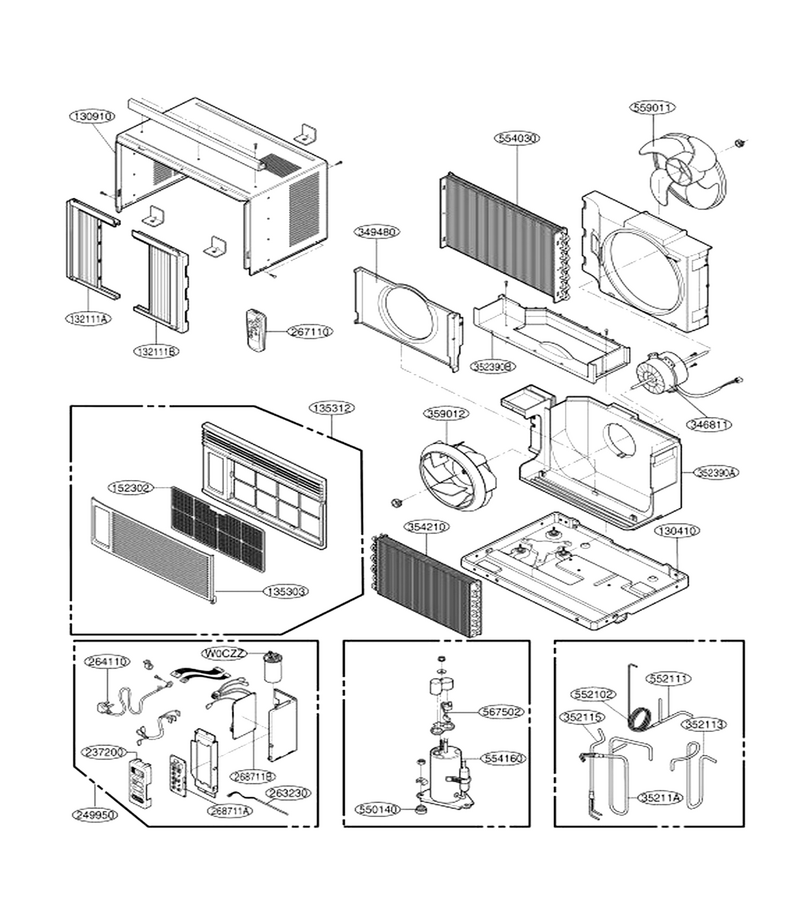

Schematic Image Zoomed
