product name

LG LWC061JFMJ0.AWYASRU

Model: LWC061JFMJ0.AWYASRU

Save Part Not Listed?
product name

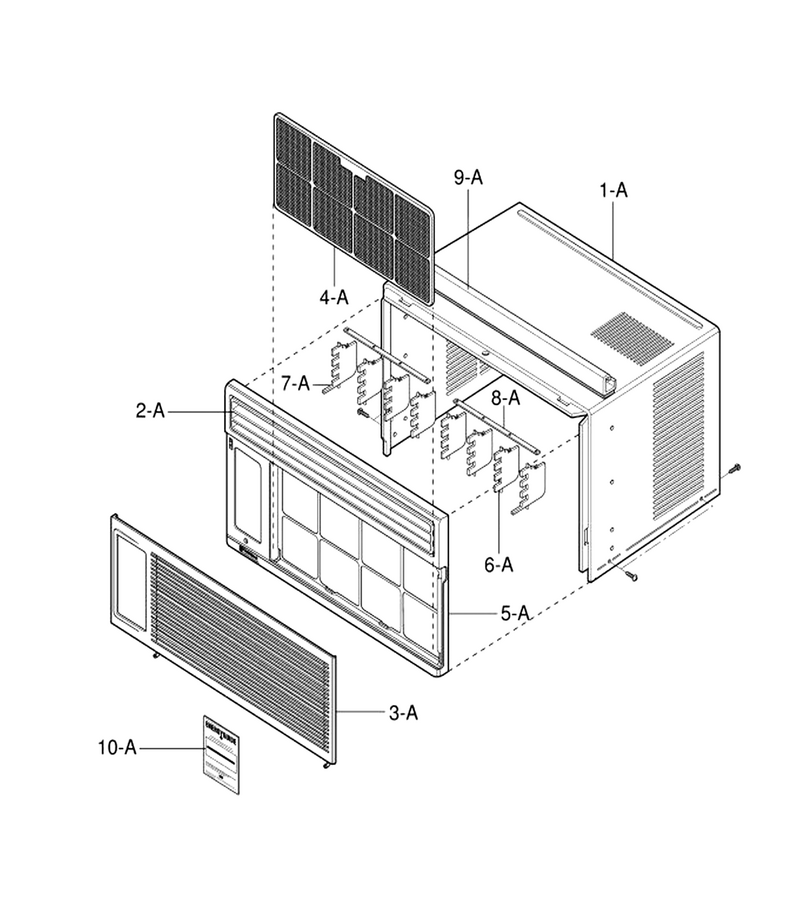

Cabinet & Front Grille Assembly

...
...
1-A
Cabinet L-G-3091A10020D
...
2-A
Louver,horizontal L-G-5990A20001A
...
3-A
Grille,inlet L-G-3530A10010A
...
4-A
Room Air Conditioner Air Filter L-G-5231AR2148A
...
5-A
Grille,front L-G-3530A10009A
...
6-A
Louver,vertical L-G-5990A30005D
...
7-A
Louver,vertical L-G-5990A30005C
...
8-A
Holder L-G-4520AR3191A
...
9-A
Guide L-G-5210AR3196C
...
10-A
Label,energy L-G-3850A20423L

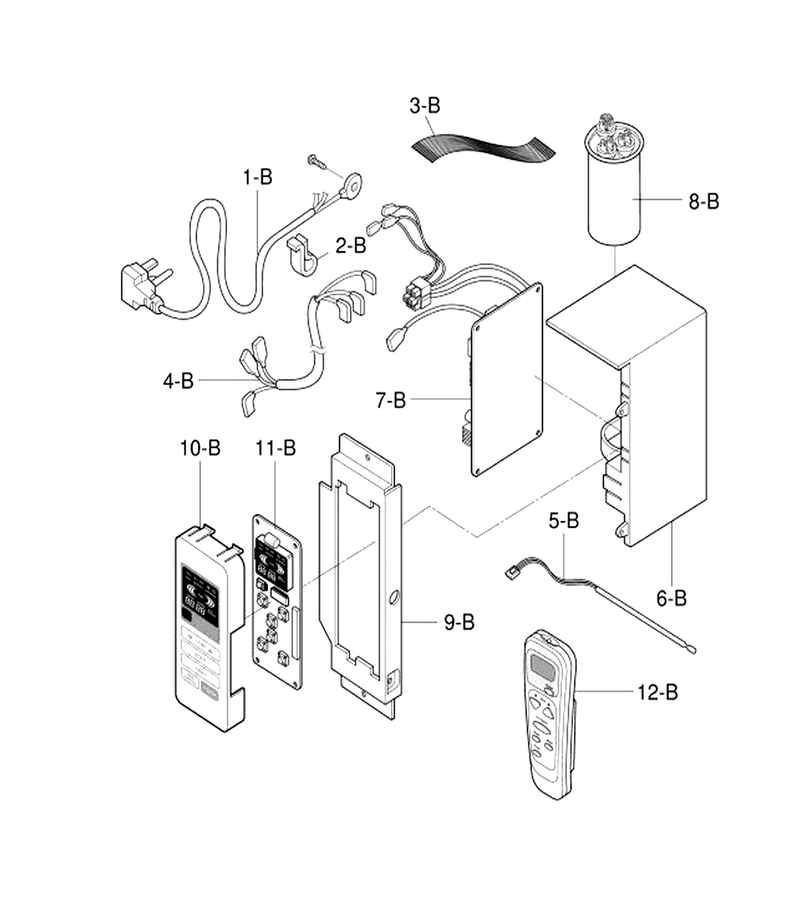

Control Box Assembly

...
...
1-B
Power Cord L-G-2H00677P
...
2-B
Clip L-G-4H01254A
...
3-B
Cable,ffc L-G-6850A90001J
...
4-B
Harness,multi L-G-6631AR3843R
...
5-B
Thermistor L-G-6323A20003D
...
6-B
Control L-G-4994A20021A
...
7-B
Pcb Assembly,main L-G-6871A20243A
...
8-B
Capacitor L-G-6120AR2359V
...
9-B
Case,control L-G-4994A20020A
...
10-B
Panel,control L-G-3720A20174A
...
11-B
Pcb Assembly,display L-G-6871A20244A
...
12-B
Remote Controller Assembly L-G-6711A20053C

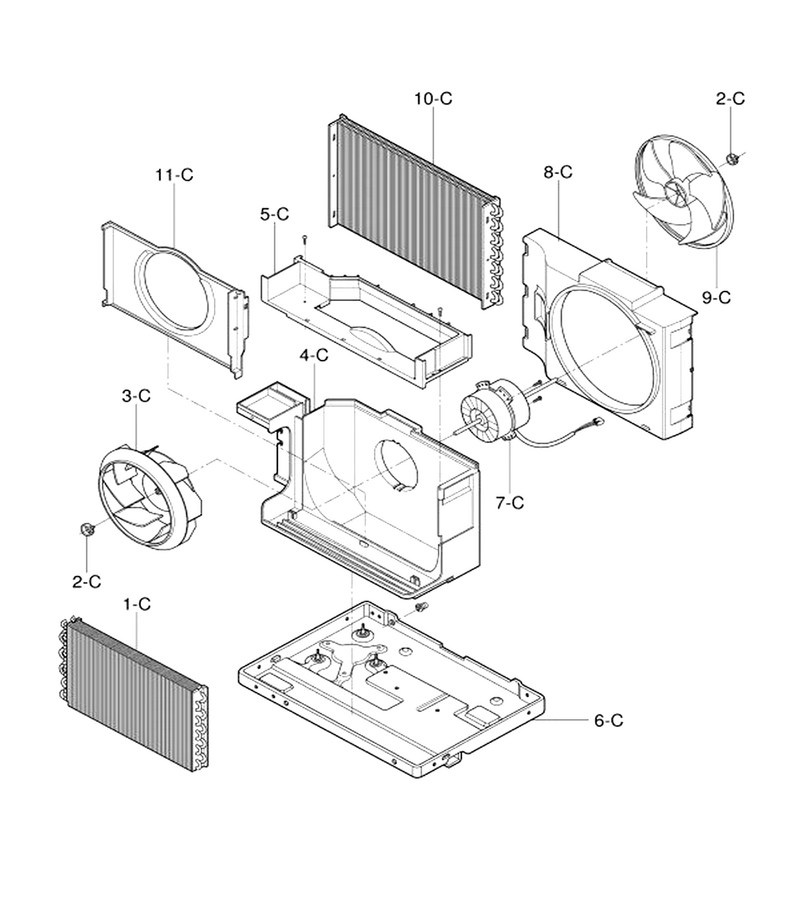

Air Handling & Cycle Parts

...
...
1-C
Evaporator L-G-5421A20016H
...
2-C
Room Air Conditioner Fan Blade Clamp L-G-3H02932B
...
3-C
Turbo Fan L-G-5900A10005A
...
4-C
Air Guide L-G-5238A20003A
...
5-C
Air Guide L-G-5239A10005B
...
6-C
Base Assembly L-G-3041A10011E
...
7-C
Motor Assembly,ac,single L-G-4681A10012M
...
8-C
Shroud L-G-4998A10008A
...
9-C
Propeller L-G-5900A20017A
...
10-C
Condenser Assembly,first L-G-5403A20009F
...
11-C
Orifice L-G-4948A10007A

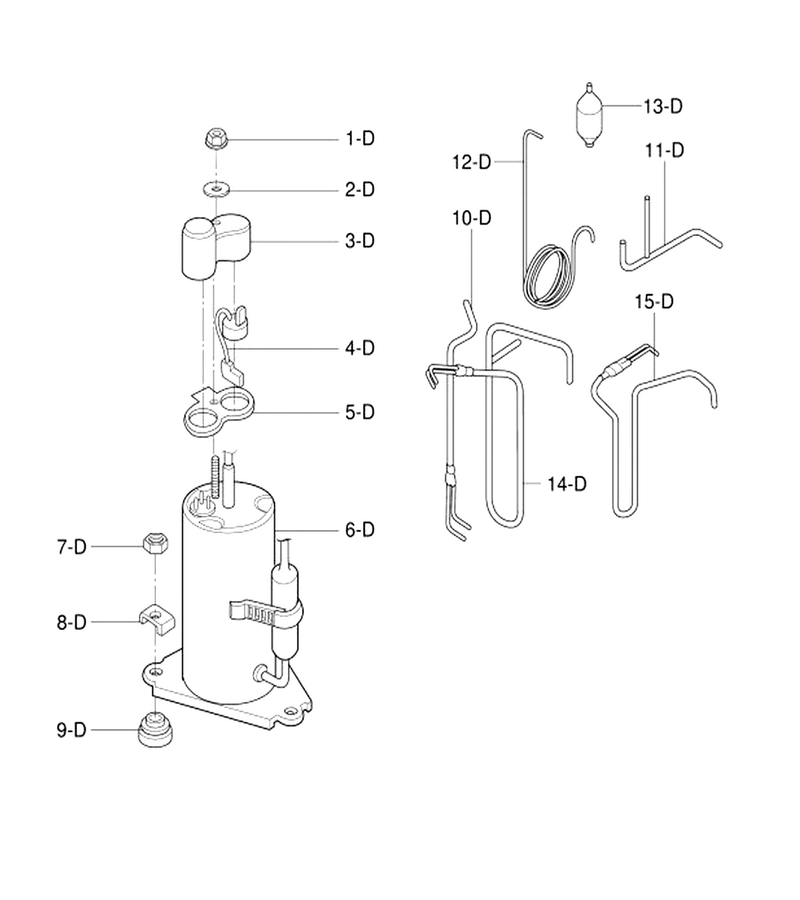

Compressor Parts

...
...
1-D
Nut L-G-4H00947A
...
2-D
Gasket Nut L-G-4H01058A
...
3-D
Cover L-G-3550U-L006A
...
4-D
Protector L-G-6750U-L050A
...
5-D
Gasket L-G-4986U-L001G
...
6-D
Compressor L-G-2520UABC2JA
...
7-D
Hex Nut L-G-1NHA0801206
...
8-D
Bracket L-G-4810AR4155B
...
10-D
Tube L-G-5211A10063C
...
11-D
Tube L-G-5211AR3399M
...
12-D
Tube,bending L-G-5210A30018P
...
13-D
Drier Assembly L-G-5851A30001L
...
14-D
Suction L-G-5211A10062D
...
15-D
Tube Assembly,discharge L-G-5211A10129A

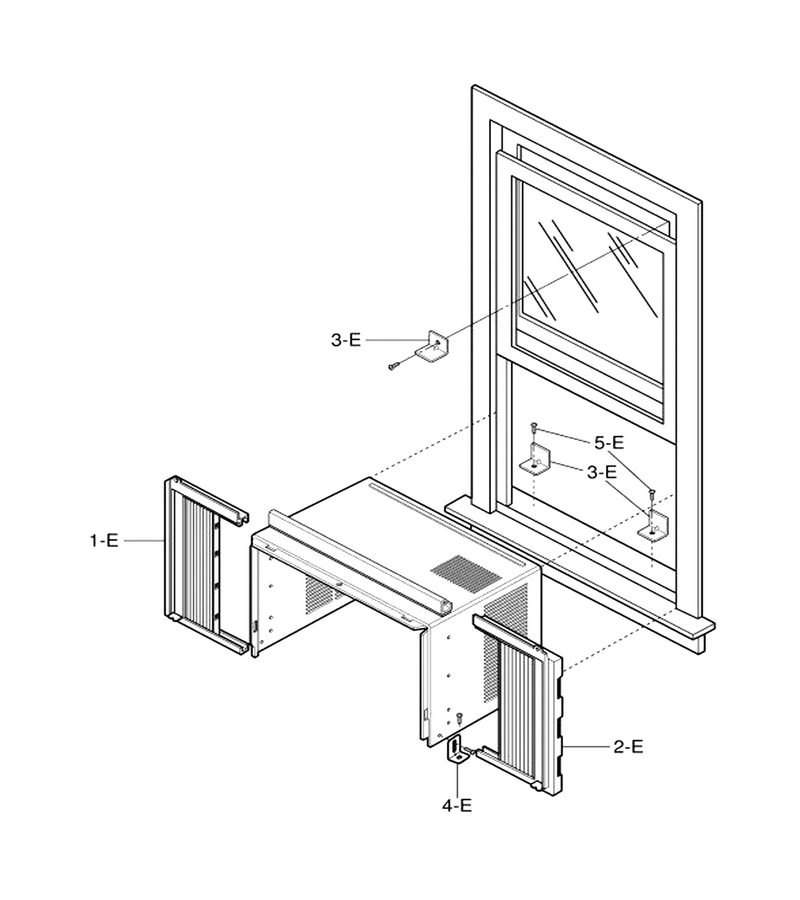

Installation Kit Assembly

...
...
1-E
Room Air Conditioner Accordion Fillter Assembly.. L-G-3211AR3239B
...
2-E
Room Air Conditioner Accordion Fillter Assembly.. L-G-3211AR3239A
...
3-E
Room Air Conditioner Window Lock Bracket L-G-4810A30113A
...
4-E
Bracket L-G-4810A30152A
...
5-E
Screw,tapping L-G-1TTG0402618
