LG LW8022ERSM.AT1AYOW

Model: LW8022ERSM.AT1AYOW

Save Part Not Listed?
product name

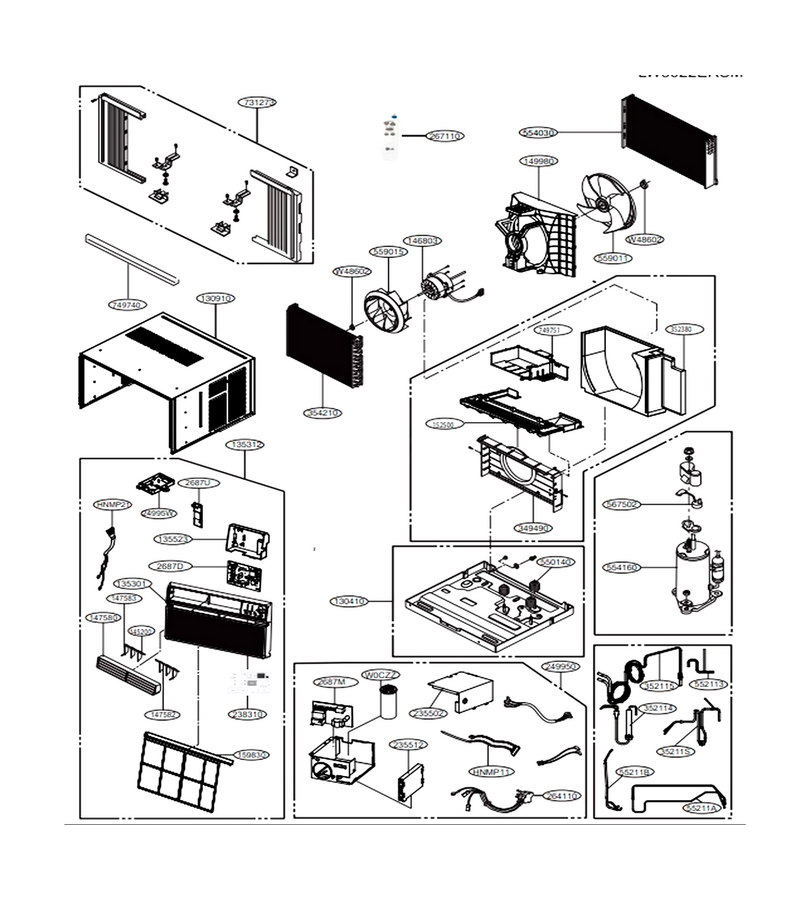

Main

...
...
W0CZZ
Capacitor,film,box L-G-EAE60682906
...
W48602
Spring Clamp L-G-MBU64446301
...
2687U
Pcb Assembly,module L-G-EBR85871801
...
2687M
Pcb Assembly,main L-G-EBR89540702
...
2687D
Display Pcb Assembly L-G-EBR89540816
...
24995W
Control Case Assembly L-G-ABQ76620210
...
35211S
Suction Tube Assembly L-G-5211A22029T
...
55211A
Tube Assembly,condenser(out) L-G-AJR75626002
...
55211B
Tube Assembly,condenser(out) L-G-AJR73067803
...
130410
Single Base Assembly L-G-AAN74551811
...
130910
Cabinet Assembly,single L-G-3091A10056S
...
135301
Front Grille L-G-MDX65461301
...
135312
Front Grille Assembly L-G-AEB76292701
...
135523
Cover L-G-MCK69433203
...
145200
Link L-G-4520A20006C
...
146803
Ac Single Motor L-G-4681A20140Y
...
147580
Horizontal Louver L-G-4758A20079D
...
147582
Vertical Louver L-G-MFH62743605
...
147583
Vertical Louver L-G-MFH62743606
...
149980
Shroud L-G-MHN62082003
...
152500
Drain Pan L-G-MGB62082002
...
159830
Air Cleaner Filter Assembly L-G-ADQ75802401
...
235502
Cover L-G-MCK69413201
...
235512
Cover Assembly,display L-G-ACQ31027902
...
238310
Escutcheon L-G-MDD63323201
...
249950
Case Assembly,control L-G-ABQ75823225
...
264110
Power Cord Assembly L-G-EAD63469511
...
267110
Remote Controller Assembly L-G-AKB73016019
...
349490
Orifice L-G-MFX62081902
...
352114
Tube Assembly,discharge L-G-AJR73067213
...
352115
Evaporator (in) Tube Assembly L-G-AJR75625705
...
352380
Air Guide L-G-MEA62571601
...
354210
First Evaporator Assembly L-G-5421A10047X
...
550140
Compressor Damper L-G-4984AR4390B
...
552113
Tube Assembly,condenser(out) L-G-AJR75625903
...
554030
Condenser Assembly,first L-G-ACG73045013
...
554160
Compressor Set,china L-G-TBZ38956401
...
559011
Fan,axial L-G-5900A20015E
...
559015
Fan,turbo L-G-MDG58298302
...
567502
Overload Protect L-G-EAF61751221
...
731273
Set Install Part Assembly L-G-AET74151702
...
749740
Guide L-G-4974A30067M
...
749751
Air Guide Assembly L-G-AEC72909211
