LG LW8016HR.AT1AHDS

Model: LW8016HR.AT1AHDS

Save Part Not Listed?
product name

Popular Parts

Popular Parts

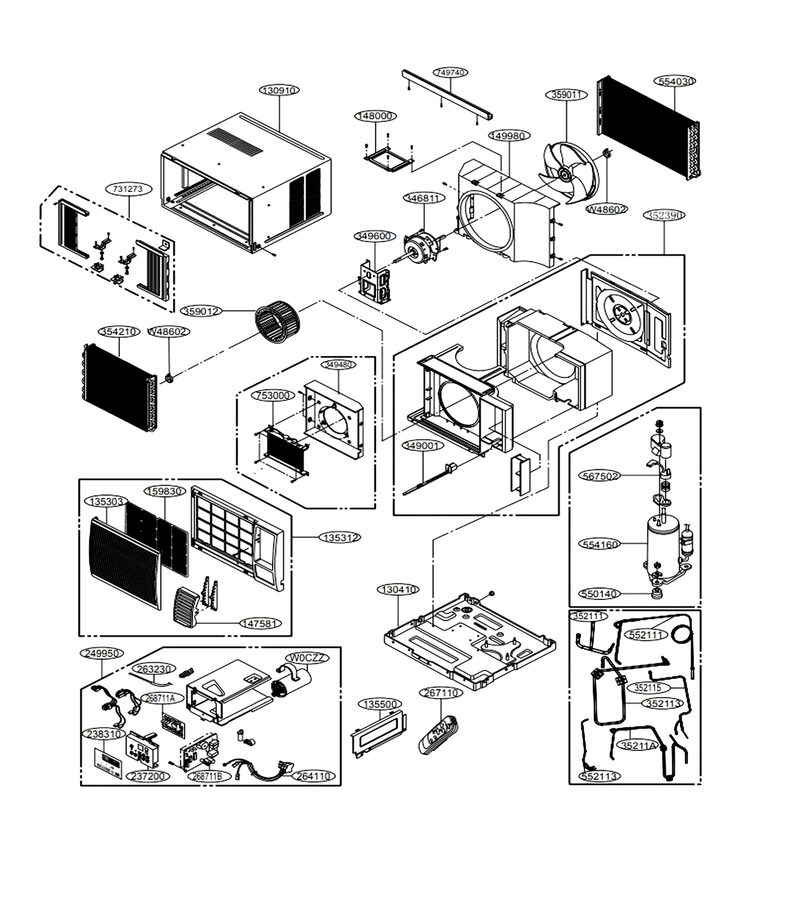

Main

...
...
W0CZZ
Capacitor L-G-0CZZA10001J
...
35211A
Tube Assembly,suction L-G-AJR73070510
...
130410
Base Assembly,single L-G-AAN75288604
...
130910
Cabinet Assembly,single L-G-ABJ73809001
...
135303
Grille,inlet L-G-3530A10027F
...
135312
Grille Assembly,front L-G-3531A10128J
...
135500
Cover L-G-3550A30036B
...
147581
Louver,horizontal L-G-4758A20002J
...
148000
Brace L-G-4800A30001A
...
149980
Shroud L-G-4998A10001F
...
159830
Filter Assembly,air Cleaner L-G-5231A20004S
...
237200
Panel,control L-G-3720A20053L
...
238310
Escutcheon L-G-MDD62962202
...
249950
Case Assembly,control L-G-ABQ74424905
...
263230
Room Air Conditioner Thermistor L-G-6323A20003S
...
264110
Power Cord Assembly L-G-EAD63469503
...
268711A
Pcb Assembly,display L-G-EBR89597602
...
268711B
Pcb Assembly,main L-G-EBR88859908
...
346811
Motor Assembly,ac L-G-EAU60885603
...
349001
Damper L-G-4901A30001A
...
349480
Cover L-G-3550A20115B
...
349600
Motor Mount L-G-4960A20014A
...
352111
Tube Assembly,condenser(out) L-G-AJR73083909
...
352113
Tube Assembly,discharge L-G-5211A21201R
...
352115
Tube Assembly,condenser(out) L-G-AJR73083916
...
352390
Guide Assembly,air L-G-AEC75737501
...
354210
Evaporator Assembly,first L-G-ADL73081105
...
359011
Fan L-G-5900AR1167B
...
359012
Fan Assembly,blower L-G-5901A10005C
...
550140
Room Air Conditioner Compressor Grommet L-G-5040AR4195A
...
552111
Tube Assembly,evaporator(in) L-G-AJR73322718
...
552113
Tube Assembly,condenser(out) L-G-AJR73067825
...
554030
Condenser Assembly,first L-G-ACG73125410
...
554160
Compressor Set,china L-G-TBZ38895001
...
567502
Overload Protect L-G-EAF61751203
...
731273
Install Part Assembly,single L-G-3127A20074X
...
749740
Guide L-G-5210AR3196S
...
753000
Heater,electric L-G-5300A20003U
Schematic Image Zoomed
