LG LW8016ER.AT1AHDS

Model: LW8016ER.AT1AHDS

Save Part Not Listed?
product name

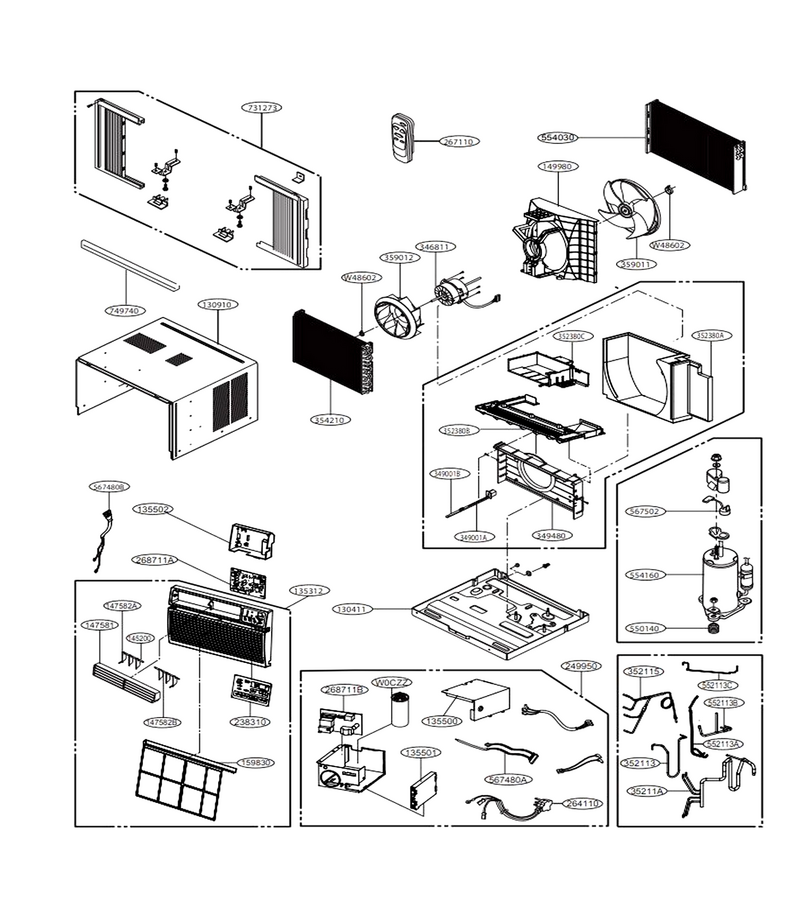

Main

...
...
W0CZZ
Capacitor,film,box L-G-EAE60682906
...
35211A
Tube Assembly,suction L-G-5211A22029Q
...
130411
Base Assembly,single L-G-AAN74551805
...
130910
Cabinet Assembly,single L-G-3091A10056S
...
135312
Grille Assembly,front L-G-AEB74085702
...
135500
Cover L-G-MCK69413201
...
135501
Cover Assembly,display L-G-ACQ31027902
...
135502
Cover L-G-MCK69433201
...
145200
Link L-G-4520A20006A
...
147581
Louver,horizontal L-G-4758A20079C
...
147582A
Louver L-G-MFH62743601
...
147582B
Louver,vertical L-G-MFH62743602
...
149980
Shroud L-G-MHN62082002
...
159830
Filter Assembly,air Cleaner L-G-ADQ73953201
...
238310
Escutcheon L-G-MDD62942301
...
249950
Case Assembly,control L-G-ABQ75823225
...
264110
Power Cord Assembly L-G-EAD63469511
...
268711A
Display Pcb Assembly L-G-EBR83548602
...
268711B
Pcb Assembly,main L-G-EBR89540702
...
346811
Ac Motor L-G-4681A20140K
...
349001A
Vent Damper L-G-MCQ66468701
...
349001B
Vent Damper L-G-MCQ66468702
...
349480
Orifice L-G-MFX62081901
...
352113
Tube Assembly,discharge L-G-AJR73067210
...
352115
Tube Assembly,evaporator(in) L-G-AJR75625701
...
352380A
Air Guide L-G-MEA62571601
...
352380B
Drain Pan L-G-MGB62082001
...
352380C
Guide Assembly,air L-G-AEC72909209
...
354210
Evaporator Assembly,first L-G-5421A10047U
...
359011
Fan,axial L-G-5900A20015E
...
359012
Fan,turbo L-G-MDG58298302
...
550140
Damper,compressor L-G-4830A30005B
...
552113A
Tube Assembly,condenser(out) L-G-AJR73067803
...
552113B
Tube Assembly,condenser(out) L-G-AJR75625903
...
552113C
Tube Assembly,condenser(out) L-G-AJR75626002
...
554030
Condenser Assembly,first L-G-ACG73045013
...
554160
Compressor Set,china L-G-TBZ38956401
...
567502
Overload Protect L-G-EAF61751221
...
731273
Install Part Assembly,single L-G-AET73732404
...
749740
Guide L-G-4974A30067H
