LG LW6017R.AT1AUSL

Model: LW6017R.AT1AUSL

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-0CZZA20005B
...
W48602
Spring Clamp L-G-MBU64446301
...
263RZZ
Room Air Conditioner Thermistor L-G-6323A20003S
...
2687M
Pcb Assembly,main L-G-EBR88859901
...
2687D
Pcb Assembly,display L-G-EBR88860001
...
35211S
Suction Tube Assembly L-G-AJR72961913
...
130410
Single Base Assembly L-G-AAN75090525
...
130910
Single Cabinet Assembly L-G-ABJ74668011
...
135301
Front Grille L-G-MDX64671903
...
135312
Front Grille Assembly L-G-AEB75624804
...
145200
Link L-G-4520A30065B
...
147582
Vertical Louver L-G-4758A30041D
...
147583
Vertical Louver L-G-4758A30041C
...
148000
Supporter L-G-4800A30012B
...
149980
Shroud L-G-MHN62842005
...
159830
Air Cleaner Filter Assembly L-G-ADQ75233602
...
237200
Panel,control L-G-MGC64639502
...
238310
Escutcheon L-G-MDD62922201
...
249950
Case Assembly,control L-G-ABQ75842006
...
264110
Power Cord Assembly L-G-EAD63469519
...
267110
Remote Controller Assembly L-G-AKB73016016
...
346811
Motor Assembly,ac L-G-4681A20116W
...
349490
Orifice L-G-MFX63041902
...
352114
Tube Assembly,discharge L-G-AJR73067212
...
352115
Tube Assembly,evaporator(in) L-G-AJR72960509
...
352370
Duct L-G-MCZ63492302
...
352371
Duct L-G-MCZ63492202
...
354210
First Evaporator Assembly L-G-ADL72920810
...
550140
Compressor Damper L-G-4984AR4390B
...
552113
Tube Assembly,condenser(out) L-G-AJR72962112
...
554030
Condenser Assembly,first L-G-ACG72924309
...
554160
Compressor Set,china L-G-TBZ37554402
...
559011
Fan,axial L-G-5900A20042J
...
559015
Fan,turbo L-G-MDG41758703
...
731273
Set Install Part Assembly L-G-AET74151701
...
749740
Guide L-G-4974A30066Q

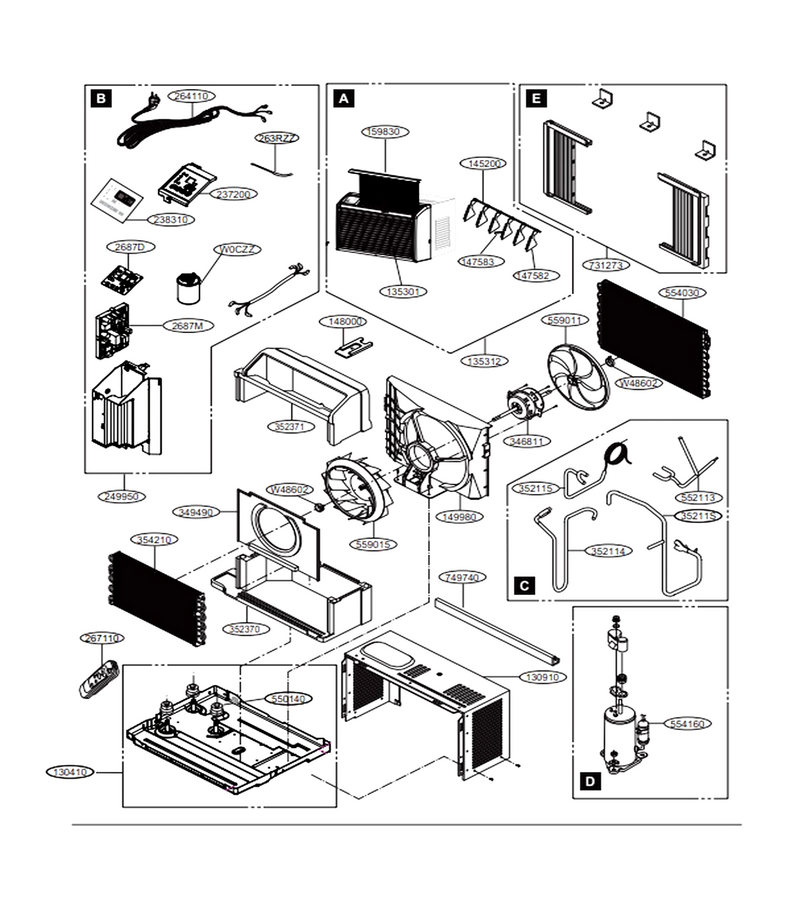

Schematic Image Zoomed
