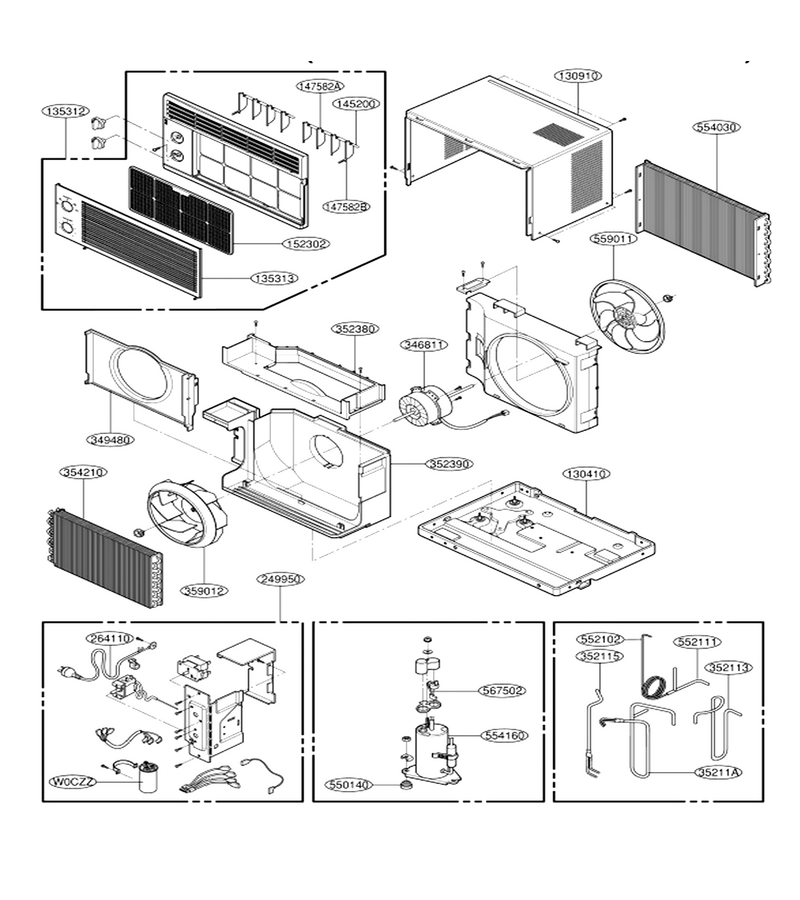

LG LW5200ER.AWYDUSL

Model: LW5200ER.AWYDUSL

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Capacitor, Unclassified L-G-0CZZA20003A
...
35211A
Tube L-G-5211A10062B
...
130410
Base Assembly L-G-3041A10011E
...
130910
Cabinet L-G-3091A10020D
...
135312
Grille Assembly L-G-3531AR1644T
...
135313
Grille,inlet L-G-3530A10039A
...
145200
Holder L-G-4520AR3191A
...
147582A
Vane L-G-5990AR3190C
...
147582B
Vane L-G-5990AR3190D
...
152302
Room Air Conditioner Air Filter L-G-5231AR2148G
...
249950
Control Board L-G-4995A20127H
...
264110
Power Cord L-G-2H00677P
...
346811
Motor Assembly L-G-4681A10002P
...
349480
Orifice L-G-4948A10007A
...
352113
Tube,discharge L-G-5210A21100B
...
352115
Tube L-G-5211A10063C
...
352380
Air Guide L-G-5239A10005B
...
352390
Guide L-G-5239A30003A
...
354210
Evaporator L-G-5421A20016H
...
359012
Turbo Fan L-G-5900A10005A
...
550140
Room Air Conditioner Compressor Grommet L-G-5040AR4195A
...
552102
Capillary L-G-5210A30018B
...
552111
Tube L-G-5211AR3332R
...
554030
Condenser Assembly,first L-G-5403A20009H
...
554160
Compressor L-G-5416A20014Q
...
559011
Propeller L-G-5900A20017A
...
567502
O.l.p L-G-6750A30001U
