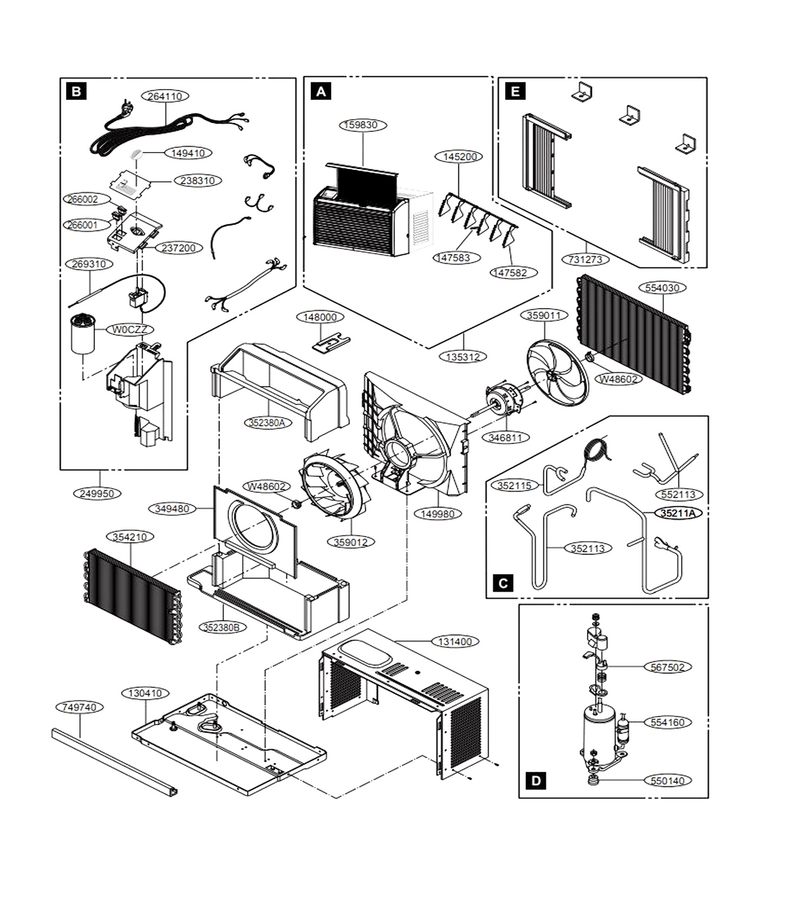

LG LW5016.AT1AHDP

Model: LW5016.AT1AHDP

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-0CZZA20005B
...
35211A
Tube Assembly,suction L-G-AJR72961907
...
130410
Base Assembly,single L-G-AAN75090511
...
131400
Cabinet L-G-MBH65662302
...
135312
Grille Assembly,front L-G-AEB75624801
...
145200
Grille L-G-4520A30065A
...
147582
Vane L-G-4758A30041B
...
147583
Vane L-G-4758A30041A
...
148000
Supporter L-G-4800A30012A
...
149410
Knob Assembly L-G-4941A30024D
...
149980
Shroud L-G-MHN62842003
...
159830
Filter Assembly,air Cleaner L-G-ADQ75233601
...
237200
Panel,control L-G-3720A30090E
...
238310
Escutcheon L-G-MDD62622204
...
249950
Case Assembly,control L-G-ABQ73982015
...
264110
Power Cord Assembly L-G-EAD63469519
...
266001
Rocker Switch L-G-2H01316J
...
266002
Rocker Switch L-G-2H01316H
...
269310
Thermostat L-G-2H01109X
...
346811
Motor Assembly,ac L-G-4681A20116T
...
349480
Orifice L-G-4948A20031B
...
352113
Tube Assembly,discharge L-G-AJR73067211
...
352115
Tube Assembly,evaporator(in) L-G-AJR72960508
...
352380A
Duct L-G-MCZ63492302
...
352380B
Duct L-G-MCZ63492202
...
354210
Evaporator Assembly,first L-G-ADL72920809
...
359011
Fan,axial L-G-5900A20042J
...
359012
Fan,turbo L-G-5900A20040F
...
550140
Damper,compressor L-G-4830A30005B
...
552113
Tube Assembly,condenser(out) L-G-AJR72962112
...
554030
Condenser Assembly,first L-G-ACG72924309
...
554160
Compressor Set,china L-G-TBZ38956101
...
567502
Overload Protect L-G-EAF61751213
...
731273
Install Part Assembly,single L-G-AET73191422
...
749740
Guide L-G-4974A30066P
