product name

LG LW2421HRSM.AT3AHDP

Model: LW2421HRSM.AT3AHDP

Save Part Not Listed?
product name

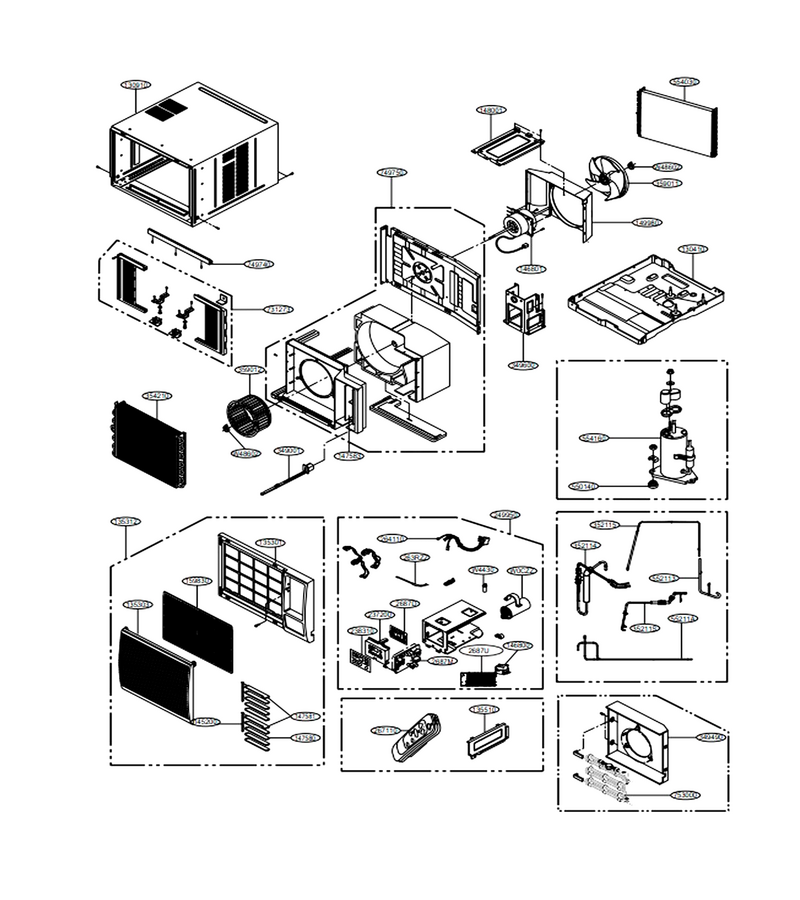

Main

...
...
W0CZZ
Capacitor L-G-0CZZA10001A
...
W4430
Room Air Conditioner Louver Motor Cam L-G-4520AR4339A
...
W48602
Spring Clamp L-G-MBU64446302
...
263RZZ
Room Air Conditioner Thermistor L-G-6323A20003S
...
2687U
Wifi Pcb Assembly L-G-EBR86421801
...
2687M
Main Pcb Assembly L-G-EBR88859921
...
2687D
Display Pcb Assembly L-G-EBR89597604
...
35211S
Tube Assembly,suction L-G-AJR73282520
...
55211A
Tube Assembly,condenser(out) L-G-AJR73083917
...
130410
Single Base Assembly L-G-AAN74274211
...
130910
Single Cabinet Assembly L-G-ABJ75767102
...
135301
Front Grille L-G-3530AR1603T
...
135303
Inlet Grille L-G-3530AR1604W
...
135312
Front Grille Assembly L-G-AEB75184504
...
135510
Cover L-G-3550AR7245D
...
145200
Link L-G-4520A30016B
...
146800
Motor L-G-2H01102J
...
146801
Ac Motor L-G-4681A20081W
...
147580
Horizontal Louver L-G-4758AR7264U
...
147581
Horizontal Louver L-G-4758AR7278U
...
147583
Vertical Louver L-G-4758AR6157D
...
148001
Supporter L-G-4800AR7271H
...
149980
Shroud L-G-4998A10027J
...
159830
(15232) Filter Assembly,air Cleaner L-G-5231AR6159G
...
237200
Control Panel L-G-MGC66370901
...
238310
Escutcheon L-G-MDD63322903
...
249950
Control Case Assembly L-G-ABQ74425115
...
267110
Display Pcb Assembly L-G-AKB73016015
...
349001
Vent Damper L-G-4900AR7265F
...
349490
Orifice L-G-MFX63022003
...
349600
Motor Bracket L-G-4960AR1596D
...
352114
Tube Assembly,discharge L-G-AJR73989104
...
352115
Room Air Conditioner Indoor Air Duct Assembly L-G-AJR74128905
...
354210
Evaporator Assembly,first L-G-ADL73981506
...
359011
Fan Assembly,axial L-G-5900AR1508G
...
359012
Fan Assembly,blower L-G-5834AR1599J
...
550140
Damper,compressor L-G-MCQ66724502
...
552113
Tube Assembly,condenser(out) L-G-AJR73972404
...
554030
Condenser Assembly,first L-G-ACG73747206
...
554160
Compressor Set,china L-G-TBZ36035404
...
731273
Install Part Assembly,single L-G-AET73371401
...
749740
Guide L-G-MEA61972806
...
749750
Air Guide Assembly L-G-AEC74677603
...
753000
Heater,electric L-G-5300A20003V
