LG LW2413HR.AWYAUSH

Model: LW2413HR.AWYAUSH

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-2H01451M
...
35211A
Tube Assembly,suction(indoor) L-G-AJR73142505
...
130410
Base Assembly,single L-G-3041A23004P
...
130910
Cabinet Assembly L-G-3091A20001K
...
135301
Grille L-G-3530AR1603Q
...
135303
Inlet Grille L-G-3530AR1604U
...
135312
Room Air Conditioner Front Grille Assembly L-G-3531A20073Y
...
135515
Cover Assembly L-G-3551A30001A
...
137215
Control Panel L-G-3720AR6163A
...
145200
Link L-G-4520A30016A
...
146812
Motor L-G-2H01102J
...
147581-2
Louver,verti L-G-4758AR7278C
...
147581-1
Louver,verti L-G-4758AR7264C
...
147582
Louver L-G-4758AR6157B
...
149980
(149980) Shroud L-G-4998A10027A
...
159830
Room Air Conditioner Air Filter L-G-5231AR6159A
...
238310
Escutcheon L-G-3831A10018M
...
249950
Case Assembly,control L-G-4995A20186P
...
264110
Room Air Conditioner Power Cord L-G-6411A20056Q
...
267110
Remote Controller Assembly L-G-6711A20066K
...
268711-1
Room Air Conditioner Display Board L-G-6871A20611V
...
268711-2
Pcb Assembly,main L-G-EBR74780403
...
346811
Room Air Conditioner Fan Motor L-G-4681A20130E
...
349001
Damper L-G-4900AR7265A
...
349600
Motor Mount L-G-4960A10006A
...
352111
Tube Assembly,connector L-G-AJR73143102
...
352113
Tube Assembly,discharge L-G-AJR73142716
...
352115
Tube,bending L-G-5210A24956W
...
352390
Air Guide L-G-5239A20001N
...
354210
Evaporator Assembly,first L-G-5421A20248X
...
359012
Room Air Conditioner Blower Wheel L-G-5834AR1599B
...
554030
Condenser Assembly L-G-ACG73044502
...
554160
Compressor Set,china L-G-TBZ31986002
...
559011
Room Air Conditioner Condenser Fan Blade L-G-5900AR1508B
...
567480
Room Air Conditioner Thermistor L-G-6323A20003S
...
731273
Room Air Conditioner Installation Kit L-G-3127A10015M
...
749740
Frame Guid L-G-3210AR3337A
...
753000
Room Air Conditioner Heater Assembly L-G-5300A20003A
...
753010
Room Air Conditioner Heater Assembly L-G-5301A30001B

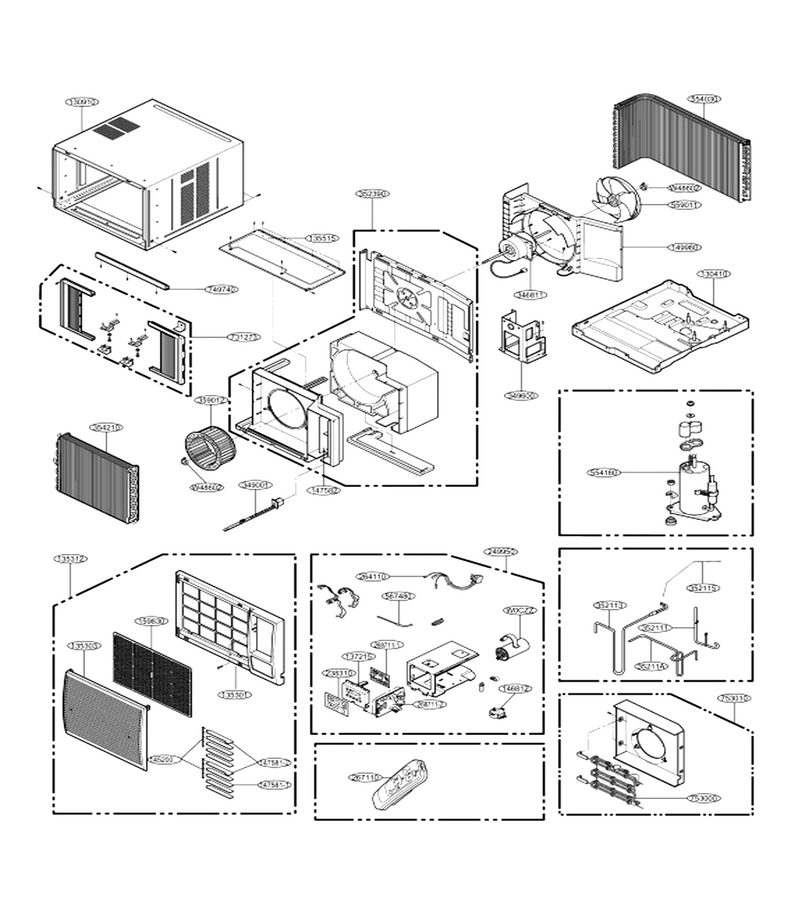

Schematic Image Zoomed
