LG LW1816ER.AT3AHDS

Model: LW1816ER.AT3AHDS

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-6120AR2194K
...
35211A
Tube Assembly,suction L-G-5211A12002Q
...
130410
Base Assembly,single L-G-AAN76849601
...
130910
Cabinet Assembly L-G-3091A10063N
...
135301
Grille,front L-G-MDX63032702
...
135312
Grille Assembly,front L-G-AEB74086102
...
135500
Cover L-G-MCK69413201
...
135501
Cover Assembly,display L-G-ACQ31027902
...
135502
Cover L-G-MCK69433201
...
145200
Link L-G-4520A30026A
...
147581
Louver,horizontal L-G-4758A30047C
...
147582B
Louver L-G-4758A30050B
...
147582A
Room Air Conditioner Louver L-G-4758A30050A
...
148000
Brace L-G-4800A20001A
...
149980
Shroud L-G-4998A10035A
...
159830
Filter Assembly,air Cleaner L-G-ADQ73953601
...
238310
Escutcheon L-G-MDD62962301
...
249950
Case Assembly,control L-G-ABQ75823224
...
264110
Power Cord L-G-EAD63469505
...
268711A
Pcb Assembly,display L-G-EBR89540802
...
268711B
Pcb Assembly,main L-G-EBR89540703
...
346811
Fan Motor L-G-4681A20043T
...
349001
Damper L-G-4900A20016A
...
349480
Orifice L-G-MFX62901901
...
349600
Mount L-G-4960A20056A
...
352113
Tube Assembly,discharge L-G-AJR73083824
...
352115
Tube Assembly,capillary L-G-AJR72923110
...
352390A
Air Guide L-G-5239A20017A
...
352390B
Air Guide L-G-5239A20020A
...
354210
Evaporator Assembly,first L-G-5421A20186M
...
359011
Fan,axial L-G-5900A10011D
...
359012
Fan Assembly,turbo L-G-5901A20009E
...
550140
Damper,rubber L-G-4022UTL005A
...
552111C
Tube Assembly, Condenser (out) L-G-AJR73067830
...
552113
Tube Assembly,condenser(out) L-G-AJR73067827
...
554030
Condenser Assembly,first L-G-ACG75264903
...
554160
Compressor Set,china L-G-TBZ38955601
...
731273
Install Part Assembly,single L-G-AET73691406

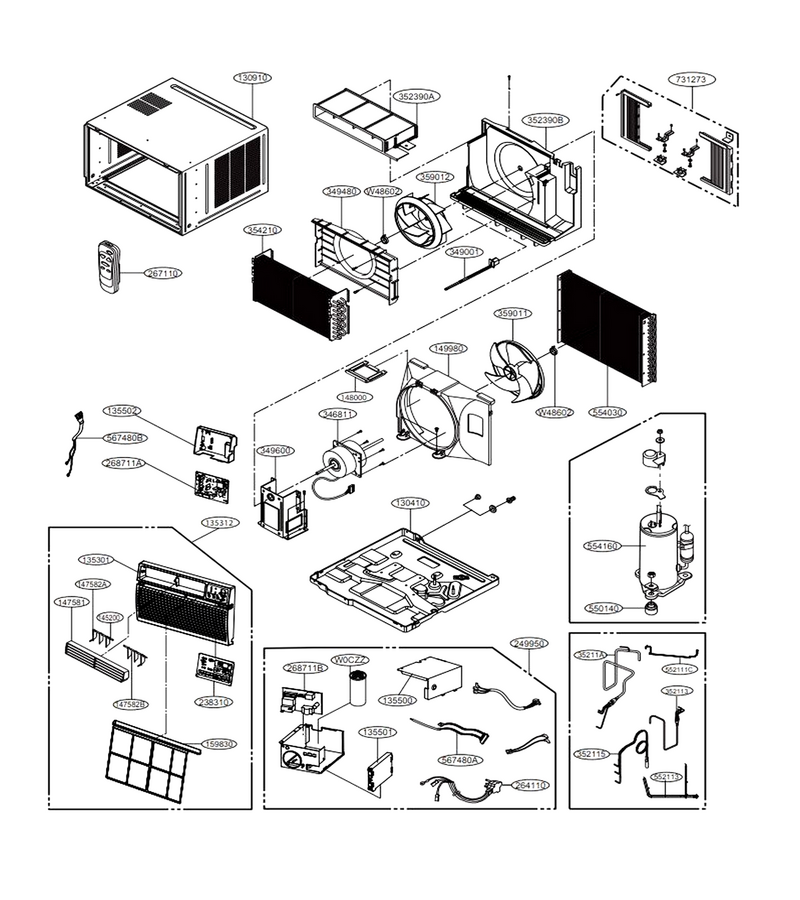

Schematic Image Zoomed
