LG LW1812ERS.AWYAUSH

Model: LW1812ERS.AWYAUSH

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-6120AR2194F
...
35211A
Suction Tube L-G-AJR73087403
...
130410
Case Assembly L-G-AAN73089002
...
130910
Cabinet Assembly L-G-3091AR6057W
...
135301
Grille L-G-3530A10213B
...
135303
Inlet Grille L-G-3530A10214B
...
135312
Grille Assembly L-G-3531A11012D
...
135500
Control Cover L-G-ACQ31027801
...
145200
Link L-G-4520A30026A
...
147581
Vane L-G-4758A30047A
...
147582-1
Room Air Conditioner Louver L-G-4758A30050A
...
147582-2
Louver L-G-4758A30050B
...
147910
Barrier Assembly,single L-G-4791A20026A
...
148000
Brace L-G-4800A20001A
...
149980
Shroud L-G-4998A10026C
...
152302
Air Filter L-G-5231A20008A
...
237200
Room Air Conditioner Electronic Control Board L-G-3720A10112A
...
238310
Escutcheon L-G-3831A10021M
...
249950
Case Assembly,control L-G-ABQ73964402
...
263230
Room Air Conditioner Ambient Thermistor L-G-6323A20012C
...
264110
Room Air Conditioner Power Cord L-G-6411A20056N
...
267110
Room Air Conditioner Remote Control L-G-6711A20034G
...
268711-1
Room Air Conditioner Display Board L-G-EBR74697801
...
268711-2
Room Air Conditioner Electronic Control Board L-G-EBR39283908
...
346811
Room Air Conditioner Fan Motor L-G-4681A23010C
...
349001
Damper L-G-4900A20004A
...
349480
Orifice L-G-4948A30008A
...
349600
Mount L-G-4960AR1596A
...
352111
Condenser Tube L-G-AJR73025401
...
352113
Tube Assembly L-G-AJR73025302
...
352115
Tube Assembly L-G-AJR73102701
...
352380
Air Guide Assembly L-G-5239A20003B
...
352390
Air Guide L-G-5239A20002A
...
354210
Evaporator Assembly,first L-G-5421A20091L
...
359012
Turbo Fan L-G-5901A20009A
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982C
...
554031
Condenser Assembly L-G-ACG73044502
...
554160
Compressor L-G-TBZ35374701
...
559011
Room Air Conditioner Condenser Fan Blade L-G-5900AR1508B
...
731273
Room Air Conditioner Installation Kit L-G-3127A10015M
...
749740
Guide L-G-MEA61972802

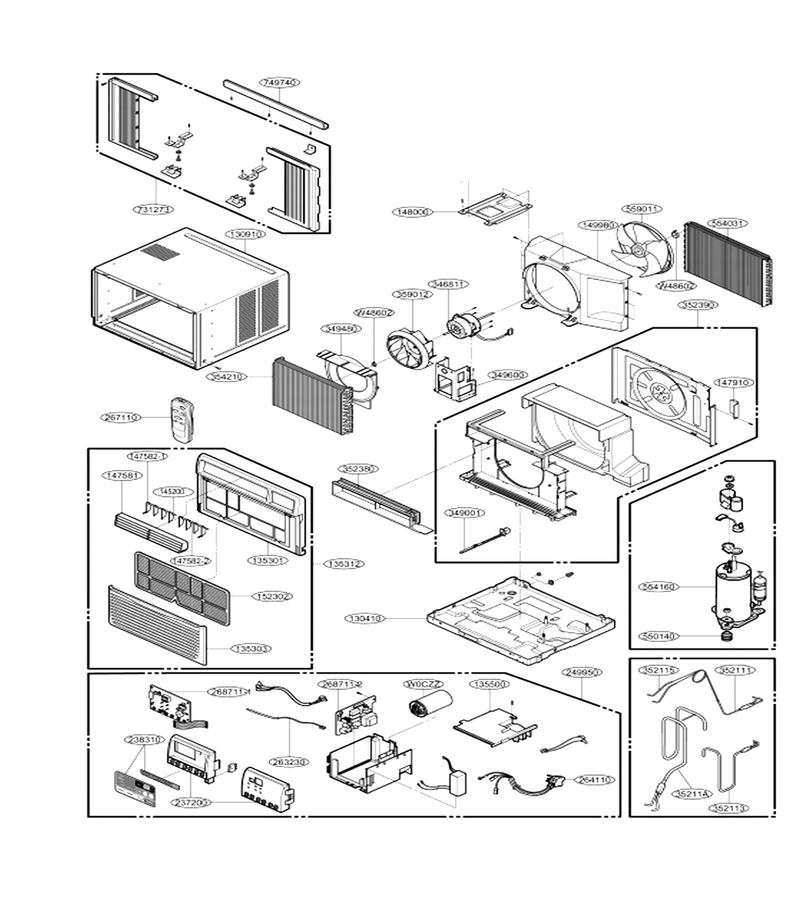

Schematic Image Zoomed
