product name

LG LW1517IVSM.AT1AUSL

Model: LW1517IVSM.AT1AUSL

Save Part Not Listed?
product name

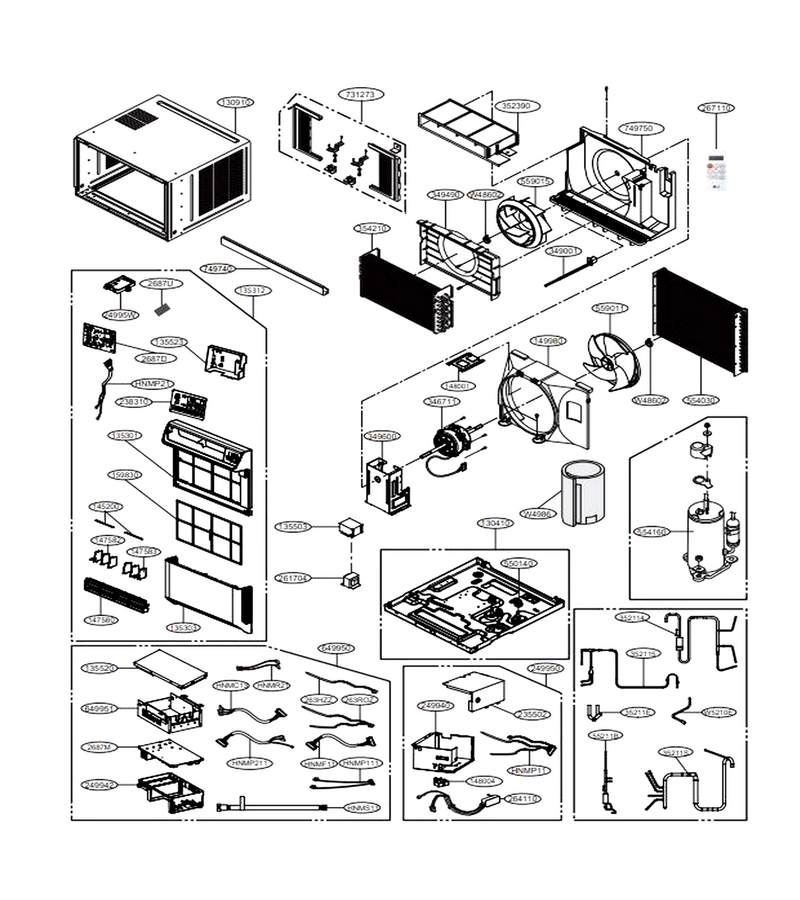

Main

...
...
HNMS11
Harness,single L-G-EAD64148701
...
W5210E
Tube,form L-G-MJU62126805
...
W4986
Gasket L-G-MDS66533001
...
W48602
Spring Clamp L-G-MBU64446301
...
HNMR21
Harness,multi L-G-EAD64766801
...
HNMP211
Harness,multi L-G-EAD64825902
...
HNMP21
Harness,multi L-G-EAD63989009
...
HNMP111
Harness,multi L-G-EAD63989010
...
HNMP11
Harness,multi L-G-EAD63989008
...
HNMF11
Harness,single L-G-EAD62745807
...
HNMC13
Harness,multi L-G-EAD64825801
...
263HZZ
Thermistor Assembly,ntc L-G-EBG61406003
...
263ROZ
Thermistor Assembly,ntc L-G-EBG61107024
...
2687D
Display Pcb Assembly L-G-EBR31082913
...
2687M
Main Pcb Assembly L-G-EBR31452002
...
2687U
Wifi Pcb Assembly L-G-EBR86421801
...
24995W
Control Case Assembly L-G-ABQ76620207
...
35211E
Tube Assembly,connector L-G-AJR75023913
...
35211S
Suction Tube Assembly L-G-AJR76482503
...
55211B
Tube Assembly,condenser(out) L-G-AJR76502401
...
130410
Single Base Assembly L-G-AAN76669805
...
130910
Single Cabinet Assembly L-G-ABJ75887403
...
135301
Front Grille L-G-MDX64672102
...
135303
Inlet Grille L-G-MDX64672202
...
135312
Front Grille Assembly L-G-AEB76289920
...
135503
Cover L-G-MCK69611507
...
135520
Cover L-G-MCK69611402
...
135523
Cover L-G-MCK69433201
...
145200
Link L-G-4520A20007C
...
147580
Horizontal Louver L-G-MFH63603602
...
147582
Vertical Louver L-G-MFH63603704
...
147583
Vertical Louver L-G-MFH63603703
...
148001
Supporter L-G-4800A20001C
...
148004
Supporter L-G-4980AR4395A
...
149980
Shroud L-G-4998A10016G
...
159830
Air Cleaner Filter Assembly L-G-ADQ75233802
...
235502
Cover L-G-MCK69413201
...
238310
Escutcheon L-G-MDD63022212
...
249940
Case,control L-G-MBN64644303
...
249942
Case,control(outdoor) L-G-MBN65404601
...
249950
Case Assembly,control L-G-ABQ75823228
...
261704
Transformer,reactor L-G-EBJ63570006
...
264110
Power Cord Assembly L-G-EAD63469515
...
267110
Remote Controller Assembly L-G-AKB73598016
...
346711
Motor Assembly,dc L-G-EAU64124103
...
349001
Vent Damper L-G-MCQ69685502
...
349490
Orifice L-G-4948A10015D
...
349600
Motor Bracket L-G-MAZ63728003
...
352114
Tube Assembly,discharge L-G-AJR76482601
...
352115
Tube Assembly,evaporator(in) L-G-AJR76482701
...
352390
Duct Assembly L-G-5239A20004J
...
354210
First Evaporator Assembly L-G-5421A20099Z
...
550140
Damper,compressor L-G-MCQ62508904
...
554030
Condenser Assembly,first L-G-ACG72924216
...
554160
Compressor Set,china L-G-TBZ38894901
...
559011
Fan,axial L-G-5900A10009E
...
559015
Fan,turbo L-G-5900A20019G
...
649950
Control (outdoor) Case Assembly L-G-ABQ75984020
...
649951
Case Assembly,control(outdoor) L-G-ABQ75984003
...
731273
Install Part Assembly,single L-G-AET73691405
...
749740
Guide L-G-4974AR3262S
...
749750
Air Guide Assembly L-G-AEC74317403
