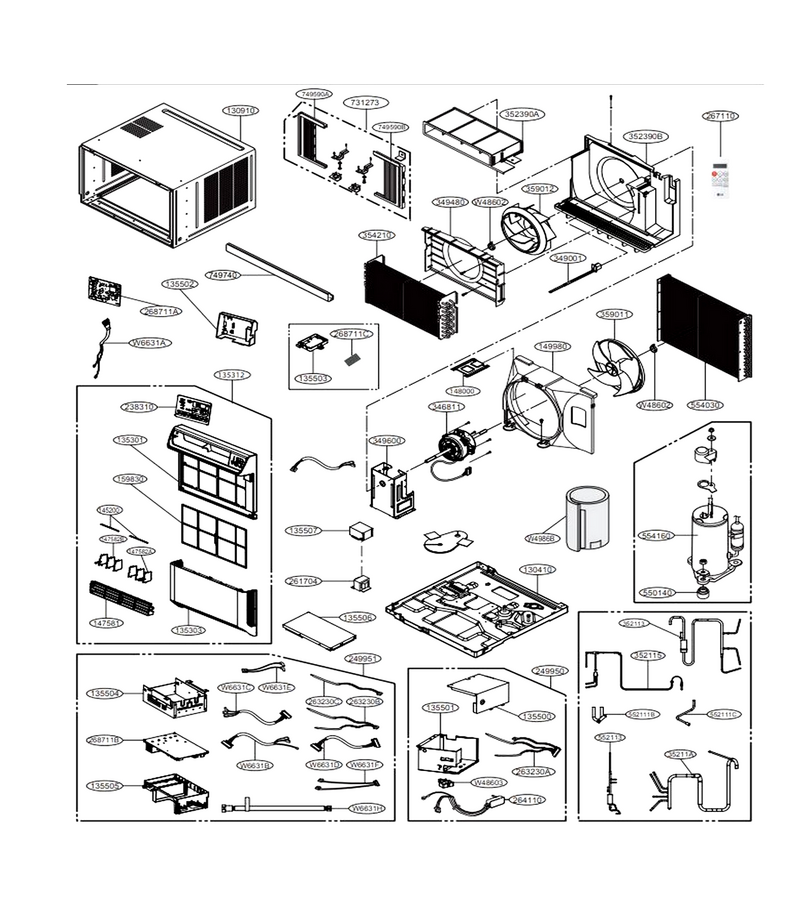

LG LW1517IVSM.AT1AHDP

Model: LW1517IVSM.AT1AHDP

Save Part Not Listed?
product name

Main

...
...
W48602
Room Air Conditioner Fan Blade Clamp L-G-3H02932B
...
W48603
Supporter L-G-4980AR4395A
...
W4986B
Gasket L-G-MDS66533001
...
W6631A
Harness,multi L-G-EAD63989009
...
W6631B
Harness,multi L-G-EAD64825902
...
W6631C
Harness,multi L-G-EAD64825801
...
W6631D
Harness,single L-G-EAD62745807
...
W6631E
Harness,multi L-G-EAD64766801
...
W6631F
Harness,multi L-G-EAD63989010
...
35211A
Tube Assembly,suction L-G-AJR76482501
...
130410
Base Assembly,single L-G-AAN76529304
...
130910
Cabinet Assembly,single L-G-ABJ75887401
...
135301
Grille,front L-G-MDX64672101
...
135303
Grille,inlet L-G-MDX64672201
...
135312
Grille Assembly,front L-G-AEB75624608
...
135500
Cover L-G-MCK69413201
...
135501
Case,control L-G-MBN64644303
...
135502
Cover L-G-MCK69433201
...
135503
Cover L-G-MCK69546401
...
135504
Case Assembly,control(outdoor) L-G-ABQ75984003
...
135505
Case,control(outdoor) L-G-MBN65404601
...
135506
Cover L-G-MCK69611402
...
135507
Cover L-G-MCK69611503
...
147581
Louver,horizontal L-G-MFH63603601
...
147582A
Louver,vertical L-G-MFH63603701
...
147582B
Louver,vertical L-G-MFH63603702
...
148000
Brace L-G-4800A20001A
...
159830
Filter Assembly,air Cleaner L-G-ADQ75233801
...
238310
Escutcheon L-G-MDD63022202
...
249950
Case Assembly,control L-G-ABQ75823216
...
249951
Case Assembly,control(outdoor) L-G-ABQ75984006
...
261704
Transformer,reactor L-G-EBJ63570002
...
263230B
Thermistor Assembly,ntc L-G-EBG61107024
...
263230C
Thermistor Assembly,ntc L-G-EBG61406003
...
263230A
Harness,multi L-G-EAD63989008
...
264110
Power Cord Assembly L-G-EAD63469515
...
267110
Remote Controller Assembly L-G-AKB73598008
...
268711A
Pcb Assembly,display L-G-EBR83548703
...
268711B
Pcb Assembly,main L-G-EBR85844901
...
268711C
Pcb Assembly,module L-G-EBR82056913
...
346811
Motor Assembly,dc L-G-EAU64124103
...
349001
Damper,vent L-G-MCQ69685501
...
349480
Orifice L-G-4948A10015A
...
349600
Bracket,motor L-G-MAZ63728002
...
352113
Tube Assembly,discharge L-G-AJR76482601
...
352115
Tube Assembly,evaporator(in) L-G-AJR76482701
...
352390A
Duct Assembly L-G-5239A20004G
...
352390B
Guide Assembly,air L-G-AEC74317402
...
354210
Evaporator Assembly,first L-G-5421A20099N
...
359011
Room Air Conditioner Condenser Fan Blade L-G-5900A10009B
...
359012
Room Air Conditioner Evaporator Fan Blade L-G-5900A20019C
...
550140
Damper,compressor L-G-MCQ62508905
...
552111B
Tube Assembly,connector L-G-AJR75023913
...
552111C
Tube,form L-G-MJU62126805
...
552113
Tube Assembly,condenser(out) L-G-AJR76502401
...
554030
Condenser Assembly,first L-G-ACG72924208
...
554160
Compressor Set,china L-G-TBZ38894901
...
731273
Install Part Assembly,single L-G-AET73691405
...
749590B
Curtain Assembly L-G-4959AR3402T
