LG LW1517IVSM.AC1AYOW

Model: LW1517IVSM.AC1AYOW

Save Part Not Listed?
product name

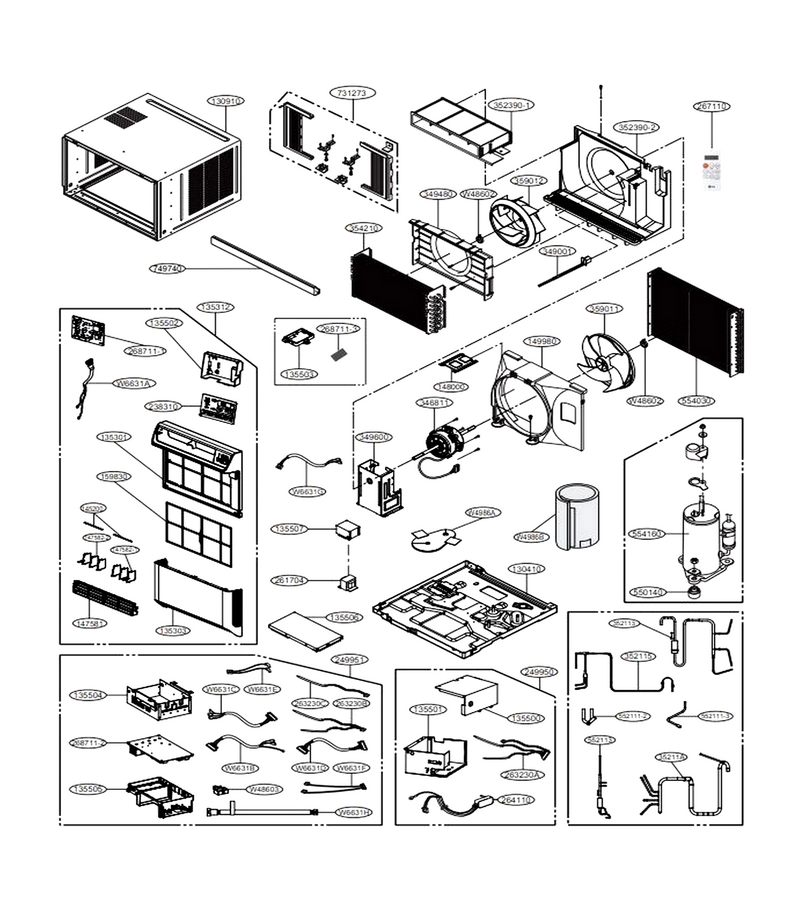

Main

...
...
W48602
Room Air Conditioner Fan Blade Clamp L-G-3H02932B
...
130410
Base Assembly,single L-G-AAN76529304
...
130910
Cabinet Assembly,single L-G-ABJ75887401
...
135301
Grille,front L-G-MDX64672101
...
135303
Grille,inlet L-G-MDX64672201
...
135312
Grille Assembly,front L-G-AEB75624604
...
135503
Cover L-G-MCK69611503
...
149980
Shroud L-G-4998A10016F
...
159830
Filter Assembly,air Cleaner L-G-ADQ75233801
...
238310
Escutcheon L-G-MDD63022202
...
249950
Case Assembly,control L-G-ABQ75823216
...
261704
Transformer,reactor L-G-EBJ63570002
...
264110
Power Cord Assembly L-G-EAD63469515
...
267110
Remote Controller Assembly L-G-AKB73598008
...
349001
Damper,vent L-G-MCQ69685501
...
352115
Tube Assembly,evaporator(in) L-G-AJR76482701
...
354210
Evaporator Assembly,final L-G-ADL74741169
...
550140
Damper,compressor L-G-MCQ62508905
...
554030
Condenser Assembly,first L-G-ACG72924208
...
554160
Compressor Set,china L-G-TBZ38894901
...
731273
Tape,filament L-G-53402025
