LG LW1217ERSM.AT1AHDP

Model: LW1217ERSM.AT1AHDP

Save Part Not Listed?
product name

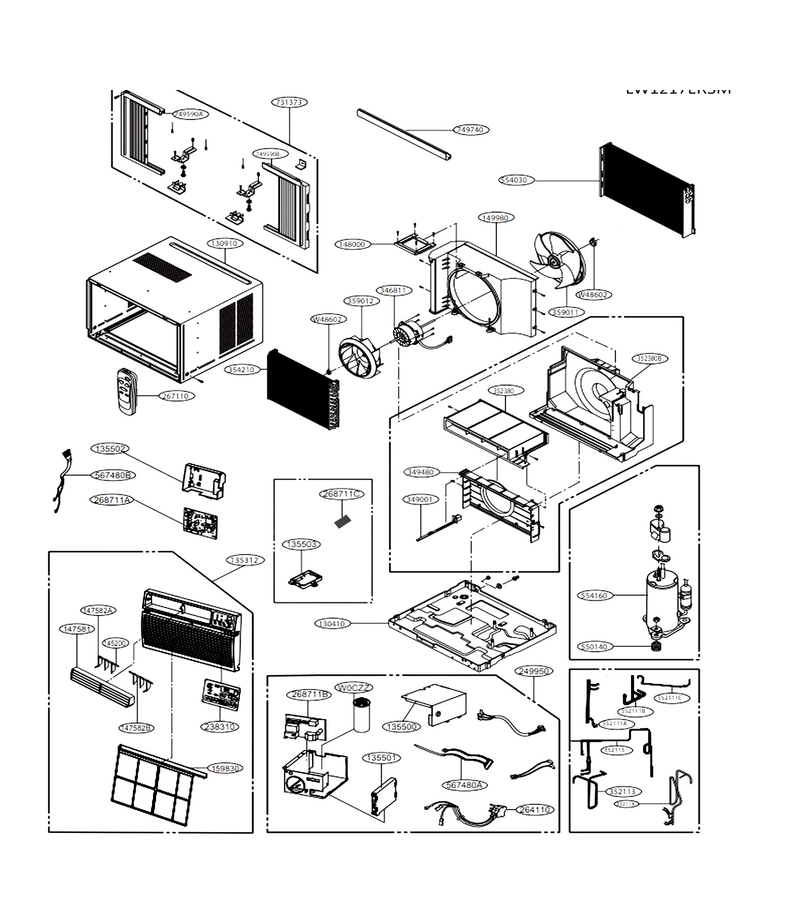

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-0CZZA20001L
...
W48602
Room Air Conditioner Fan Blade Clamp L-G-3H02932B
...
35211A
Tube Assembly,suction L-G-AJR76382401
...
130410
Base Assembly,single L-G-AAN73030708
...
135312
Grille Assembly,front L-G-AEB74085922
...
135500
Cover L-G-MCK69413201
...
135503
Case Assembly,control L-G-ABQ76620205
...
147582A
Room Air Conditioner Louver L-G-4758A10009A
...
147582B
Room Air Conditioner Louver L-G-4758A10009B
...
148000
Brace L-G-4800A30002D
...
268711A
Pcb Assembly,display L-G-EBR89540804
...
268711B
Pcb Assembly,main L-G-EBR89540702
...
268711C
Pcb Assembly,module L-G-EBR82056913
...
349480
Orifice L-G-4948A10015D
...
352115
Tube Assembly,evaporator(in) L-G-AJR76382501
...
352380
Duct Assembly L-G-5239A20004E
...
352380B
Guide,air L-G-5238A20008F
...
354210
Evaporator Assembly,first L-G-5421A20099R
...
359011
Fan,axial L-G-5900A10009E
...
359012
Fan,turbo L-G-MDG58298302
...
550140
Damper,compressor L-G-MCQ62508905
...
552111A
Tube,condenser L-G-MJU64871301
...
552111B
Tube Assembly,condenser(out) L-G-AJR75625301
...
552111C
Tube Assembly,condenser(out) L-G-AJR75643901
...
554030
Condenser Assembly,first L-G-ACG72924216
...
554160
Compressor Set,china L-G-TBZ38955701
...
731373
Install Part Assembly,single L-G-AET73691405
