LG LW1216ER.AT1AUSL

Model: LW1216ER.AT1AUSL

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-0CZZA20001L
...
W48602
Spring Clamp L-G-MBU64446301
...
W52107
Tube,condenser L-G-MJU64871301
...
2687M
Pcb Assembly,main L-G-EBR89540702
...
2687D
Pcb Assembly,display L-G-EBR89540802
...
35211S
Tube Assembly,suction L-G-AJR76382401
...
55211A
Tube Assembly,condenser(out) L-G-AJR75643901
...
55211B
Tube Assembly,condenser(out) L-G-AJR75625301
...
130410
Single Base Assembly L-G-AAN73030709
...
130910
Single Cabinet Assembly L-G-3091A10072H
...
135301
Front Grille L-G-MDX63032504
...
135312
Front Grille Assembly L-G-AEB76289928
...
135523
Cover L-G-MCK69433201
...
145200
Link L-G-4520A20007C
...
147580
Horizontal Louver L-G-4758A20066D
...
147582
Vertical Louver L-G-4758A10009F
...
147583
Vertical Louver L-G-4758A10009E
...
148001
Supporter L-G-4800A30002E
...
149980
Shroud L-G-4998A10016G
...
159830
Air Cleaner Filter Assembly L-G-ADQ73953403
...
235502
Cover L-G-MCK69413201
...
235512
Cover Assembly,display L-G-ACQ31027902
...
238310
Escutcheon L-G-MDD62942301
...
249950
Case Assembly,control L-G-ABQ75823227
...
264110
Power Cord Assembly L-G-EAD63469513
...
349001
Vent Damper L-G-4900A20002C
...
349490
Orifice L-G-4948A10015D
...
352114
Tube Assembly,discharge L-G-AJR75584702
...
352115
Tube Assembly,evaporator(in) L-G-AJR76382501
...
352380
Air Guide L-G-5238A20008K
...
352390
Duct Assembly L-G-5239A20004H
...
354210
First Evaporator Assembly L-G-5421A20099X
...
550140
Damper,compressor L-G-MCQ62508904
...
554030
Condenser Assembly,first L-G-ACG72924216
...
554160
Thailand Compressor Set L-G-TBZ39173303
...
559011
Fan,axial L-G-5900A10009E
...
559015
Fan,turbo L-G-MDG58298302
...
731273
Install Part Assembly,single L-G-AET73691405
...
749740
Guide L-G-4974AR3262S

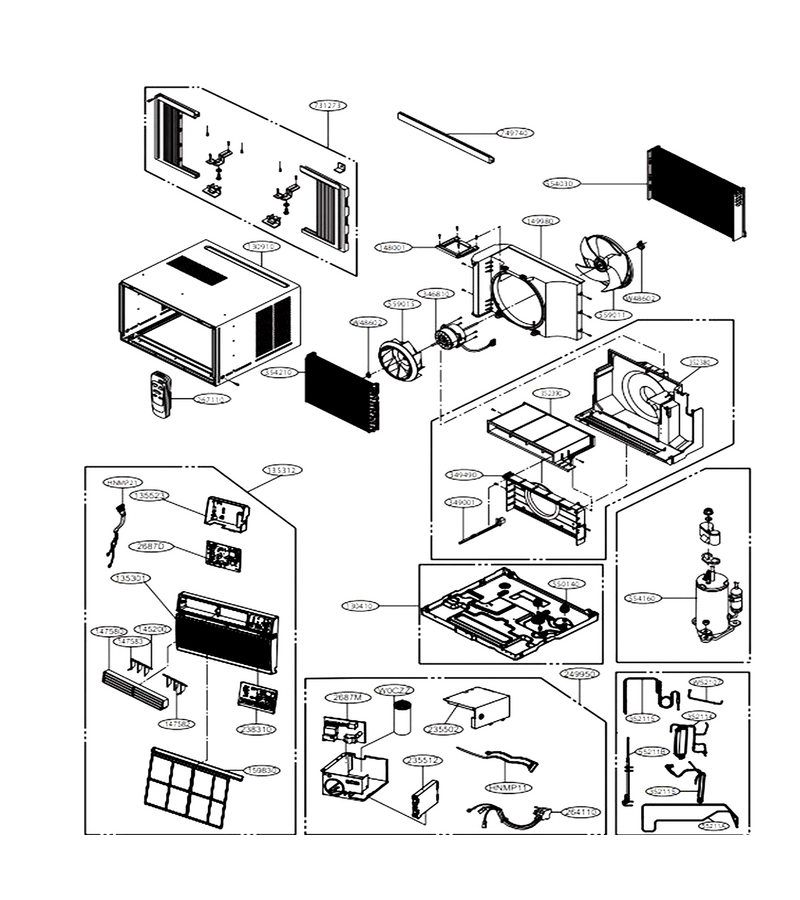

Schematic Image Zoomed
