LG LW1216ER.ASWAUSA

Model: LW1216ER.ASWAUSA

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-0CZZA20001L
...
35211A
Tube Assembly,suction L-G-AJR73084008
...
130410
Base Assembly,single L-G-AAN73030705
...
135312
Grille Assembly,front L-G-AEB75145201
...
135500
Cover L-G-MCK69413201
...
135501
Cover Assembly,display L-G-ACQ31027902
...
135502
Cover L-G-MCK69433201
...
147581
Louver,horizontal L-G-4758A20066C
...
147582-1
Room Air Conditioner Louver L-G-4758A10009A
...
147582-2
Room Air Conditioner Louver L-G-4758A10009B
...
148000
Brace L-G-4800A30002D
...
159830
Filter Assembly,air Cleaner L-G-ADQ73953401
...
238310
Escutcheon L-G-MDD62942301
...
249950
Control Case Assembly L-G-ABQ75823203
...
264110
Power Cord Assembly L-G-EAD63469513
...
268711-1
Display Pcb Assembly L-G-EBR83548602
...
349001
Damper L-G-4900A20002A
...
349480
Orifice L-G-4948A10015A
...
352113
Tube Assembly,discharge L-G-AJR75584702
...
352115
Tube Assembly,evaporator(in) L-G-AJR74444903
...
352380-2
Air Guide L-G-5238A20008C
...
352380
Duct Assembly L-G-5239A20004E
...
354210
Evaporator Assembly,first L-G-5421A20099L
...
359011
Room Air Conditioner Condenser Fan Blade L-G-5900A10009B
...
359012
Turbo Fan L-G-MDG58298301
...
550140
Damper,compressor L-G-MCQ62508905
...
552111-1
Tube,condenser L-G-MJU64871301
...
552111-2
Tube Assembly,condenser(out) L-G-AJR75625301
...
552111-3
Tube Assembly,condenser(out) L-G-AJR75643901
...
554030
Condenser Assembly,first L-G-ACG72924208
...
554160
Compressor L-G-TBZ37316001
...
749590-2
Curtain Assembly L-G-4959AR3402T

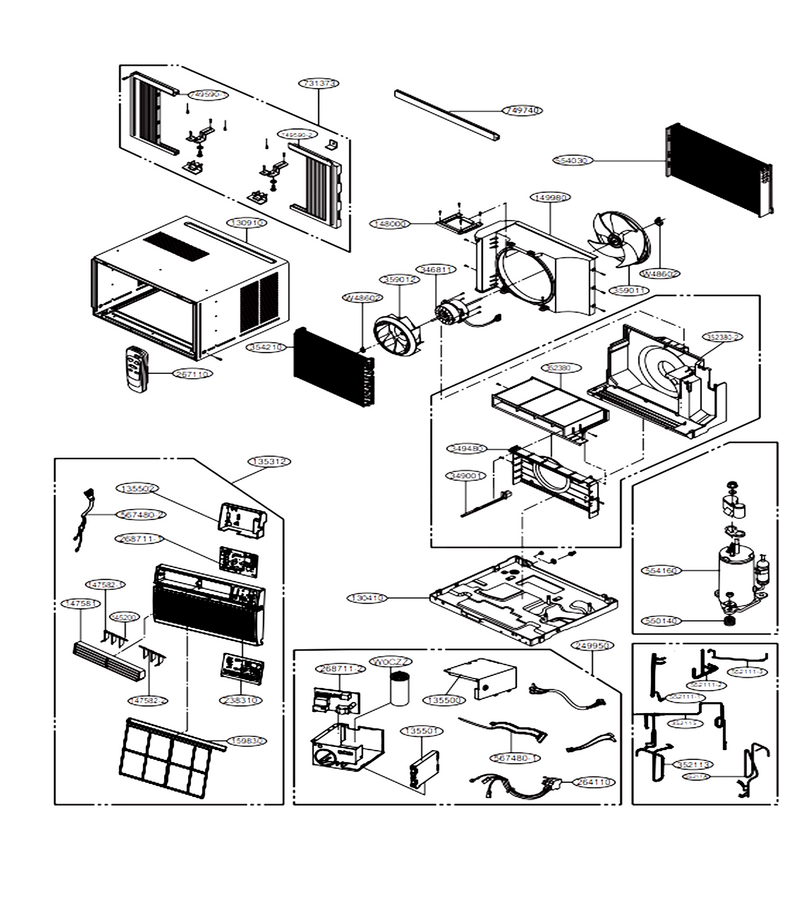

Schematic Image Zoomed
