LG LW1213HR.AWYAHDP

Model: LW1213HR.AWYAHDP

Save Part Not Listed?
product name

Main

...
...
W5210E-1
Tube L-G-5210AR4373B
...
W48602
Room Air Conditioner Fan Blade Clamp L-G-3H02932B
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-2H01451M
...
35211A
Tube Asy,suc L-G-AJR73142501
...
130410
Base Asy,sin L-G-AAN32956304
...
130910
Cabinet Assembly L-G-3091AR1183Q
...
135303
Grille Assembly L-G-3530AR1634T
...
135312
Grille Assembly L-G-3531A20136J
...
135500
Cover L-G-3550AR7032A
...
147581
Horizontal Louver L-G-5990AR6191K
...
147582
Louver L-G-4758AR7308D
...
148000
Bracket L-G-4810AR4155B
...
149980
Shroud L-G-MHN61882701
...
152302
Room Air Conditioner Air Filter L-G-5231AR1152A
...
237200
Panel,control L-G-3720A10003G
...
238310
Escutcheon L-G-3831A20093D
...
249950
Case Assembly,control L-G-ABQ73943301
...
264110
Room Air Conditioner Power Cord L-G-6411A20056Q
...
267110
Remote Controller Assembly L-G-6711A20066N
...
268711-2
Pcb Assembly,main L-G-EBR74780401
...
268711-1
Pcb Dispenser Assembly L-G-6871A20611U
...
346811
Room Air Conditioner Fan Motor L-G-4681A20009M
...
349001
Damper L-G-4900AR7024B
...
349600
Compressor L-G-4960AR6165A
...
352111
Tube Control Assembly L-G-AJR73162601
...
352113
Tube Assembly,discharge L-G-AJR73142714
...
352380
Air Guide L-G-5239AR1523U
...
354210
Evaporator L-G-5421AR2912Q
...
359011
Room Air Conditioner Condenser Fan Blade L-G-5900AR1173A
...
359012
Room Air Conditioner Blower Wheel L-G-5834AR1495B
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982C
...
552102
Tube Cap Assembly L-G-AJR73144101
...
554030
Condenser Assembly L-G-ACG73046001
...
554160
Compressor L-G-TBZ34835801
...
567480
Room Air Conditioner Thermistor L-G-6323A20003S
...
567502
Overload Protector L-G-EAF34140210
...
731273
Room Air Conditioner Accordion Filler Kit L-G-3127A20074J
...
749740
Guide L-G-4974AR3262M
...
753000
Room Air Conditioner Heater Assembly L-G-5300A20003A
...
753010
Room Air Conditioner Heater Assembly L-G-5301AR7267B

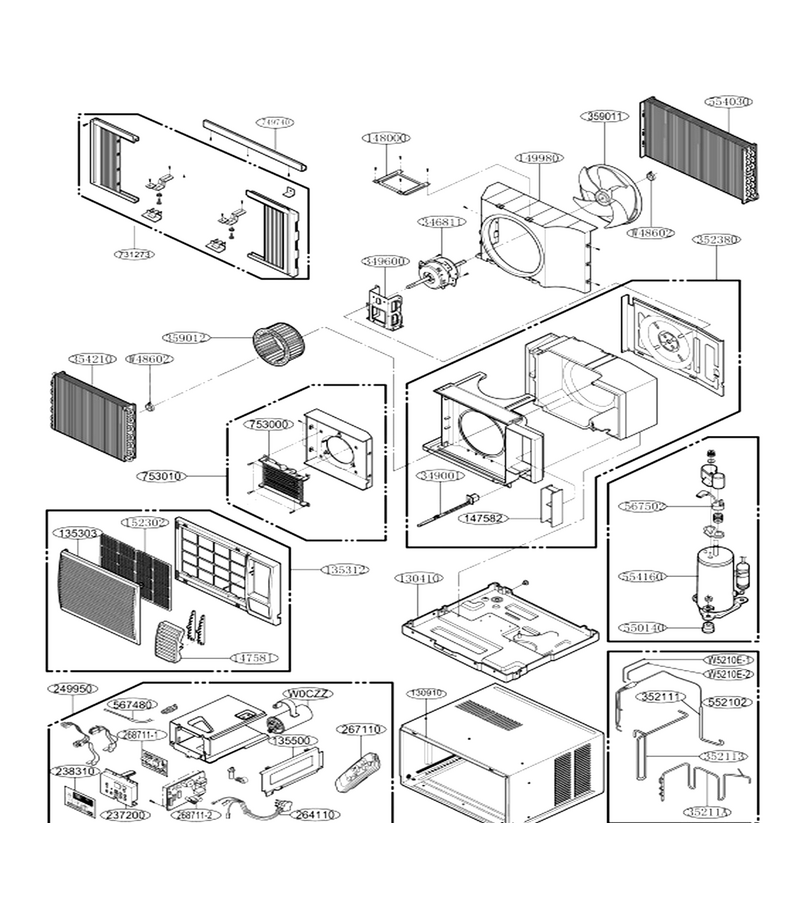

Schematic Image Zoomed
