LG LW1200PR.AWYDUSL

Model: LW1200PR.AWYDUSL

Save Part Not Listed?
product name

Main

...
...
35211A
Tube L-G-5211A20228E
...
130410
Pan Base L-G-3041A20020J
...
130910
Cabinet L-G-3091A10032C
...
135303
Inlet Grille L-G-3530A20037A
...
135312
Grille Assembly L-G-3531A20098A
...
135500
Cover L-G-3550A30114A
...
147581
Vane L-G-4758A20018A
...
147582A
Louver L-G-4758A20041A
...
147582B
Louver L-G-4758A20041B
...
148000
Brace L-G-4800A30002B
...
149980
Shroud L-G-4998A10011A
...
152302
Room Air Conditioner Air Filter L-G-5231A20007A
...
237200
Panel,control L-G-3720A10109A
...
249950
Case Assembly,control L-G-4995A30010C
...
263230
Room Air Conditioner Thermistor L-G-6323A20004D
...
264110
Power Cord L-G-6411A20011H
...
267110
Remote Controller Assembly L-G-6711A90035A
...
268711B
Pcb Assembly,display L-G-6871A20319A
...
268711A
Pcb Assembly,main L-G-6871A20271A
...
346811
Room Air Conditioner Fan Motor L-G-4681A20069J
...
349001
Damper L-G-4900A20002A
...
349480
Orifice L-G-4948A10015A
...
352113
Tube L-G-5211AR2930Q
...
352115
Tube L-G-5211A20388B
...
352390
Air Guide L-G-5239A20004A
...
354210
Evaporator L-G-5421A20099A
...
359012
Room Air Conditioner Evaporator Fan Blade L-G-5900A20019C
...
550140
Bushing L-G-4830AR4335A
...
552111
Room Air Conditioner Capillary Line L-G-5211AR3332W
...
554031
Condenser L-G-5403A20042D
...
554160
Compressor Set,china L-G-2520UCDK005
...
559011
Room Air Conditioner Condenser Fan Blade L-G-5900A10009B

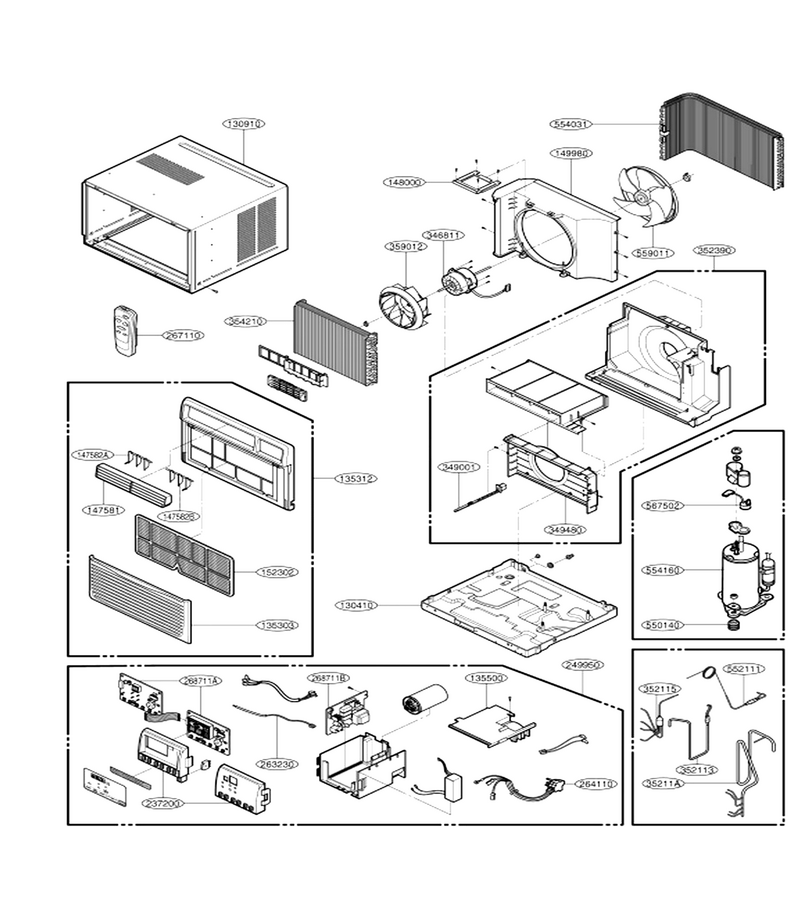

Schematic Image Zoomed
