product name

LG LW1019IVSM.AT1AUSL

Model: LW1019IVSM.AT1AUSL

Save Part Not Listed?
product name

Main

...
...
HNMS11
Harness,single L-G-EAD64148701
...
W5210E
Tube,form L-G-MJU62126805
...
W4986
Gasket L-G-MDS64811404
...
W48602
Spring Clamp L-G-MBU64446301
...
HNMR21
Harness,multi L-G-EAD64766802
...
HNMP211
Harness,multi L-G-EAD64825906
...
HNMP21
Harness,multi L-G-EAD63989015
...
HNMP111
Harness,multi L-G-EAD63989013
...
HNMP11
Harness,multi L-G-EAD63989014
...
HNMF11
Harness,single L-G-EAD62745807
...
HNMC13
Harness,multi L-G-EAD64825806
...
263HZZ
Thermistor Assembly,ntc L-G-EBG61406003
...
263ROZ
Thermistor Assembly,ntc L-G-EBG61107024
...
2687D
Display Pcb Assembly L-G-EBR31082914
...
2687M
Main Pcb Assembly L-G-EBR31452401
...
2687U
Wifi Pcb Assembly L-G-EBR86421801
...
24994M
Case,control L-G-MBN66004802
...
24995W
Control Case Assembly L-G-ABQ76620207
...
35211E
Tube Assembly,connector L-G-AJR75023916
...
35211S
Tube Assembly,suction L-G-AJR77022501
...
55211B
Tube Assembly,condenser(out) L-G-AJR76963301
...
130410
Single Base Assembly L-G-AAN77149106
...
130910
Single Cabinet Assembly L-G-ABJ76367107
...
135301
Front Grille L-G-MDX65152002
...
135303
Inlet Grille L-G-MDX65152102
...
135312
Front Grille Assembly L-G-AEB76289901
...
135503
Cover L-G-MCK69611507
...
135520
Cover L-G-MCK70846702
...
135523
Cover L-G-MCK69433201
...
145200
Link L-G-4520A20006C
...
147580
Horizontal Louver L-G-MFH63703602
...
147582
Vertical Louver L-G-MFH63603704
...
147583
Vertical Louver L-G-MFH63603703
...
148004
Supporter L-G-4980AR4395A
...
149980
Shroud L-G-MHN63582002
...
152500
Drain Pan L-G-MGB62082002
...
159830

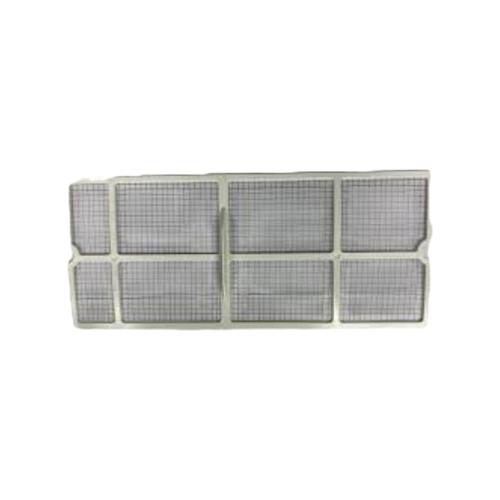

Air Cleaner Filter Assembly L-G-ADQ75513302
...
235502
Cover L-G-MCK69413201
...
238310
Escutcheon L-G-MDD63022213
...
249940
Case,control L-G-MBN64644302
...
249942
Control (outdoor) Case L-G-MBN66004703
...
249950
Control Case Assembly L-G-ABQ77202306
...
261704
Transformer,reactor L-G-EBJ63570002
...
264110
Power Cord Assembly L-G-EAD63469515
...
267110
Remote Controller Assembly L-G-AKB73598016
...
346711
Motor Assembly,dc L-G-EAU64124106
...
349490
Orifice L-G-MFX62081902
...
349600
Motor Bracket L-G-MAZ66864902
...
352114
Tube Assembly,discharge L-G-AJR73067216
...
352115
Tube Assembly,evaporator(in) L-G-AJR76963101
...
352380
Air Guide L-G-MEA62571601
...
354210
First Evaporator Assembly L-G-5421A10047Z
...
550140
Damper,compressor L-G-MCQ62508904
...
554030
Condenser Assembly,first L-G-ACG73045013
...
554160
Compressor Set,china L-G-TBZ39165901
...
559011
Fan,axial L-G-5900A20015E
...
559015
Fan,turbo L-G-MDG58298302
...
649950
Control (outdoor) Case Assembly L-G-ABQ30035301
...
731273
Set Install Part Assembly L-G-AET74151702
...
749740
Guide L-G-4974A30067M
...
749751
Air Guide Assembly L-G-AEC72909210

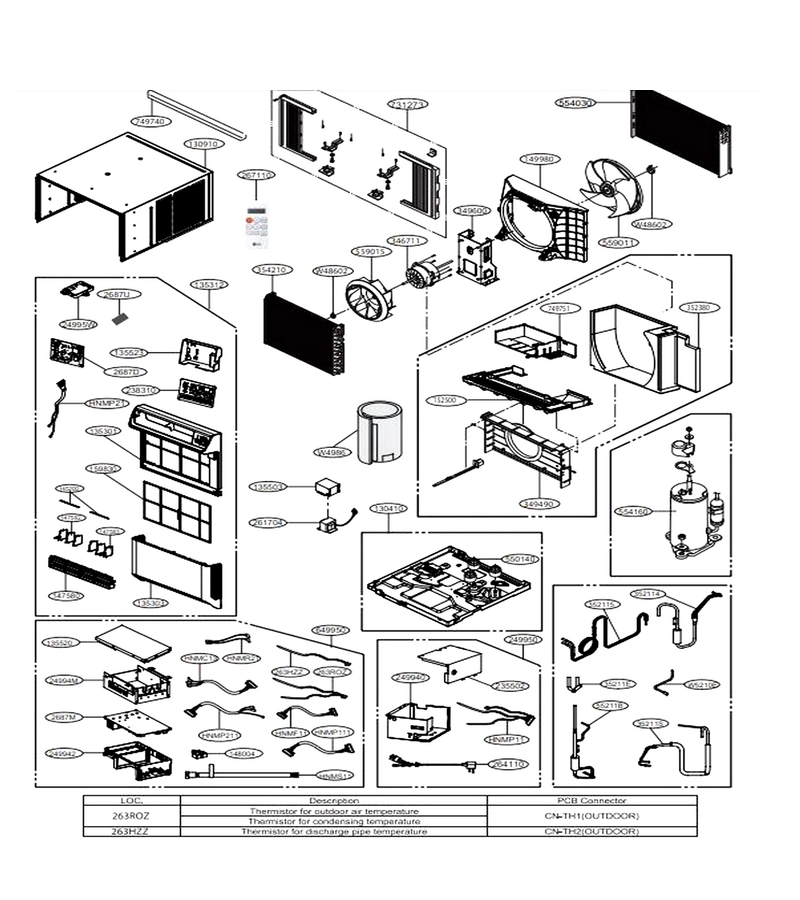

Schematic Image Zoomed
