LG LW1019IVSM.AT1AHDP

Model: LW1019IVSM.AT1AHDP

Save Part Not Listed?
product name

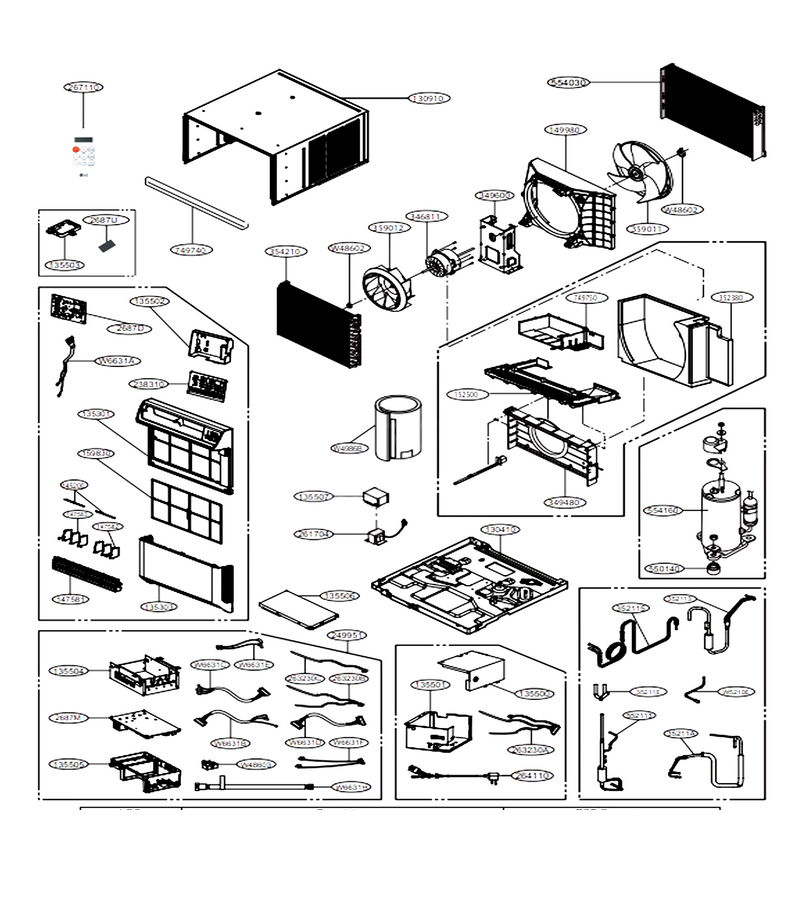

Main

...
...
W48602
Room Air Conditioner Fan Blade Clamp L-G-3H02932B
...
W48603
Supporter L-G-4980AR4395A
...
W4986B
Gasket L-G-MDS64811404
...
W5210E
Tube,form L-G-MJU62126805
...
W6631A
Harness,multi L-G-EAD63989015
...
W6631B
Harness,multi L-G-EAD64825906
...
W6631C
Harness,multi L-G-EAD64825806
...
W6631D
Harness,single L-G-EAD62745807
...
W6631E
Harness,multi L-G-EAD64766802
...
W6631F
Harness,multi L-G-EAD63989013
...
2687D
Pcb Assembly,display L-G-EBR83548709
...
2687M
Pcb Assembly,main L-G-EBR87928203
...
2687U
Pcb Assembly,module L-G-EBR82056913
...
35211A
Tube Assembly,suction L-G-AJR77022501
...
35211E
Tube Assembly,connector L-G-AJR75023916
...
130410
Base Assembly,single L-G-AAN77149102
...
130910
Cabinet Assembly,single L-G-ABJ76367102
...
135301
Grille,front L-G-MDX65152001
...
135303
Grille,inlet L-G-MDX65152101
...
135500
Cover L-G-MCK69413201
...
135501
Case,control L-G-MBN64644302
...
135502
Cover L-G-MCK69433201
...
135503
Case Assembly,control L-G-ABQ76620203
...
135504
Case,control L-G-MBN66004802
...
135505
Case,control(outdoor) L-G-MBN66004701
...
135506
Cover L-G-MCK70846702
...
135507
Cover L-G-MCK69611503
...
145200
Link L-G-4520A20006A
...
147581
Louver,horizontal L-G-MFH63703601
...
147582
Louver,vertical L-G-MFH63603701
...
147583
Louver,vertical L-G-MFH63603702
...
149980
Shroud L-G-MHN63582001
...
152500
Drain Pan L-G-MGB62082001
...
159830
Filter Assembly,air Cleaner L-G-ADQ75513301
...
238310
Escutcheon L-G-MDD63022209
...
249951
Case Assembly,control(outdoor) L-G-ABQ77202203
...
261704
Transformer,reactor L-G-EBJ63570006
...
263230C
Thermistor Assembly,ntc L-G-EBG61406003
...
263230B
Thermistor Assembly,ntc L-G-EBG61107024
...
263230A
Harness,multi L-G-EAD63989014
...
264110
Power Cord Assembly L-G-EAD63469515
...
267110
Remote Controller Assembly L-G-AKB73598008
...
346811
Motor Assembly,dc L-G-EAU64124106
...
349480
Orifice L-G-MFX62081901
...
349600
Bracket,motor L-G-MAZ66864901
...
352113
Tube Assembly,discharge L-G-AJR73067216
...
352115
Tube Assembly,evaporator(in) L-G-AJR76963101
...
352380
Air Guide L-G-MEA62571601
...
354210
Evaporator Assembly,first L-G-5421A10047W
...
359011
Fan,axial L-G-5900A20015E
...
359012
Fan,turbo L-G-MDG58298302
...
550140
Damper,compressor L-G-MCQ62508905
...
552113
Tube Assembly,condenser(out) L-G-AJR76963301
...
554030
Condenser Assembly,first L-G-ACG73045013
...
554160
Compressor Set,china L-G-TBZ39165901
...
749750
Guide Assembly,air L-G-AEC72909208
