LG LW1016ER.AT1AHDP

Model: LW1016ER.AT1AHDP

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-0CZZA20001N
...
35211A
Tube Assembly,suction L-G-AJR73084009
...
130410
Base Assembly,single L-G-AAN73030708
...
135312
Grille Assembly,front L-G-AEB74085904
...
135500
Cover L-G-MCK69413201
...
135501
Cover Assembly,display L-G-ACQ31027902
...
135502
Cover L-G-MCK69433201
...
147581
Louver,horizontal L-G-4758A20066C
...
147582A
Room Air Conditioner Louver L-G-4758A10009A
...
147582B
Room Air Conditioner Louver L-G-4758A10009B
...
148000
Brace L-G-4800A30002D
...
159830
Filter Assembly,air Cleaner L-G-ADQ73953401
...
238310
Escutcheon L-G-MDD62942301
...
268711A
Display Pcb Assembly L-G-EBR83548602
...
349001
Damper L-G-4900A20002A
...
349480
Orifice L-G-4948A10015A
...
352113
Tube Assembly,discharge L-G-AJR75584703
...
352115
Tube Assembly,evaporator(in) L-G-AJR33322521
...
352380
Duct Assembly L-G-5239A20004E
...
352380B
Air Guide L-G-5238A20008C
...
354210
Evaporator Assembly,first L-G-5421A20099M
...
359011
Room Air Conditioner Condenser Fan Blade L-G-5900A10009B
...
359012
Turbo Fan L-G-MDG58298301
...
550140
Damper,compressor L-G-MCQ62508905
...
552111A
Tube Assembly,condenser(out) L-G-AJR75625301
...
552111B
Tube Assembly,connector L-G-AJR73143111
...
554030
Condenser Assembly,first L-G-ACG72924208
...
554160
Compressor Set,china L-G-TBZ38956701
...
567502
Overload Protect L-G-EAF61751212
...
731373
Install Part Assembly,single L-G-AET73691405
...
749590B
Curtain Assembly L-G-4959AR3402T

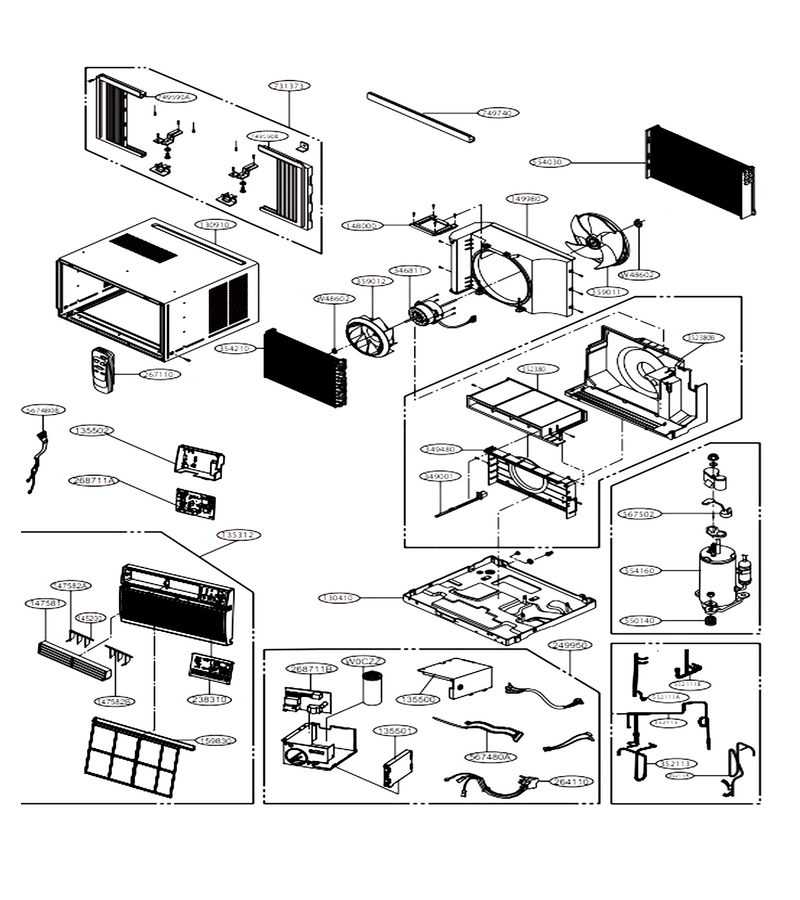

Schematic Image Zoomed
