product name

LG LVN480HV.ENWBEUS

Model: LVN480HV.ENWBEUS

Save Part Not Listed?

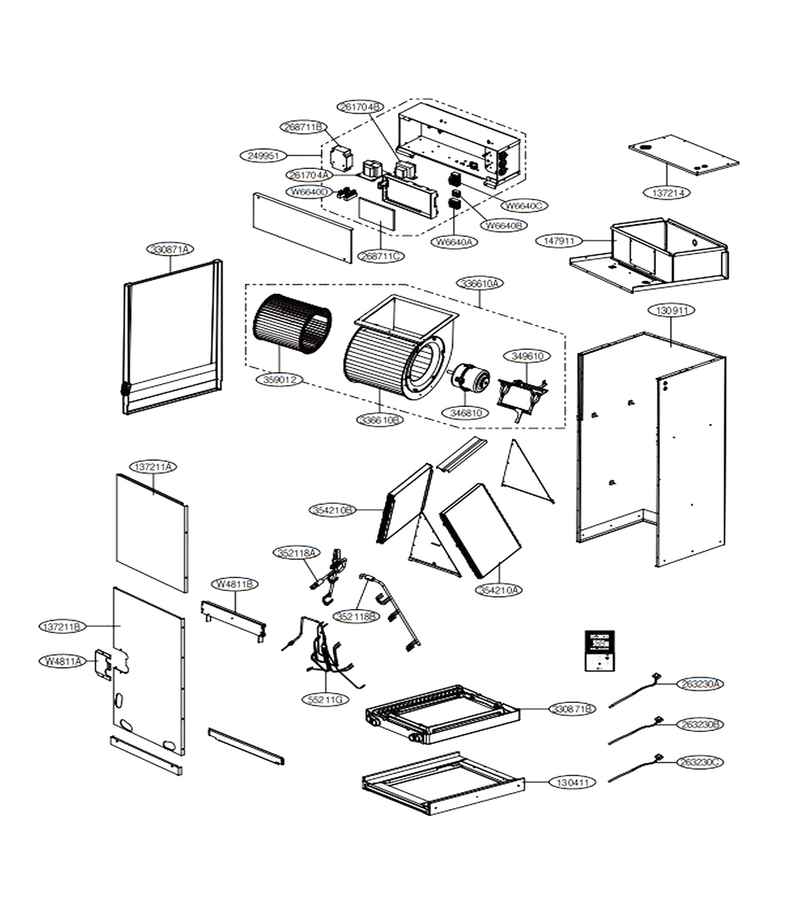

product name

Main

...
...
W4811A
Bracket Assembly L-G-ABA73488301
...
W4811B
Bracket Assembly L-G-ABA73809412
...
W6640A
Connector,terminal Block L-G-EAG38884401
...
W6640B
Connector,terminal Block L-G-EAG38884403
...
W6640C
Connector,terminal Block L-G-EAG63452302
...
W6640D
Terminal Block L-G-3H00390A
...
55211G
Tube Assembly,expansion L-G-AJR73323803
...
130411
Indoor Base Assembly L-G-AAN30001502
...
130911
Cabinet Assembly,indoor L-G-ABJ73308605
...
137211A
Panel Assembly,front(indoor) L-G-AGL73334003
...
137211B
Panel Assembly,front(indoor) L-G-AGL73334103
...
137214
Panel Assembly,upper L-G-AGL73333901
...
147911
Barrier Assembly,indoor L-G-AAM73151302
...
249951
Control (indoor) Case Assembly L-G-ABQ74407103
...
261704B
Transformer,reactor L-G-EBJ36274417
...
261704A
Transformer,linear L-G-6170A20007A
...
263230B
Thermistor Assembly,ntc L-G-EBG61287713
...
263230C
Thermistor Assembly,ntc L-G-EBG61325811
...
263230A
Thermistor Assembly,ntc L-G-EBG61106837
...
268711B
Pcb Assembly,main L-G-EBR81117108
...
268711C
Pcb Assembly,sub L-G-EBR86480002
...
330871A
Pan Assembly,drain L-G-AGK73070503
...
330871B
Drain Pan Assembly L-G-AGK74530402
...
336610A
Housing Assembly L-G-AEN72991908
...
336610B
Housing Assembly L-G-AEN73131701
...
346810
Motor Assembly,dc,indoor L-G-EAU37067119
...
349610
Bracket Assembly,motor(indoor) L-G-3G00788C
...
352118A
Tube Assembly,manifold(indoor) L-G-AJR73324406
...
352118B
Tube Assembly,manifold(indoor) L-G-AJR73324503
...
354210A
Evaporator Assembly,first L-G-ADL73261201
...
354210B
Evaporator Assembly,first L-G-ADL73261202
...
359012
Fan Assembly,blower L-G-2A00578M
