LG LVN181HV4.ENWBEUS

Model: LVN181HV4.ENWBEUS

Save Part Not Listed?
product name

Indoor Unit

...
...
W0FZZ
Fuse,time Delay L-G-0FT5001B511
...
W6640C
Connector,terminal Block L-G-6640000036C
...
W6640B
Connector,terminal Block L-G-EAG63452302
...
W6640A
Connector,terminal Block L-G-EAG38884401
...
W4811B
Bracket Assembly L-G-ABA73809414
...
W4811A
Bracket Assembly L-G-ABA73488301
...
130411
Base Assembly,indoor L-G-AAN30001501
...
130911
Cabinet Assembly,indoor L-G-ABJ73227108
...
137211A
Panel Assembly,front(indoor) L-G-AGL73252604
...
137211B
Panel Assembly,front(indoor) L-G-AGL73252704
...
137214
Panel Assembly,upper L-G-AGL73252803
...
147911
Barrier Assembly,indoor L-G-AAM73111204
...
249951
Case Assembly,control(indoor) L-G-ABQ74407108
...
261704A
Transformer,linear L-G-6170A20007A
...
261704B
Transformer,reactor L-G-5874FR2112G
...
263230C
Thermistor Assembly,ntc L-G-EBG61325811
...
263230B
Thermistor Assembly,ntc L-G-EBG61287713
...
263230A
Thermistor Assembly,ntc L-G-EBG61106837
...
268711B
Pcb Assembly,main L-G-EBR86153701
...
268711C
Pcb Assembly,sub L-G-EBR86480002
...
268711D
Pcb Assembly,sub L-G-EBR80296238
...
330871A
Pan Assembly,drain L-G-AGK73050503
...
330871B
Pan Assembly,drain L-G-AGK74530401
...
336610A
Housing Assembly L-G-AEN55797603
...
336610B
Housing Assembly L-G-3661AP1139L
...
346810
Motor Assembly,dc,indoor L-G-EAU64382901
...
349610
Bracket Assembly,motor(indoor) L-G-ABA76969101
...
352114
Tube Assembly,distributor L-G-AJR74266001
...
352118A
Tube Assembly,manifold(indoor) L-G-AJR73327003
...
352118B
Tube Assembly,manifold(indoor) L-G-AJR73364601
...
354210A
Evaporator Assembly,first L-G-ADL73180904
...
354210B
Evaporator Assembly,first L-G-ADL73180903
...
359012
Fan Assembly,blower L-G-2A00578F

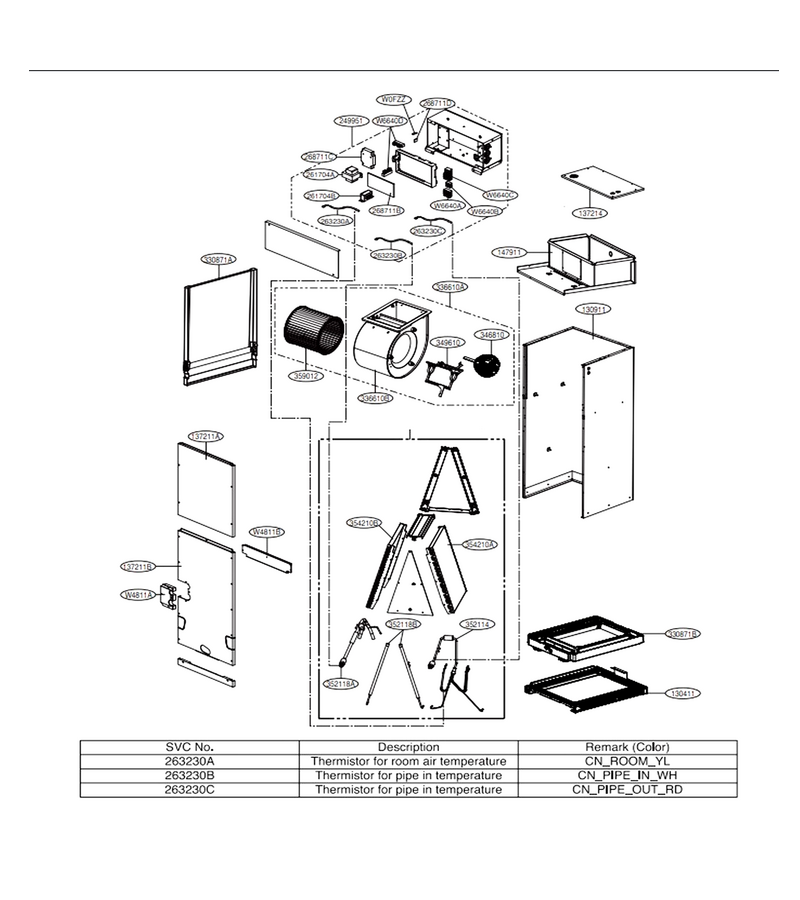

Schematic Image Zoomed
