LG LV1000CE.AWYAHDC

Model: LV1000CE.AWYAHDC

Save Part Not Listed?
product name

Main

...
...
W0CZZ
Room Air Conditioner Fan Motor Capacitor L-G-0CZZA20001N
...
35211A
Tube Assembly, Suction Single L-G-5211A20579F
...
130410
Pan Base L-G-3041A20033N
...
130910
Cabinet,sing L-G-3091A20014B
...
135303
Inlet Grille L-G-3530A20056A
...
135312
Grille Assembly L-G-3531A20123A
...
147581
Louver L-G-4758A20032A
...
147582-1
Louvr Vert L-G-4758A20017A
...
147582-2
Louvr Vert L-G-4758A20017B
...
148000
Brace L-G-4800A20001A
...
149980
Shroud Assembly L-G-4999A20002A
...
152302
Room Air Conditioner Air Filter L-G-5231A20012A
...
237200
Control Panel L-G-3720A20259A
...
238310
Escutcheon L-G-3831A20083C
...
249950
Case,control(indoor) L-G-MBN32756810
...
264110
Ac Cord L-G-6411A20056V
...
267110
Room Air Conditioner Remote Control L-G-6711A20034G
...
268711-2
Pcb Assembly,main L-G-EBR39264104
...
268711-1
Pcb Dispenser L-G-EBR30852601
...
346811
Room Air Conditioner Fan Motor L-G-4681A20069C
...
349001
Damper L-G-4900A20006A
...
349480
Orifice L-G-4948A20012A
...
349600
Motor Mount L-G-4960A20034A
...
352113
Tube L-G-5211A20558F
...
352115
Tube L-G-5211A20575C
...
352390-1
Air Guide L-G-5239A20007A
...
352390-2
Guide Asy,ai L-G-AEC31876001
...
354210
Evaporator L-G-5421A20115D
...
359011
Axial Fan L-G-5900A20026A
...
359012
Turbo Fan L-G-5900A20019A
...
550140
Bushing L-G-4830AR4335A
...
552102
Capillary Tube Assembly L-G-5211A20557P
...
554030
Condenser L-G-5403A20082B
...
554160
Compressor L-G-TBZ30744301
...
567480
Thermistor L-G-6323A20004S
...
567502
Room Air Conditioner Compressor Overload Protector L-G-6750U-L031A

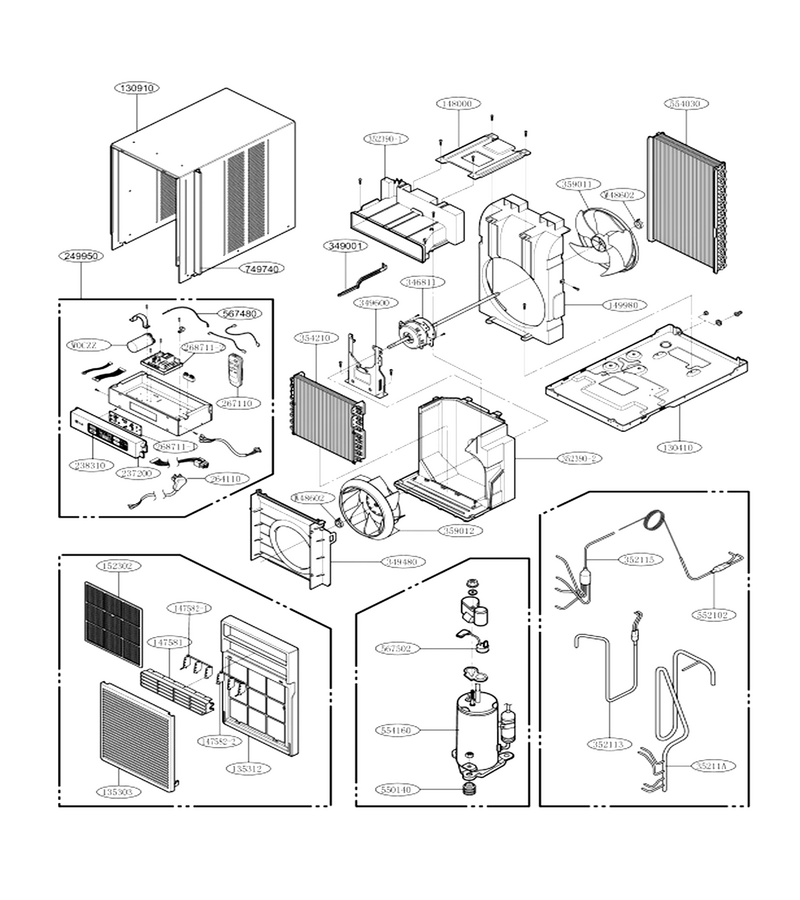

Schematic Image Zoomed
