LG LV-B1861HL.NWZICT

Model: LV-B1861HL.NWZICT

Save Part Not Listed?
product name

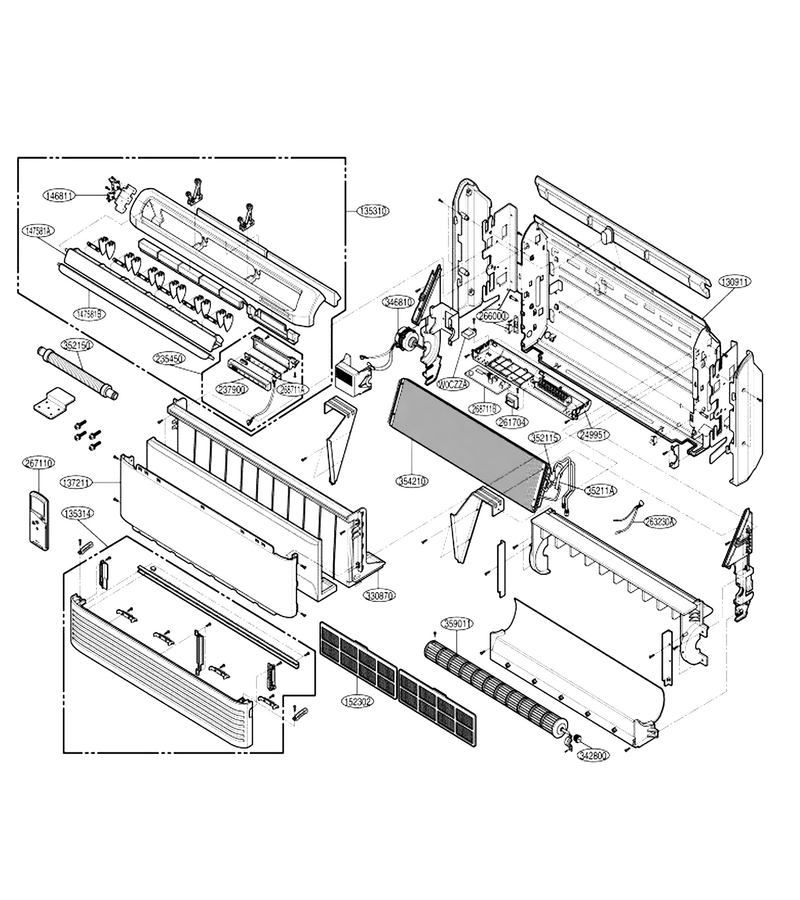

Indoor Unit

...
...
W0CZZA
Capacitor,film,box L-G-3H00671A
...
35211A
Tube Assembly,suction(indoor) L-G-5211AP2813C
...
130911
Cabinet Assembly,indoor L-G-3091AP2533A
...
135310
Grille Assembly,diffuser(indoor) L-G-3023A10002H
...
135314
Grille Assembly,inlet(sub) L-G-5237AP2817B
...
137211
Panel Assembly,front(indoor) L-G-3720AP2767P
...
146811
Motor,dc L-G-4681AR2727G
...
147581A
Louver Assembly L-G-5991AP2867B
...
147581B
Louver Assembly L-G-5991AP7334C
...
152302
Filter,air L-G-5230AP7093A
...
235450
Display Assembly L-G-3545AP7224A
...
249951
Case Assembly,control(indoor) L-G-4995AP2815D
...
263230A
Thermistor,ntc L-G-6323AQ2333J
...
266000
Switch,push Button L-G-6600AP2059B
...
267110
Remote Controller Assembly L-G-6711AR2664Z
...
268711B
Pcb Assembly,main L-G-6871AQ2375D
...
330870
Pan Assembly,drain L-G-3087AP7233A
...
342800
Bearing L-G-3H02821B
...
346810
Motor Assembly,ac,indoor L-G-4681AP2306G
...
352115
Tube Assembly,evaporator(in) L-G-5211AP2810C
...
354210
Evaporator Assembly,first L-G-5421AP2812B
...
359011
Fan Assembly Cross Flow L-G-5901AR2351E

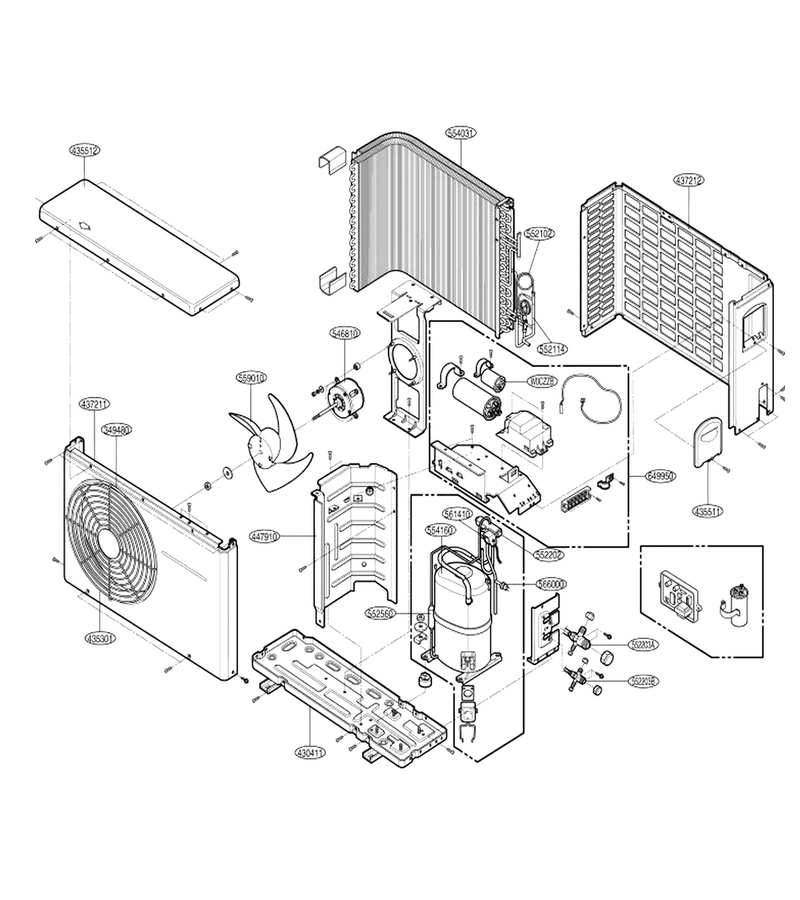

Main

...
...
349480
Orifice L-G-4948A20005A
...
430411
Base Assembly,weld(outdoor) L-G-3041A20022E
...
435301
Grille,dis L-G-3530A20007B
...
435511
Cover Assembly,control(outdoor) L-G-3551A30007W
...
435512
Cover Assembly, Top(outdo L-G-3H03266K
...
437211
Panel Assembly,front(outdoor) L-G-3721A20005L
...
437212
Panel Assembly, Rear (outdoor) L-G-AGL36636804
...
447910
Barrier Assembly, Outdoor L-G-2H02110M
...
546810
Ac Motor Assembly L-G-4681A20013F
...
552102
Tube,bending L-G-5424AR3479A
...
552114
Tube Assembly,capillary L-G-5425AR2448C
...
552202
Valve,reverse L-G-3A02027G
...
552560
Muffler Assembly L-G-3A90082A
...
554031
Condenser Assembly,bending L-G-5402AR2347B
...
554160
Compressor L-G-5416AR1411G
...
561410
Solenoid L-G-3A02028Y
...
566000
Switch,pressure L-G-3A02524C
...
649950
Case Assembly,control(outdoor) L-G-4995AP2424U
