LG LUV200R.CAEELCA

Model: LUV200R.CAEELCA

Save Part Not Listed?

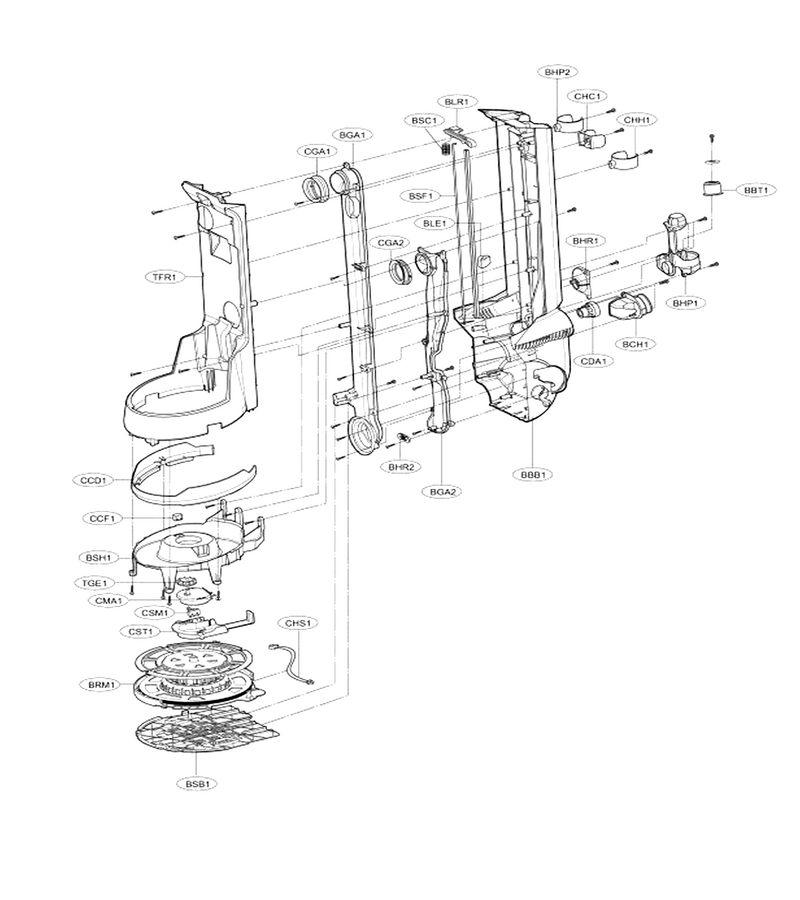

product name

Base Assembly, Body

...
...
BBB1
Base Assembly,body L-G-AAN72988603
...
BBT1
Block,terminal L-G-MAV61861801
...
BCH1
Single Harness L-G-MCD61846201
...
BGA1
Holder Pipe L-G-AEC72917501
...
BGA2
Guide Assembly L-G-AEC72917601
...
BHP1
Vacuum Wand Holder, Upper L-G-MEG61897101
...
BHP2
Holder Pipe L-G-4930FI3772F
...
BHR1
Holder Cord L-G-MEG61897001
...
BHR2
Cord L-G-4930FI4669A
...
BLE1
Lever L-G-MFC61869501
...
BLR1
Holder Cord L-G-MFC61848701
...
BRM1
Reel Assembly L-G-AHD72910302
...
BSB1
Holder Pipe L-G-MJH61892001
...
BSC1
Cord L-G-MHY62003901
...
BSF1
Shaft L-G-MHJ61855301
...
CCD1
Magnet L-G-MCK62802901
...
CCF1
Supporter,bo L-G-MCK62847301
...
CDA1
Damper Assembly L-G-4901FI3435G
...
CGA1
Shaft L-G-MDS62059001
...
CGA2
Gasket L-G-MDS62059101
...
CHC1
Head Strap L-G-MEG62063401
...
CHH1
Holder,hose L-G-MEG62886701
...
CHS1
Safety Cover L-G-EAD60906802
...
CSM1
Damper Assembly L-G-EBF60814701
...
CST1
Gasket L-G-MJH61891501
...
TFR1
Holder Assec L-G-MCK62804102
...
TGE1
Gear L-G-MDT61846901

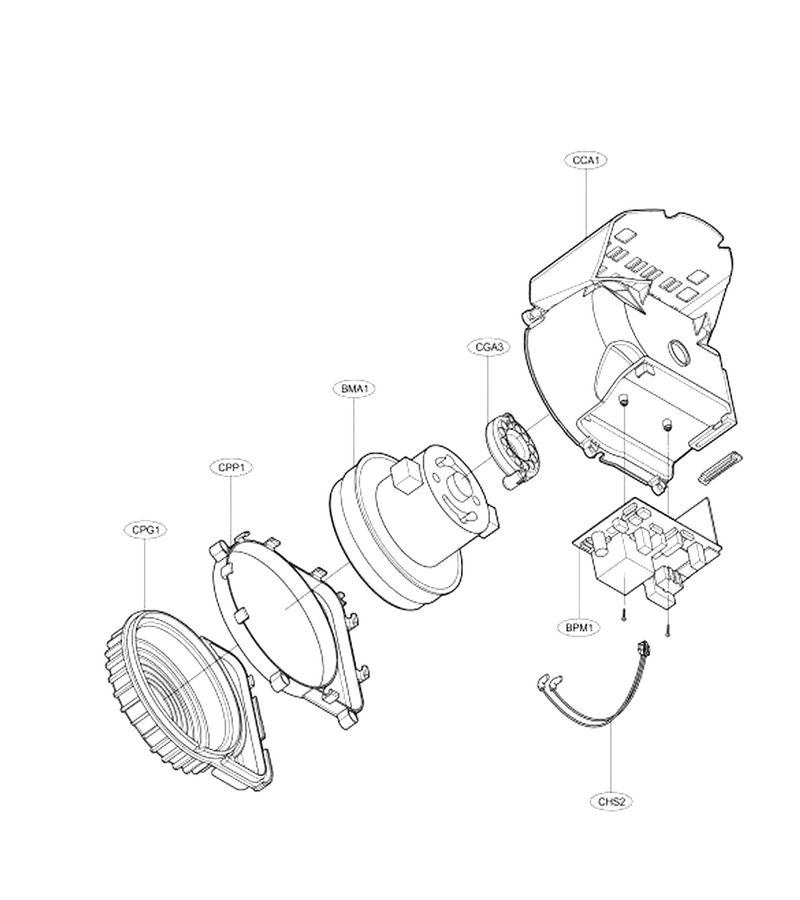

Motor, Assembly

...
...
BMA1
Vacuum Motor L-G-EAU36637103
...
BPM1
Pcb Assembly L-G-EBR65254001
...
CCA1
Cover Motor Assembly L-G-ACQ75288402
...
CGA3
Gasket L-G-MDS62293001
...
CHS2
Single Harness L-G-EAD60887302
...
CPG1
Packing Gasket L-G-MFZ62221101
...
CPP1
Packing Protector L-G-MFZ62113002

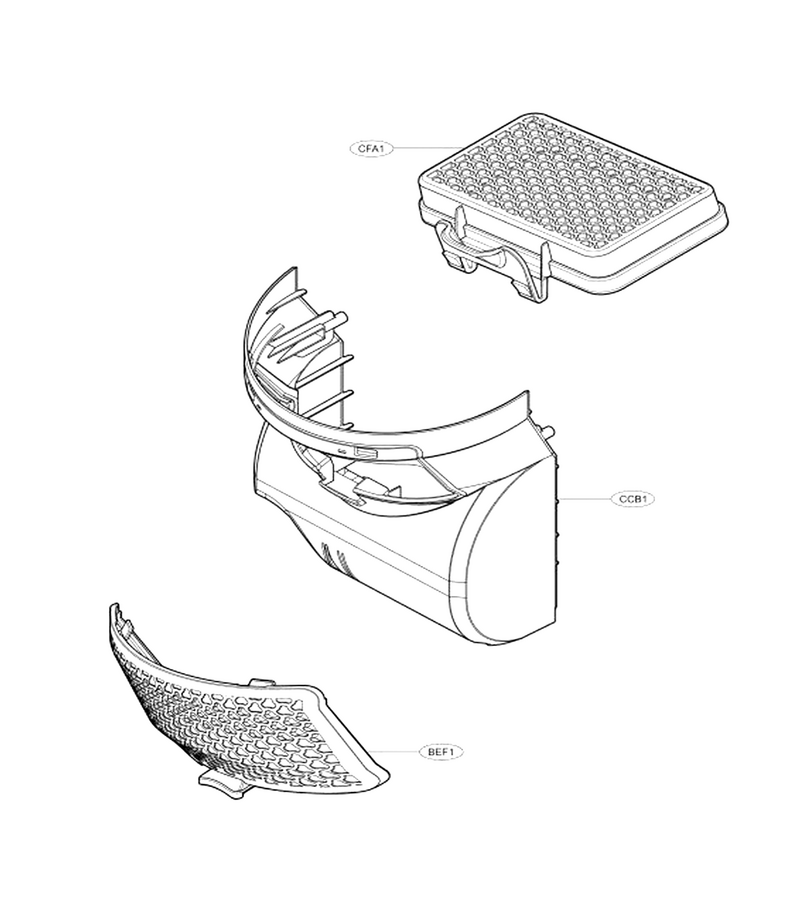

Cover, Exhaust Filter / Cover, Body Filter / Assem

...
...
BEF1
Vacuum Cover L-G-MCK62804802
...
CCB1
Cover Body L-G-MCK62804202

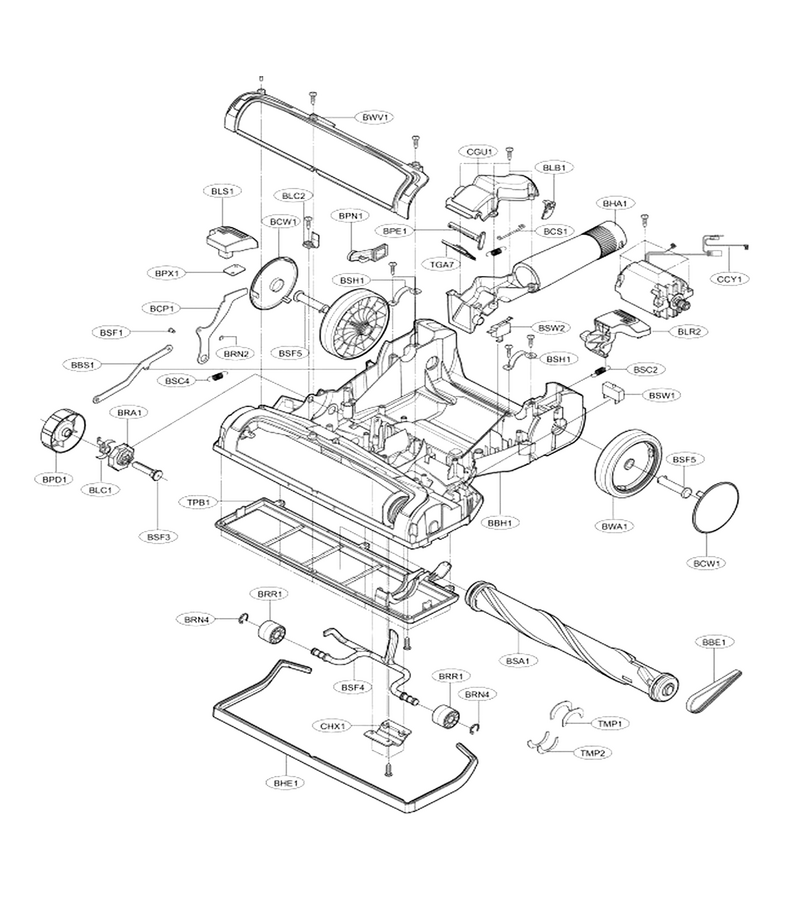

Cover Assembly, Power

...
...
BBE1
Vacuum Beater Bar Belt L-G-MAS61843401
...
BBH1
Vacuum Beater Bar Housing L-G-MAM61863801
...
BBS1
Bar,selector L-G-MAK61947001
...
BCP1
Connector,pedal L-G-MCD62006901
...
BCS1
Shaft Cnnctr L-G-MCD37392001
...
BCW1
Cover,wheel L-G-MCK63728601
...
BHA1
Cover Wheel L-G-AEM72973002
...
BHE1
Bumper Head L-G-MBD61843501
...
BLB1
Lever Button L-G-MFC37419202
...
BLC1
Locker L-G-MFG62158601
...
BLC2
Locker L-G-MFG62158701
...
BLR2
Release Lever L-G-MFC61848901
...
BPD1
Plate,display L-G-MGJ62324801
...
BPN1
Pipe, Conect L-G-MGE61850201
...
BPX1
Fixing Plate L-G-MGJ62204201
...
BRA1
Ratchet L-G-MGU61841201
...
BRN2
Ring L-G-4350FI3794A
...
BRN4
E-Ring L-G-4350FI3787A
...
BRR1
Roller L-G-MHA61993101
...
BSA1
Shaft Assy,a L-G-AHR72909602
...
BSC2
Coil Spring L-G-MHY62004002
...
BSC4
Coil Spring L-G-MHY62004001
...
BSF3
Shaft L-G-MHJ62095701
...
BSF4
Shaft L-G-MHJ61855001
...
BSF5
Shaft L-G-MHJ62036001
...
BSH1
Head Strap L-G-4640FI4004A
...
BSW1
Vacuum Switch L-G-6601FI3502A
...
BSW2
Vacuum Switch L-G-EBF37971301
...
BWA1
Base Assembly L-G-AJW72910401
...
BWV1
Window,viewi L-G-MKC62172801
...
CCY1
Cable Assembly L-G-6861FI3006H
...
CGU1
Air Guide L-G-MEA61950401
...
CHX1
Holder,fixin L-G-MEG62199701
...
TGA7
Gasket L-G-MDS37846501
...
TPB1
Plate,bottom L-G-MGJ62324901

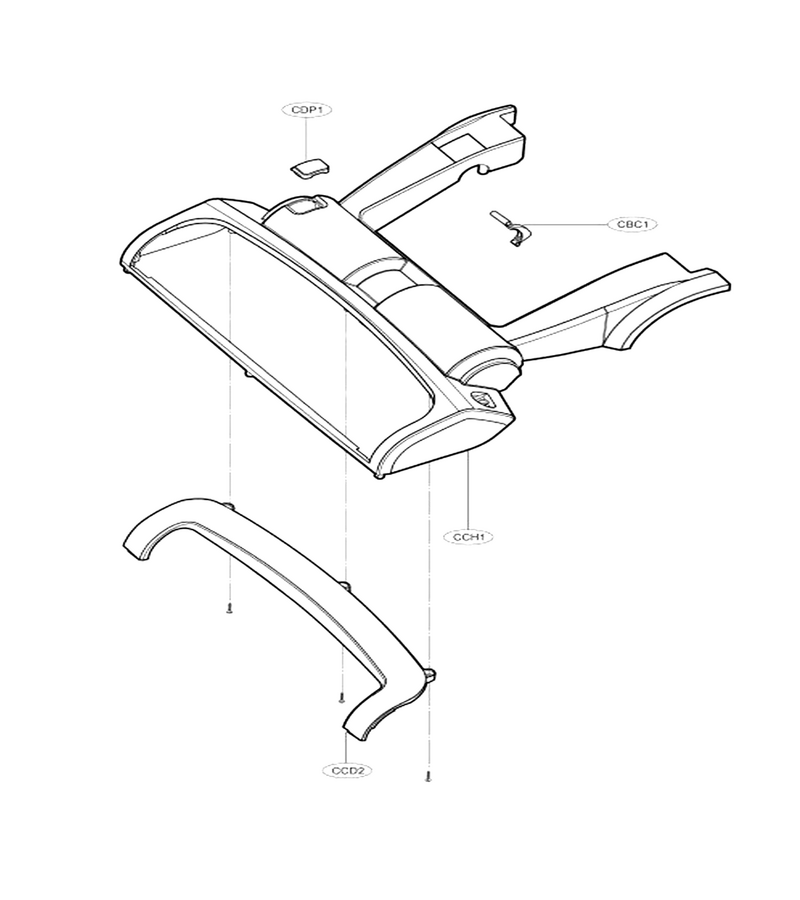

Cover Assembly, Head

...
...
CBC1
Button Cord L-G-MBG37846402
...
CCD2
Decorative Cover L-G-MCK62887701
...
CCH1
Vacuum Cover Assembly L-G-MCK62809701
...
CDP1
Cover,display L-G-MCK63728701

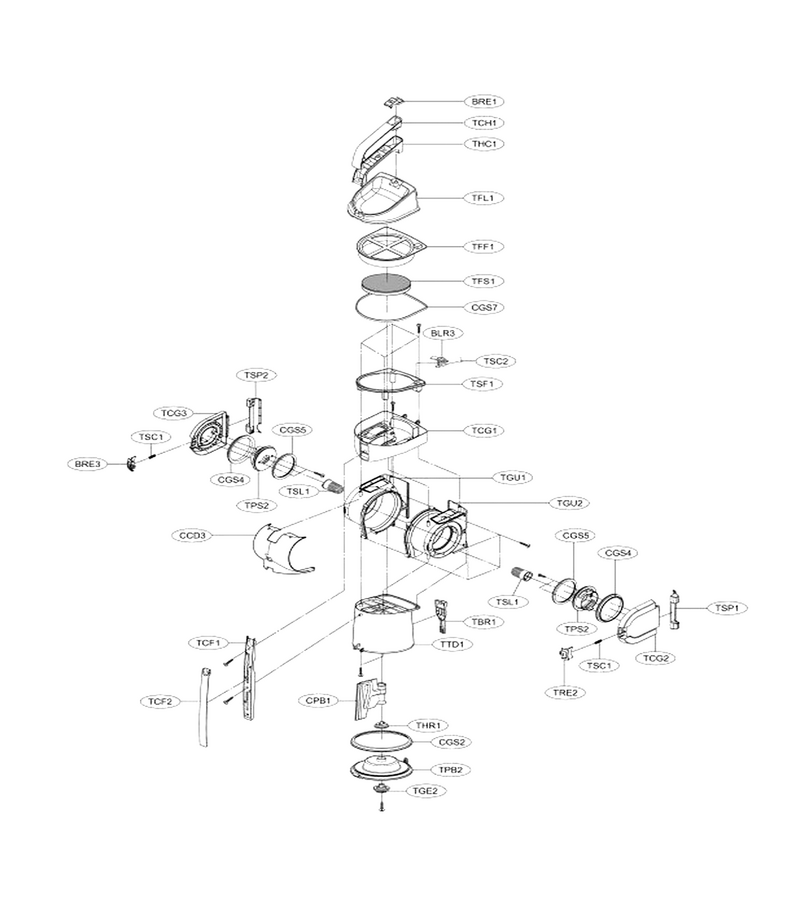

Tank Assembly, Dust

...
...
BLR3
Lever,release L-G-MFC62029701
...
BRE1
Release Button L-G-MBG62703601
...
BRE3
Release Button L-G-MBG62703701
...
CCD3
Decorative Cover L-G-MCK62805801
...
CGS4
Gasket L-G-MDS62491501
...
CGS5
Gasket L-G-MDS62491401
...
CGS7
Gasket L-G-MDS62491601
...
CPB1
Plate Assembly L-G-AGU73068301
...
TBR1
Bar L-G-MAK61846801
...
TCF1
Case L-G-MBN61881801
...
TCF2
Vacuum Cover L-G-MCK62807001
...
TCG1
Cover,guide L-G-MCK63728102
...
TCG2
Cover,guide L-G-MCK63728301
...
TCG3
Cover,guide L-G-MCK63728201
...
TCH1
Cover,handle L-G-MCK63728501
...
TFF1
Filter Assembly L-G-ADQ73093201
...
TFL1
Cover,filter L-G-MCK63728401
...
TGE2
Gear L-G-MDT61847001
...
TGU1
Guide,air L-G-MEA62190901
...
TGU2
Guide,air L-G-MEA62191001
...
THC1
Handle,carrier L-G-MEB62034101
...
THR1
Holder L-G-MEG62063501
...
TPB2
Vacuum Plate L-G-MGJ62018901
...
TPS2
Plate,shield L-G-MGJ62324701
...
TRE2
Release Button L-G-MBG62703801
...
TSC1
Coil Spring L-G-MHY62004101
...
TSC2
Spring,coil L-G-MHY61944602
...
TSF1
Supporter,filter L-G-MJH62076201
...
TSL1
Strainer,inner L-G-MJC61861701
...
TSP2
Supporter,cover L-G-MJH62076301

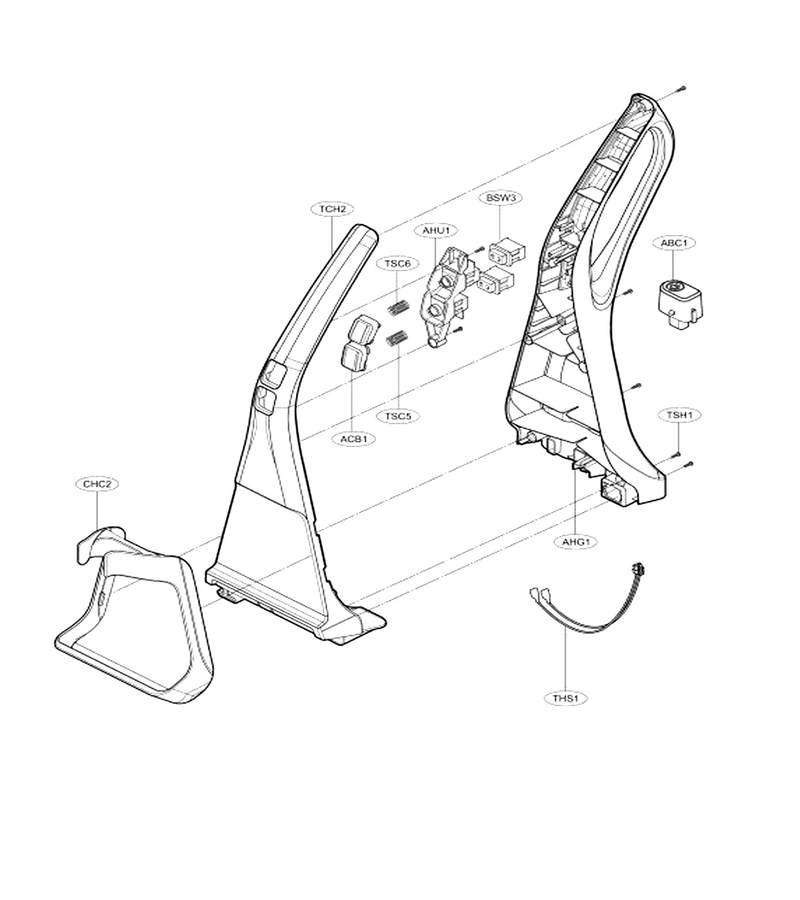

Handle Assembly

...
...
ABC1
Button Cord L-G-MBG62195101
...
ACB1
Cover Button L-G-MCK62808301
...
AHG1
Vacuum Grip Handle L-G-MEB61853901
...
AHU1
Button Holder L-G-MEG62119201
...
BSW3
Vacuum Switch Assembly L-G-EBF60694601
...
CHC2
Access Holder L-G-MEG61897801
...
TCH2
Handle Cover L-G-MCK62808201
...
THS1
Single Harness L-G-EAD60906801
...
TSC5
Coil Spring L-G-MHY62045401
...
TSC6
Coil Spring L-G-MHY62045402
...
TSH1
Connector,lever L-G-4932FI4190C

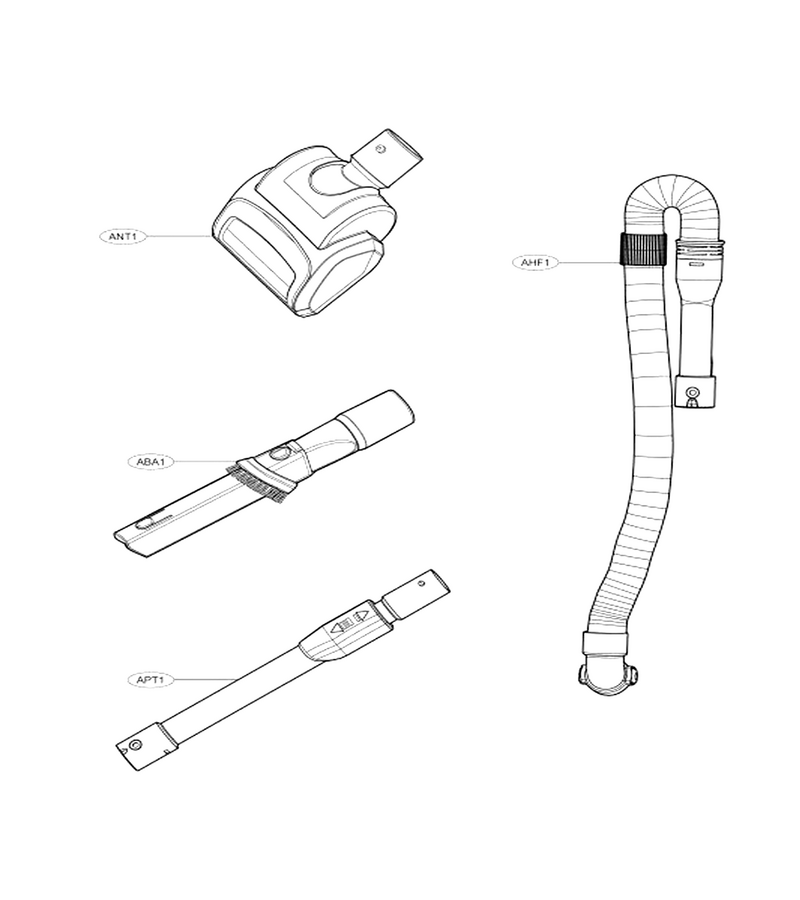

Accessories

...
...
APT1
Pipe Assembly L-G-AGR72934801
