LG LUU420HHV.EWGBEUS

Model: LUU420HHV.EWGBEUS

Save Part Not Listed?

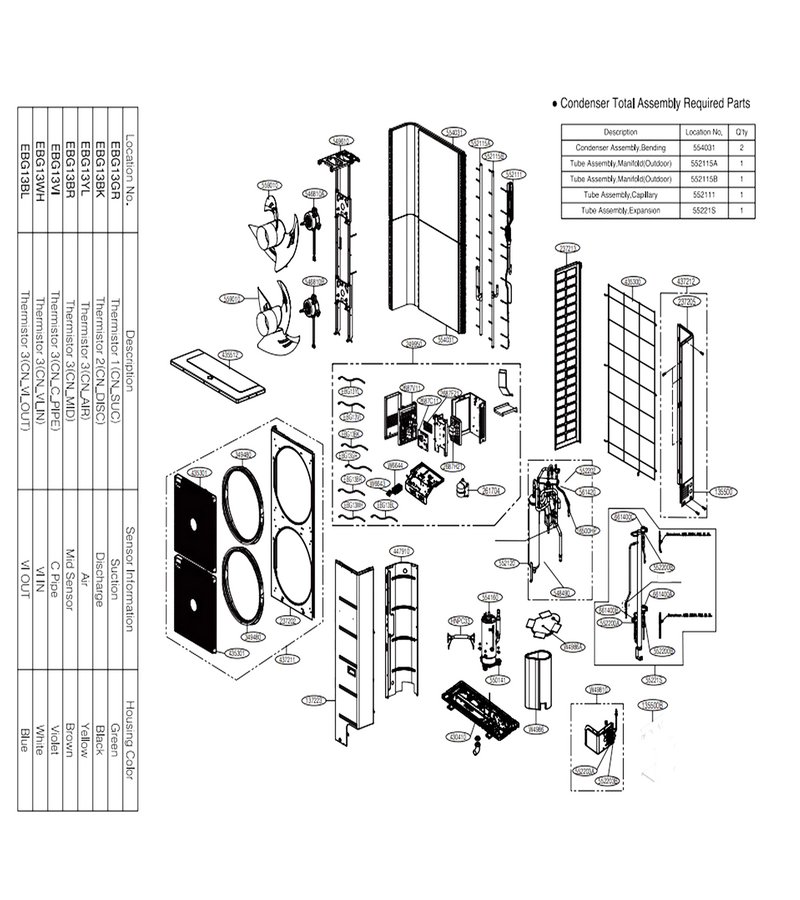

product name

Main

...
...
EBG13BK
Thermistor Assembly,ntc L-G-EBG61406004
...
EBG13BL
Thermistor Assembly,ntc L-G-EBG61106549
...
EBG13GR
Thermistor Assembly,ntc L-G-EBG61405903
...
EBG13VI
Thermistor Assembly,ntc L-G-EBG61445812
...
EBG13WH
Thermistor Assembly,ntc L-G-EBG61287712
...
EBG13YL
Thermistor Assembly,ntc L-G-EBG61446002
...
W49810
Supporter Assembly L-G-AJJ74578323
...
W4986A
Sound Proof L-G-MMC00120717
...
55221S
Tube Assembly,expansion L-G-AJR75462921
...
135500
Cover L-G-MCK39626220
...
237202
Panel,front L-G-MGC39426114
...
237205
Panel,rear L-G-MGC39613728
...
237213
Panel,side L-G-MGC39426015
...
249950
Case Assembly,control Box L-G-ABQ75744271
...
261704
Transformer,reactor L-G-EBJ61770406
...
349480
Orifice L-G-MFX63082101
...
435300
Grille,rear L-G-MDX40922509
...
435301
Grille,discharge L-G-MDX64291901
...
435512
Cover Assembly,top(outdoor) L-G-ACQ35131820
...
437211
Panel Assembly,front(outdoor) L-G-AGL34578724
...
437212
Panel Assembly,rear(outdoor) L-G-AGL76512809
...
546810A
Motor Assembly,dc,outdoor L-G-EAU62543703
...
548490
Accumulator L-G-4848A20007R
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA34168809
...
550141
Damper,rubber L-G-MCQ68888201
...
552111
Tube Assembly,capillary L-G-AJR75062906
...
552115A
Tube Assembly,manifold(outdoor) L-G-AJR76562802
...
552115B
Tube Assembly,manifold(outdoor) L-G-AJR76562803
...
552120
Tube Assembly L-G-AJR77144403
...
552200A
Valve,expansion Body L-G-MJX63991701
...
552200B
Valve,expansion Body L-G-5220A90013J
...
552202
Valve,reverse L-G-MJX63491603
...
552203B
Valve,service L-G-MJX62472202
...
552203A
Valve,service L-G-MJX62472107
...
554031
Condenser Assembly,bending L-G-ACG74464809
...
554160
Compressor Set,korea L-G-TBZ38294501
...
559010
Fan Assembly,propeller L-G-ADP75033301
...
661400A
Coil,expansion L-G-EAP63107106
...
661400B
Coil,expansion L-G-EAP63107113
...
661400C
Coil,expansion L-G-EAP63107115
