LG LUU097HV.EWGBEUS

Model: LUU097HV.EWGBEUS

Save Part Not Listed?
product name

Main

...
...
W0FZZB
Fuse,time Delay L-G-0FT5001B511
...
W6631
Harness,multi L-G-EAD63768921
...
W52240
Strainer L-G-3H03659W
...
W4986A
Sound Proof L-G-MMC00280301
...
W48604A
Clamp,cord L-G-4860AR4166A
...
W3110B
Case,control(outdoor) L-G-MBN62702701
...
W3110A
Case,control(outdoor) L-G-MBN62702601
...
W48604B
Clip L-G-4H01050A
...
55211G
Tube Assembly,expansion L-G-AJR74007704
...
135500
Cover L-G-MCK67086702
...
137213A
Panel Assembly,side L-G-AGL68979401
...
137213B
Panel Assembly,side L-G-AGL71499503
...
137215
Panel,control L-G-MGC62762301
...
148000
Supporter L-G-MJH56985703
...
152503
Nipple,drain L-G-4H01010A
...
165000
Sensor,pressure L-G-EBD62165604
...
237202
Panel,front L-G-MGC56983310
...
237204
Panel,side L-G-3720A20092D
...
249300
Holder,sensor L-G-MEG63259002
...
261704
Transformer,reactor L-G-EBJ61472403
...
263230A
Thermistor Assembly,ntc L-G-EBG61406002
...
263230B
Thermistor Assembly,ntc L-G-EBG61405902
...
263230C
Thermistor Assembly,ntc L-G-EBG61445811
...
263230D
Thermistor Assembly,ntc L-G-EBG61445905
...
263230E
Thermistor Assembly,ntc L-G-EBG61446002
...
268711C
Pcb Assembly,sub L-G-EBR71503223
...
268711B
Pcb Assembly,sensor L-G-EBR74625811
...
268711A
Pcb Assembly,main L-G-EBR78106024
...
352111A
Tube Assembly,connector L-G-AJR75564601
...
352111B
Tube Assembly,connector L-G-AJR75564701
...
430410
Base Assembly,outdoor L-G-AAN68977833
...
435300
Grille,rear L-G-MDX61893203
...
435301
Grille,discharge L-G-MDX64292001
...
435512
Cover Assembly,top(outdoor) L-G-ACQ68979305
...
435513
Cover Assembly,tubing L-G-ACQ85982705
...
437211
Panel Assembly,front(outdoor) L-G-AGL74873601
...
447910
Barrier Assembly,outdoor L-G-AAM68980821
...
546810
Motor Assembly,dc,outdoor L-G-EAU57945702
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA71499601
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
552112
Tube Assembly,condenser(in) L-G-AJR74043403
...
552116
Tube Assembly,reverse L-G-AJR74007504
...
552200
Valve, Expansion Body L-G-5220A90001R
...
552202
Valve,reverse L-G-5220AR3228W
...
552203A
Valve,service L-G-MJX62472208
...
552203B
Valve,service L-G-MJX62451504
...
552560
Muffler L-G-5256A30003C
...
554031
Condenser Assembly,bending L-G-ACG69396017
...
554160
Compressor Set,china L-G-TBZ37259301
...
559010
Fan Assembly,propeller L-G-ADP67804501
...
561410
Coil Assembly,reverse L-G-EAP64467709
...
649950
Case Assembly,control(outdoor) L-G-ABQ74460804
...
661400
Coil,expansion L-G-EAP30616909

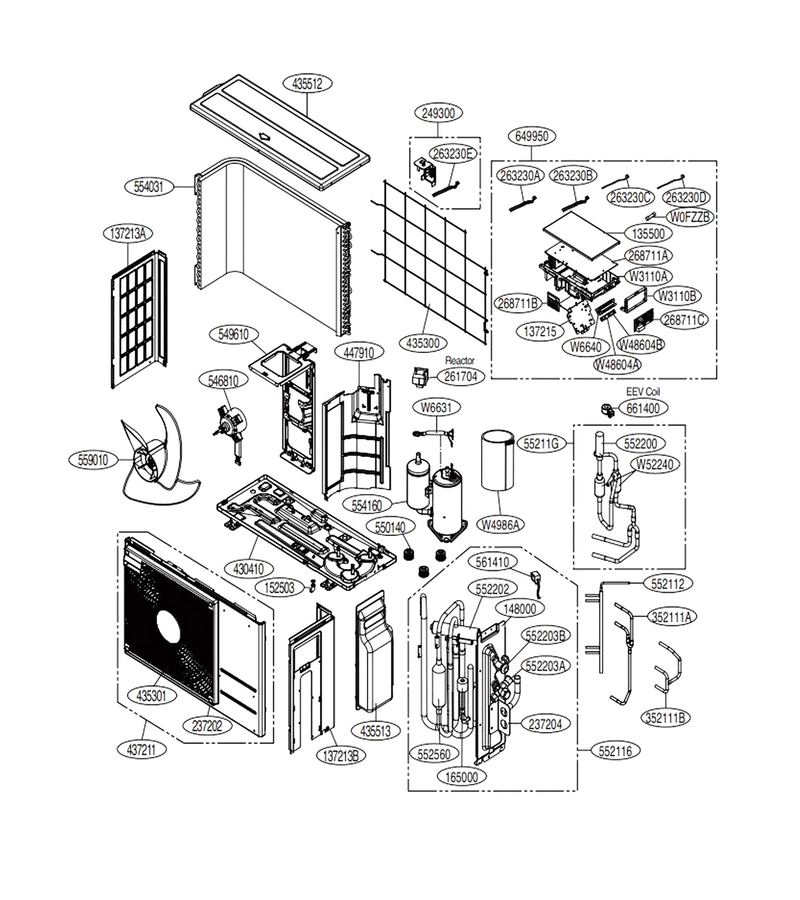

Schematic Image Zoomed
