product name

LG LUTG4519SN.ASTELGA

Model: LUTG4519SN.ASTELGA

Save Part Not Listed?
product name

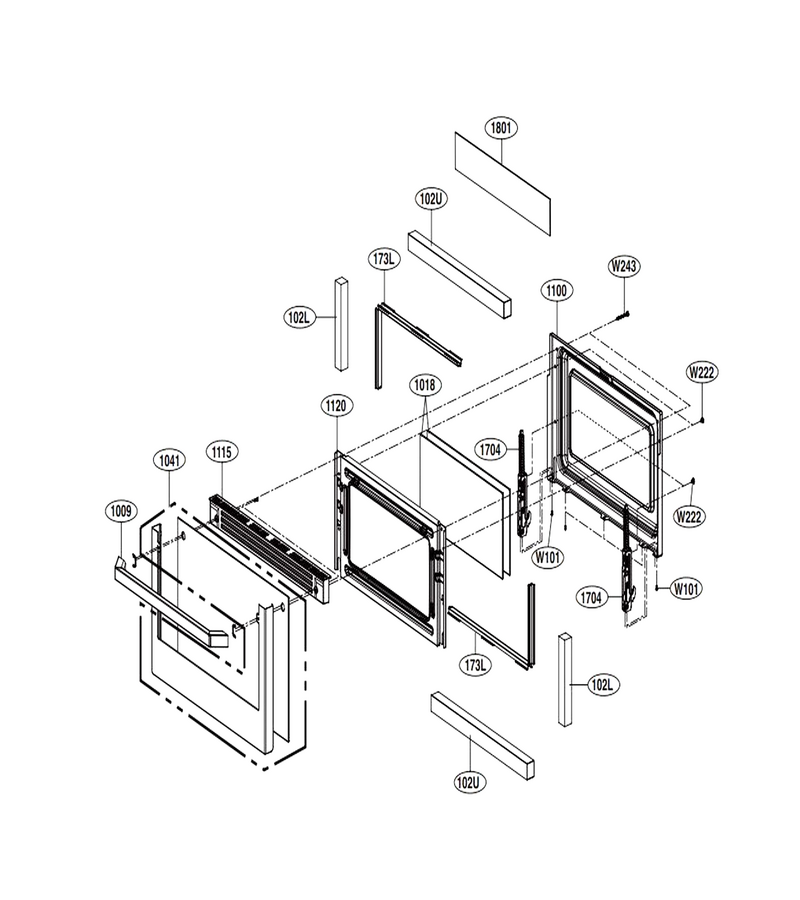

Lower Door Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W222
Drawing Screw L-G-1SZZW5N001C
...
W243
Cstm Screw L-G-1SZZW5N001H
...
102L
Insulator L-G-MEV65115511
...
102U
Insulator L-G-MEV65115513
...
173L
Mount Bracket L-G-MAZ64569403
...
1009
Handle Assembly L-G-AED74632901
...
1018
Glass L-G-4890W1N005W
...
1041
Cover Assembly,poise L-G-ACQ87912405
...
1100
Door Frame L-G-MDQ64177302
...
1115
Door Decor L-G-MCR65828301
...
1120
Inner Cover L-G-MCK68473501
...
1704
Hinge Assembly L-G-AEH75637207
...
1801
Plate,shield L-G-3300W1N003N

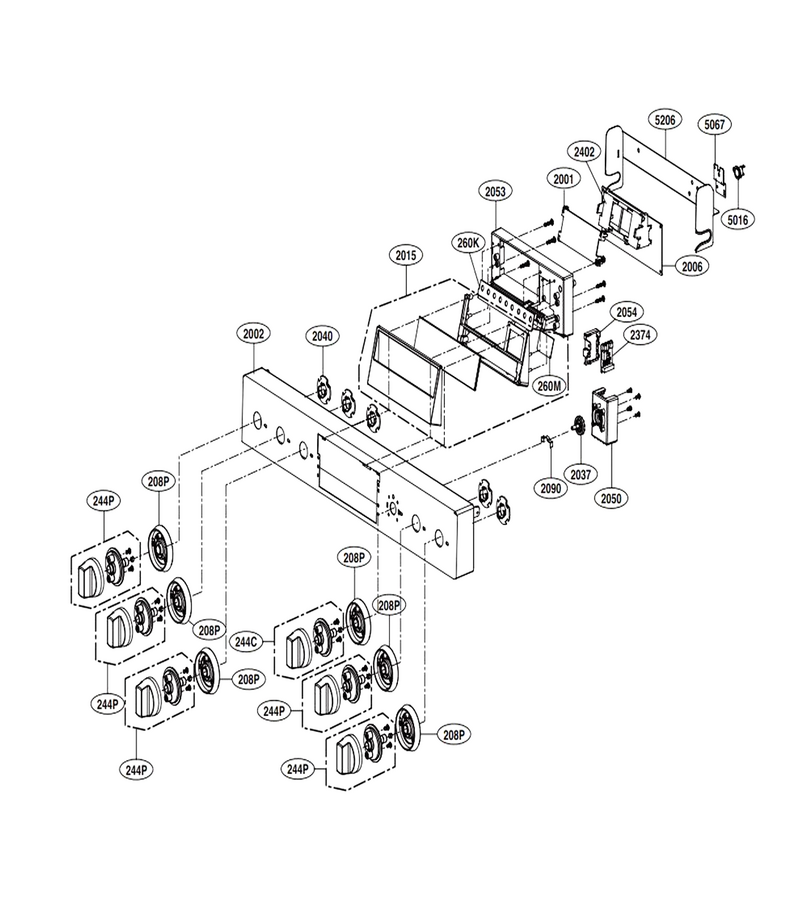

Controller Parts

...
...
208P
Ring Assembly L-G-AHH73109201
...
244C
Knob Assembly L-G-AEZ74653703
...
244P
Knob Assembly L-G-AEZ74653701
...
260K
Pcb Assembly,sub L-G-EBR82864102
...
260M
Pcb Assembly,option L-G-EBR82864201
...
2001
Display Cover L-G-MCK68548601
...
2002
Panel,control L-G-MGC64258913
...
2006
Pcb Assembly,main L-G-EBR81445904
...
2015
Controller Assembly,sub L-G-ACM75039302
...
2037
Supporter L-G-MJH63756902
...
2040
Knob L-G-MEY63494001
...
2053
Supporter,pcb L-G-MJH64534101
...
2054
Supporter,pcb L-G-MJH64434801
...
2374
Pcb Assembly,module L-G-EBR82056913
...
2402
Supporter,pcb L-G-MJH64534201
...
5016
Microwave Thermostat L-G-6930W1A003J
...
5067
Bracket,?m L-G-4810W3G135A
...
5206
Duct L-G-MCZ63532201

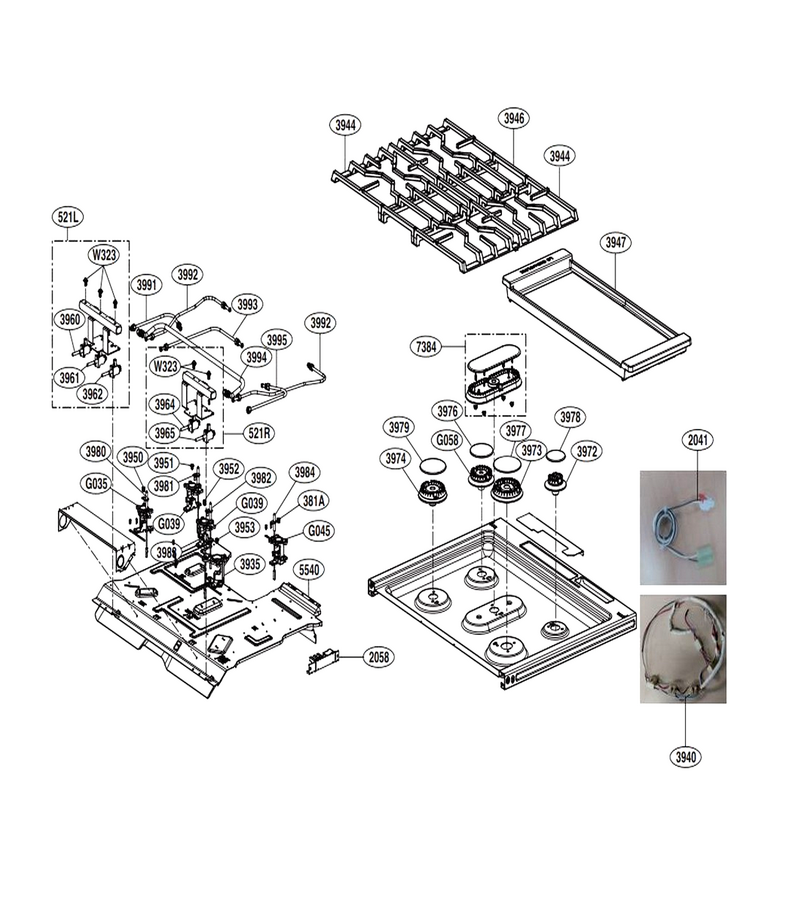

Cooktop Parts

...
...
G035
Burner L-G-MBE61841506
...
G039
Burner L-G-MBE61841306
...
G045
Burner L-G-MBE61841405
...
G058
Burner L-G-MBE61842005
...
381A
Nozzle L-G-MFV61841526
...
521L
Pipe Assembly L-G-AGR75305503
...
521R
Pipe Assembly L-G-AGR75305504
...
2041
Harness L-G-EAD60700211
...
2058
Transformer,power L-G-EBJ62730001
...
3935
Tube,burner L-G-MJU64269503
...
3940
Switch Assembly L-G-EBF63854403
...
3944
Grille Assembly L-G-AEB75005002
...
3946
Grille Assembly L-G-AEB75005202
...
3947
Grille Assembly L-G-AEB75024703
...
3950
Nozzle L-G-MFV61841503
...
3951
Nozzle L-G-MFV61841521
...
3952
Nozzle L-G-MFV61841519
...
3953
Nozzle L-G-MFV61841520
...
3960
Valve L-G-MJX61842222
...
3961
Valve L-G-MJX61842221
...
3962
Valve L-G-MJX61842219
...
3964
Valve L-G-MJX61842218
...
3965
Valve L-G-MJX61842222
...
3972
Burner L-G-MBE61842504
...
3973
Burner L-G-MBE62002903
...
3974
Burner L-G-MBE61842104
...
3976
Cap,burner L-G-MBL61908506
...
3977
Cap,burner L-G-MBL66377906
...
3978
Cap,burner L-G-MBL61908706
...
3979
Cap,burner L-G-MBL61908606
...
3980
Cable,assembly L-G-EAD60700547
...
3981
Cable,assembly L-G-EAD60700548
...
3982
Cable,assembly L-G-EAD60700549
...
3983
Cable,assembly L-G-EAD60700551
...
3984
Cable,assembly L-G-EAD60700550
...
3991
Pipe L-G-MGE63711701
...
3992
Pipe L-G-MGE63711801
...
3993
Pipe L-G-MGE63711901
...
3994
Pipe L-G-MGE63712002
...
3995
Pipe L-G-MGE63712101
...
5540
Duct Assembly L-G-ADJ74172301
...
7384
Burner Assembly L-G-ABF73729805

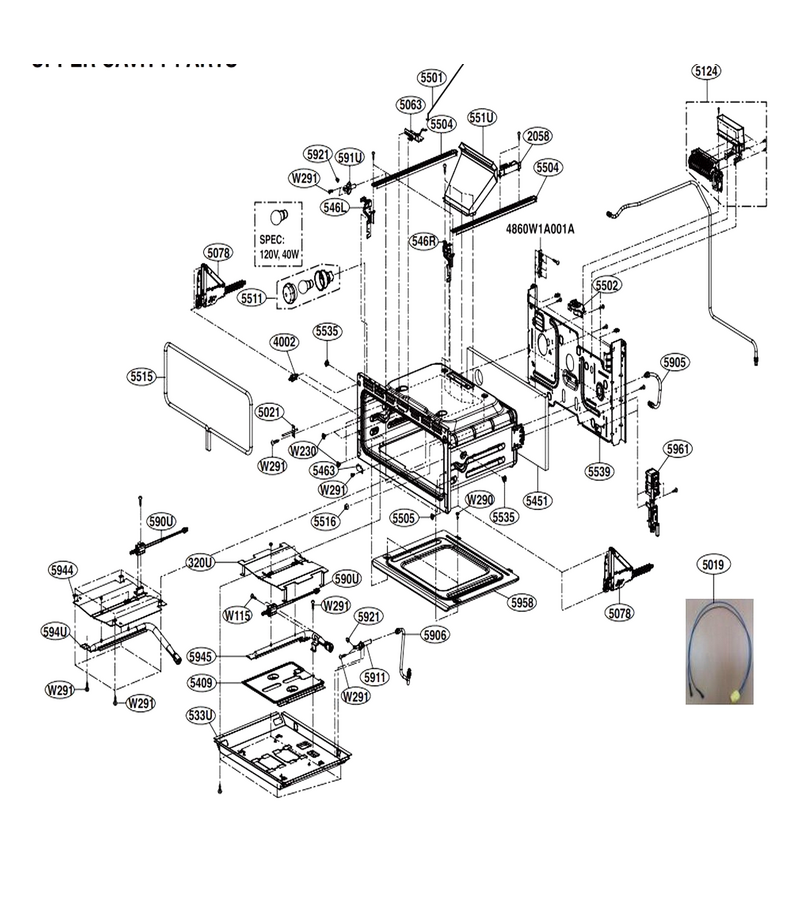

Upper Cavity Parts

...
...
W230
Drawing Screw L-G-1SZZW5N001A
...
W290
Range Oven Bottom Panel Screw L-G-FAB30264901
...
W291
Screw L-G-1SZZW2A004E
...
320U
Heater Cover L-G-MCK68473701
...
533U
Case L-G-MBN63844701
...
546L
Bracket L-G-MAZ64568802
...
546R
Bracket L-G-MAZ64568801
...
551U
Vent Assembly L-G-AJV73149409
...
590U
Range Oven Burner Igniter L-G-MEE63084901
...
591U
Nozzle Holder L-G-MEG61851202
...
594U
Burner Assembly L-G-ABF73569801
...
4002
Switch L-G-EBF60663403
...
5019
Range Wire Harness L-G-EAD61076101
...
5021
Range Oven Temperature Sensor L-G-EBG61305805
...
5063
Bracket Assembly L-G-ABA75389602
...
5409
Insulator L-G-MEV64078601
...
5451
Insulator L-G-MEV65273802
...
5463
Bracket L-G-MAZ61859501
...
5501
Bar L-G-MAK61907202
...
5502
Motor Assembly L-G-EAU62862901
...
5504
Supporter L-G-MJH63775301
...
5505
Supporter L-G-4980W1N013A
...
5511
Lamp,incandescent L-G-6913W1N002H
...
5515
Packing Gasket L-G-MFZ64539601
...
5516
Packing Seal L-G-3920W1N013A
...
5535
Supporter L-G-MJH63776501
...
5539
Panel L-G-MGC63820001
...
5905
Pipe L-G-MGE63639201
...
5906
Pipe L-G-MGE63639401
...
5921
Nozzle L-G-MFV61841412
...
5944
Burner Assembly L-G-ABF73009703
...
5945
Burner Assembly L-G-ABF73569703
...
5958
Range Oven Bottom Liner L-G-MAM63685802
...
5961
Valve L-G-MJX62111702

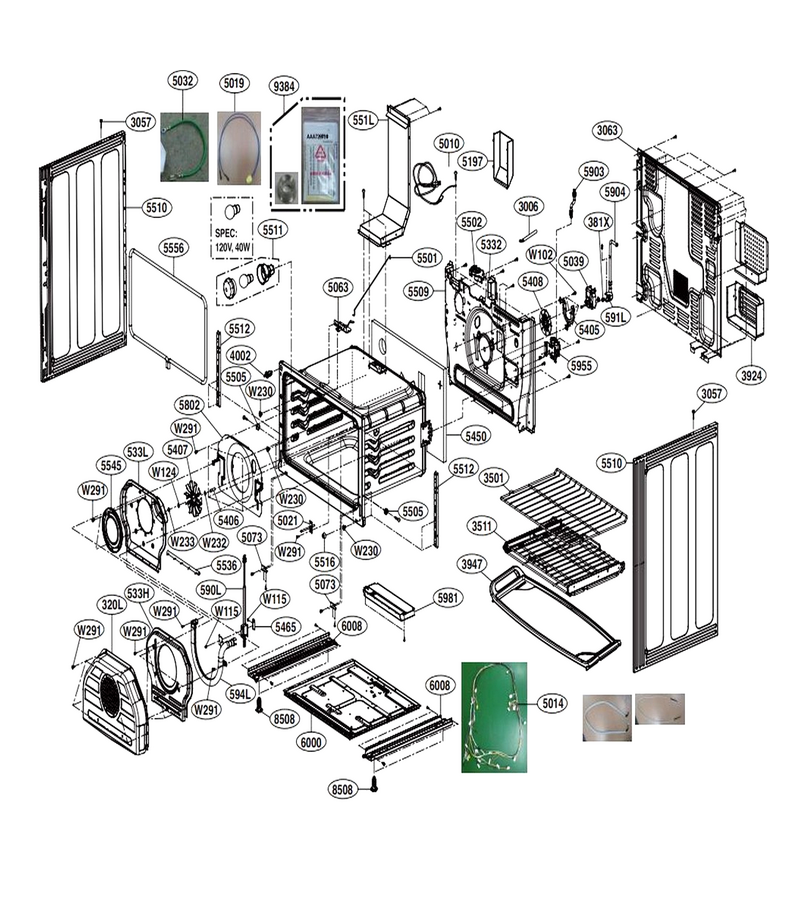

Cavity Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
W115
Screw L-G-4B73763A
...
W124
Washer,common L-G-1WSD0500075
...
W232
Washer L-G-1WZZ81N001A
...
W233
Hexagon Nut L-G-1NHB0500032
...
320L
Heater Cover L-G-MCK68513002
...
381X
Nozzle L-G-MFV61841523
...
533H
Case L-G-MBN63824401
...
533L
Case L-G-MBN63824501
...
551L
Vent Assembly L-G-AJV73349202
...
590L
Heater,plain L-G-MEE61841403
...
591L
Holder,nozzle L-G-MEG64179803
...
594L
Burner Assembly L-G-ABF73470001
...
3006
Lug (circ) L-G-4B72510F
...
3057
Packing L-G-3920W1N014A
...
3063
Cover,rear L-G-MCK68473806
...
3501
Shelf L-G-MHL63411408
...
3511
Shelf Assembly L-G-AHT74173804
...
4002
Switch L-G-EBF60663403
...
5010
Power Cord Assembly L-G-EAD60700408
...
5014
Harness,single L-G-EAD64146701
...
5019
Range Wire Harness L-G-EAD61076101
...
5021
Range Oven Temperature Sensor L-G-EBG61305805
...
5032
Range Wire Harness L-G-6877W1N024F
...
5039
Range Convection Fan Motor L-G-EAU62343001
...
5063
Bracket Assembly L-G-ABA75389602
...
5073
Motor Bracket L-G-MAZ40417401
...
5080
Range Oven Meat Probe Sensor L-G-EBD51431001
...
5197
Vent Cover L-G-MCK68473601
...
5332
Case L-G-MBN63844901
...
5405
Motor Bracket L-G-4810W1N060B
...
5406
Ring L-G-MGZ63607001
...
5407
Convection Fan L-G-MDG62882901
...
5408
Fan Blade L-G-3B72559A
...
5450
Insulator L-G-MEV65273702
...
5465
Bracket L-G-MAZ64725501
...
5501
Bar L-G-MAK61907202
...
5502
Motor Assembly L-G-EAU62862901
...
5504
Supporter L-G-MJH63775301
...
5505
Supporter L-G-4980W1N013A
...
5509
Panel L-G-MGC63820201
...
5510
Panel L-G-MGC62644017
...
5511
Lamp,incandescent L-G-6913W1N002H
...
5512
Hinge Bracket L-G-MAZ64788501
...
5516
Packing Seal L-G-3920W1N013A
...
5532
Decor,guard(rear) L-G-MCR66649902
...
5536
Packing,gasket L-G-MFZ64774602
...
5545
Supporter L-G-MJH63775201
...
5556
Packing,gasket L-G-MFZ64539702
...
5802
Plate L-G-MGJ64431401
...
5903
Pipe L-G-MGE63639001
...
5904
Pipe L-G-MGE63639301
...
5911
Nozzle Holder L-G-MEG62479803
...
5955
Range Pressure Regulator L-G-AMP30000002
...
5981
Guide Assembly,air L-G-AEC74277601
...
6000
Plate L-G-4960W0N001C
...
6008
Base Plate L-G-MGJ64431101
...
8508
Range Leveling Leg L-G-4778W1N001A
...
8511
Range Anti-Tip Bracket L-G-MAZ34877102

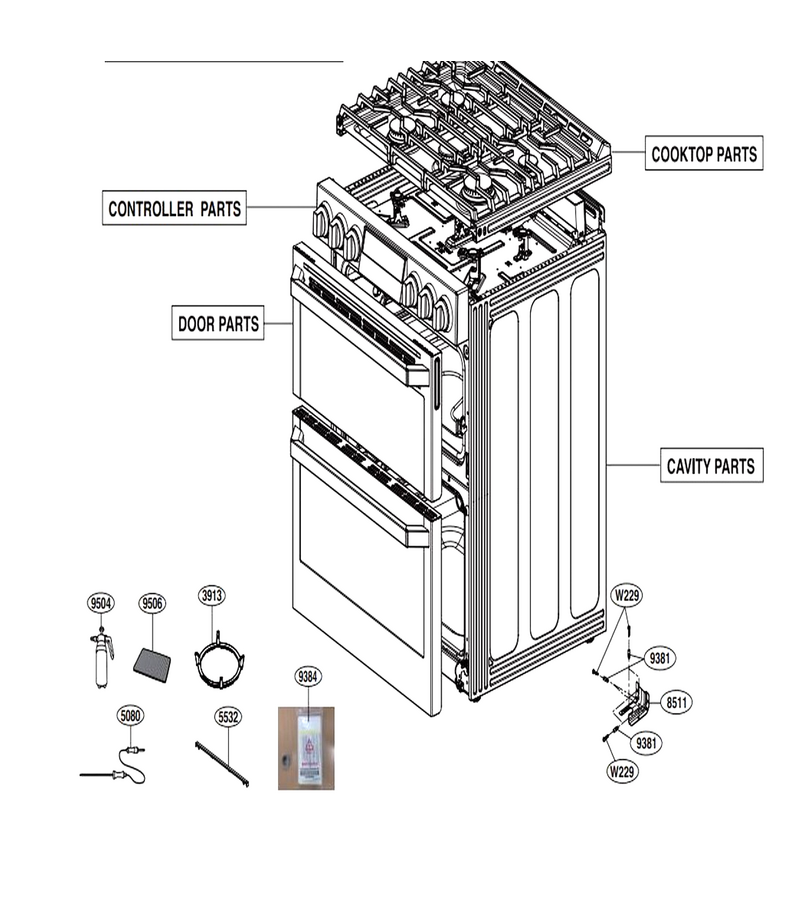

Main

...
...
W229
Screw L-G-1SZZW1N003A
...
3913
Grille L-G-MDX64192501
...
5080
Range Oven Meat Probe Sensor L-G-EBD51431001
...
5532
Decor,guard(rear) L-G-MCR66649902
...
8511
Range Anti-Tip Bracket L-G-MAZ34877102
...
9381
Anchor L-G-FAK30249601
...
9384
Accessory Assembly,nozzle L-G-AAA75946008
...
9504
Accessory Assembly L-G-AAA77169702
...
9506
Accessory Assembly L-G-AAA74970602

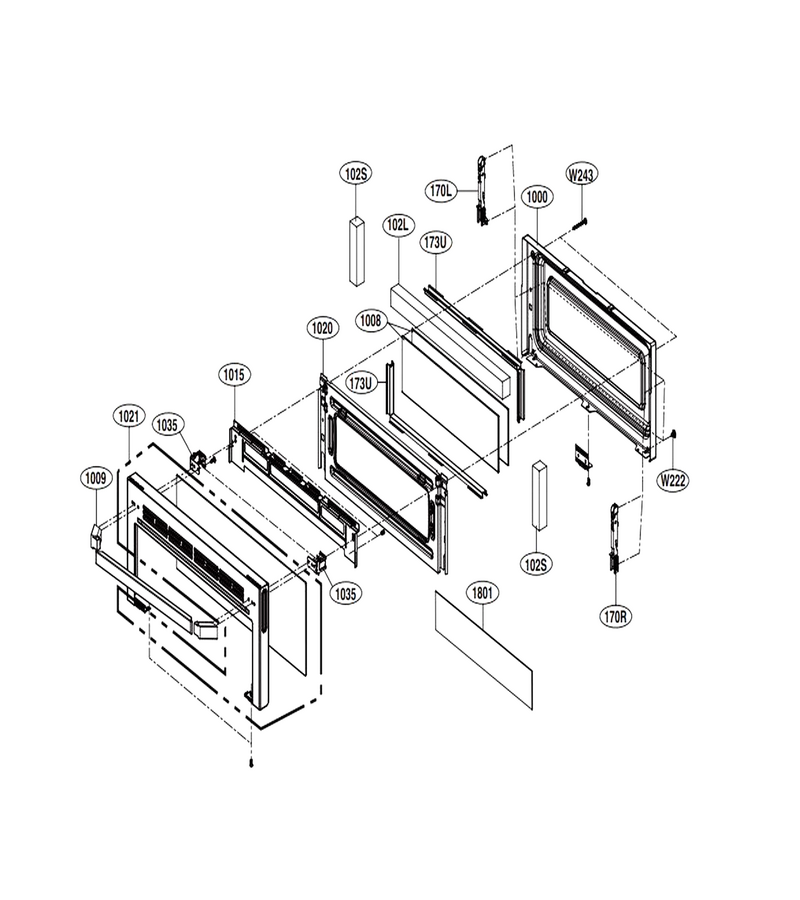

Upper Door Parts

...
...
W222
Drawing Screw L-G-1SZZW5N001C
...
W243
Cstm Screw L-G-1SZZW5N001H
...
102L
Insulator L-G-MEV65115511
...
102S
Insulator L-G-MEV65115512
...
170L
Bracket,hinge L-G-MAZ64607602
...
170R
Bracket,hinge L-G-MAZ64607601
...
173U
Mount Bracket L-G-MAZ64569402
...
1000
Door Frame L-G-MDQ64177102
...
1008
Window,glass L-G-4890W1N005S
...
1009
Handle Assembly L-G-AED74632901
...
1015
Guide,air L-G-MEA63970506
...
1020
Inner Cover L-G-MCK68473301
...
1021
Cover Assembly,poise L-G-ACQ87912307
...
1035
Supporter,handle L-G-MJH64673101
...
1801
Plate,shield L-G-3300W1N003N
